2016 Seat Alhambra jack points

The essentials
Important information about wheel bolts
The wheel rims
and bo
lts have been de-
signed to be fitted to factory options. If differ-
ent rims are fitted, the correct wheel bolts
with the right length and correctly shaped
bolt heads must be used. This ensures that
wheels are fitted securely and that the brake
system functions correctly.
In some circumstances, wheel bolts from the
same model vehicle should not be used.
Wheel bolt tightening torque
The prescribed tightening torque for wheel
bolts for steel and alloy wheels is 140 Nm.
Have the tightening torque of the wheel bolts
checked as soon as possible with a reliable
torque wrench.
If wheel bolts are rusty and it is difficult to
tighten them, the threads should be replaced
and cleaned before checking the tightening
torque.
Never grease or lubricate wheel bolts or the
wheel hub threads. Although they have been
tightened to the prescribed torque, they
could come loose while driving. WARNING
If the wheel bolts are not fitted correctly they
cou l

d be released while driving leading to
loss of vehicle control and serious damage. ●
Only u

se wheel bolts which correspond to
the wheel rims in question.
● Never use different wheel bolts.
● The bolts and threads should be clean, free
of oil
and grease and easy to thread.
● To loosen and tighten the wheel bolts, al-
way
s use the wheel brace supplied with the
vehicle.
● Loosen the wheel bolts only about one turn
before r
aising the vehicle with the jack.
● Never grease or lubricate wheel bolts or the
wheel hub thre
ads. Although they have been
tightened to the prescribed torque, they
could come loose while driving.
● Never loosen the bolted joints of wheel
rims with bo
lted ring trims.
● If the wheel bolts are not tightened to the
correct
torque, they may come loose while
driving, and the bolts and rims may come
out. If the tightening torque is too high, the
wheel bolts and threads can be damaged. Raising the vehicle with the jack
Fig. 70
Jack position points Fig. 71
Jack mounted on the left rear part of
the v
ehic

le The jack may be applied only at the jacking
points
sho
wn (m

arks on chassis) ››› Fig. 70.
The mark indicates the jacking points below
the vehicle. The jacking points are on the ribs
behind the front edges ››› Fig. 71. Always the
relevant jacking point for the wheel to be
changed ››› .
» 47

The essentials
Raise the vehicle using only the designated
j ac
k
ing points.
For your own safety and that of other passen-
gers, the following points should be ob-
served in the order given:
Select a suitable flat and firm surface for
raising the vehicle.
Switch off the engine, engage a gear
(manual gearbox) or place the selector
lever in position P ›››
 page 194 and
turn on the electronic parking brake
›››  page 189.
Block the wheel diagonally opposite the
wheel being changed with folding wheel
chocks* or other suitable objects.
When towing a trailer: unhook the trailer
from the towing vehicle and park it cor-
rectly.
Loosen the wheel bolts on the wheel to
be changed ››› page 46.
Look below the vehicle for the jacking
point ››› Fig. 70 closest to the tyre which
has to be changed.
Raise the jack with the handle until it
can be inserted below the jacking point.
Ensure that the foot of the jack is firmly
on the ground and that it is placed im-
mediately below the lifting point on the
vehicle ››› Fig. 71.
Straighten the jack and continue raising
it using the handle until the claw holds
1.
2.
3.
4.
5.
6.
7.
8.
9. the vertical reinforcement beneath the
vehicl
e ››› Fig. 71.
Raise the vehicle until the wheel is clear
of the ground. WARNING
If the vehicle is not correctly raised, it could
fa l

l off the jack causing serious injury. Please
observe the following rules to minimise the
risk of injury:
● You should only use a jack approved by
SEAT f
or your vehicle. Other jacks, even those
approved for other SEAT models, might slip
out of place.
● The ground should be firm and flat. If the
ground i
s sloped or soft then the vehicle
could slip and fall off the jack. If necessary,
support the jack on a wide solid base.
● If the ground is slippery, such as tiles,
plac
e a non-slip surface (a floor mat, for in-
stance) beneath the jack to avoid slipping.
● Only fit the jack at the prescribed jacking
points. The c
law of the jack should grip the
reinforcement nerve on the underbody
››› Fig. 71.
● You should never place a body limb such as
an arm or leg u
nder a raised vehicle that is
solely supported by the jack.
● If you have to work underneath the vehicle,
you mus
t use suitable stands additionally to
support the vehicle, there is a risk of acci-
dent!. 10. ●
Never r ai

se the vehicle if it is tilting to one
side or the engine is running.
● Never start the engine when the vehicle is
raised.
The vehicle may come loose from the
jack due to the engine vibrations. Removing and fitting the wheel
Fig. 72
Changing a wheel: loosen wheel bolts
w ith the soc
k

et at the end of the wheel brace Removing the wheel
● Slacken the wheel bolts ››
›
page 46.
● Raise the vehicle ›››
page 47.
● Using the hexagonal socket in the wheel
brace ›

›› Fig. 72, unscrew the slackened
wheel bolts and place them on a clean sur-
face.
● Take off the wheel. 48

Advice
may be exceeded. This is also the case if the
aeria
l
has not been correctly installed.
● A minimum of 20 centimetres should be
kept betw
een mobile phone aerials and artifi-
cial pacemakers, as mobile telephones may
affect the working of pacemakers.
● Do not keep mobile phones in breast pock-
ets dir
ectly above pacemakers.
● Switch off the mobile phone immediately if
you su
spect there may be interference. Support points for raising the vehicle
Fig. 233
Front jacking points for raising vehi-
c l
e w

ith lifting platform or jack Fig. 234
Rear jacking points for raising vehi-
cl e w

ith lifting platform or jack Always use the jacking points indicated in
the figur
e
s

››› Fig. 233 and ››› Fig. 234 when
raising the vehicle. If the vehicle is not lifted
at these points, it could be seriously dam-
aged ››› or lead to serious injury
››
›
.
The v
ehic
le should not be lifted using lifting
platforms with lift pads containing fluid.
When raising a vehicle using a platform or
jack, a series of precautionary measures are
required. Do not raise the vehicle with a lift-
ing platform or jack unless you have received
training in how to do so and know how to do
so safely.
Notes on raising the vehicle with a jack
›››  page 47. WARNING
The improper use of the lifting platform or
the jac k

when raising the vehicle may result
in accidents or serious injury.
● Before raising the vehicle, please observe
the manufact
urer's instructions for the plat-
form or jack, and the legal requirements,
where applicable.
● There should not be anyone inside the ve-
hicle when it
is being raised or once it is in
the air.
● Only use the jacking points indicated in the
figures
››› Fig. 233 and ››› Fig. 234 when rais-
ing the vehicle. If the vehicle is not lifted at
the indicated points, it may fall from the plat-
form while the engine or gearbox is being
dismounted, for example.
● The jacking points should be centrally
aligned and firmly
positioned on the platform
support plates.
● Never start the engine when the vehicle is
raised!
The vehicle may fall from the platform
due to the engine vibrations.
● If it is necessary to work underneath the ve-
hicle whi
le it is raised, you should check that
the supporting stands have an adequate load
capacity.
● Never climb onto the lifting platform.
● Always make sure that the weight of the ve-
hicle doe
s not exceed the lifting platform
load capacity. 252

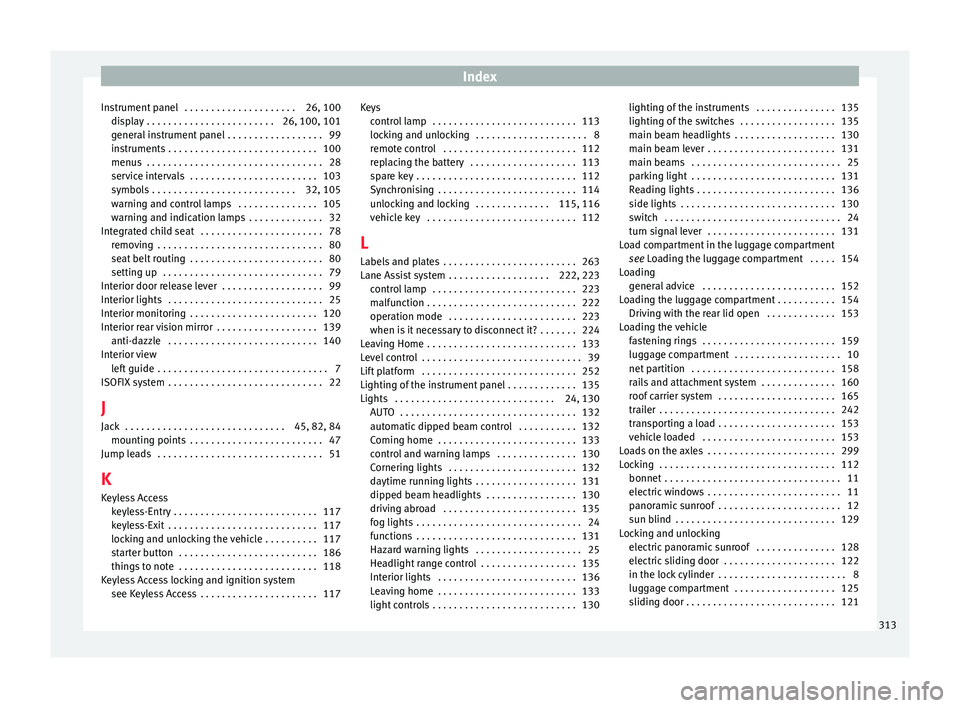

Index
Instrument panel . . . . . . . . . . . . . . . . . . . . . 26, 100 dis
p
lay . . . . . . . . . . . . . . . . . . . . . . . . 26, 100, 101
general instrument panel . . . . . . . . . . . . . . . . . . 99
instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
service intervals . . . . . . . . . . . . . . . . . . . . . . . . 103
symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 105
warning and control lamps . . . . . . . . . . . . . . . 105
warning and indication lamps . . . . . . . . . . . . . . 32
Integrated child seat . . . . . . . . . . . . . . . . . . . . . . . 78 removing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
seat belt routing . . . . . . . . . . . . . . . . . . . . . . . . . 80
setting up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Interior door release lever . . . . . . . . . . . . . . . . . . . 99
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Interior monitoring . . . . . . . . . . . . . . . . . . . . . . . . 120
Interior rear vision mirror . . . . . . . . . . . . . . . . . . . 139 anti-dazzle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Interior view left guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
ISOFIX system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
J Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 82, 84 mounting points . . . . . . . . . . . . . . . . . . . . . . . . . 47
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
K
Keyless Access keyless-Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
keyless-Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
locking and unlocking the vehicle . . . . . . . . . . 117
starter button . . . . . . . . . . . . . . . . . . . . . . . . . . 186
things to note . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Keyless Access locking and ignition system see Keyless Access . . . . . . . . . . . . . . . . . . . . . . 117 Keys
contro l lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
locking and unlocking . . . . . . . . . . . . . . . . . . . . . 8
remote control . . . . . . . . . . . . . . . . . . . . . . . . . 112
replacing the battery . . . . . . . . . . . . . . . . . . . . 113
spare key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Synchronising . . . . . . . . . . . . . . . . . . . . . . . . . . 114
unlocking and locking . . . . . . . . . . . . . . 115, 116
vehicle key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
L
Labels and plates . . . . . . . . . . . . . . . . . . . . . . . . . 263
Lane Assist system . . . . . . . . . . . . . . . . . . . 222, 223 control lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
malfunction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
operation mode . . . . . . . . . . . . . . . . . . . . . . . . 223
when is it necessary to disconnect it? . . . . . . . 224
Leaving Home . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Level control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Lift platform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Lighting of the instrument panel . . . . . . . . . . . . . 135
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 130 AUTO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
automatic dipped beam control . . . . . . . . . . . 132
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . . 133
control and warning lamps . . . . . . . . . . . . . . . 130
Cornering lights . . . . . . . . . . . . . . . . . . . . . . . . 132
daytime running lights . . . . . . . . . . . . . . . . . . . 131
dipped beam headlights . . . . . . . . . . . . . . . . . 130
driving abroad . . . . . . . . . . . . . . . . . . . . . . . . . 135
fog lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 25
Headlight range control . . . . . . . . . . . . . . . . . . 135
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Leaving home . . . . . . . . . . . . . . . . . . . . . . . . . . 133
light controls . . . . . . . . . . . . . . . . . . . . . . . . . . . 130 lighting of the instruments . . . . . . . . . . . . . . . 135
lighting of the sw
itches . . . . . . . . . . . . . . . . . . 135
main beam headlights . . . . . . . . . . . . . . . . . . . 130
main beam lever . . . . . . . . . . . . . . . . . . . . . . . . 131
main beams . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
parking light . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . . 136
side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . 131
Load compartment in the luggage compartment see Loading the luggage compartment . . . . . 154
Loading general advice . . . . . . . . . . . . . . . . . . . . . . . . . 152
Loading the luggage compartment . . . . . . . . . . . 154 Driving with the rear lid open . . . . . . . . . . . . . 153
Loading the vehicle fastening rings . . . . . . . . . . . . . . . . . . . . . . . . . 159
luggage compartment . . . . . . . . . . . . . . . . . . . . 10
net partition . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
rails and attachment system . . . . . . . . . . . . . . 160
roof carrier system . . . . . . . . . . . . . . . . . . . . . . 165
trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 242
transporting a load . . . . . . . . . . . . . . . . . . . . . . 153
vehicle loaded . . . . . . . . . . . . . . . . . . . . . . . . . 153
Loads on the axles . . . . . . . . . . . . . . . . . . . . . . . . 299
Locking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 bonnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
electric windows . . . . . . . . . . . . . . . . . . . . . . . . . 11
panoramic sunroof . . . . . . . . . . . . . . . . . . . . . . . 12
sun blind . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Locking and unlocking electric panoramic sunroof . . . . . . . . . . . . . . . 128
electric sliding door . . . . . . . . . . . . . . . . . . . . . 122
in the lock cylinder . . . . . . . . . . . . . . . . . . . . . . . . 8
luggage compartment . . . . . . . . . . . . . . . . . . . 125
sliding door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
313
