Sièges avant à commandes manuelles (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Table function
Depending on the vehicle, the passen-
ger seatback may be folded down onto
the seat base to create a table.
Lower the headrest, move the seat
back, tilt handle

6
and completely lower
the seatback.
6
For your safety, attach any
transported objects when
the seat is in the table po-
sition.
fRONT sEATs WITH mANUAL c ONTROL (2/2)
5
To adjust the lumbar support
on the driver’s seat
Lower handle 5 to increase the support
and lift to decrease it.
When the front seat is in
table position, the front pas-
senger air bag must be dis-
abled (see information on
“Child safety: activating/deactivat-
ing the front passenger air bag” in
Section 1).
Risk of serious injury caused by
items resting on the seatback table
which may be dislodged when the
air bag is deployed.
The label (on the dashboard) and
the markings (on the windscreen)
remind you of these instructions.

1.26
ENG_UD21483_5
Dispositifs complémentaires aux ceintures avant (X95 - B95 - D95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
mETHOds Of REsTRAINT IN AddITION TO THE fRONT sEAT BELTs (2/4)
Load limiter
Above a certain severity of impact, this
mechanism is used to limit the force of
the belt against the body so that it is at
an acceptable level.
Anti-submarining air bag
Located on each of the front seats, it
deploys in order to prevent the occu-
pant from sliding under the seat belt.
Air bags for driver and front
passenger
Fitted to the driver and passenger side.
Depending on the vehicle, the pres-
ence of this equipment is indicated
by the word “Airbag” on the steering
wheel, dashboard (air bag zone
A) and
a symbol on the lower section of the
windscreen.
Each air bag system consists of:
–

a
n air bag and gas generator fitted
on the steering wheel for the driver
and in the dashboard for the front
passenger;
–

an
electronic unit for system monitor-
ing which controls the gas generator
electrical trigger system;
–

remote sensors;
–


a
single warning light
å on the
instrument panel.
A
The air bag system uses
pyrotechnic principles. This
explains why, when the air
bag inflates, it will gener-
ate heat, produce smoke (this does
not mean that a fire is about to start)
and make a noise upon detonation.
In a situation where an air bag is
required, it will inflate immediately
and this may cause some minor, su-
perficial grazing to the skin or other
problems.

JauneNoirNoir texte
1.27
ENG_UD21483_5
Dispositifs complémentaires aux ceintures avant (X95 - B95 - D95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
mETHOds Of REsTRAINT IN AddITION TO THE fRONT sEAT BELTs (3/4)
Operation
This system is only operational when
the ignition is switched on.
In a severe frontal impact, the air bags
inflate rapidly, cushioning the impact
of the driver’s head and chest against
the steering wheel and the front pas-
senger against the dashboard. The air
bags then deflate immediately so that
the passengers are not in any way hin-
dered from leaving the vehicle.
special feature of the front air
bag
After a violent impact, it has two deploy-
ment volumes and integrates a ventila-
tion system:
–

small
volume air bag, this is the first
stage of operation;
–

l
arge volume air bag, the air bag
seams rip so that a larger volume of
gas is released into the bag (for the
most severe impacts).

1.28
ENG_UD21483_5
Dispositifs complémentaires aux ceintures avant (X95 - B95 - D95 - R\
enault)
ENG_NU_837-8_BDK95_Renault_1
mETHOds Of REsTRAINT IN AddITION TO THE fRONT sEAT BELTs (4/4)
Warnings concerning the driver’s air bag
–
Do not modify the steering wheel or the steering wheel boss.
–

Do not cover the steering wheel boss under any circumstances
.
–

Do not attach any objects (badge, logo, clock, telephone holde
r, etc.) to the steering wheel boss.
–

The steering wheel must not be removed (except by qualified
personnel from our Network).
–

When
driving, do not sit too close to the steering wheel. Sit with your arms slightly bent (see the information on “Adjusting
your driving position” in Section 1). This will allow sufficient space for the air bag to deploy correctly and be fully effective.
Warnings concerning the passenger air bag
–

Do not attach or glue any objects (badge, logo, clock, telephon
e holder, etc.) to the dashboard on or near the air bag.
–

Do not place anything between the dashboard and the passen
ger (pet, umbrella, walking stick, parcels, etc.).
–

The

passenger must not put his or her feet on the dashboard or seat as there is a risk that serious injuries may occur. In
general, parts of the body should be kept away from the dashboard (knee\
s, hands, head, etc.).
–

The

devices in addition to the front passenger seat belt should be reactivated as soon as a child seat is removed, to ensure
the protection of the passenger in the event of an impact.
A REAR-
f
A
c IN g c HIL d s EAT m U s T NOT BE f ITTE d TO THE f RONT p
A
ss EN g ER s EAT UNLE ss
THE A
dd ITIONAL RE s TRAINT s Y s TE ms , I.E. THE p
A
ss EN g ER AIR BA g , ARE d EA c TI v
A
TE d .
(refer to the information on “Child safety: deactivating/activating \
the front passenger air bag” in Section 1)
Warnings concerning the anti-submarining air bag
Do not let a child under the age of 12 sit in this seat. When triggered, the anti-submarining air bag may project objects left on
the seat base with a great deal of force.
Risk of serious injury.
All of the warnings below are given so that the air bag is not obstructed in any way when it is inflated and also to prevent
the risk of serious injuries caused by items which may be dislodged when\
the air bag inflates.

1.44
ENG_UD18912_4
Sécurité enfants : désactivation/activation airbag passager ava\
nt (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
cHILd sAfETY: deactivating/activating the front passenger air bag (2/3)
3
dANgER
Since operation of the front
passenger air bag is not
compatible with the position
of a rear-facing child seat, NE
vE

R
fit a rear-facing child seat on a front
passenger seat with an active front
air bag. The child may suffer very
serious injuries if the air bag is trig-
gered.
The markings on the dashboard and
labels A on each side of passenger sun
blind
3

(example: label shown above)
remind you of these instructions.
A
A

driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.46
ENG_UD6281_1
Poste de conduite direction à gauche (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
Driving position
dRIvINg pOsITION: LEfT- HAN d d RI v E (1/2)
1234567891011
12131415
16
17
18
19
202122242523

driver’s position .................................... (up to the end of the DU)
controls ................................................. (up to the end of the DU)
dashboard............................................. (up to the end of the DU)
1.48
ENG_UD6282_1
Poste de conduite direction à droite (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_1
Jaune NoirNoir texte
dRIvINg pOsITION: RIgHT- HAN d d RI v E (1/2)
2378
17
11
23
610
151612
25
20
9
24
13
54
14
22
1
21
18
19
17

heating system ..................................... (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
ventilation ............................................. (up to the end of the DU)
air conditioning ..................................... (up to the end of the DU)
3.4
ENG_UD6312_1
Air conditionné (X95 - B95 - D95 - Renault)
ENG_NU_837-8_BDK95_Renault_3
Jaune NoirNoir texte

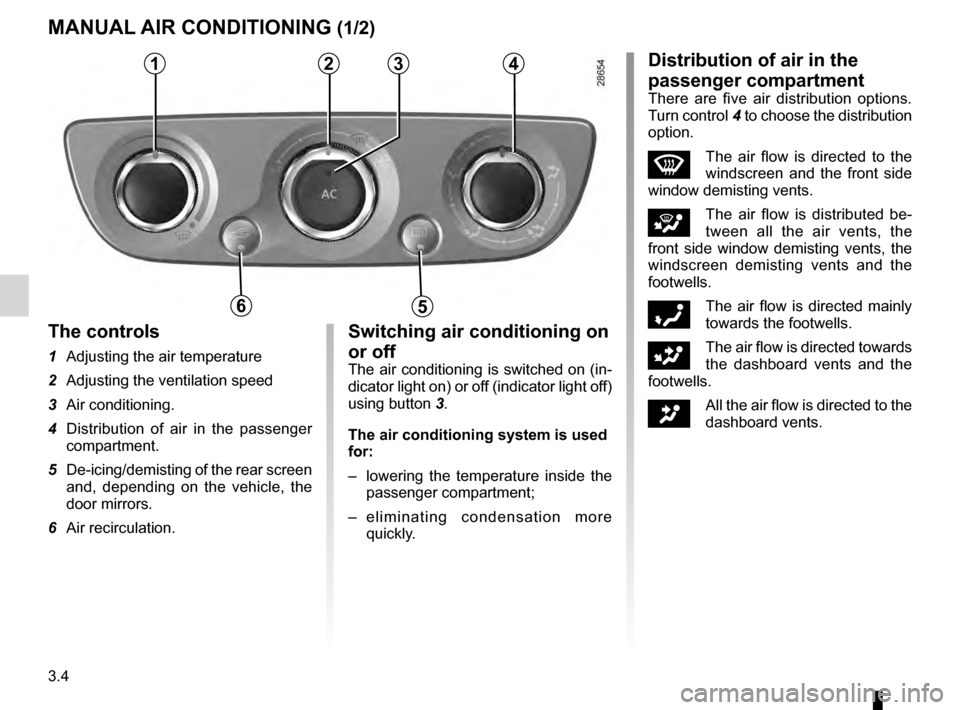

Manual air conditioning
