1.61
ßFront seat belt reminder
warning light
This lights up on the central display
when starting the engine then, if the dri-
ver’s or front passenger’s seat belt (if
this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes
and a bleep sounds for around 120 se-
conds.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
Rear seat belt reminder (depending
on vehicle)
Warning light
ß lights up on the
central display, accompanied by a mes-
sage on the instrument panel, indica-
ting the number of seat belts buckled
for approximately 30 seconds each:
– the vehicle is started;
– a door is opened;
– a rear seat belt is fastened or unfas- tened.
Check that the rear passengers are
wearing seat belts and that the number
of seat belt shown as fastened corres-
ponds to the number of rear bench seat
places occupied.
WARNING LIGHTS (4/4)
LLow fuel level warning light
This lights up when the igni-
tion is switched on and goes out after
a few seconds. If it comes on when dri-
ving and is accompanied by a beep, fill
up with fuel as soon as possible. There
is only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on.
Driving correction device
warning light
Refer to information on “Driver correc-
tion devices and aids” in Section 2.
Lane departure system war-
ning light
Please refer to the information on “Lane
departure warning” in Section 2.
ÜNot used
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
 Tyre pressure monitoring
system
Refer to the information on the “Tyre
pressure monitoring system” in
Section 2.

1.64
Trip computer and warning
system 1
Depending on the vehicle, this includes
the following functions:
– distance travelled;
– journey parameters;
– information messages;
– operating fault messages (con-
nected to the warning light
©);
– warning messages (connected to the
® warning light);
– vehicle settings customisation menu.
All these functions are described on the
following pages.
Display selection keys 2
and 3
Scroll through the following informa-
tion upwards (button 2) or downwards
(button 3 ) by pressing briefly and suc-
cessively (the display depends on the
vehicle equipment and country).
a) total mileage and trip mileage re-
corder;
b) journey parameters: – fuel used;
– average fuel consumption;
– current fuel consumption;
– estimated range;
– distance travelled;
– average speed;
1
2
3
c) mileage before service;
d) tyre pressure reset;
e) vehicle settings customisation menu;
f) trip log, operating faults and informa- tion message readout.
TRIP COMPUTER: general information (1/2)

1.70
ON-BOARD COMPUTER: trip settings (5/6)
The display of information shown below DEPENDS ON THE VEHICLE EQUIPMENT \
AND COUNTRY.
Examples of selectionsInterpreting the display selected
d) Tyre pressure monitor
Refer to the information on the “Tyre pressure monitor”
in Section 2.
FRONT TYRES
2.2 2.2
REAR TYRES
2.2 2.2

1.74
TRIP COMPUTER AND WARNING SYSTEM: warning message
These appear with the ® warning light and require you to stop immediately, for your own safety, as soon as traffic
conditions allow. Stop your engine and do not restart it. Contact an approved Dealer.
Examples of warning messages are given in the following pages. Note: the messages appear on the display either individually
or alternately (when there are several messages to be displayed), and \
may be accompanied by a warning light and/or a beep.
Examples of messages Interpreting the display selected
“Engine failure hazard” Indicates engine overheating, or an injection or engine oil pressure fau\
lt.
“Power steering fault ” or
“Risk of steering locking ” Indicates a fault in the steering.
“Parking brake fault” Indicates an electronic parking brake fault. Apply the electronic parking brake manually
and ensure that the vehicle is immobilised using a chock.
“Battery charging fault” Indicates a fault in the vehicle battery charging circuit (alternator e\
tc.).
“Puncture” Indicates a puncture on the tyre displayed on the instrument panel.

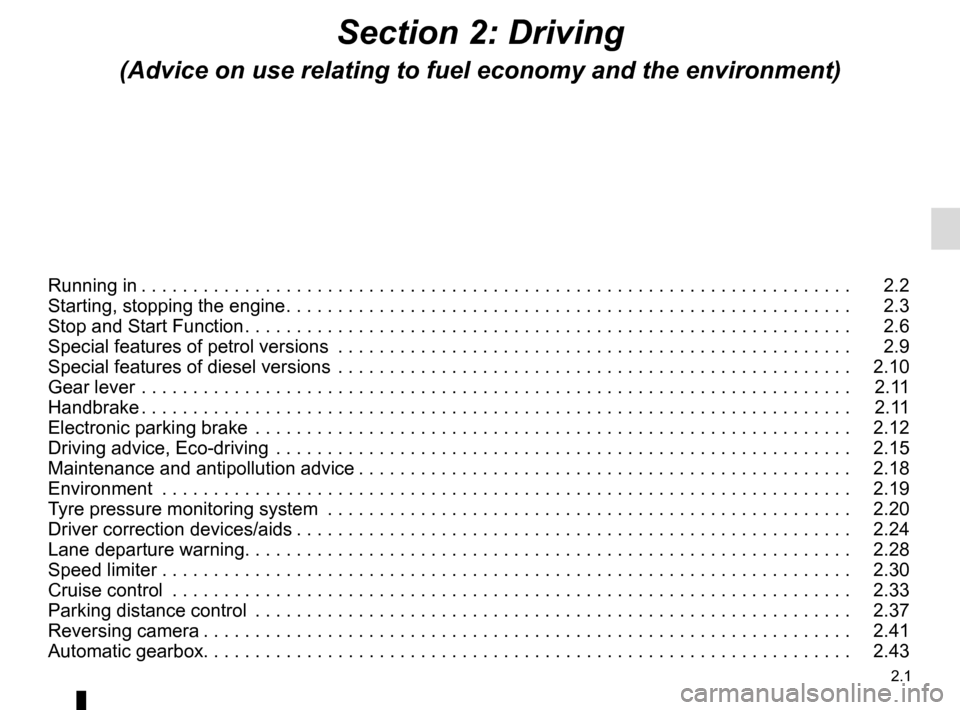

2.1
Section 2: Driving
(Advice on use relating to fuel economy and the environment)
Running in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.2
Starting, stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . 2.3
Stop and Start Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 2.6
Special features of petrol versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.9
Special features of diesel versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . 2.10
Gear lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.11
Electronic parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.12
Driving advice, Eco-driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . 2.15
Maintenance and antipollution advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 2.18
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.19
Tyre pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . 2.20
Driver correction devices/aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . 2.24
Lane departure warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . 2.28
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.30
Cruise control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.33
Parking distance control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . 2.37
Reversing camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . 2.41
Automatic gearbox. . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.43

2.20
If the vehicle is equipped with the func-
tion, this system monitors the tyre pres-
sure.
Operating principleEach wheel (except for the emergency
spare wheel) has a sensor in the infla-
tion valve which periodically measures
the tyre pressure. The system informs
the driver via the display 1 and on-
board computer 2 that the tyres are suf-
ficiently inflated and warns if they are
underinflated or leaking. The warning
light 4
 on the instrument panel
comes on to warn the driver if the pres-
sure is too low. It should always be done after checking
the tyre pressure of all four tyres when
cold.
Tyre pressures must correspond to the
current usage of the vehicle (empty,
carrying a load, motorway driving, etc.).
With the ignition on:
– Make short presses on the control
3
to select the tyre pressure display
(see “On-board computer: settings”
in Section 1);
– press and hold (around 3 seconds) the button 3 to launch the reset. A
flashing tyre followed by the mes-
sage “Pressure ref Ongoing” indi-
cates that the request to learn the
reference pressure has been taken
into account;
– reset can take several minutes of driving.
TYRE PRESSURE MONITORING SYSTEM (1/4)
12
3
Resetting the standard level
for the tyre pressures
This should be done:
– when the standard tyre pressure needs to be changed to adapt to
usage conditions (empty, carrying a
load, motorway driving, etc.);
– after swapping wheels over (how- ever this practice is not recom-
mended);
– after changing a wheel.
This function is an additio-
nal driving aid.
However, the function does
not take the place of the
driver. It cannot, therefore, under
any circumstances replace the vig-
ilance or the responsibility of the
driver.
Check the tyre pressures, including
the emergency spare wheel, once a
month.
4

2.21
Display
The warning light 4  on the in-
strument panel along with the display 1,
and messages on the display 2 indicate
any tyre pressure faults (flat tyre, punc-
tured tyre, system fault, etc.).
TYRE PRESSURE MONITORING SYSTEM (2/4)
1“Puncture”
The wheel A, together with the warn-
ing light 4
, indicates that the af-
fected wheel is punctured or severely
underinflated. Replace it or contact an
authorised dealer if it is punctured. Top
up the tyre pressure if the wheel is de-
flated.
This message appears along with the
® warning light.
“Adjust tyre pressure”
A coloured wheel A, together with the
warning light 4
, indicates a flat
tyre.
Check and, if necessary, readjust the
pressures of the four wheels when cold.
While driving the warning light 4

goes off after a few minutes.
A
2
Warning light ® re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
The sudden loss of pressure in a
tyre (burst tyre, etc.) cannot be de-
tected by the system.
4

2.22
TYRE PRESSURE MONITORING SYSTEM (3/4)
“CHECK TYRE PRESSURE
SENSORS”
The warning light
 flashes for
several seconds, then stays on, along
with the message “CHECK TYRE
PRESSURE SENSORS” and a missing
wheel B.
This message appears along with the
© warning light.
This message appears when at least
one wheel fitted on the vehicle does not
have sensors (e.g. emergency spare
wheel). In other cases, contact an au-
thorised dealer.
Replacing wheels/tyres
This system requires specific equip-
ment (wheels, tyres, sensors, etc.).
Contact an authorised dealer to replace
the tyres and to find out about avail-
able accessories compatible with the
system: the use of any other accessory
could affect the correct operation of the
system or damage a sensor.
Changing a wheel
The system may take sev-
eral minutes depending on
use for the new wheel po-
sitions and pressures to be recog-
nised; check the tyre pressures after
all operations.
5
5
6
Interchangeability of wheelsIf you wish to swap the wheels around,
please consult an approved dealer to
reinitialise the system.
Each of the sensors incor-
porated in the valves 5 is
dedicated to a single wheel:
under no circumstances
should you swap the wheels, with-
out resetting the system.
There is a risk of incorrect informa-
tion which could have serious con-
sequences.
B
