2016 RENAULT MEGANE COUPE CABRIOLET tow bar

3.28
TRANSPORTING OBJECTS towbar
A = 1089 mm
Permissible nose weight, maxi-
mum permissible towing weight,
braked and unbraked: refer to
the information on “Weights” in
Section 6.
Choice and fitting of towing
equipment
Maximum weight of towing equip-
ment: 22 kg
For fitting and conditions of use,
refer to the equipment’s fitting in-
structions.
Please keep these instructions with
the rest of the vehicle documenta-
tion.
If the towbar ball obscures the regis-
tration plate or the rear fog lights, it
should be removed when not in use.
In all cases, comply with local leg-
islation.
A

4.12
TYRE PRESSURE (1/2)
A
Label A
Open the door to read it.
Tyre pressures should be checked
when the tyres are cold.
If the tyre pressures cannot be checked
when the tyres are cold, increase the
pressures from 0.2 to 0.3 bar (or 3 PSI).
Never deflate a hot tyre. Vehicle fitted with a tyre pressure
monitoring system
If under-inflated (puncture, low pres-
sure, etc.), the warning light

lights up on the instrument panel;
please refer to “Tyre pressure loss
warning” or “Tyre pressure monitoring
system” in Section 2.
Special note concerning fully laden
vehicles (Maximum Permissible All-Up
Weight) and towing a trailer: the maxi-
mum speed must be limited to 60 mph
(100 kph) and the tyre pressure in-
creased by 0.2 bar.
Please refer to the information on
“Weights” in Section 6. Tyre safety and use of snow chains:

Refer to the information on “Tyres” in
Section 5 for the servicing conditions
and, depending on the version, the use
of chains.

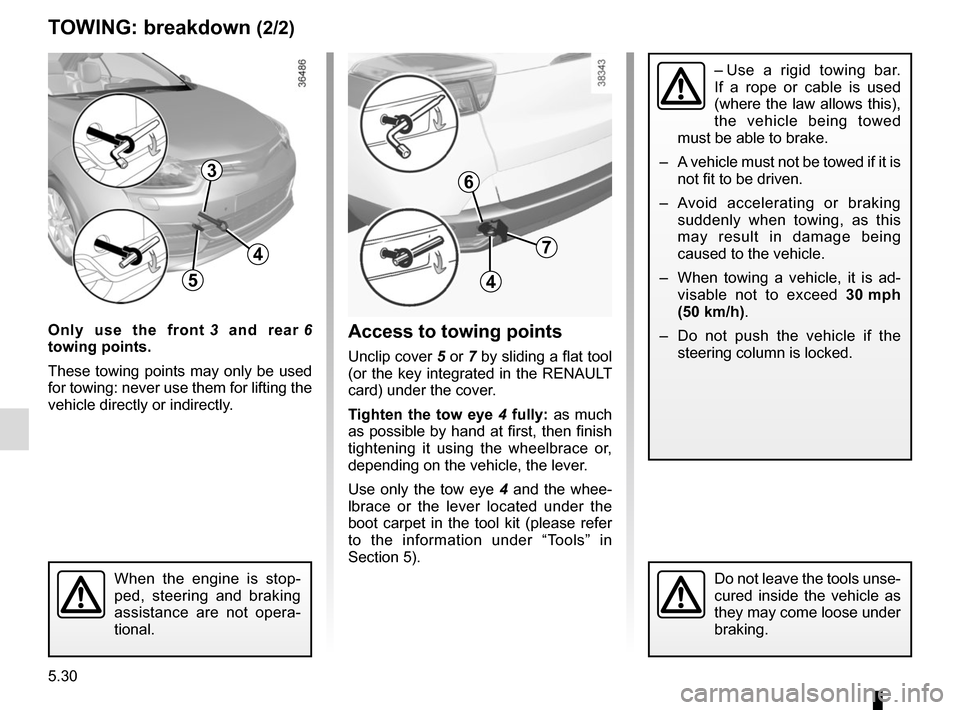

5.30
TOWING: breakdown (2/2)
Only use the front 3 and rear 6
towing points.
These towing points may only be used
for towing: never use them for lifting the
vehicle directly or indirectly.Access to towing points
Unclip cover 5 or 7 by sliding a flat tool
(or the key integrated in the RENAULT
card) under the cover.
Tighten the tow eye 4 fully: as much
as possible by hand at first, then finish
tightening it using the wheelbrace or,
depending on the vehicle, the lever.
Use only the tow eye 4 and the whee-
lbrace or the lever located under the
boot carpet in the tool kit (please refer
to the information under “Tools” in
Section 5).
When the engine is stop-
ped, steering and braking
assistance are not opera-
tional.Do not leave the tools unse-
cured inside the vehicle as
they may come loose under
braking.
– Use a rigid towing bar.
If a rope or cable is used
(where the law allows this),
the vehicle being towed
must be able to brake.
– A vehicle must not be towed if it is not fit to be driven.
– Avoid accelerating or braking suddenly when towing, as this
may result in damage being
caused to the vehicle.
– When towing a vehicle, it is ad- visable not to exceed 30 mph
(50 km/h).
– Do not push the vehicle if the steering column is locked.
3
4
54
7
6

6.7
WEIGHTS (in kg)
The weights indicated for a basic vehicle without options: they vary dep\
ending on the your vehicle’s equipment. Consult
your approved Dealer.
Maximum permissible all-up weight (MMAC)
Total train weight (MTR)Weights are indicated on the vehicle identification plate (refer to
the information on “Vehicle identification plates” in Section 6)
Braked Trailer Weight* found by calculating: MTR - MMAC
Unbraked Trailer Weight* 750
Permissible nose weight* 50
Maximum permissible load on roof Prohibited
Maximum permissible load on the tailgate
* Towing weight (towing a caravan, boat, etc.)
Towing is prohibited when the GTW - MAM calculation is equal to zero, or \
when the GTW is equal to zero (or is not listed) on th e
identification plate.
– It is important to comply with the towing weights, governed by local leg\
islation in each country and, in particular, laid down in the Road Traffic Regulations. Contact your approved dealer about any towing equipment\
.
– When towing, under no circumstances may the total train weight (vehicle + trailer) be exceeded . However the following is
permitted:
– the Maximum permissible weight at the rear may be exceeded by no more th\
an 15%,
– the maximum permissible all-up weight may be exceeded by no more than 10\
% or 100 kg (whichever occurs first).
In either case, the maximum speed of the vehicle and trailer must not ex\
ceed 60 mph (100 km/h) and the tyre pressures must be increased by 0.2 bar (3 PSI).
– The engine output and climbing capability are reduced with altitude. We recommend that the maximum load be reduced by 10% at an altitude of 1,000 metres and by an additional 10% for each 1,000 m\
etres thereafter.

7.4
ALPHABETICAL INDEX (4/5)
O
oil change ................................................................. 4.4 → 4.8
opening the doors ................................................... 1.9 → 1.13
operating faults ................................1.48 → 1.50, 5.31 → 5.36
P
paintwork maintenance ..................................................... 4.16 – 4.17
parking distance control........................................ 2.35 → 2.38
power-assisted steering.................................................\
.... 1.64
pretensioners ..........................................................\
........... 1.23
protective measures if the vehicle overturns ..................... 1.30
puncture.................................................... 5.2, 5.8, 5.10 – 5.11
R
radio...................................................................\
................ 3.30
range with fuel ................................................................... 1.56
rear screen de-icing/demisting ................................. 3.11, 3.15
rear view mirrors ................................................................ 1.43
RENAULT ANTI-INTRUDER DEVICE (RAID) ................... 1.14
RENAULT card battery ................................................................\
.......... 5.26
use ....................................................................\
.. 1.2 → 1.8
RENAULT card battery ...................................................... 5.26
replacement parts ................................................................ 6.8
retractable glass roof operating faults ..................................................... 3.6 – 3.7
operation ............................................................. 3.2 → 3.5
reverse gear selecting ..................................................2.11, 2.39 → 2.41
reversing sensor ................................................... 2.35 → 2.38
roof bars ........................................................................\
.... 3.27
running in ........................................................................\
..... 2.2
S
seat belt pretensioners ......................................... 1.23 → 1.26front seat belt .................................................. 1.23
→ 1.26
seat belts ................................. 1.20 → 1.26, 1.28 – 1.29, 1.49
see-me-home lighting ............................................... 1.69, 1.71
service sheets......................................................... 6.9 → 6.14
side indicator lights changing bulbs ............................................................. 5.19
side protection devices ...................................................... 1.28
signals and lights .................................................. 1.68 → 1.71
special features of diesel versions.....................................\
2.10
special features of petrol vehicles ....................................... 2.9
speed limiter ................................................ 1.49, 2.28 → 2.30
starting the engine .................................................... 2.3 → 2.8
steering wheel adjustment .............................................................\
...... 1.64
Stop & Start .............................................................. 2.6 → 2.8
Stop & Start function................................................. 2.6 → 2.8
stopping the engine .................................................. 2.3 → 2.5
storage compartment.............................................. 3.22 – 3.23
storage compartments ................................... 3.22 – 3.23, 3.26
sun visor ........................................................................\
.... 3.21
switching on the vehicle ignition .......................................... 2.4
T
tailgate .................................................................... 3.25 – 3.26
tanks and reservoirs brake fluid .................................................................... 4.10
coolant ................................................................\
........... 4.9
tanks and reservoirs: windscreen washer ...................................................... 4.11
technical specifications ............................. 6.3 → 6.5, 6.7 – 6.8
telephone ..............................................................\
............. 3.30
temperature regulation ......................................... 3.12 → 3.16
tool kit ........................................................................\
.......... 5.8
towing breakdown ........................................................ 5.29 – 5.30
towing equipment ......................................................... 3.28
