1.11
OPENING AND CLOSING THE DOORS (3/3)
In the event of an operating fault on
the electric windows when moving
the doors
The window does not lower when the
door is opened and does not close
when the door is closed. In this case,
insert the card in the reader and pull the
button for the electric window in ques-
tion at least six times in succession to
raise the window fully.
Consult an approved dealer.
To close the door, proceed as described
in the section entitled “In the event of a
battery fault”.
Operating faults
In the event of a battery fault
Vehicle unlocked (refer to the infor-
mation on “Locking and unlocking the
doors” in Section 1):
– to open the door: pull the handle 1
then gently open the door to avoid
damaging the seal 4;
– to close the door : push the top of
the window (zone 5) whilst holding
the door using the handle 1 to enable
it to pass under the seal 4, then close
the door taking care not to slam it.
Door locking is accompa-
nied by the windows clos-
ing.
Risk of serious injury.
Do not close the door by
holding the window. Make
sure you do not place your
fingers too high up in the 5
zone to avoid injury.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.
45
1

1.13
LOCKING/UNLOCKING THE DOORS (2/2)
Interior locking/unlocking
door control
Switch 4 controls the doors, tailgate
and, depending on the vehicle, the fuel
filler flap simultaneously. If a door or
the tailgate is open or not closed prop-
erly, the doors and tailgate lock/unlock
quickly.
If transporting an object with the tail-
gate open, you can still lock the doors:
with the engine stopped, press and
hold switch 4 for more than five sec-
onds to lock the other doors. Switch 4
can be used to unlock the
glove box.
Locking the doors without
the RENAULT card
For example, in the event of a dis-
charged battery or the RENAULT card
temporarily not working, etc.
With the engine switched off and a
door or tailgate open, press and hold
switch 4 for more than five seconds.
When the door is closed, all the doors
and the tailgate will be locked.
Unlocking the vehicle from the outside
is only possible with the RENAULT card
in the vehicle's access zone or using
the key integrated in the RENAULT
card.
Door and tailgate status
indicator
When the ignition is on, the indicator
light integrated in switch 4 informs you
of the status of the doors and tailgate:
– indicator light on, the doors and tail- gate are locked;
– indicator light off, the doors and tail- gate are unlocked.
With the ignition off , the indicator light
remains lit and then goes out when you
lock the doors.
Never leave your vehicle
with the RENAULT card
inside.
4
After locking/unlocking the vehicle
or the tailgate only using the but-
tons on the RENAULT card, remote
locking and unlocking in hands-free
mode are deactivated.
To reactivate the “hands-free” mode:
restart the vehicle.
Driver’s responsibility
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for those as-
sisting you to gain access to the
passenger compartment in the
event of an emergency.

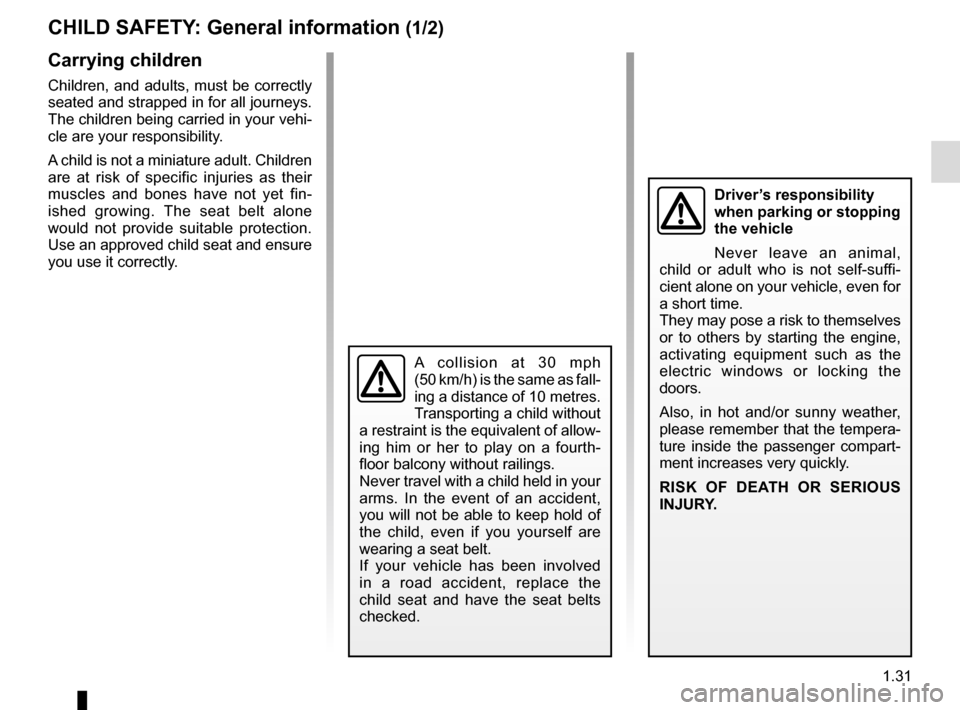

1.31
CHILD SAFETY: General information (1/2)
Carrying children
Children, and adults, must be correctly
seated and strapped in for all journeys.
The children being carried in your vehi-
cle are your responsibility.
A child is not a miniature adult. Children
are at risk of specific injuries as their
muscles and bones have not yet fin-
ished growing. The seat belt alone
would not provide suitable protection.
Use an approved child seat and ensure
you use it correctly.
A collision at 30 mph
(50 km/h) is the same as fall-
ing a distance of 10 metres.
Transporting a child without
a restraint is the equivalent of allow-
ing him or her to play on a fourth-
floor balcony without railings.
Never travel with a child held in your
arms. In the event of an accident,
you will not be able to keep hold of
the child, even if you yourself are
wearing a seat belt.
If your vehicle has been involved
in a road accident, replace the
child seat and have the seat belts
checked.
Driver’s responsibility
when parking or stopping
the vehicle
Never leave an animal,
child or adult who is not self-suffi-
cient alone on your vehicle, even for
a short time.
They may pose a risk to themselves
or to others by starting the engine,
activating equipment such as the
electric windows or locking the
doors.
Also, in hot and/or sunny weather,
please remember that the tempera-
ture inside the passenger compart-
ment increases very quickly.
RISK OF DEATH OR SERIOUS
INJURY.

1.45
DRIVING POSITION: LEFT-HAND DRIVE (2/2)
1 Side air vent.
2 Side window demister outlet.
3 Stalk for:
– direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light.
4 Instrument panel.
5 Driver’s air bag and horn location.
6 – Steering column stalk for winds-
creen and rear screen wash/
wiper.
– On-board computer information
readout control and vehicle set-
tings personalisation menu.
7 Centre air vents.
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
19 Gear lever.
20 Retractable roof opening/closing.
21 Engine start/stop button and
RENAULT card reader.
22 Central door locking/unlocking
controls and hazard warning lights
switch.
23 Cruise control/speed limiter controls.
24 Control for adjusting steering wheel
height and reach.
25 Bonnet release control.
26 Controls for: – electric headlight beam adjust-
ment,
– instrument panel lighting dimmer,
– activation/deactivation of the trac-
tion control,
– activation/deactivation of the
function Stop and Start.
8 –
Display of time, temperature,
radio information, navigation
system information, etc.
– Driver and front passenger seat
belt reminder warning light and
front passenger airbag activated/
deactivated warning lights.
9 Location for passenger air bag.
10 Side window demister outlet.
11 Side air vent.
12 Glovebox
13 Heating and ventilation controls.
14 Location for radio, navigation
system, etc.
15 Accessories socket or cigarette ligh-
ter.
16 Control for some multimedia equip-
ment.
17 Cruise control/speed limiter control.
18 Electronic parking brake or manual
parking brake control.

1.47
DRIVING POSITION: RIGHT-HAND DRIVE (2/2)
The equipment fitted, described below, DEPENDS ON THE VERSION AND COUNTRY.
1 Side air vent.
2 Side window demister outlet.
3 Location for passenger air bag.
4 – Display (depending on the vehi-
cle) of time, temperature, radio
information, navigation system in-
formation, etc.
– Driver and front passenger seat
belt unfastened and passenger
airbag deactivated warning lights.
5 Centre air vents.
6 Stalk for: – direction indicator lights,
– exterior lights,
– front fog lights,
– rear fog light.
7 Location for driver’s air bag and horn.
8 Instrument panel.
9 – Steering column stalk for winds-
creen and rear screen wash/
wiper,
– On-board computer information
readout control and vehicle set-
tings personalisation menu.
10 Side window demister outlet.
11 Side air vent.
12 Controls for: – headlight beam height remote ad-
justment;
– lighting rheostat for control instru-
ments;
– activation/deactivation of the trac-
tion control system;
– activation/deactivation of the
function Stop and Start.
13 Cruise control/speed limiter controls
14 Control for adjusting steering wheel
height and reach. 15
Central door locking/unlocking
controls and hazard warning lights
switch.
16 Air-conditioning control.
17 Gear lever.
18 Control for some multimedia equip-
ment.
19 Cruise control/speed limiter control.
20 Electronic parking brake or manual
parking brake control.
21 Retractable roof opening/closing.
22 Accessories socket or cigarette ligh-
ter.
23 Engine start/stop control and card
reader RENAULT.
24 Location for radio, navigation
system, etc.
25 Glovebox
26 Bonnet release control.

1.48
WARNING LIGHTS (1/3)
The © warning light means
you should drive very carefully to
an approved dealer as soon as pos-
sible. If you fail to follow this recom-
mendation, you risk damaging your
vehicle.
cLeft-hand direction indicator
tell-tale light
bRight-hand direction indica-
tor tell-tale light
ðHeated seats operating indi-
cator
This indicates that one of the heated
seats is in operation.
ÉPreheating warning light
(diesel version)
This should come on when the igni-
tion is switched on. It indicates that the
heater plugs are in operation. Once this
goes out, the engine can be started.
uSide light tell-tale light
áMain beam headlight tell-tale
light
kDipped beam headlight tell-
tale light
gFront fog light tell-tale light
fRear fog light tell-tale light
}Handbrake “on” or elec-
tronic parking brake warn-
ing light
Refer to the information on the
“Handbrake” or “Electronic parking
brake” in Section 2.
If no lights or sounds are ap-
parent, this indicates a fault
in the instrument panel. This
indicates that it is essential
to stop immediately (as soon as traf-
fic conditions allow). Ensure that the
vehicle is correctly immobilised and
contact an approved Dealer.
Warning light ® re-
quires you to stop immedi-
ately, for your own safety,
as soon as traffic conditions allow.
Switch off the engine and do not re-
start it. Contact an approved Dealer.
The instrument panel A lights up
when the ignition is switched on. You
can adjust the brightness of the instru-
ment panel by turning control knob 1.
In some cases, the appearance of a
warning light is accompanied by a mes-
sage.
A
1
The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.49
WARNING LIGHTS (2/3)
xAnti-lock braking warning
light
This lights up when the ignition is
switched on and goes out after a few
seconds.
If it does not go out after the ignition is
switched on, or lights up when driving,
there is a fault with the ABS. Braking
will then be as normal, without the ABS.
Contact an approved Dealer as soon as
possible.
ÄToxic Fume Filter System
Warning Light
This lights up when the ignition is
switched on and goes out when the
engine is started.
– If it lights up continuously, consult your approved Dealer as soon as
possible;
– if it flashes, reduce the engine speed until the light stops flashing. Contact
your approved Dealer as soon as
possible.
Please refer to the information on
“Maintenance and anti-pollution advice”
in Section 2.
ßFront seat belt reminder
warning light
This lights up on the central display
when the engine is started then, if the
driver’s or front passenger’s seat belt
(if this seat is occupied) is not fastened
and the vehicle has reached approxi-
mately 12 mph (20 km/h), it flashes and
a beep sounds for around 2 minutes.
Note: an object placed on the passen-
ger seat base may activate the warning
light in some cases.
åAir bag warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds.
If it does not light up when the ignition
is switched on, or comes on when the
engine is running, there is a fault in the
system.
Contact your approved Dealer as soon
as possible.
ÎSpeed limiter and cruise
control warning light
See the information on the “Speed lim-
iter” and “Cruise control” in Section 2.
\[Gear change indicator
This lights up to advise
you to change to a higher gear (up
arrow) or lower gear (down arrow).
Driving correction device
warning light
Refer to information on “Driver correc-
tion devices and aids” in Section 2.
MLow fuel level warning light
This comes on when the igni-
tion is switched on and goes out after a
few seconds. If it comes on when driv-
ing and is accompanied by a beep, fill
up with fuel as soon as possible. There
is only approximately 30 miles (50 km)
worth of fuel left after the warning light
first comes on. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.

1.50
WARNING LIGHTS (3/3)
ÔEngine coolant temperature
warning light
This lights up when the ignition is
switched on and goes out when the
engine is started. If it comes on on
the road, accompanied by the
®
warning light and a beep, stop immedi-
ately and cut the ignition.
Check the coolant level (refer to the in-
formation on “Levels” in Section 4). If
the level is correct, the light has come
on for another reason; consult an ap-
proved dealer.
©Warning light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It can light up in
conjunction with other indicator lights
and/or messages on the instrument
panel.
It means you should drive very care-
fully to an approved dealer as soon as
possible. If you fail to follow this recom-
mendation, you risk damaging your ve-
hicle.
ÜNot used
A
ÀOil pressure warning light
If it comes on on the road, ac-
companied by the
® warning light
and a beep, stop immediately and cut
the ignition. Check the oil level (refer
to the information on “Engine oil level”
in Section 4). If the level is normal, the
light has come on for another reason:
please contact an authorised dealer.
DBrake circuit fault warning
light
If it comes on during braking and is ac-
companied by the
® warning light
and a beep, it indicates that the fluid
level in the circuit is low or that there is
a braking system fault. Stop as soon as
traffic conditions allow and contact an
authorised dealer.
 Tyre pressure monitoring
system
Refer to the information under “Tyre
pressure monitor” in Section 2.
®STOP light
This lights up when the ignition
is switched on and goes out as soon as
the engine is started. It comes on with
other warning lights and/or messages,
and is accompanied by a beep.
It requires you to stop immediately, for
your own safety, as soon as traffic con-
ditions allow. Switch off the engine and
do not restart it.
Contact an approved Dealer. The presence and operation of the warning lights DEPEND ON THE EQUIPMENT\
AND COUNTRY.
