2016 RENAULT MASTER sliding door

1.2
KEY/RADIO FREQUENCY REMOTE CONTROL: general information (1/3)
Key A
1 Key for ignition switch, doors and
fuel filler cap.
Radio frequency remote
control B
1 Key for ignition switch, doors and
fuel filler cap.
2 Locking the doors and tailgate.
3 Unlocking the doors and tailgate.
ABC
Radio frequency remote
control C
1 Key for ignition switch, doors and
fuel filler cap.
2 Locking the doors and tailgate.
3 Unlocking the front doors or, depen- ding on the vehicle, all the doors.
Refer to the information on “Key,
radio frequency remote control: use”
in Section 1.
4 Unlocking/locking the tailgate Depending on the vehicle, locking/
unlocking the sliding side doors.
23
1
4
2
3
1
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).Advice
Avoid leaving the remote control in
hot, cold or humid areas.
1

1.6
Deadlocking the doors
If fitted to the vehicle, this allows the
doors to be locked and prevents them
from being opened with the interior
handles (for example, by breaking the
window and then trying to open the
doors from the inside).
To activate deadlocking
Press button 1 twice in quick succes-
sion.
The hazard warning lights and indica-
tor lights flash five times to indicate that
the doors have locked.
KEY/RADIO FREQUENCY REMOTE CONTROL: use (2/2)
CUnlocking the doors
Briefly pressing button 2 unlocks the
front doors or, depending on the vehi-
cle, all the doors.
Depending on the vehicle, briefly press-
ing button 2 twice in succession un-
locks all the doors.
Briefly pressing button 3 locks and un-
locks the tailgate and, depending on
the vehicle, the sliding side doors.
Unlocking is indicated by one flash of
the hazard warning lights and the indi- -
cator lights.
Locking the doors
Briefly pressing button 1 locks all the
doors.
Pressing button 1 locks/unlocks the
tailgate and, depending on the vehicle,
the sliding side doors.
The indicator lights and hazard warning
lights flash twice to indicate that the
doors have locked.
Never use deadlocking if
someone is still inside the
vehicle.
Remote control C is used to lock or
unlock the doors and tailgate.
It is powered by a battery which must
be replaced (refer to the information on
the “Key/radio frequency remote con-
trol: batteries” in Section 5).
The key must not be used for any
function other than those described
in the handbook (removing the cap
from a bottle, etc.).
1
3
2

1.14
SLIDING SIDE DOOR (1/2)
Opening from the inside
Pull lever 2 towards the rear and open
the sliding door until it locks into posi-
tion.
12
3
Opening the doors from the
outside
Unlock the lock with the key or with
the remote control, if the vehicle is
equipped with this function.
Pull handle 1 towards you and slide the
door towards the rear.
Note: the transmitter/receiver does not
work on the sliding side door (no button
on the handle).
Closing from the outside
Pull handle 1 and slide the door to-
wards the front of the vehicle until it
closes completely. Lock with the key or
using the remote control.
Closing from the inside
Pull lever 2 towards the front and close
the door until it latches.
Manual locking from inside
Lower button 3.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.

1.15
Recommendations con-
cerning the sliding side
door.
Care must be taken when
opening or closing the sliding door,
as is the case for any of the opening
elements on the vehicle:
– Check that the door will not come into contact with any person, part
of the body, animal or object.
– Only use the handles on the inside and outside of the door to
operate it.
– Take care when opening and closing the door.
– Take particular care when the ve- hicle is parked on a slope: open
or close the door fully until it
latches into its locking position.
– Before moving off, always ensure that the sliding door is properly
closed.

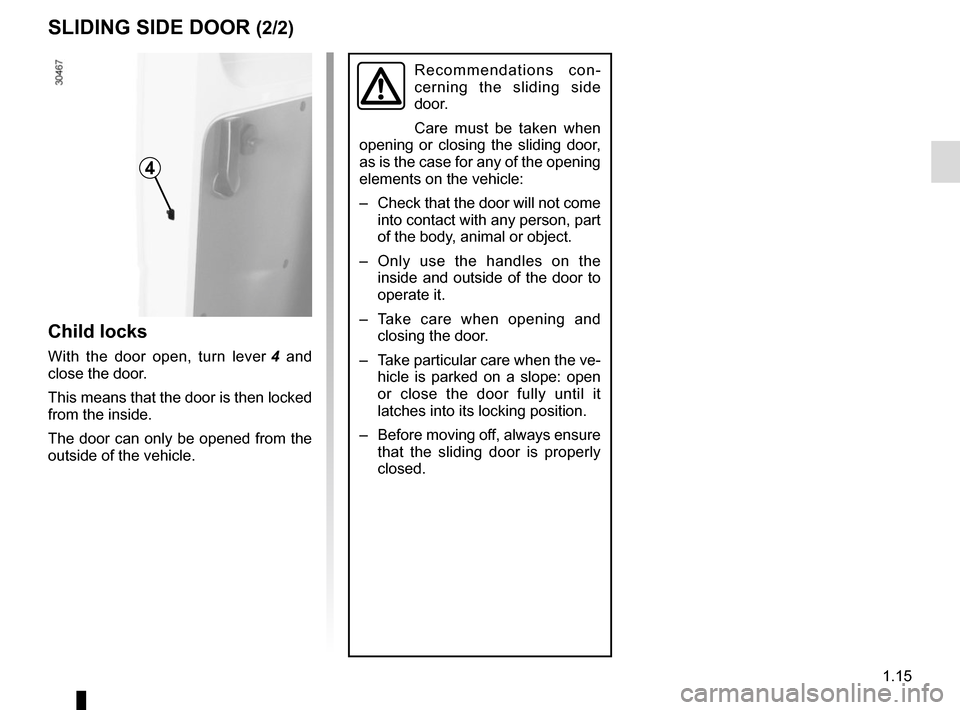

Child locks
With the door open, turn lever 4 and
close the door.
This means that the door is then locked
from the inside.
The door can only be opened from the
outside of the vehicle.
SLIDING SIDE DOOR (2/2)
4
