2016 Ram ProMaster wipers

▫Headlights ...........................93
▫ Dimmer Controls ......................93
▫ Ambient Light ........................94
▫ Daytime Running Lights — If Equipped ......94
▫ Battery Saver .........................94
▫ Fog Lights — If Equipped ................94
▫ Turn Signals ..........................95
▫ Parking Lights ........................95
▫ Lane Change Assist ....................95
▫ High Beam/Low Beam Select Switch ........95
▫ Flash-To-Pass .........................95
▫ Follow Me Home/Headlight Delay ..........95
▫ Interior Lights .........................96 ▫
Cargo Lamp .........................98
 WINDSHIELD WIPERS AND WASHERS ......99
▫ Windshield Wipers .....................99
▫ Intermittent Wiper System ...............100
▫ Low Speed ......................... .100
▫ High Speed ......................... .100
▫ Mist Feature ........................ .100
▫ Windshield Washer Operation .............101
 TELESCOPING STEERING COLUMN ........101
 ELECTRONIC SPEED CONTROL ...........102
▫ To Activate ......................... .103
▫ To Set A Desired Speed .................104
▫ To Deactivate ....................... .104
70 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Your vehicle may be equipped with a Side Cargo Lamp
located at the upper rear area of the passenger side
sliding door opening.
The Cargo Lamps can be set to three different positions
(Off/Right Position, Center Position, On/Left Position).•
Push the Cargo Lamp lens to the right from its center
position and the lamp is always off.
• Leave the Cargo Lamp lens in the center position, and
the lamp is turned on and off when the sliding doors
or rear doors are opened or closed.
• Push the Cargo Lamp lens to the left from its center
position and the lamp is always on.
WINDSHIELD WIPERS AND WASHERS
Windshield Wipers
The windshield wiper/washer lever is located on the
right side of the steering column. There are five different
modes of operation for the front windshield wipers. The
windshield wiper lever can be raised or lowered to access
the modes.
Side Cargo Lamp
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99

NOTE:The windshield wipers/washers will only oper-
ate with the ignition in the ON/RUN position.Intermittent Wiper System
Push the lever downward to the first detent and rotate
the center ring to use one of the four intermittent wiper
settings when weather conditions make a single wiping
cycle, with a variable delay between cycles, desirable.
Low Speed
Push the lever downward to the second detent. The
wipers will operate at low speed.
High Speed
Push the lever downward to the third detent. The wipers
will operate at high speed.
Mist Feature
Use the Mist feature when weather conditions make
occasional usage of the wipers necessary. Push the lever
upward to the Mist position and release for a single
wiping cycle.Windshield Wiper/Washer Lever
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

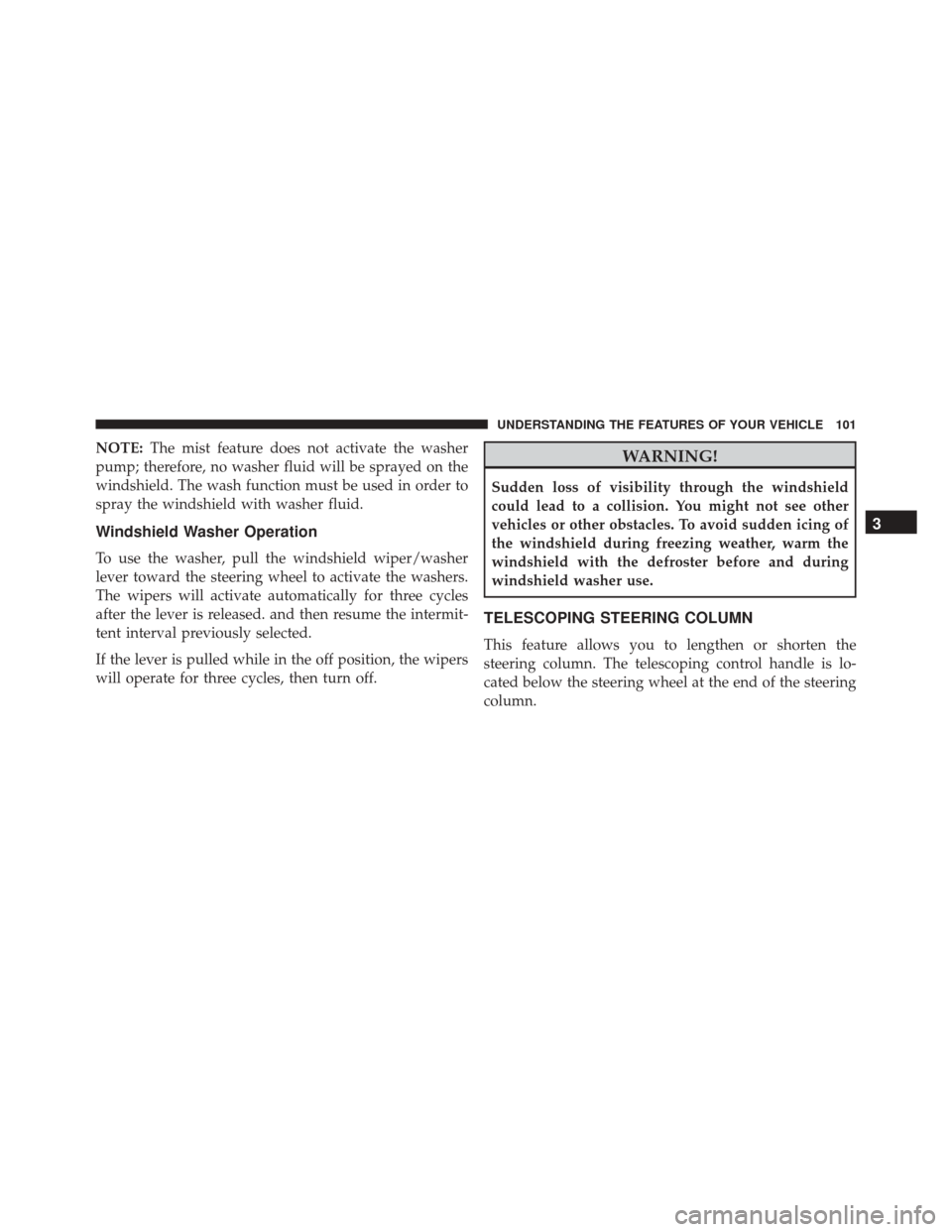

NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Windshield Washer Operation
To use the washer, pull the windshield wiper/washer
lever toward the steering wheel to activate the washers.
The wipers will activate automatically for three cycles
after the lever is released. and then resume the intermit-
tent interval previously selected.
If the lever is pulled while in the off position, the wipers
will operate for three cycles, then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
TELESCOPING STEERING COLUMN
This feature allows you to lengthen or shorten the
steering column. The telescoping control handle is lo-
cated below the steering wheel at the end of the steering
column.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101

Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains is
mandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position.
NOTE:For vehicles equipped with diesel engine and
electric park brake, see important information in the
Diesel Supplement. If the key fob is unavailable or the vehicle’s battery is
discharged, see “Shift Lever Override” in this section for
instructions on shifting the automatic transmission out of
PARK for towing.
CAUTION!
•
Do not use sling type equipment when towing.
Vehicle damage may occur.
• When securing the vehicle to a flat bed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
348 WHAT TO DO IN EMERGENCIES

other underhood services, the hood latch, release mecha-
nism and safety catch should be cleaned and lubricated.
The external lock cylinders should be lubricated twice a
year, preferably in the Fall and Spring. Apply a small
amount of a high quality lubricant, such as MOPAR Lock
Cylinder Lubricant directly into the lock cylinder.
Windshield Wiper Blades
Clean the rubber edges of the wiper blades and the
windshield periodically with a sponge or soft cloth and a
mild nonabrasive cleaner. This will remove accumula-
tions of salt or road film.
Operation of the wipers on dry glass for long periods
may cause deterioration of the wiper blades. Always use
washer fluid when using the wipers to remove salt or dirt
from a dry windshield.Avoid using the wiper blades to remove frost or ice from
the windshield. Keep the blade rubber out of contact with
petroleum products such as engine oil, gasoline, etc.
NOTE:
Life expectancy of wiper blades varies depend-
ing on geographical area and frequency of use. Poor
performance of blades may be present with chattering,
marks, water lines or wet spots. If any of these conditions
are present, clean the wiper blades or replace as neces-
sary.
Adding Washer Fluid
The fluid reservoir is located in the engine compartment
and should be checked at regular intervals. Fill the
reservoir with windshield washer solvent (not radiator
antifreeze) and operate the system for a few seconds to
flush out any residual water.7
MAINTAINING YOUR VEHICLE 369

Gross Axle Weight Rating................290, 292
Gross Vehicle Weight Rating ..............289, 292
Guide, Body Builders ........................6
GVWR ................................ .289
Hazard Driving Through Flowing, Rising, Or Shallow Stand-
ing Water ............................ .235
Hazard Warning Flasher ....................309
Headlights Cleaning ............................ .384
High Beam ............................95
High Beam/Low Beam Select Switch ..........95
Passing ...............................95
Switch ................................93
Head Restraints ...........................87
Heated Mirrors ............................74
Heated Seats .............................86
Heater ................................ .204Heater, Engine Block
...................... .222
High Beam/Low Beam Select (Dimmer) Switch .....95
Hill Start Assist .......................... .249
Hitches Trailer Towing ........................ .295
Hood Release .............................90
Ignition .................................12
Key ...............................11,12
Ignition Key Removal .......................12
Illuminated Entry ..........................17
Immobilizer (Sentry Key) ....................14
Inside Rearview Mirror ......................72
Instrument Cluster ..............129, 138, 140, 157
Instrument Panel And Controls ...............128
Instrument Panel Lens Cleaning ...............385
Interior Appearance Care ....................383
Intermittent Wipers (Delay Wipers) .............100
436 INDEX

Untwisting Procedure, Seat Belt................32
Vehicle Certification Label ...................289
Vehicle Identification Number (VIN) .............6
Vehicle Loading ....................258, 289, 291
Vehicle Modifications/Alterations ...............7
Vehicle Storage .......................... .398
Viscosity, Engine Oil ...................... .360
Warnings And Cautions ......................6
Warranty Information ..................... .423
Washer Adding Fluid ......................... .369
Washing Vehicle ......................... .381Water
Driving Through ....................... .235
Wind Buffeting ............................24
Windows ................................22
Power ................................22
Windshield Defroster ....................66, 207
Windshield Washers .....................99, 369
Fluid .................................99
Windshield Wiper Blades ....................369
Windshield Wipers .........................99
Wiper Blade Replacement ...................369
Wipers, Intermittent ...................... .100
444 INDEX
