2016 RAM CHASSIS CAB remote start

• Vehicle engine must be running.
• No vehicle, brake or clutch switch faults present.
• PTO must be correctly installed using the vehicle
provided circuits.
The Electronic Vehicle Information Center (EVIC) or
Driver Information Display (DID) will display a  PTO
On  message for five seconds if the above conditions are
met. Otherwise, the EVIC/DID will display a message
 To Operate PTO Shift To Park  indicating what operator
action should be taken to engage the PTO mode.
The customer has the choice to operate the PTO by
utilizing the cruise control switches or by utilizing a
remote control (provided by the PTO supplier). To oper-
ate the feature using the cruise control switches, the
customer must first activate the PTO switch which will
turn on the PTO. In order to increase or decrease the
engine idle speed, to optimize the PTO function, the
“RESUME/ACCEL” and “DECEL” cruise switches can be used respectively. To disengage PTO operation and
return to “standard vehicle operation” simply toggle the
PTO switch to the OFF position.
The torque converter clutch (TCC) will automatically
engage at engine speeds above 1,200 RPM (engine speed)
in PTO stationary mode. Once engaged, the TCC will
remain applied and will not disengage until the engine
speed falls below 1,000 RPM. TCC engagement is desir-
able for certain types of PTO applications (Automatic
Transmission Only).
To operate the PTO via a remote switch, the customer
must make sure the above conditions are met. It is vital
for proper operation that the PTO and remote have been
installed correctly, paying special attention to ensure the
vehicle provided wiring has been connected properly.
This is the responsibility of the installer of the PTO and
switches/remote system. It is the responsibility of the
PTO manufacturer to ensure that their electrical (switches 5STARTING AND OPERATING 421

and remote) system is compatible with the vehicle’s
electrical architecture and software functionality.
NOTE: Single set speed can be programmed via the PTO
menu on the EVIC/DID screen. Further details are avail-
able at the Ram Truck Bodybuilders web site located
atwww.rambodybuilder.com.
Mobile Mode
To operate the PTO in this mode the vehicle must meet
the following conditions:
• Mobile mode is activated via the menu on the EVIC/
DID screen.
• (ON/OFF) switch has been activated.
• Vehicles with automatic transmission must be in PARK
or DRIVE.
• Parking brake must not be applied. • Brake pedal must not be applied.
• No vehicle, brake or clutch switch faults present.
• Vehicle engine must be running.
• PTO must be correctly installed using the vehicle
provided circuits.
The customer may choose to use the PTO while the
vehicle is moving. To do so, the PTO function must be
activated prior to taking the vehicle out of PARK. This is
accomplished by activating the upfitter-provided PTO
on/off switch. At this point, the customer may place the
vehicle in a forward or reverse gear and have PTO
operation once the vehicle begins to move. To disengage
PTO operation and return to “standard vehicle opera-
tion” simply toggle the on/off switch to the OFF position.422 STARTING AND OPERATING

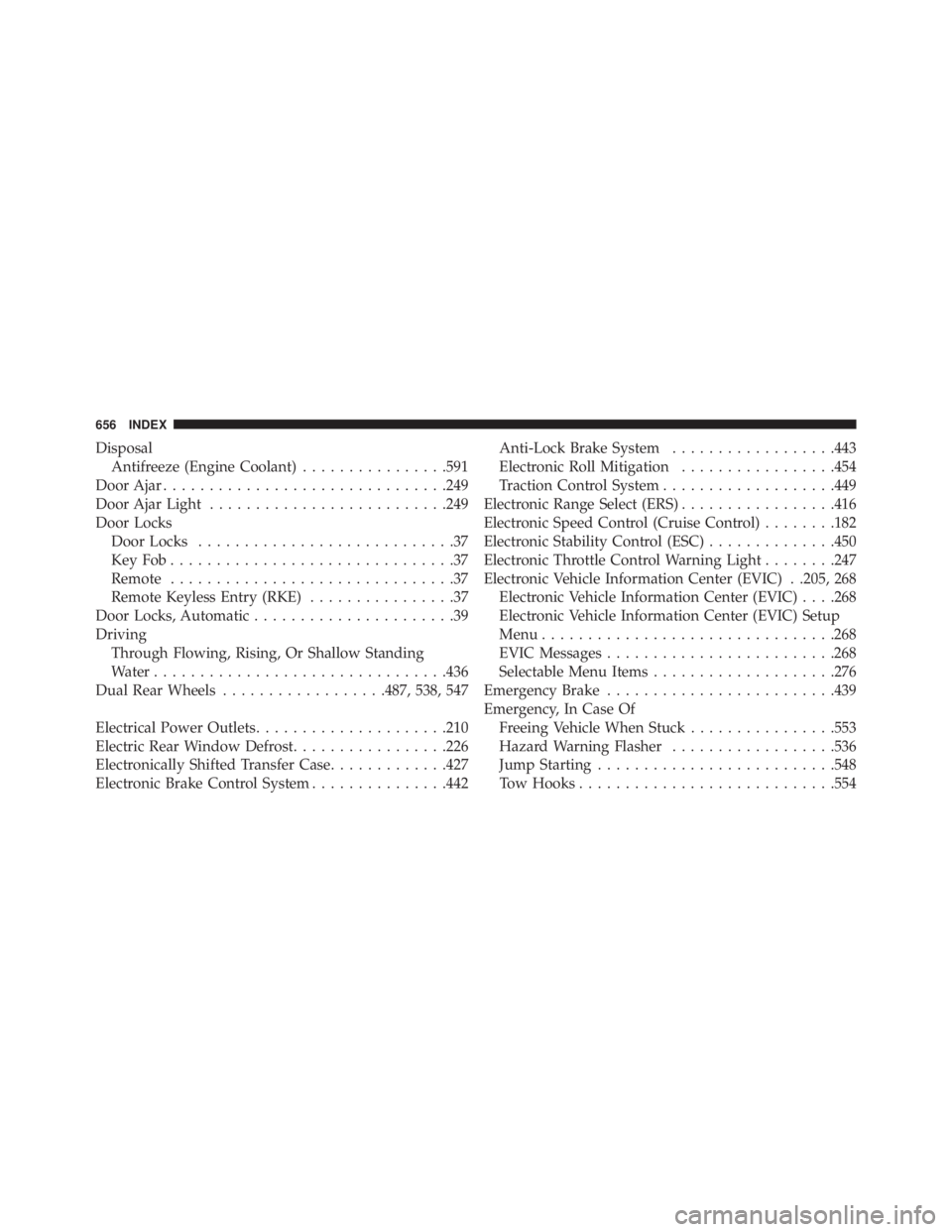

Disposal
Antifreeze (Engine Coolant) ............... .591
Door Ajar .............................. .249
Door Ajar Light ......................... .249
Door Locks
Door Locks ............................37
KeyFob...............................37
Remote ...............................37
Remote Keyless Entry (RKE) ................37
Door Locks, Automatic ......................39
Driving
Through Flowing, Rising, Or Shallow Standing
Water ............................... .436
Dual Rear Wheels ................. .487, 538, 547
Electrical Power Outlets .................... .210
Electric Rear Window Defrost ................ .226
Electronically Shifted Transfer Case ............ .427
Electronic Brake Control System .............. .442 Anti-Lock Brake System ................. .443
Electronic Roll Mitigation ................ .454
Traction Control System .................. .449
Electronic Range Select (ERS) ................ .416
Electronic Speed Control (Cruise Control) ....... .182
Electronic Stability Control (ESC) ............. .450
Electronic Throttle Control Warning Light ....... .247
Electronic Vehicle Information Center (EVIC) . .205, 268
Electronic Vehicle Information Center (EVIC) . . . .268
Electronic Vehicle Information Center (EVIC) Setup
Menu ............................... .268
EVIC Messages ........................ .268
Selectable Menu Items ................... .276
Emergency Brake ........................ .439
Emergency, In Case Of
Freeing Vehicle When Stuck ............... .553
Hazard Warning Flasher ................. .536
Jump Starting ......................... .548
Tow Hooks ........................... .554656 INDEX

Power Seats
Down ........................... .144, 145
Forward ......................... .144, 145
Rearward ........................ .144, 145
Recline .............................. .144
Tilt ................................ .145
Up ............................. .144, 145
Power Steering Fluid ...................... .629
Pregnant Women And Seat Belts ...............64
Pretensioners
Seat Belts ..............................65
Programmable Electronic Features ......... .282, 305
Programming Transmitters (Remote Keyless Entry) . .25
PTO (Power Take-Off) ..................... .420
Radial Ply Tires ......................... .475
Radiator Cap (Coolant Pressure Cap) ....... .588, 590
Radio Frequency
General Information ........... .19, 21, 33, 36, 46 Radio Operation ......................... .349
Radio (Sound Systems) .................... .346
Rain Sensitive Wiper System ................ .177
Rear Axle (Differential) ................. .595, 596
Rear ParkSense System ................. .187, 196
Rear Window Features .................... .226
Rear Window, Sliding ..................... .228
Reclining Rear Seats ...................... .151
Recorder, Event Data .......................82
Recreational Towing ...................... .528
Shifting Into Transfer Case Neutral (N) ....... .531
Shifting Out Of Transfer Case Neutral (N) ..... .533
Reformulated Gasoline .................... .499
Refrigerant ............................. .579
Reminder, Seat Belt .........................52
Remote Control
Starting System .........................33
Remote Keyless Entry (RKE) ............... .25, 27
Programming Additional Key Fobs ...........21664 INDEX

Programming Additional Transmitters .........21
Remote Sound System (Radio) Controls ........ .347
Remote Starting
Uconnect Customer Programmable Features . . .323, 341
Uconnect Settings ................... .323, 341
Remote Starting System ......................33
Replacement Keys .........................20
Replacement Parts ........................ .567
Replacement Tires ........................ .482
Reporting Safety Defects ................... .645
Restraint, Head .......................... .152
Restraints, Child ...........................83
Restraints, Occupant ........................50
Rotation, Tires .......................... .486
Safety Checks Inside Vehicle ..................118
Safety Checks Outside Vehicle ............... .120
Safety Defects, Reporting ................... .645
Safety, Exhaust Gas ........................117 Safety Information, Tire .................... .459
Safety Tips ..............................116
Schedule, Maintenance .................... .632
Seat Belt
Adjustable Upper Shoulder Belt Anchorage ......59
Automatic Locking Retractor (ALR) ...........65
Energy Management Feature ................65
Lap/Shoulder Belt Operation ................56
Lap/Shoulder Belts .......................54
Lap/Shoulder Belt Untwisting ...............58
Pregnant Women ........................64
Seat Belt Extender .......................63
Seat Belt Pretensioner .....................65
Seat Belt Reminder .......................52
Seat Belt System .........................50
Seat Belt Maintenance ..................... .606
Seat Belt Reminder .........................52
Seat Belts ............................ .52, 118
Adjustable Shoulder Belt ...................59 10 INDEX 665

Sliding Rear Window
Power .............................. .227
Snow Chains (Tire Chains) .................. .484
Snow Plow ............................. .524
Snow Tires ............................. .476
Spare Tire ....................... .477, 478, 479
Spark Plugs ............................ .627
Speed Control
Accel/Decel .......................... .186
Cancel .............................. .184
Resume ............................. .184
Speed Control (Cruise Control) ............... .182
Starting ............................. .33, 402
Automatic Transmission ................. .403
Cold Weather ......................... .403
Engine Fails To Start .................... .403
Remote ...............................33
Starting Procedures (Gas Engines) ............ .402 Steering
Power ........................... .437, 438
Wheel, Heated ........................ .181
Wheel, Tilt ........................... .178
Steering Wheel Audio Controls .............. .347
Steering Wheel Mounted Sound System Controls . . .347
Storage Compartment, Center Seat ............ .222
Storage, Vehicle ...................... .371, 617
Storing Your Vehicle ...................... .617
Supplemental Restraint System - Air Bag .........69
Supplemental Tire Pressure Information ........ .484
Sway Control, Trailer ...................... .455
Synthetic Engine Oil ...................... .571
System, Remote Starting .....................33
Temperature Control, Automatic (ATC) ......... .369
Tilt
Down .............................. .145
Up ................................ .14510 INDEX 667
