Warning / indicator lampStateCause Action / Observations
+ Engine
auto-diagnosis
system
fixed, associated with
the S
t

o
P w
arning
lamp. A major engine fault has been
detected.
You must stop as soon as it is safe to do so.
Park, switch off the ignition and contact a PE
u

g
Eo
t
dealer or a qualified workshop.
Diesel engine
pre-heating fixed.
th

e ignition switch is at the
2
nd position (igntion on).o
r
th

e " START/STOP " button has been
pressed. Wait until the warning lamp goes off before starting.on
ce it goes off, starting is immediate, on condition
that:
-

t
he clutch pedal is pressed fully down with a
manual gearbox,
-

p
ressure is maintained on the brake pedal with an
automatic or electronic gearbox.
th

e period of illumination of the warning lamp is
determined by the ambient conditions (up to about
thirty seconds in extreme conditions).
If the engine does not start, switch the ignition off and
then on, wait until the warning lamp goes off again,
then start the engine.
Engine
auto-diagnosis
system
fixed.
th

e emission control system has a
fault.
th
e warning lamp should go off when the engine is
started.
If it does not go off, contact a PE
u
g
Eo
t dealer or
qualified workshop without delay.
flashing.
the
engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a PE
u
g
Eo
t dealer or a qualified
workshop.
+ fixed, associated with
the SERVICE warning
lamp.A minor engine fault has been
detected.
Have it checked by a PE
u
g
Eo
t dealer or a qualified
workshop.
1
Instruments

22
Warning / indicator lampStateCause Action / Observations
Under-inflation fixed, accompanied by
an audible signal and
a message.
th

e pressure in one or more tyres is
too low. Check the tyre pressures as soon as possible.
th

is check should preferably be carried out when the
tyres are cold.
You must reinitialise the system after the adjustment
of one or more tyre pressures and after changing one
or more wheels.
For more information on Under-inflation detection ,
refer to the corresponding section.
+ flashing then fixed,
accompanied by the
Service warning lamp.
th

e system has a fault: the tyre
pressures are no longer monitored. Check the tyre pressures as soon as possible.
Have the system checked by a PE
u

g
Eo
t dealer or a
qualified workshop.
Foot on the
brake pedal fixed.
th

e brake pedal must be pressed. With an automatic or electronic gearbox, press the brake pedal, engine running, before releasing the
parking brake, to release the selector lever and come
out of position P or N.
If you wish to release the parking brake without
pressing the brake pedal, this warning lamp will
remain on.
Foot on the
clutch fixed.
In the S
t

o
P m
ode of Stop & Start,
the change to S
tA

R
t
mode is denied
because the clutch pedal is not fully
down. If your vehicle has a manual gearbox, you must
declutch fully to allow the change to engine S
tA

R
t

mode.
Instruments

27
Expert_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. A fault with the SCR emissions
control system has been detected.
th

is alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied by
an audible signal and
a message indicating
the remaining driving
range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a PE
u

g
Eo
t dealer or a qualified workshop
without delay , to avoid a breakdown .
flashing, on switching
on the ignition,
associated with the
SERVICE and engine
diagnostic warning
lamps, accompanied
by an audible signal
and a message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
to b

e able to start the engine, you must call on a
PE
u

g
Eo
t dealer or a qualified workshop.
1
Instruments

28
Warning / indicator lampStateCause Action / Observations
Rear foglamps fixed.
th

e rear foglamps are on.
tu
rn the ring on the stalk rear ward to switch off the
rear foglamps.
Service
on temporarily. A minor fault has occurred for which
there is no specific warning lamp. Identify the fault by means of the associated message,
for example:
-

l
ow engine oil level,
-

l
ow screenwash/headlamp wash fluid level,
-

d
ischarged remote control battery,
-

l
ow tyre pressures,
-

s
aturation of the particle filter (FAP) on Diesel
vehicles.
-


...
For more information on Checks and in particular the
particle filter, refer to the corresponding section.
For any other faults, contact a PE
u

g
Eo
t dealer or a
qualified workshop.
fixed. A major fault has occurred for which
there is no specific warning lamp. Identify the fault by reading the message and contact
a PE
u

g
Eo
t dealer or a qualified workshop.
+ fixed, associated with
flashing and then fixed
display of the service
spanner.
the

servicing interval has been
exceeded.
on

ly on BlueHDi Diesel versions.
Your vehicle must be serviced as soon as possible.
Instruments

31
Expert_en_Chap01_instruments-de-bord_ed01-2016
With the engine running, when the needle or
the bar graph (depending on version) is:
-
i
n zone A , the temperature of the engine
coolant is correct,
-

i
n zone B, the temperature of the engine
coolant is too high; the maximum
temperature and the central STOP warning
lamps come on, accompanied by an
audible signal and a warning message in
the touch screen.
You MUST stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
Contact a PE
u

g
Eo
t dealer or a qualified
workshop. After driving for a few minutes, the temperature
and pressure in the cooling system increase.
to t

op up the level:
F
w
ait at least one hour for the engine to
cool,
F
u
nscrew the cap two turns to allow the
pressure to drop,
F
w
hen the pressure has dropped, remove
the cap,
F
t
op up the level to the "MA X" mark.
Be aware of the risk of burns when
topping up the cooling system. Do not
fill above the maximum level (indicated
on the header tank).
Engine coolant temperature Service indicator
System which informs the driver when the
next service is due, in accordance with the
manufacturer's servicing schedule.
th

e point at which the next service is due is
calculated from the last indicator zero reset,
depending on the distance travelled and the
time elapsed since the last service.
For BlueHDi Diesel versions, the degree of
deterioration of the engine oil is also taken into
account (depending on the country of sale).Checking the level
1
Instruments

33
Expert_en_Chap01_instruments-de-bord_ed01-2016
the distance remaining may be
weighted by the time factor, depending
on the driving conditions.
th
erefore, the spanner may also come
on if you have exceeded the period
since the last service, indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the
spanner may also be brought on earlier
than expected, depending on the
degree of deterioration of the engine oil
(depending on the country of sale).
th

e rate of deterioration of the engine
oil depends on the driving conditions in
which the vehicle is used.Resetting the service
indicatorIf you have to disconnect the battery
following this operation, lock the vehicle
and wait at least five minutes for the
reset to be registered.
You can access the service information at any
time.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself, switch off the ignition:
Retrieving the service
information
F Press and hold this button,
F

S

witch on the ignition; the distance
recorder display begins a countdown,
F

W

hen the display indicates "=0" , release
the button; the spanner disappears. F
P ress this button.
th

e service information is displayed for a
few


seconds, then disappears.
1
Instruments

34

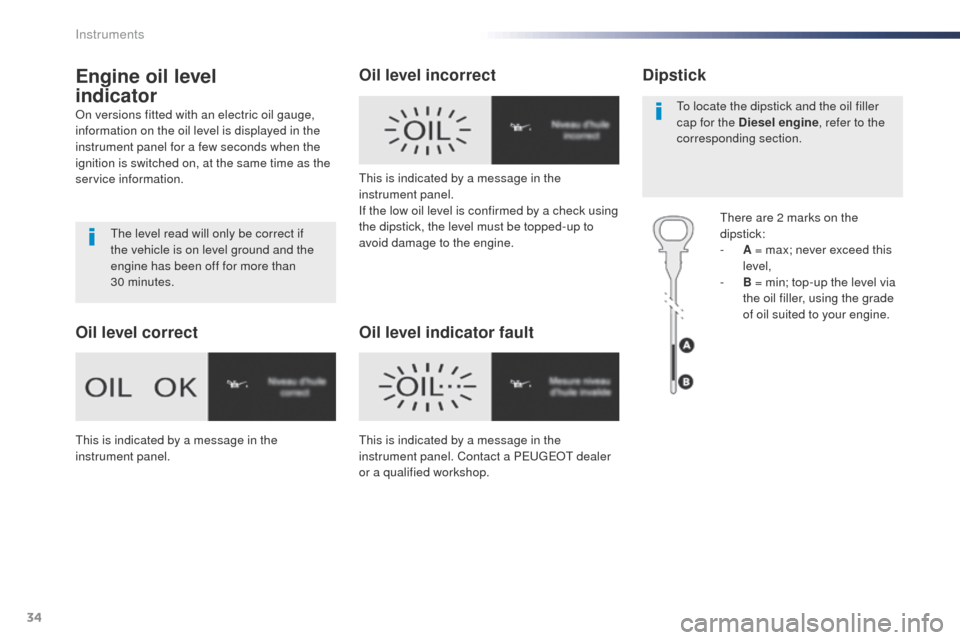

Engine oil level
indicator
on versions fitted with an electric oil gauge,
information on the oil level is displayed in the
instrument panel for a few seconds when the
ignition is switched on, at the same time as the
service information.
th
e level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30 minutes.
Oil level correct Oil level incorrect
Oil level indicator faultDipstick
there are 2 marks on the
dipstick:
-

A
= max; never exceed this
level,
-

B
= min; top-up the level via
the oil filler, using the grade
of oil suited to your engine.
to l

ocate the dipstick and the oil filler
cap for the Diesel engine , refer to the
corresponding section.
th

is is indicated by a message in the
instrument panel.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped-up to
avoid damage to the engine.
th

is is indicated by a message in the
instrument panel.
th

is is indicated by a message in the
instrument panel. Contact a PE
u

g
Eo

t
dealer
or a qualified workshop.
Instruments
