Before each use
Check that the towball is correctly fitted by verifying the following points:
- t he towball is correctly locked in place (position A ),
-

t
he security key lock is on and the key removed; the locking wheel can no longer be
operated,
-

t
he towball must no longer move at all in its carrier; try to shake it by hand.
During use
Never unlock the towball when a trailer or load carrier is fitted.
Never exceed the maximum authorised weight for the vehicle plus trailer (gr oss tr ain
Weight -
gt
W
).
Before driving, check the adjustment of the headlamp beam height.
For more information on adjusting the headlamps, refer to the corresponding section.
After use
For journeys made without a trailer or load carrier, the trailer harness socket must be folded
away, the towball removed and the protective blanking plug inserted in the carrier. th is
measure applies particularly if the towball could hinder visibility of the number plate or
lighting.
7
Practical information

222
508_en_Chap07_info-pratiques_ed01-2016
Manual gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval
for this component.
Automatic gearbox
the gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's
service schedule for details of
the level checking interval for this
component.
Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to
have the condition of the brakes checked, even
between vehicle services.
un

less there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
Brake pads
For information on checking brake
disc wear, contact a Pe ugeOt
dealer or a qualified workshop.
Brake disc wear Electric parking brake
this system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a P
e

uge
Ot

dealer or a qualified workshop.
Only use products recommended by
P
e

uge
Ot
or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, P
e

uge
Ot
selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must
be checked, even between
two


services.
Checking this system must be done by a
P
e

uge
Ot

dealer or a qualified workshop. For more information on the electric parking
brake, refer to the corresponding section.
Practical information

225
508_en_Chap07_info-pratiques_ed01-2016
Never store bottles of AdBlue® in your
vehicle.
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
und

er these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Otherwise the AdBlue
® may be frozen and
so cannot be poured into its tank. Park your
vehicle in a warmer area for a few hours to
allow the top-up to be carried out.
F

S

witch off the ignition and remove the
key, or if your vehicle has one, press the
S
tA

R
t/

S
tO

P button to switch off the
engine. F

F
or access to the AdBlue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the storage
box.
F

W

ithout pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F
t
u

rn the blue cap a 6
th of a turn anti-
clockwise.
F

L

ift off the cap.
7
Practical information

242
508_en_Chap08_en-cas-de-pannes_ed01-2016
Changing a bulb
Front lamps
Model with "full LED" technology
headlamps
1. Additional lighting.
2. Dipped beam headlamps.
3.
M

ain beam headlamps.
4.
D

aytime running lamps.
5.
D

irection indicators / Sidelamps.
6.
F

ront foglamps. In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes. For the replacement of these light-
emitting diode (L
eD
) lamps, contact
a Pe ugeOt dealer or a qualified
workshop.
All of these lamps use light-emitting
diodes - L
eD

s.
Model with halogen headlamps
1. Dipped beam headlamps (H7-55W).
2. Main beam headlamps (H7-55W).
3.
D

aytime running lamps (LEDs).
4.
D

irection indicators / Sidelamps (LEDs).
5.
F

oglamps (LEDs).
For H7 type bulbs with lugs, take care to
observe their correct installation so as to
ensure the best lighting performance.
In the event of a breakdown

244
508_en_Chap08_en-cas-de-pannes_ed01-2016
Main beam headlamps
F
R
emove the protective plastic cover by
pulling on the tab.
F
u
n
clip the bulb connector.
F

R
emove the bulb by pulling it out and
change it.
Integrated direction
indicator side repeaters Door mirror spotlamps
You should contact a Pe ugeOt dealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD

.
For reassembly, carry out these operations in
reverse order.
Dipped beam headlamp
Halogen model
F Remove the protective plastic cover by
pulling on the tab.
F
u
n
clip the bulb connector.
F
e
x
tract the bulb by pulling and change it.
For reassembly, carry out these operations in
reverse order.
For the left hand headlamp, it is
necessary to remove the battery.
Refer to the corresponding section. You should contact a P
e

uge
Ot
dealer or a
qualified workshop for the replacement of these
bulbs.
In the event of a breakdown

245
508_en_Chap08_en-cas-de-pannes_ed01-2016
1. Brake lamps
( light emitting diodes - LEDs).
2.
Si

delamps


(
light emitting diodes - LEDs).
3.
D

irection indicators


(
PY21W amber).
4.
Fo

glamps


(
light-emitting diodes) /
R

eversing lamps (W16W).

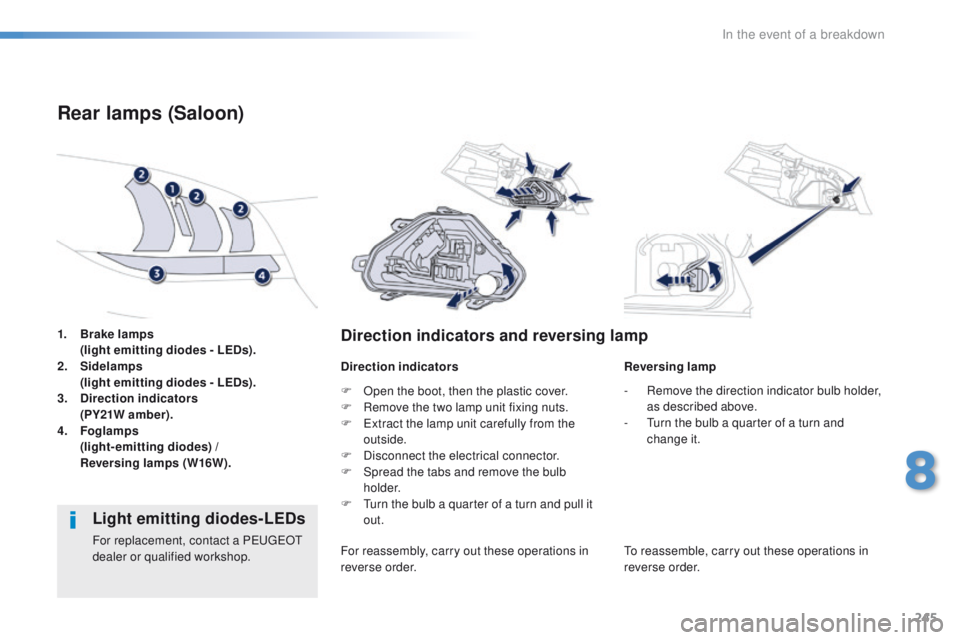

Rear lamps (Saloon)
Direction indicators and reversing lamp
Direction indicators Reversing lamp
Light emitting diodes-LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop. F

O
pen the boot, then the plastic cover.
F
R
emove the two lamp unit fixing nuts.
F e
x
tract the lamp unit carefully from the
outside.
F
D
isconnect the electrical connector.
F
S
pread the tabs and remove the bulb
h o l d e r.
F t
u
rn the bulb a quarter of a turn and pull it
out.
For reassembly, carry out these operations in
reverse order. -

R
emove the direction indicator bulb holder,
as described above.
- t
u
rn the bulb a quarter of a turn and
change it.to r eassemble, carry out these operations in
reverse order.
8
In the event of a breakdown

246
508_en_Chap08_en-cas-de-pannes_ed01-2016
1. Brake lamps (light emitting diodes - LEDs).
2.
R

eversing lamps (W19W).
3.
D

irection indicators (PY21W amber).
4.
S

idelamps (light emitting diodes -
LEDs).
5.
F

oglamps (light emitting diodes - LEDs).

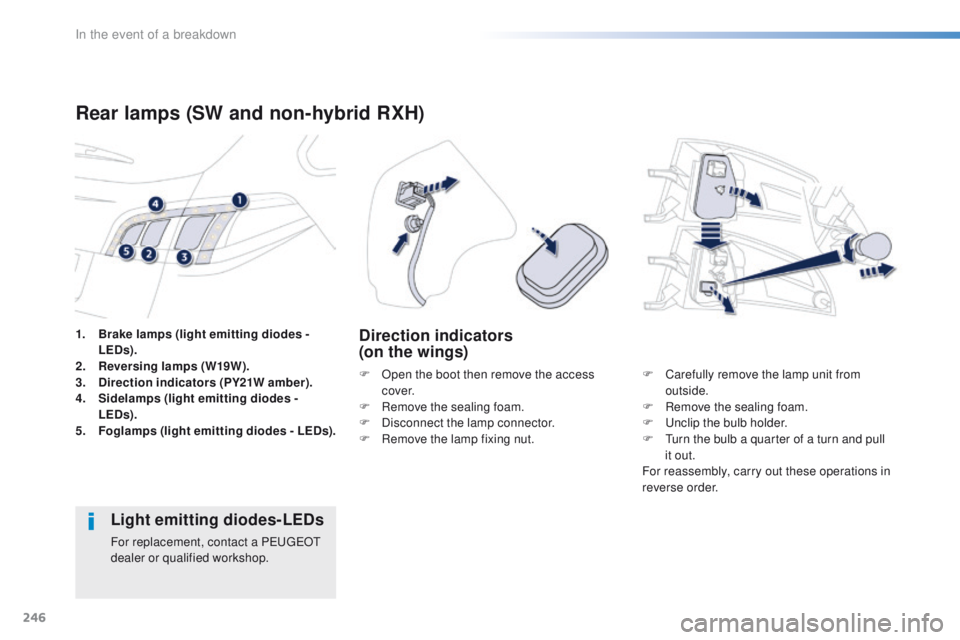

Rear lamps (SW and non-hybrid RXH)
F Open the boot then remove the access c ove r.
F

R
emove the sealing foam.
F

D
isconnect the lamp connector.
F

R
emove the lamp fixing nut.
Direction indicators
(on the wings)
F Carefully remove the lamp unit from
outside.
F

R
emove the sealing foam.
F
u
n
clip the bulb holder.
F
t
u
rn the bulb a quarter of a turn and pull
it
out.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEDs
For replacement, contact a Pe ugeOt
dealer or qualified workshop.
In the event of a breakdown

248
508_en_Chap08_en-cas-de-pannes_ed01-2016
Third brake lamp (light emitting
diodes - LEDs)
Contact a PeugeOt dealer or qualified
workshop.
Number plate lamps
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

D
isconnect the lamp connector.
F

R
emove the lens.
F

P
ull the bulb out and change it.
In the event of a breakdown
