2016 PEUGEOT 5008 seat adjustment

121
5008_en_Chap06_securite-enfants_ed01-2015

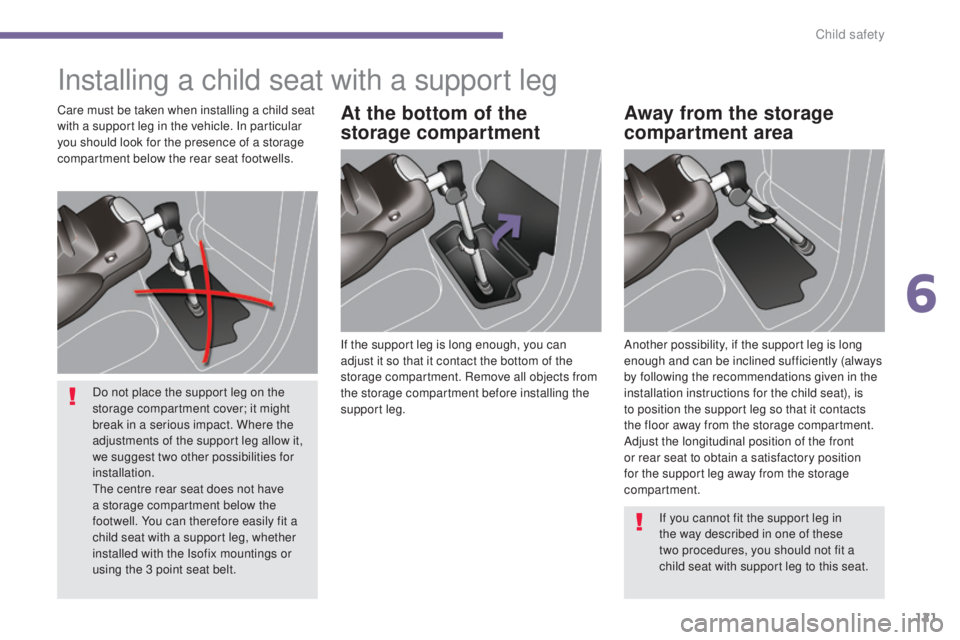

Installing a child seat with a support leg
If the support leg is long enough, you can
adjust it so that it contact the bottom of the
storage compartment. Remove all objects from
the storage compartment before installing the
support leg.Another possibility, if the support leg is long
enough and can be inclined sufficiently (always
by following the recommendations given in the
installation instructions for the child seat), is
to position the support leg so that it contacts
the floor away from the storage compartment.
Adjust the longitudinal position of the front
or rear seat to obtain a satisfactory position
for the support leg away from the storage
compartment.
Care must be taken when installing a child seat
with a support leg in the vehicle. In particular
you should look for the presence of a storage
compartment below the rear seat footwells.
If you cannot fit the support leg in
the way described in one of these
two procedures, you should not fit a
child seat with support leg to this seat.
Do not place the support leg on the
storage compartment cover; it might
break in a serious impact. Where the
adjustments of the support leg allow it,
we suggest two other possibilities for
installation.
The centre rear seat does not have
a storage compartment below the
footwell. You can therefore easily fit a
child seat with a support leg, whether
installed with the Isofix mountings or
using the 3 point seat belt.
At the bottom of the
storage compartment
Away from the storage
compartment area
6
Child safety

139
5008_en_Chap07_securite_ed01-2015
Front seat belts not fastened /
u nfastened warning lamp
Fastening
F Pull the strap, then insert the tongue in the
buckle.
F

C
heck that the seat belt is fastened
correctly by pulling the strap.
Height adjustment
F To adjust the anchorage point, squeeze the control A and slide it until you find a notch.
When the ignition is switched on, this
warning lamp comes on in the seat belt
and passenger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their seat belt.
From approximately 12 mph (20 km/h)
this warning lamp flashes for two minutes
accompanied by an audible signal. Once these
two minutes have elapsed, this warning lamp
remains on until the driver and/or the front
passenger fastens their seat belt.
Unfastening
F Press the red button on the buckle.
F
G uide the seat belt as it reels in.
Seat belts
Front seat belts
The front seat belts are fitted with a
pretensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side impact.
Depending on the severity of the impact, the
pretensioning system instantly tightens the seat
belts against the body of the occupants.
The pretensioning seat belts are active when
the ignition is on.
The force limiter reduces the pressure of the
seat belt on the chest of the occupant, so
improving their protection.
7
Safety

142
5008_en_Chap07_securite_ed01-2015
Advice
In order to be effective, a seat belt must:
- b e tightened as close to the body as
possible,
-

b
e pulled in front of you with a smooth
movement, checking that it does not
twist,
-

b
e used to restrain only one person,
-

n
ot bear any trace of cuts or fraying,
-

n
ot be converted or modified to avoid
affecting its performance.
The driver must ensure that passengers use
the seat belts correctly and that they are all
fastened before setting off.
Wherever you are seated in the vehicle,
always fasten your seat belt, even for short
journeys.
Do not interchange the seat belt buckles as
they will not fulfil their role fully.
The seat belts are fitted with an inertia reel
permitting automatic adjustment of the length
of the strap to your size. The seat belt is
stowed automatically when not in use.
Before and after use, ensure that the seat belt
is reeled in correctly.
The lower part of the strap must be positioned
as low as possible on the pelvis.
The upper part must be positioned in the
hollow of the shoulder.
The inertia reels are fitted with an automatic
locking device which comes into operation in
the event of a collision, emergency braking
or if the vehicle rolls over. You can release
the device by pulling the strap firmly and then
releasing it so that it reels in slightly.
In the event of an impact
Depending on the nature and seriousness
of the impact
, the pretensioning device may
be deployed before and independently of the
airbags. Deployment of the pretensioners
is accompanied by a slight discharge of
harmless smoke and a noise, due to the
activation of the pyrotechnic cartridge
incorporated in the system.
In all cases, the airbag warning lamp
comes


on.
Following an impact, have the seat belts
system checked, and if necessary replaced,
by a PEUGEOT dealer or a qualified
workshop.
Recommendations for children
Use a suitable child seat if the passenger is
less than 12 years old or shorter than one and
a half metres.
Never use the same seat belt to secure more
than one person.
Never allow a child to travel on your lap.
For more information on child seats, refer to
the corresponding section.
In accordance with current safety regulations,
for all repairs on your vehicle's seat belts, go
to a qualified workshop with the skills and
equipment needed, which a PEUGEOT dealer
is able to provide.
Have your seat belts checked regularly by a
PEUGEOT dealer or a qualified workshop,
particularly if the straps show signs of
damage.
Clean the seat belt straps with soapy water or
a textile cleaning product, sold by PEUGEOT
dealers.
After folding or moving a seat or rear bench
seat, ensure that the seat belt is positioned
and reeled in correctly.
Safety

351
5008_en_Chap13_index-alpha_ed01-2015
F
E
H
G
Deactivating the passenger airbag ...............14 4
Deadlocking .................................................... 47
Defrosting


..................................... 63, 64 , 65, 79
Demisting
...............................

......63, 64, 65, 79
Dials and gauges


............................................ 14
Diesel


............................................................ 193
Dimensions


................................................... 267
Dipped beam
...............................

....82, 231-233
Dipstick
................

.................................... 30, 19 9
Direction indicators


...............13 5, 231 , 232 , 234
Display screen, instrument panel


...........15, 179
Display screen, multifunction (with audio system)
..........................34, 36 , 39
Display screen, multifunction (without audio system)
..................................32
Distance alert


................................................ 160
Doors


............................................................... 55
Doors emergency control


...............................57
Door pockets
................................................... 99
D

riving economically ....................................... 12
Dynamic stability control (DSC)
...... 2

2, 137 , 15 4 Energy economy mode
.................................
247
Engine compartment ............................197, 198
Engine compartment fusebox


.......................................................2 41
Engine, Diesel
...... 19

3, 195 , 198 , 261, 263 , 266
Engine, petrol


........................193, 197 , 258-260
Environment
........ 12,

50, 64, 183, 201, 211, 246
ESC/ASR
...............................

........................13 6
Filling with fuel
..............................191, 193, 194
Filter, air
...............

.........................................202
Filter, oil


.........................................................202
Filter, particle


........................................201, 202
Filter, passenger compartment


.....................202
Fitting a wheel

...............................
................228
Fitting roof bars


.............................................254
Fittings, boot
......................................... 10

8, 109
Flap, fuel filler

...............................
.................19 4
Flashing indicators


........................................13 5
Floor, concertina


...................................108, 109
Foglamps, front


...............................84, 231 , 233
Foglamps, rear


...............................84, 234, 235
Folding the rear seats


.........................73, 75 , 76
Folding/unfolding the door mirrors
............................................79
Front seats


..........................................68, 69 , 72
Fuel .................................................. 12, 191 , 193
Fuel consumption
...................................... 12,

42
Fuel filler cap
.................................................191
Fuel filler flap
.................................................191
Fuel gauge


..............................................14, 191
Eco-driving
..................................................... 12
Eco-driving (advice)


........................................ 12
Economy mode


............................................. 247
Electronic gearbox
....................................... 170
Electronic stability control (ESC)
..................13 6
Emergency boot release
................................. 59
E

mergency call
............................................. 2

70
Emergency warning lamps
........................... 13

5
Emissions control system, SCR
.............24, 204 Fuel tank
................................................ 191, 19 4
Fusebox, dashboard .....................................238
Fuses


.............................................................237
Halogen headlamps


..............................231, 232
Hazard warning lamps


..................................13 5
Headlamp adjustment


.....................................89
Headlamps, automatic illumination


................87
Headlamps, dipped beam


...............82, 231, 232
Headlamps, directional
........................... 90,

231
Gearbox, automatic


....................12, 14 , 18 , 151 ,
15 4 , 155 , 175, 203 , 246
Gearbox, electronic


..........................12, 18 , 151 ,
15 4 , 170 , 180 , 203
Gearbox, manual


...........................12, 151 , 15 4 ,
155 , 169 , 180, 203
Gear lever, automatic gearbox
..................... 17

5
Gear lever, electronic gearbox


.....................170
Gear lever, manual gearbox


.........................169
Gear shift indicator


.......................................179
Glove box
................................................99, 10 0
G . P. S .


............................................................270
Grab handles
.................................................. 99
G

uidance

.......................................................279
Guide-me-home


........................................86, 87
.
Alphabetical index

352
5008_en_Chap13_index-alpha_ed01-2015
Interior fittings ................................................. 99
Interior mood lighting


.......................................................... 97
ISOFIX mountings ......................................... 127
Keeping children safe
............ 1

15 -13 4, 142, 14 4
Key with remote control
....................46-50, 148
Kit, hands-free


..................................... 296, 339
Kit, temporary puncture repair


........................................................... 214
Labels, identification
..................................... 26

8
Lamps, warning and indicator


..................16 -26
LED daytime running lamps
..............................

..............8 6, 231, 232
Level, AdBlue
® additive ................................. 204
Level, brake fluid ........................................... 20
0
Level, Diesel additive


............................ 201, 202 Level, engine oil

...............................
.......
30, 19 9
Level, headlamp wash

............................
93, 201
Level, power steering fluid
............................
20
0
Levels and checks .................................
197-2 01
Light-emitting diodes - LEDs

................
231, 232
Lighting bulbs (replacement)

......................................
231-236
Lighting dimmer
..............................
................
31
Lighting, directional
......................................... 90
L
ighting, guide-me home

..........................
86, 87
Lighting, interior

........................................
96, 97
Lighting, welcome

.....................................
86, 88
Loading

.............................................
12, 78 , 254
Load reduction mode

....................................
247
Load space cover
...............................
...........
11 0
Locating your vehicle
...................................... 48
L
ocking from the inside
...................................
56
L
ocking the boot..............................................
47
Locking the doors

...........................................
47
Long objects, transporting
........................ 72,
78
Low fuel level ..........................................
22, 191
Luggage retaining net

...................................
112
Jack
........

...............................................
212, 226
JACK socket


..................................
101, 315, 33 8
Jump starting
..............................
..................
245
J
K
LMain beam ...................................... 82, 231, 233
Maintenance, routine


........................................................... 12
Map reading lamps


......................................... 96
Markings, identification


.................................268
Mat


................................................................ 102
Menu, main


................................................... 332
Mirror, rear view
.............................................. 80
M
I
Headlamps, main beam ..................8 2, 231, 232
Headlamp wash .............................................. 93
Headlamp wash reservoir


.............................201
Head restraints, front
...................................... 70
Head restraints, rear
....................................... 77
Head-up display


............................ 15 8, 163 , 166
Heated seats


................................................... 71
Heating


................................................ 60, 62, 65
Height and reach adjustment, steering wheel


.............................................. 81
High load retaining net
..................................111
Hill start assist

............................................... 15

5
Hooks


.................................................... 109, 113
Horn ............................................................... 13 5
Identification plates
....................................... 26

8
Ignition
................

........................................... 148
Immobiliser, electronic


............................50, 148
Indicator, engine oil level
........................30, 199
Indicator lamps, operation


.................................................. 16 -18
Indicators, direction


...................................... 13 5
Inflating tyres


.......................................... 12, 26 8
Inflating tyres and accessories (using the kit)
..............................

................219
Input, auxiliary
...............................

................336
Inputs for audio system
.................101, 315, 338
Instrument panels


........................................... 14
Instrument panel screen
................................. 15
I

ntelligent Traction Control
........................................................ 13

6
Alphabetical index

354
5008_en_Chap13_index-alpha_ed01-2015
Screen menu map ........................318, 342 , 344
Screen, monochrome A .............32, 34, 43, 342
Screen, monochrome C
................... 3

6, 44, 344
Screenwash fluid level


............................................................... 93
Screenwash, front


........................................... 93
Screenwash, rear


............................................ 92
Screen-wash reservoir


...................................................... 201
SCR (Selective Catalytic Reduction)
.................................................. 20

4
Seat adjustment
...............................

...68 , 69 , 73
Seat belts
.............................. 10

9, 13 9 , 141, 142
Seat configurations
......................................... 78
Se

ats, electric

................................................. 69
Seats, rear


........................................... 73, 75 , 76
Serial number, vehicle


......................................................... 268
Service indicator


............................................. 28
Servicing
...............................

..........................12
Settings, equipment


.......32, 34 , 36, 39, 40, 344
Short-cut menus


........................................... 278
Sidelamps


............................... 82, 231 , 232 , 234
Side repeater
..............................

..................233
Snow chains
.................................................. 23

0
Socket, 12 volt accessory


..................... 99, 102, 113, 108 , 109
Sockets, audio


.............................. 101, 315, 336
Spare wheel
...............................

...................229
Speed limiter


................................................. 163
Speedometer


.................................................. 14
Spotlamps, side


............................................................... 97
Starting the engine


....................................... 148
Starting using another battery
......................................................... 24

5Table of weights

...................25

9, 260 , 263, 266
Tables, aircraft


..............................................103
Tables of engines


..................................258, 261
Tables of fuses
..............................................237
Tank, AdBlue
®
additive
.............................................. 204, 209
Ta n k , f u e l


....................................................... 19 4
Technical data


....................................... 258-266
Telephone


............................................ 295, 339
Temperature control for heated seats


............................................ 71
Temperature, coolant


...................................... 27Under floor storage


.......................................
113
Under-inflation
(detection) ....................................26, 183, 229
Unlocking ..............................
..........................46
Unlocking from the inside

...............................56
U

nlocking the boot ..........................................46
Unlocking the doors


........................................46
Updating risk areas
....................................... 28

4
UREA


...................................................204, 205
USB


...............................................101, 315, 338
Three flashes function
(direction indicators)

...................................
13 5
Third brake lamp

..................................
235, 236
Time (setting)
..............................
.
33, 35, 38, 40
TMC (Traffic info)
..........................................
2
93
To o l s

......................................................
212, 223
Total distance
recorder

........................................................
31
To w b a r

...........................................................
252
Towed loads

.........................
259, 260 , 263, 266
Towing another vehicle
................................. 24
9
Traction control (ASR)

............................
22, 137
Traffic information (TA)

.................
294, 307 , 334
Traffic information (TMC)
..................... 2
93
, 294
Tr a i l e r

............................................................
252
Trip computer

............................................
42- 44
Trip distance recorder

.....................................
31
Tyre pressures

..............................................
268
Ty r e s

................................................................
12
Tyre under-inflation detection

........
26, 183 , 229
T
U
Steering mounted controls,
audio ................................................... 276, 331
Stop & Start


........................................ 18, 42 , 63 ,
67 , 180 , 192, 19 6 , 202 , 244
Storage


............................ 99, 101 , 103 , 108 , 109
Storage box
................................................... 10

0
Storage drawer


............................................. 103
Storage wells


........................................ 108, 109
Stowing rings


........................................ 108, 109
Sun visor


................................................. 99, 10 0
Switching off the engine


................................................... 148
Synchronising the remote control
........................................................... 49
S

ynthesiser,
voice ............................................................ 290
System, navigation ........................................ 279
Alphabetical index
