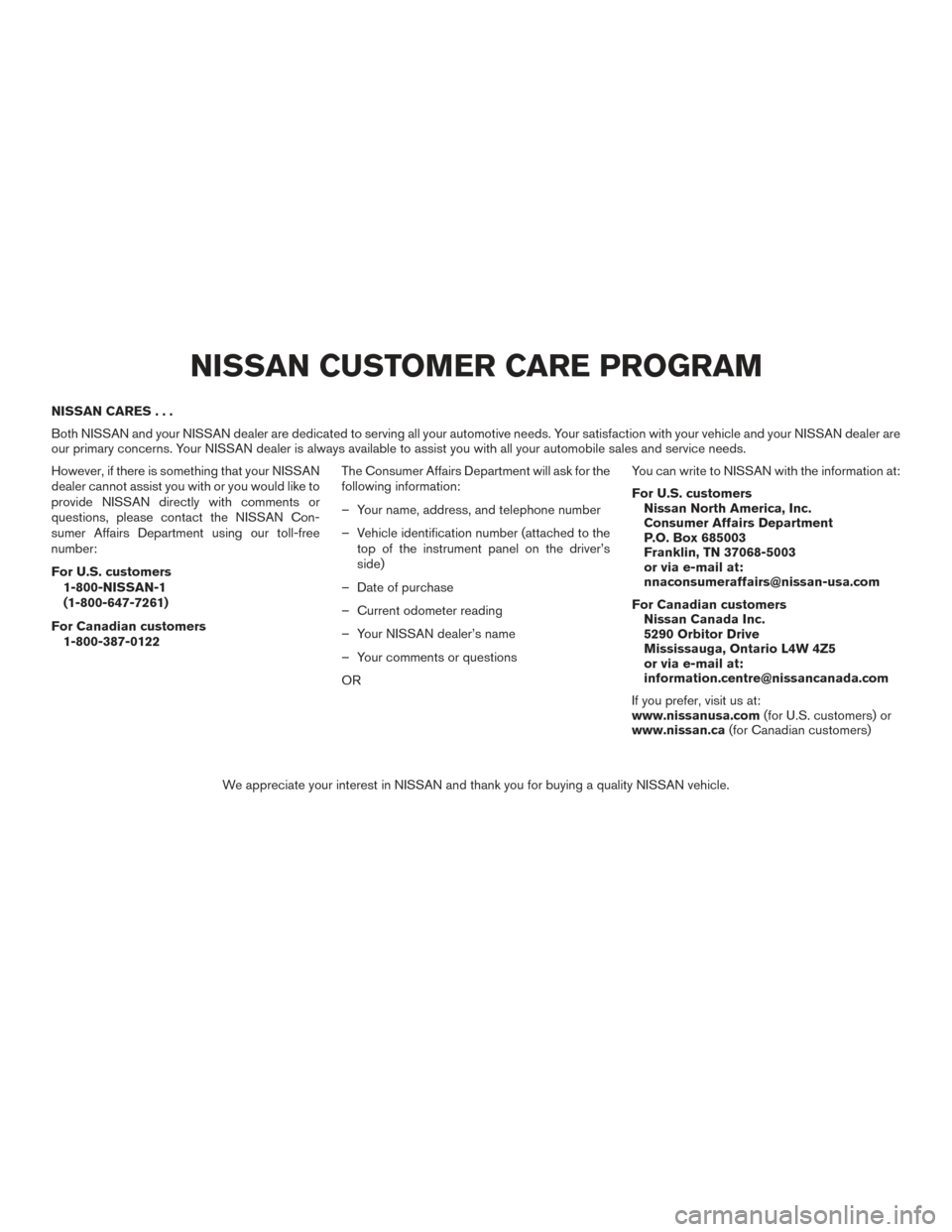

NISSAN CARES...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer are
our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your NISSAN
dealer cannot assist you with or you would like to
provide NISSAN directly with comments or
questions, please contact the NISSAN Con-
sumer Affairs Department using our toll-free
number:
For U.S. customers1-800-NISSAN-1
(1-800-647-7261)
For Canadian customers 1-800-387-0122 The Consumer Affairs Department will ask for the
following information:
– Your name, address, and telephone number
– Vehicle identification number (attached to the
top of the instrument panel on the driver’s
side)
– Date of purchase
– Current odometer reading
– Your NISSAN dealer’s name
– Your comments or questions
OR You can write to NISSAN with the information at:
For U.S. customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
or via e-mail at:
[email protected]
For Canadian customers Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
or via e-mail at:
[email protected]
If you prefer, visit us at:
www.nissanusa.com (for U.S. customers) or
www.nissan.ca (for Canadian customers)
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.
NISSAN CUSTOMER CARE PROGRAM

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-7
Engine coolant temperature gauge ...............2-8
Fuel gauge ....................................2-9
Trip computer ................................. 2-10
Service interval reminder .......................2-11
Warning lights, indicator lights and audible
reminders ........................................ 2-12
Checking lights ............................... 2-13
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-21
Security systems ................................. 2-21
NISSAN Vehicle Immobilizer System
(if so equipped) ............................... 2-21
Wiper and washer switch ......................... 2-23
Switch operation .............................. 2-23
Rear switch operation (if so equipped) ...........2-24
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-25
Headlight and turn signal switch ....................2-25
Headlight control switch ........................ 2-25Daytime running light system (Canada only)
......2-26
Instrument brightness control ...................2-27
Turn signal switch ............................. 2-28
Fog light switch (if so equipped) ................2-28
Horn ............................................ 2-29
Heated seats (if so equipped) ......................2-29
Vehicle Dynamic Control (VDC) off switch ...........2-30
Power outlet ..................................... 2-31
Storage ......................................... 2-31
Map pockets .................................. 2-31
Seatback pocket .............................. 2-32
Storage trays ................................. 2-32
Cup holders .................................. 2-33
Glove box .................................... 2-34
Cargo cover (if so equipped) ....................2-35
Divide-n-hide®
adjustable floor
(if so equipped) ............................... 2-36
Luggage hooks ................................ 2-37
Windows ........................................ 2-38
Power windows (if so equipped) ................2-38
Manual windows (if so equipped) ................2-40
Interior lights ..................................... 2-40
Map light ..................................... 2-41
Luggage compartment light . . ...................2-42

1. Tachometer
2. Temperature gauge
3. Odometer/twin trip odometer/trip com-puter
4. Fuel gauge 5. Speedometer
6. Trip odometer reset switch/trip com-
puter mode 7. Continuously Variable Transmission
(CVT) position indicator (CVT models
only)
8. Instrument brightness control
CAUTION
● To clean the meter lens, use a soft cloth,
dampened with water. Never use a
rough cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel with
a chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
● Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.
Type A (if so equipped)
LIC2146
METERS AND GAUGES
Instruments and controls2-3

1. Tachometer
2. Speedometer
3. Trip computer
4. Trip odometer reset switch/Instrumentbrightness control 5. Continuously Variable Transmission
(CVT) position indicator (CVT models
only)
6. Odometer/twin trip odometer/Outside
air temperature (if so equipped) 7. Outside Air Temperature (if so
equipped)
8. Fuel gauge
CAUTION
● To clean the meter lens, use a soft cloth,
dampened with water. Never use a
rough cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel with
a chemical cleaning agent. They will
scratch or cause discoloration to the
lens.
● Do not spray any liquid such as water on
the meter lens. Spraying liquid may
cause the system to malfunction.
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the trip computer.
Speedometer
The speedometer indicates the vehicle speed.Type B (if so equipped)
LIC3341
2-4Instruments and controls

Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer
1records the total distance the
vehicle has been driven.
The twin trip odometer
2records the distance
of individual trips. Changing the display
Press the change button
3to change the dis-
play as follows:
Type A: Odometer (ODO) →Trip
→
Trip
→ Instant fuel consumption →Aver-
age fuel consumption →DTE (cruising range) →
Outside Air Temperature (if so equipped) →
Odometer (ODO)
Type B: Trip
→ Trip→Trip
Resetting the trip odometer
Press the change/reset button
3for more than
1 second to reset the currently displayed trip
odometer to zero.
Type A (if so equipped)
LIC2139
Type B (if so equipped)
LIC2758
Instruments and controls2-5

TRIP COMPUTER
Type A:When the ignition switch is placed in the
ON position, modes of the trip computer can be
selected by pushing the trip computer change
button
Aon the instrument panel located near
the speedometer.
The following modes can be selected in the dis-
play
B:
● Odometer
● Trip A
● Trip B
● Instant fuel consumption ●
Average fuel consumption
● Distance to empty
● Outside air temperature (if so equipped)
Type B: When the ignition switch is placed in the
ON position, modes of the trip computer can be
selected by pushing the menu buttonon
the steering wheel.
The following modes can be selected in the dis-
play
B:
● Instant fuel consumption
● Average fuel consumption ●
Distance to empty
● Average speed
● Travel time
● Outside air temperature (if so equipped)
Instant fuel consumption
The instant fuel consumption mode shows the
instant fuel economy. The display updates in-
stantly when driving.
Average fuel consumption (mpg or l
(liter)/100km)
The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pressing the trip or change
button for more than approximately 1 second.
The display is updated every 30 seconds. At
about the first 1/3 mi (500 m) after a reset, the
display shows (----) .
Distance to empty
The distance to empty mode provides you with an
estimation of the distance that can be driven
before refueling. The range is constantly being
calculated, based on the amount of fuel in the fuel
tank and the actual fuel consumption.
The distance to empty includes a low range
warning feature: when the fuel level is low, the
Type A (if so equipped)
LIC2138
Type B (if so equipped)
LIC2764
2-10Instruments and controls

distance to empty is automatically selected and
the digits blink in order to draw the driver’s atten-
tion. Press the trip computer change/reset button
if you wish to return to the mode that was se-
lected before the warning occurred.
When the fuel level drops even lower, the dis-
tance to empty will display (----) .
Average speed
The average speed mode shows the average
vehicle speed since the last reset. Resetting is
done by pushing the menu button on the steering
wheel for longer than 1 second.
Travel time
The travel time mode (elapsed time) shows the
time since the last reset. The displayed time can
be reset by pushing the menu button on the
steering wheel for longer than 1 second.
Trip computer reset
Type A (if so equipped):Pushing the change
button for more than 3 seconds will reset all
modes except Trip A and distance to empty (dte) .
Type B (if so equipped):Pushing the menu
button
on the steering wheel for more than
3 seconds will reset average fuel economy, aver-
age speed and travel time.
SERVICE INTERVAL REMINDER
When the ignition switch is placed in the ON
position, a wrench symbol and the distance to oil
change information will illuminate on the display
for approximately 5 seconds. The wrench symbol
and distance to oil change switch to oil display
status. Then the oil display status switches to
odometer and twin trip odometer/trip computer
information mode that was displayed before the
ignition switch was placed in the ACC, OFF or
LOCK position.
The oil level display status provides specific infor-
mation regarding your approximate engine oil level.
For additional information, refer to “Engine oil” in
the “Maintenance and do-it-yourself” section of
this manual.
Oil change schedule set up
It is possible to adjust the interval distance to oil
change by pushing the trip computer change
button on the instrument panel located near the
speedometer for 3 seconds while the wrench
symbol and distance to oil change are displayed.
The symbol and distance display will start flash-
ing and the display shows the current interval.
Push the switch to increase the interval distance.
Each step increases the interval distance by 500 mi (1,000 km). The interval distance can be set
up to 18,000 mi (30,000 km) after which the
display returns to zero.
If no further action is made, the display returns to oil
display status indication and the new interval is set.
If the interval distance is set to 0, the display will
skip the distance to oil change information and
wrench symbol display mode. In order to return to
the distance to oil change information and wrench
symbol display mode, push the trip computer
change button on the instrument panel located
near the speedometer for approximately 3 seconds
after the ignition switch has been turned to the ON
position, and adjust the distance to oil change
schedule as previously described.
Refer to the Warranty Information & Maintenance
Booklet for the appropriate interval distance to oil
change.
CAUTION
●
The oil level should be checked regu-
larly. Operating with insufficient
amount of oil level can damage the en-
gine and such damage is not covered by
the warranty.
● NISSAN recommends checking the oil
level every 3,000 mi (5,000 km).
Instruments and controls2-11

in the tank when the fuel gauge reaches 0
(Empty) , showing no more fuel bars.
orLow tire pressurewarning light (if so
equipped)
Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires except the spare.
The low tire pressure warning light warns of low
tire pressure or indicates that the TPMS is not
functioning properly.
After the ignition switch is placed in the ON
position, this light illuminates for about 1 second
and turns off.
Low tire pressure warning
If the vehicle is being driven with low tire
pressure, the warning light will illuminate.
CHECK TIRE PRES (pressure) warning is
also displayed in the odometer.
Type A: When the low tire pressure warning
light illuminates, you should stop and ad-
just the tire pressure of all 4 tires to the
recommended COLD tire pressure shown
on the Tire and Loading Information label
located in the driver’s door opening. The
low tire pressure warning light does not automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle
must be driven at speeds above 16 mph
(25 km/h) to activate the TPMS and turn off
the low tire pressure warning light. Use a
tire pressure gauge to check the tire pres-
sure.
Type B: When the low tire pressure warning
light illuminates, you should stop and ad-
just the tire pressure of the corresponding
tire that is blinking in trip computer to the
recommended COLD tire pressure shown
on the Tire and Loading Information label
located in the driver’s door opening. The
low tire pressure warning light does not
automatically turn off when the tire pres-
sure is adjusted. After the tire is inflated to
the recommended pressure, the vehicle
must be driven at speeds above 16 mph
(25 km/h) to activate the TPMS and turn off
the low tire pressure warning light. Use a
tire pressure gauge to check the tire pres-
sure.
The low tire pressure warning light remains illu-
minated until the tires are inflated to the recom-
mended COLD tire pressure. The CHECK TIRE
PRES warning message is displayed each time
the ignition switch is placed in the ON position as
long as the low tire pressure warning light re-
mains illuminated.
For additional information, refer to
Check tire
pressure warning message in this section and
“Tire Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and in the “In case
of emergency” section of this manual.
TPMS malfunction
If the TPMS is not functioning properly, the low
tire pressure warning light will flash for approxi-
mately 1 minute when the ignition switch is
placed in the ON position. The light will remain on
after 1 minute. Have the system checked. It is
recommended you visit a NISSAN dealer for this
service.
For additional information, refer to “Tire Pressure
Monitoring System (TPMS)” in the “Starting and
driving” section and “Tire pressure” in the “Main-
tenance and do-it-yourself” section of this
manual.
Instruments and controls2-15
