2016 NISSAN VERSA NOTE mirror

1. Rear window and outside mirror (if soequipped) defroster switch
2. Fan control dial
3. Air conditioner button
4. Temperature control dial
5. Air intake lever (Air recirculation and
Fresh air)
6. Air flow control dialCONTROLS
Fan control dial
Thefan control dial turns the fan on and off,
and controls fan speed.
Air flow control dial
The air flow control dial allows you to select the
air flow outlets.
— Air flows from center and side vents.
— Air flows from center and side vents
and foot outlets.
— Air flows mainly from foot outlets.
— Air flows from defroster outlets andfoot outlets.
— Air flows mainly from defrosteroutlets.
Temperature control dial
The temperature control dial allows you to adjust
the temperature of the outlet air. To lower the
temperature, turn the dial to the left. To increase
the temperature, turn the dial to the right.
Fresh air
Move the air intake lever to theposition.
The air flow is drawn from outside the vehicle.
Air recirculation
Move the air intake lever to theposition to
recirculate air inside the vehicle.
Use the
selection:
● when driving on a dusty road.
● to prevent traffic fumes from entering pas-
senger compartment.
● for maximum cooling when using the air con-
ditioner.
LHA3655
4-28Monitor, climate, audio, phone and voice recognition systems

Air conditioner button
Start the engine, turn the fan control dial to the
desired position and press the
button to
turn on the air conditioner. The indicator light
comes on when the air conditioner is operating.
To turn off the air conditioner, press the
button again.
The air conditioner cooling function oper-
ates only when the engine is running.
Rear window and outside mirror (if so
equipped) defroster switch
For additional information, refer to “Rear window
and outside mirror (if so equipped) defroster
switch” in the “Instruments and controls” section
of this manual.
HEATER OPERATION
Heating
This mode is used to direct heated air to the foot
outlets. Some air also flows from the defrost
outlets.
1. Move the air intake lever to the
posi-
tion for normal heating.
2. Turn the air flow control dial to the
position. 3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de- sired position between the middle and the
hot position.
Ventilation
This mode directs outside air to the side and
center vents.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the
fan control dial to the desired
position.
4. Turn the temperature control dial to the de- sired position.
Defrosting or defogging
This mode directs the air to the defrost outlets to
defrost/defog the windows.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position. 3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de- sired position between the middle and the
hot position.
● To quickly remove ice or fog from the win-
dows, turn the fan control dial to the maxi-
mum position and the temperature control
dial to the full hot position.
● For additional information on how to opti-
mize defogging performance, refer to the
advice label on the sun visor.
When the
orposition is selected,
press the
button to turn on the air condi-
tioner for better performance. This will dehumidify
the air and help defog the windows.
Monitor, climate, audio, phone and voice recognition systems4-29

4. Push the ignition switch while depressingthe brake pedal within 10 seconds after the
chime sounds. The engine will start.
After step 3 is performed, when the ignition
switch is pushed without depressing the brake
pedal, the ignition switch position will change to
ACC.
NOTE: ● When the ignition switch is pushed to
the ACC or ON position or the engine is
started by the above procedures, the
NISSAN Intelligent Key® system warn-
ing light may blink in yellow (on the
meter) even if the NISSAN Intelligent
Key® is inside the vehicle. This is not a
malfunction. To stop the warning light
from blinking, touch the ignition switch
with the NISSAN Intelligent Key®
again.
● If the NISSAN Intelligent Key® system
warning light in the meter is blinking in
green, replace the battery as soon as
possible. For additional information,
refer to “Battery replacement” in the
“Maintenance and do-it-yourself” sec-
tion of this manual.NISSAN VEHICLE IMMOBILIZER
SYSTEM (if so equipped)
The NISSAN Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered key.
If the engine fails to start using a registered key
(for example, when interference is caused by
another registered key, an automated toll road
device or automatic payment device on the key
ring) , restart the engine using the following pro-
cedure:
1. Leave the ignition switch in the ON position for approximately 5 seconds.
2. Place the ignition switch in the OFF or LOCK position, and wait approximately
10 seconds.
3. Repeat Steps 1 and 2.
4. Restart the engine while holding the device (which may have caused the interference)
separate from the registered key.
If the no start condition re-occurs, NISSAN rec-
ommends placing the registered key on a sepa-
rate key ring to avoid interference from other
devices. ●
Make sure the area around the vehicle is
clear.
● Check fluid levels such as engine oil, cool-
ant, brake and clutch fluid (if so equipped) ,
and windshield-washer fluid as frequently as
possible, or at least whenever you refuel.
● Check that all windows and lights are clean.
● Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
● Lock all doors.
● Position seat and adjust head
restraints/headrests.
● Adjust inside and outside mirrors.
● Fasten seat belts and ask all passengers to
do likewise.
● Check the operation of warning lights when
the ignition switch is placed in the ON posi-
tion. For additional information, refer to
“Warning lights, indicator lights and audible
reminders” in the “Instruments and controls”
section of this manual.
BEFORE STARTING THE ENGINE
Starting and driving5-13

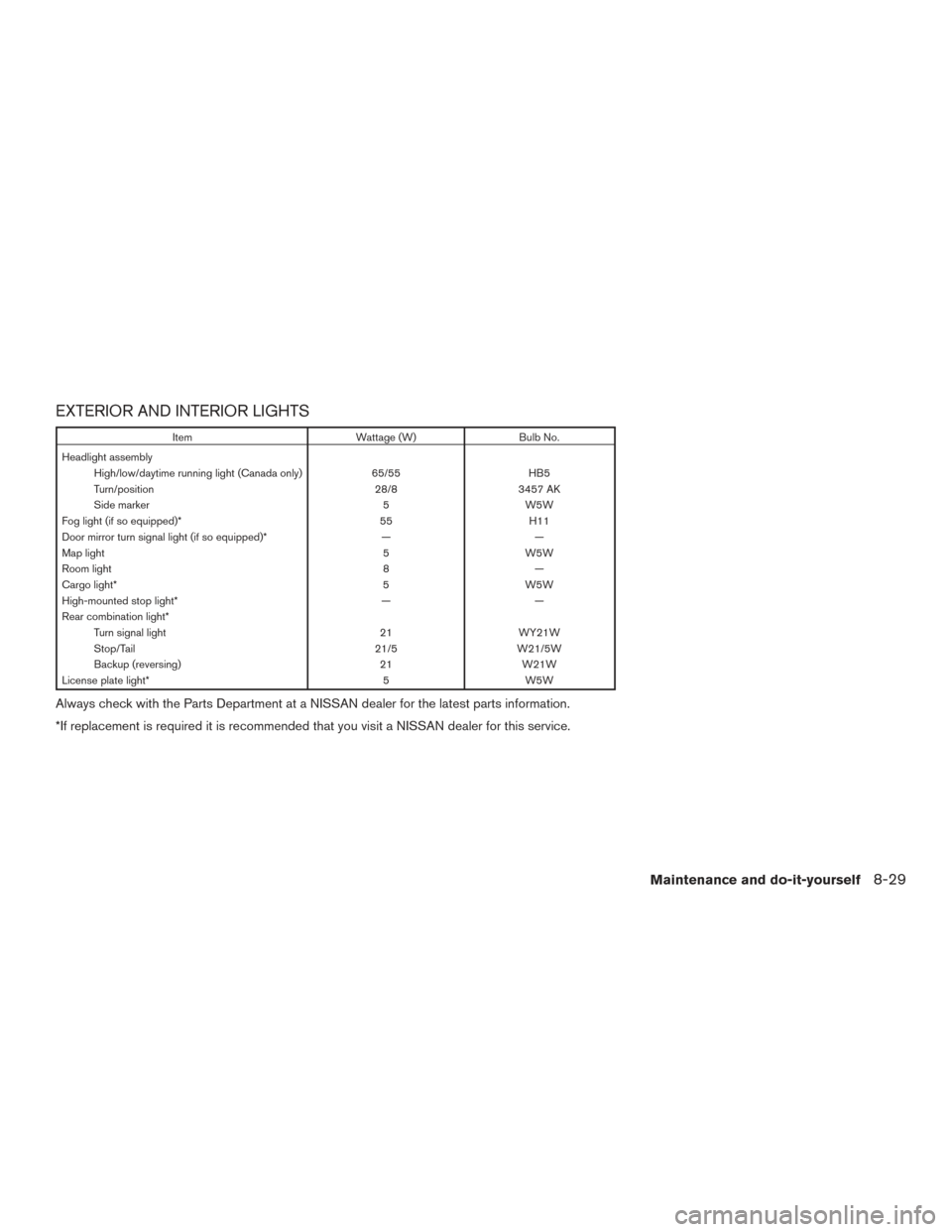

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High/low/daytime running light (Canada only) 65/55HB5
Turn/position 28/83457 AK
Side marker 5W5W
Fog light (if so equipped)* 55H11
Door mirror turn signal light (if so equipped)* ——
Map light 5W5W
Room light 8—
Cargo light* 5W5W
High-mounted stop light* ——
Rear combination light* Turn signal light 21WY21W
Stop/Tail 21/5W21/5W
Backup (reversing) 21W21W
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
*If replacement is required it is recommended that you visit a NISSAN dealer for this service.
Maintenance and do-it-yourself8-29

1. Fog light (if so equipped)
2. Headlight assembly
3. Map light
4. Room light
5. Door mirror turn signal light(if so equipped)
6. Rear combination light
7. High-mounted stop light
8. Cargo light
9. License plate light
LDI2796
8-30Maintenance and do-it-yourself

K
Key.........................3-2
Key fob battery replacement .......8-24,8-24
Keyless entry With Intelligent Key system
(See Intelligent Key system) ......3-9,3-17
Keys NISSAN Intelligent Key® .......3-3,3-11
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emissioncontrolinformationlabel.....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-58
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-24
License plate Installing the license plate ..........9-13
Light Airbagwarninglight.........1-59,2-18
Brake light (See stop light) .........8-29
Bulb check/instrument panel ........2-13
Bulb replacement ..............8-29
Charge warning light ............2-14
ExteriorandInteriorlights..........8-29
Foglights...................8-28 Foglightswitch ...............2-28
Headlight and turn signal switch
......2-25
Headlight control switch ..........2-25
Headlights..................8-27
Interiorlight..............2-40,2-41
Lightbulbs..................8-27
Low tire pressure warning light .......2-15
Low windshield-washer fluid warning
light......................2-16
Passenger air bag and status light .....1-51
Security indicator light ............2-20
Warning/indicator lights and audible
reminders ............2-12,2-13,2-18
Lights.......................8-27
Lock Child safety rear door lock ..........3-7
Door locks ...................3-6
Fuel-filler door lock opener lever ......3-26
Power door locks ............3-6,3-7
Loose fuel cap warning ..........2-6,3-27
Lowfuelwarninglight..............2-14
Low tire pressure warning light .........2-15
Low windshield-washer fluid warning light . . .2-16
Luggage (See vehicle loading information) . .9-13
M
Maintenance Generalmaintenance.............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seatbeltmaintenance............1-19
Underthehoodandvehicle .........8-4
Maintenancerequirements............8-2 Malfunction indicator light
............2-19
Manual front seat adjustment ...........1-3
Manual windows .................2-40
Mappocket....................2-31
Meters and gauges ................2-3
Instrument brightness control ........2-27
Mirror Outside mirrors ...............3-31
Rearview ...................3-30
Vanity mirror .................3-30
Mirrors ......................3-30
Mobileapps ...................4-78
N
NissanConnect
SM................4-78
NISSAN Intelligent Key® .........3-3,3-11
NISSAN Intelligent Key® battery discharge
indicator .....................5-12
NISSAN Vehicle Immobilizer
System ............2-21,3-5,5-10,5-13
NISSAN voice recognition system ......4-112
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-5
Oil Capacities and recommended
fuel/lubricants.................9-2
Changingengineoil.............8-11
Changing engine oil filter ..........8-12
Checking engine oil level ..........8-10
Engineoil...................8-10
10-4

Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity..............9-7
Oneshotcall...........4-83,4-97,4-107
Outside mirrors .................3-31
Overheat Ifyourvehicleoverheats...........6-14
Owner’s manual order form ...........9-21
Owner’s manual/service manual order
information ....................9-21
P
Parking Parking brake operation ...........5-20
Parking/parking on hills ...........5-25
Parking brake ...................5-20
Phone, Bluetooth® hands-free
system ...............4-79,4-94,4-104
Power Power door locks ............3-6,3-7
Power outlet .................2-31
Power rear windows .............2-39
Power steering system ...........5-26
Power windows ...............2-38
Rear power windows ............2-39
Power outlet ...................2-31
Power steering ..................5-26
Precautions Maintenance precautions ...........8-5
Precautions on booster
seats...........1-22,1-29,1-35,1-39
Precautions on child
restraints .........1-22,1-29,1-35,1-39
Precautionsonseatbeltusage.......1-10 Precautions on supplemental restraint
system
....................1-42
Precautions when starting and driving ....5-2
Programmablefeatures ..........4-7,4-49
Push starting ...................6-14
R
Radio Car phone or CB radio ...........4-79
FM-AM radio with compact disc (CD)
player .....................4-44
FM/AM radio with compact disc (CD)
player .....................4-48
FM/AM/SAT radio with compact disc (CD)
player .................4-53,4-58
Steering wheel audio control switch ....4-76
Readiness for inspection maintenance (I/M)
test........................9-20
Rear center seat belt ..............1-16
Rear power windows ..............2-39
Rearseat......................1-4
Rearview mirror .................3-30
RearView Monitor ................4-10
Rear window defroster switch .........2-25
Rear window wiper and washer switches . . .2-24
Recommended Fluids ...............9-2
Recorders EventData..................9-20
Refrigerant recommendation ...........9-7
Registering a vehicle in another country ....9-10
Reporting safety defects (US only) .......9-19 S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-22,1-29,1-35,1-39
Reporting safety defects (US only) .....9-19
Seat adjustment Front manual seat adjustment ........1-3
Rear seat adjustment .............1-4
Seatbackpockets................2-32
Seat belt Child safety ..................1-19
Infants and small children ..........1-20
Injured Person ................
1-13
Largerchildren................1-20
Precautions on seat belt usage .......1-10
Pregnant women ...............1-13
Rear center seat belt ............1-16
Seatbeltextenders .............1-18
Seatbeltmaintenance............1-19
Seatbelts................1-10,7-5
Shoulder belt height adjustment ......1-18
Three-point type with retractor .......1-13
Seat belt extenders ...............1-18
Seatbeltwarninglight..........1-13,2-17
Seats Adjustment ...................1-2
Armrests....................1-5
Frontseats...................1-2
Heatedseats.................2-29
Manualfrontseatadjustment.........1-3
Rearseat....................1-4
Seats/floor mats ..................7-4
Security indicator light ..............2-20
10-5

Turn signal switch................2-28
U
Uniform tire quality grading ...........9-17
USB interface ...............4-64,4-66
Audio file operation ..........4-65,4-67
V
Vanity mirror ...................3-30
Variable voltage control system .........8-17
Vehicledimensionsandweights.........9-9
Vehicle dynamic control (VDC) off switch . . .2-30
Vehicle dynamic control (VDC) system .....5-29
Vehicle Dynamic Control (VDC) system ....5-29
Vehicle identification ...............9-10
Vehicle identification number (VIN) .......9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate ....9-10
Vehicle immobilizer
system .............2-21,3-5,5-10,5-13
Vehicleloadinginformation........9-13,9-14
Vehicle recovery .................6-17
Vehicle security system (NISSAN Vehicle Immobi-
lizer System) , engine start . .2-21, 3-5, 5-10, 5-13
Ventilators ....................4-27
Visors.......................3-29
Voice Prompt Interrupt ......4-83,4-97,4-107
Voice recognition system ...........4-112 W
Warning Airbagwarninglight.........1-59,2-18
Battery charge warning light ........2-14
Brake warning light .............2-13
Door open warning light ...........2-14
Engine oil pressure warning light ......2-14
Hazard warning flasher switch ........6-2
Loose fuel cap warning ........2-6,3-27
Lowfuelwarninglight............2-14
Low tire pressure warning light .......2-15
Low windshield-washer fluid warning
light......................2-16
Passenger air bag and status light .....1-51
Seatbeltwarninglight........1-13,2-17
Supplemental air bag warning
light ..................1-59,2-18
Warning/indicator lights and audible
reminders............2-12,2-13,2-18
Warning labels (for SRS) ..........1-58
Warning/indicator lights and audible
reminders..............2-12,2-13,2-18 Audible reminders .......2-12,2-13,2-18
Checking bulbs ...............2-13
Indicatorlights.........2-12,2-13,2-18
Warninglights.........2-12,2-13,2-18
Warninglights...........2-12,2-13,2-18
Warning lights, indicator lights and audible
reminders.....................2-12
Washer switch Rear window wiper and washer
switches...................2-24
Weights(Seedimensionsandweights).....9-9
Wheels and tires ..............8-32,9-9 Wheel/tire size
...................9-9
When traveling or registering in another
country ......................9-10
Windows .....................2-38
Locking passengers’ windows .......2-39
Manual windows ...............2-40
Power rear windows .............2-39
Power windows ...............2-38
Rear power windows ............2-39
Windshield-washerfluid.............8-14
Windshieldwiperblades............8-19
Wiper Rear window wiper and washer
switches...................2-24
Wiperblades.................8-19
Wiper and washer switch ............2-23
10-7
