2016 NISSAN QUEST navigation


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
SAA3610
Models with navigation system
SAA3704
Models without navigation system
Remote controllerGUID-2588A2CA-F93C-4D91-A8CA-5D040A0DDECAThe remote controller has the following controls:
.Models with navigation system
1) REAR DISPLAY OPEN/CLOSE button
2) DVD button
3) Joystick
4) AUX button
5) ENTER button
6) DISP button
7) SPEAKER VOLUME CONTROL button
(
or)
8) TRACK/CHANNEL button
(
or)
9) DISPLAY TILT button
(
or)
10) USB button (if so equipped)
11) BACK button
12) SOUND button
13) Keypad (Some models do not have a Commercial Skip button.)
. Models without navigation system
1) REAR DISPLAY OPEN/CLOSE button
2) DVD button
3) Joystick
4) AUX button
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-113
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
.When changing batteries, do not let dustor oil get on the remote control and
headphones.
FCC Notice:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
BEFORE OPERATING THE DVD MO-
BILE ENTERTAINMENT SYSTEM
GUID-388A77D2-69A0-4B20-A0E4-DDCE2B1067DC
PrecautionsGUID-5D3D657D-6968-44A5-A144-3182D0634837Start the engine when using the DVD entertain-
ment system.
WARNING
The driver must not attempt to operate
the DVD system or wear the head-
phones while the vehicle is in motion
so that full attention may be given to
vehicle operation.
CAUTION
. Only operate the DVD while the
vehicle engine is running. Operating
the DVD for extended periods of
time with the engine OFF can dis-
charge the vehicle battery.
. Do not allow the system to get wet.
Excessive moisture such as spilled
liquids may cause the system to
malfunction. .
While playing VIDEO-CD media, this
DVD player does not guarantee
complete functionality of all VI-
DEO-CD formats.
Parental level (parental control)GUID-A58211E7-DD2A-4035-81DA-19A2C8A67243DVDs with the parental control setting can be
played with this system. Please use your own
judgement to set the parental control with the
system.
Disc selectionGUID-1F9B68E6-F4DF-443B-BE00-D8AD25A6E450The following disc formats can be played with
the DVD drive.
.DVD-VIDEO
. VIDEO-CD
. DTS-CD (models with navigation system)
Use DVDs with the region code ªALLº or the
code applicable to your country. (The region
code is displayed as a small symbol printed on
the top of the DVD.) This vehicle-installed DVD
player can only play DVDs with an applicable
region code.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-115
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2497
Front screen (models with navigation system)
SAA3091
Front screen (models without navigation system)
SAA3656
Rear display
PLAYING A DVDGUID-8F95C3F1-CBC0-4993-966D-B8CAD8A4BB3F
DISC´AUX buttonGUID-B86663CA-BC07-4E91-929F-99AD6ABA7280Park the vehicle in a safe location for the
front seat occupants to operate the DVD
drive while watching the images.
Insert a DVD into the CD/DVD slot with the
labeled side up. The DVD will be guided
automatically into the slot. When ejecting the
DVD, push the EJECT button.
Push the DISC´AUX button on the instrument
panel, turn the display to the DVD mode, and
begin playing DVD automatically.
When a DVD is loaded, it will be replayedautomatically.
The front screen will be turned on when the
DISC´AUX button is pushed while a DVD is
being played, and it will turn off automatically
after a period of time. To turn it on again, push
the DISC´AUX button again.
Adjust Front/Rear displayGUID-D354ED4E-B9CD-431D-845A-31A5483116CD
Front display:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the front display, push the
SETTING
button while the DVD is being played, select the
ªOthersº key and then select the ªDisplayº key.
To adjust the display ON/OFF, brightness, tint,
color and contrast, select the ªDisplay Adjust-
mentº key and then select the preferred key for
setting.
You can then adjust each item using the multi-
function controller. After changes have been
made press the BACK button to save the
setting.
Rear display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the rear display, push the ªDISPº
(Display) button on the remote controller.
To adjust aspect, color system, 3D Y/C filter and
picture mode, select each key using the joystick
on the remote controller and tilt the joystick to
right or left.
Push the BACK button to apply the settings and
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
return to the previous display.
DVD operation keysGUID-B86DB395-DEC5-4D6C-A71D-E9C3F49F2777To operate the DVD drive, select the desired key
displayed on the operation screen using the
multi-function controller.
PAUSE:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
To pause the DVD, it is also possible to push the
ª
º button on the keypad of the remote
controller.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
STOP:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to stop playing the DVD.
To stop playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
SKIP (FORWARD):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
To skip the chapter(s) forward, it is also possible
to push the ª
º button on the keypad of the
remote controller.
SKIP (REWIND):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTER button is
pushed.
To skip the chapter(s) backward, it is also
possible to push the ª
º button on the
keypad of the remote controller.
/Commercial Skip (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This function is only for DVD-VIDEO and DVD-
VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD settings menu.
To skip forward or backward, it is also possible
to push the ª
º or ªº button on the
keypad of the remote controller.
SAA2498
Front screen (models with navigation system)
SAA3656
Rear screen (models with navigation system)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-117
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
4-118Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3087
Front screen (models without navigation system)
SAA3657
Rear screen (models without navigation system)
Setting keysGUID-D63AE974-8FAC-4DB4-92D2-3F23ED97403DSelect the ªSettingsº key with the multi-function
controller and push the ENTER button to adjust
the following settings.
The items indicated with ª * º can also be set
from the rear display. Push the ª DVDº button on
the remote controller while a DVD is being
played. Select the preferred item using the
joystick ª
º on the remote controller and
push the ENTER ª
º button.
Key (DVD-VIDEO) (models with navigation
system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (front)/Menu (rear) (DVD-VI-
DEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Menus specific to each disc will be shown. For
details, see the instructions attached to the disc.
Title Search (DVD-VIDEO):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407A scene that belongs to a specified title will be
displayed each time the ª+º side or ª


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.

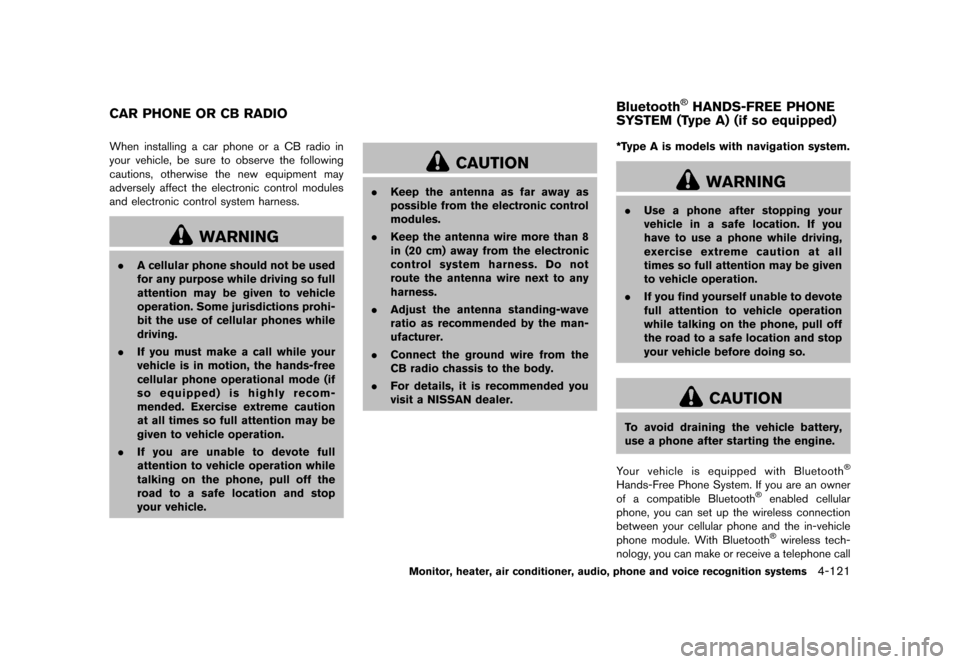

WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, it is recommended you
visit a NISSAN dealer.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D*Type A is models with navigation system.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your vehicle is equipped with Bluetooth


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
while using voice recognition.
JVH0474X
1. Push thebutton and select the ªQuick
Dialº key.
2. Select the ªAdd Newº key at the top of the screen.
JVH0475X
3. Choose the method for entering the phone-
book entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screen (models
with navigation system)º (P.4-7) .)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-125
&RQGLWLRQ


> (GLW    0RGHO 0< 1,66$1 48(67(20((8 @
JVH0478X
The following editing items are available:
.Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list. .
Voicetag
Confirm and store the voicetag. Voicetags
allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN voice
recognition system (models with navigation
system)º (P.4-153) .)
To delete an entry, select the ªDeleteº key at
step 3.
JVH0479X
MAKING A CALLGUID-5F54DB75-9326-47BC-A871-B23ED8640ECDTo make a call, follow this procedure.
1. Push the
button on the steering wheel.
The ªPHONEº screen will appear on the
display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-127
&RQGLWLRQ
