2016 NISSAN NOTE start

MWI
COMBINATION METERMWI-75
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*: Displays “Off” if the brake warning lamp is illumi nated when the valve check starts, the parking brake switch
is turned ON or the brake fluid level switch is turned ON.
CRUISE IND Cruise indicator
lampWhen cruise indicator lamp is ON.
ON
When cruise indicator lamp is OFF. Off
O/D OFF IND O/D OFF indi-
cator When O/D OFF indicator lamp is OFF.
Off
When O/D OFF indicator lamp is ON. On
FUEL W/L Low fuel warn-
ingWhen low fuel warning is ON
On
When low fuel warning is Off Off
AIR PRES W/L Tire pressure
warning lamp
operationWhen tire pressure warning lamp is ON
ON
When tire pressure warning lamp is OFF Off
EPS W/L EPS warning
lamp EPS warning lamp ON
On
EPS warning lamp OFF Off
KEY G/Y W/L Key warning
lamp When key warning lamp is ON
On
When key warning lamp is OFF Off
CHG SIG Charge warn-
ing lampEngine running
Off
PASS BUCKLE SW Seat belt buck-
le switch RHWhen seat belt buckle RH is unfastened
On
When seat belt buckle RH is fastened Off
FUEL CAP W/L Loose fuel cap
warningLoose fuel filler cap warning is ON
On
Loose fuel filler cap warning is OFF Off
PKB SW Parking brake
switchWhen parking brake is active
On
When parking brake is inactive Off
BUCKLE SW Seat belt buck-
le switch LHWhen seat belt buckle is unfastened LH.
On
When seat belt buckle is fastened LH. Off
BRAKE OIL SW Brake fluid level
switchWhen brake fluid level switch ON
On
When brake fluid level switch OFF Off
OUTSIDE TEMP
[ ° F] or [ °C] Outside tem-
perature
Ignition ON Displays the ambient air temperature
which is input from the ambient sensor.
DISTANCE Distance to
empty
While driving
[mph or km/h]
FUEL LOW SIG Low fuel warn-
ingWhen low fuel warning is On
On
When low fuel warning is Off Off
BUZZER Buzzer opera-
tionWhen Buzzer is ON
On
When Buzzer is OFF Off
TPMS PRESS L Low tire pres-
sure warningWhen check tire pressure warning mes-
sage is On
On
When check tire pressure warning mes-
sage is OFF Off
Monitor Item Display content
Data monitor
Condition Reference value in normal operation
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI-76
< ECU DIAGNOSIS INFORMATION >[TYPE B]
COMBINATION METER
TERMINAL LAYOUT
PHYSICAL VALUES
JSNIA5390ZZ
Te r m i n a l
No. Wire
color Item Condition
Reference value (V)
(Approx.)
Ignition
switch Operation or condition
1 L CAN high —— —
2 P CAN low —— —
4LG8P/R — — —
6 W Fuel level sensor signal (+) — —Refer to
MWI-102, "
Component Inspec-
tion".
7VAir bag — — —
8 P O/D OFF switch ONO/D OFF switch pressed
0
O/D OFF switch released Battery voltage
9 V Seat belt buckle switch LH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
10 SB Parking Brake switch ONParking brake is inactive
Battery voltage
Parking brake is active 0
11 BR Brake fluid level switch ON Brake fluid level low
0
Brake fluid level normal Battery voltage
15 R Ignition switch ON or ACC — —Battery voltage
16 B Illumination control switch (-) — ——
17
*1V Washer fluid level switch ON Washer fluid level low 0
Washer fluid level normal
Battery voltage
18 GR Security —— —
19 V Ambient sensor signal (+) ON ——
20 R Ambient sensor ground (-) — —0
21 B Ground —— 0
22 B
23 B
24 GR Fuel level sensor ground (-) ON —0
27 R/W Battery power supply OFF— Battery voltage
28 GR Ignition switch ON or START ON —Battery voltage
29 G Seat belt buckle switch RH ON Unfastened (ON)
0
Fastened (OFF) Battery voltage
36 LG Steering switch
(meter control switch)
——
—
38 Y Generator ONGenerator voltage low
0
Generator voltage no rmalBattery voltage
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI
COMBINATION METERMWI-77
< ECU DIAGNOSIS INFORMATION > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
*1:For Canada
Fail-safeINFOID:0000000012432614
The combination meter activates the fail-safe contro l if CAN communication with each unit is malfunctioning.
DTC IndexINFOID:0000000012432615
Function Specifications
Speedometer Reset to zero by suspending communication.
Tachometer
Illumination control When suspending communication, changes to nighttime mode.
Shift position indicator When suspending communication, not indicate.
Information display Trip com-
puterCurrent fuel consump-
tion
• When reception time of an abnormal signal is 2 seconds or
less, the last received datum is used for calculation to indi-
cate the result.
• When reception time of an abnormal signal is more than two seconds, the last result calculated during normal condition is
indicated.
Average fuel consump-
tion
Distance to empty
Odo/trip meter An indicated value is maintained at communications blackout.
Buzzer The buzzer turns OFF by suspending communication.
Warning lamp/indicator lamp ABS warning lamp
The lamp turns ON by suspending communication.
Slip indicator lamp
Malfunction indicator lamp (MIL)
VDC OFF indicator lamp
EPS warning lamp
Brake warning lamp
High beam indicator lamp
The lamp turns OFF by suspending communication.
Turn signal indicator lamp
Door warning lamp
Light indicator lamp
Engine oil pressure warning lamp
High water temperature warning
lamp
Key warning lamp
O/D OFF indicator lamp
Shift P warning lamp
Engine start operation indicator lamp
Display contents of CONSULT
Diagnostic item is detected when... Refer to
CAN COMM CIRCUIT
[U1000] When combination meter is not transmitting or receiving CAN communication signal for
2 seconds or more.
MWI-93
CONTROL UNIT (CAN)
[U1010]When detecting error during the initial diagnosis of the CAN controller of combination
meter.
MWI-94
VEHICLE SPEED
[B2205]The abnormal vehicle speed signal is input from the ABS actuator and electric unit (con-
trol unit) for 2 seconds or more.
MWI-95
ENGINE SPEED
[B2267]If ECM continuously transmits abnormal engine speed signals for 2 seconds or more.
MWI-96
WATER TEMP
[B2268]If ECM continuously transmits abnormal engine coolant temperature signals for 60 sec-
onds or more.
MWI-97
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI-92
< BASIC INSPECTION >[TYPE B]

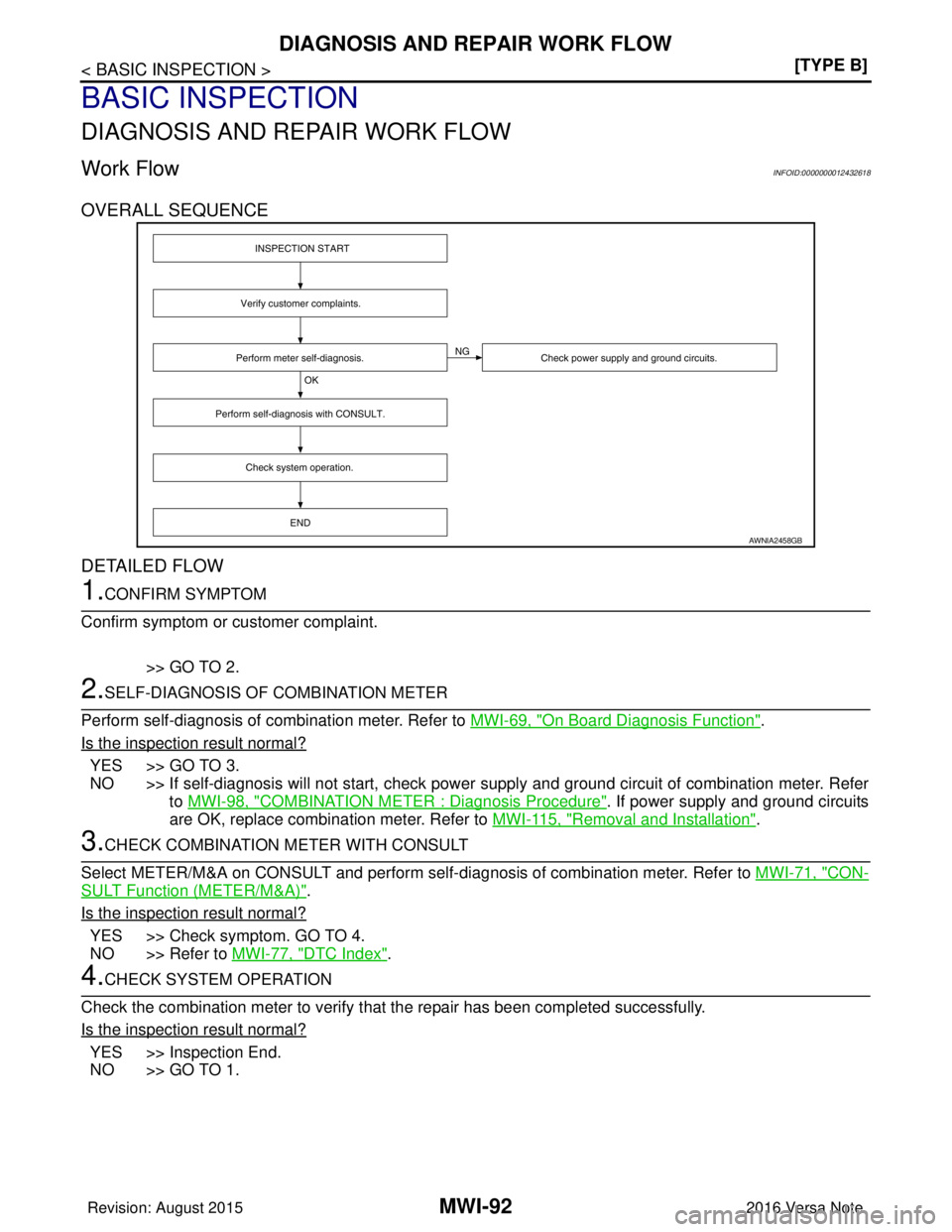

DIAGNOSIS AND REPAIR WORK FLOW
BASIC INSPECTION
DIAGNOSIS AND REPAIR WORK FLOW
Work FlowINFOID:0000000012432618
OVERALL SEQUENCE
DETAILED FLOW
1.CONFIRM SYMPTOM
Confirm symptom or customer complaint.
>> GO TO 2.
2.SELF-DIAGNOSIS OF COMBINATION METER
Perform self-diagnosis of combination meter. Refer to MWI-69, "
On Board Diagnosis Function".
Is the inspection result normal?
YES >> GO TO 3.
NO >> If self-diagnosis will not start, check power supply and ground circuit of combination meter. Refer to MWI-98, "
COMBINATION METER : Diagnosis Procedure". If power supply and ground circuits
are OK, replace combination meter. Refer to MWI-115, "
Removal and Installation".
3.CHECK COMBINATION METER WITH CONSULT
Select METER/M&A on CONSULT and perform self-d iagnosis of combination meter. Refer to MWI-71, "
CON-
SULT Function (METER/M&A)".
Is the inspection result normal?
YES >> Check symptom. GO TO 4.
NO >> Refer to MWI-77, "
DTC Index".
4.CHECK SYSTEM OPERATION
Check the combination meter to verify that the repair has been completed successfully.
Is the inspection result normal?
YES >> Inspection End.
NO >> GO TO 1.
AWNIA2458GB
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI
B2205 VEHICLE SPEEDMWI-95
< DTC/CIRCUIT DIAGNOSIS > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
B2205 VEHICLE SPEED
DescriptionINFOID:0000000012432624
The ABS actuator and electric unit (control unit) provi des a vehicle speed signal to the combination meter via
CAN communication lines.
DTC LogicINFOID:0000000012432625
DTC DETECTION LOGIC
Diagnosis ProcedureINFOID:0000000012432626
1.CHECK COMBINATION METER INPUT SIGNAL
1. Start engine and select METER/M&A on CONSULT.
2. Using SPEED METER on DATA MONITOR, compar e the value of DATA MONITOR with speedometer
pointer of combination meter. Speedometer and DATA MONITOR indications should be close.
Is the inspection result normal?
YES >> Perform ABS actuator and electric unit (control unit) self-diagnosis. Refer to BRC-31, "CONSULT
Function (ABS)".
NO >> Replace combination meter. Refer to MWI-115, "
Removal and Installation".
DTC Display Item Malfunction detected condition Possible malfunction
B2205 VEHICLE SPEED CIRC
[B2205] Malfunction is detected when an erroneous
speed signal is received for 2 seconds or
more. • Combination meter
• ABS actuator and electric unit (control unit)
Revision: August 2015
2016 Versa Note

cardiagn.com

MWI-98
< DTC/CIRCUIT DIAGNOSIS >[TYPE B]
POWER SUPPLY AND GROUND CIRCUIT
POWER SUPPLY AND GROUND CIRCUIT
COMBINATION METER
COMBINATION METER : Diagnosis ProcedureINFOID:0000000012432633
Regarding Wiring Diagram information, refer to
MWI-79, "Wiring Diagram".
1.CHECK FUSE
Check that the following fuses are not blown.
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.POWER SUPPLY CIRCUIT CHECK
1. Disconnect combination meter connector.
2. Check voltage between combination meter harne ss connector M24, terminals 27, 28, 15 and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair or replace harness or connector.
3.GROUND CIRCUIT CHECK
1. Turn ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter har ness connector M24, terminals 21, 22, 23 and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair or replace harness or connector.
BCM (BODY CONTROL SYSTEM) (WIT HOUT INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITHOUT INTELLIGENT KEY SYSTEM) : Diag-
Power source Fuse No.
Battery 8
Ignition switch ON or START 3
Ignition switch ACC or ON 18
TerminalsIgnition switch position
(+) (–)OFF ACC ONSTART
Connector Terminal
M24 27
GroundBattery voltage Battery voltage Battery voltage Battery voltage
28 0V0VBattery voltage Battery voltage
15 0V Battery voltage Battery voltage 0V
Te r m i n a l s
Continuity
(+)
(–)
Connector Terminal
M24 21
Ground Yes
22
23
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI
POWER SUPPLY AND GROUND CIRCUITMWI-99
< DTC/CIRCUIT DIAGNOSIS > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
nosis ProcedureINFOID:0000000012542966
Regarding Wiring Diagram information, refer to BCS-117, "Wiring Diagram".
1.CHECK FUSES AND FUSIBLE LINK
Check that the following fuses and fusible link are not blown.
Is the fuse blown?
YES >> Replace the blown fuse or fusible link after repairing the affected circuit.
NO >> GO TO 2.
2.CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connectors.
3. Check voltage between BCM connector and ground.
Is the inspection result normal?
YES >> GO TO 3.
NO >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between BCM connector and ground.
Is the inspection result normal?
YES >> Inspection End.
NO >> Repair harness or connector.
BCM (BODY CONTROL SYSTEM) (W ITH INTELLIGENT KEY SYSTEM)
BCM (BODY CONTROL SYSTEM) (WITH IN TELLIGENT KEY SYSTEM) : Diagnosis
Procedure
INFOID:0000000012542967
Regarding Wiring Diagram information, refer to BCS-52, "Wiring Diagram".
Terminal No.Signal nameFuses and fusible link No.
37 Battery power supply 8 (10A)
42 12 (10A)
50 G (40A)
11 Ignition switch ACC or ON 18 (10A)
38 Ignition switch ON or START 2 (10A)
BCMGround Ignition switch position
Connector Terminal
—OFF
ACC ON
M18 11
0 V
Battery voltage
Battery voltage
37
Battery voltage
38 0 V0 V
M19 42
Battery voltage Battery voltage
50
BCM GroundContinuity
Connector Terminal
M19 55—Yes
Revision: August 2015 2016 Versa Note

cardiagn.com

MWI
THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFFMWI-109
< SYMPTOM DIAGNOSIS > [TYPE B]
C
D
E
F
G H
I
J
K L
M B A
O P
THE OIL PRESSURE WARNING LAMP DOES NOT TURN OFF
DescriptionINFOID:0000000012432651
The engine oil pressure warning lamp remains on while the engine is running (normal oil pressure).
Diagnosis ProcedureINFOID:0000000012432652
1.CHECK COMBINATION METER INPUT SIGNAL
1. Start the engine and select METER/M&A on CONSULT.
2. Observe OIL W/L DATA MONITOR and the operation of the engine oil pressure warning lamp on the com- bination meter.
Is the inspection result normal?
YES >> Replace combination meter. Refer to MWI-115, "Removal and Installation".
NO >> Perform ECM self-diagnosis. Refer to EC-60, "
CONSULT Function".
ComponentConditionCONSULT
Engine oil pressure warning light Engine runningOFF
Revision: August 2015 2016 Versa Note

cardiagn.com
