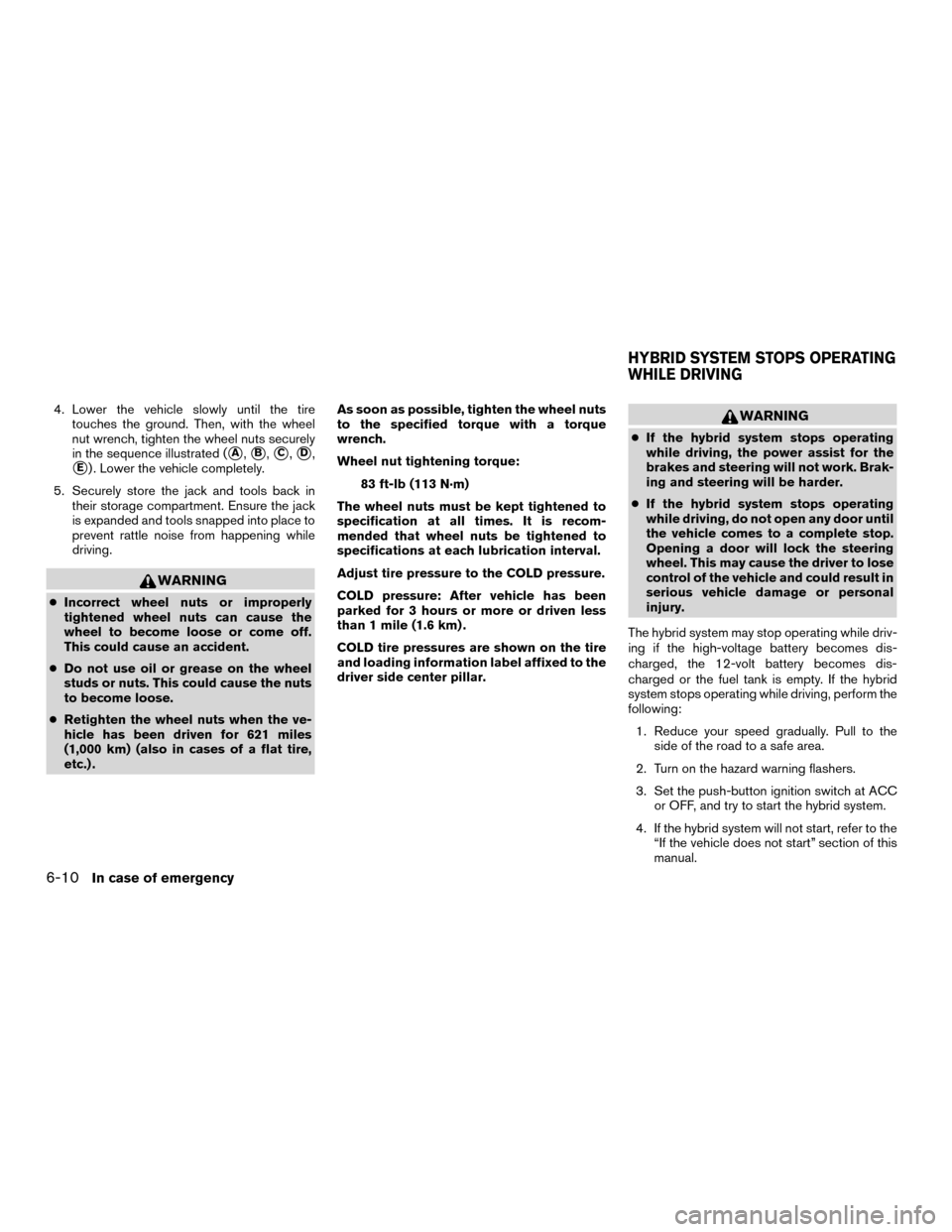

4. Lower the vehicle slowly until the tiretouches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts securely
in the sequence illustrated (
A,B,C,D,
E) . Lower the vehicle completely.
5. Securely store the jack and tools back in their storage compartment. Ensure the jack
is expanded and tools snapped into place to
prevent rattle noise from happening while
driving.
WARNING
●Incorrect wheel nuts or improperly
tightened wheel nuts can cause the
wheel to become loose or come off.
This could cause an accident.
● Do not use oil or grease on the wheel
studs or nuts. This could cause the nuts
to become loose.
● Retighten the wheel nuts when the ve-
hicle has been driven for 621 miles
(1,000 km) (also in cases of a flat tire,
etc.) . As soon as possible, tighten the wheel nuts
to the specified torque with a torque
wrench.
Wheel nut tightening torque:
83 ft-lb (113 N·m)
The wheel nuts must be kept tightened to
specification at all times. It is recom-
mended that wheel nuts be tightened to
specifications at each lubrication interval.
Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km) .
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.
WARNING
● If the hybrid system stops operating
while driving, the power assist for the
brakes and steering will not work. Brak-
ing and steering will be harder.
● If the hybrid system stops operating
while driving, do not open any door until
the vehicle comes to a complete stop.
Opening a door will lock the steering
wheel. This may cause the driver to lose
control of the vehicle and could result in
serious vehicle damage or personal
injury.
The hybrid system may stop operating while driv-
ing if the high-voltage battery becomes dis-
charged, the 12-volt battery becomes dis-
charged or the fuel tank is empty. If the hybrid
system stops operating while driving, perform the
following: 1. Reduce your speed gradually. Pull to the side of the road to a safe area.
2. Turn on the hazard warning flashers.
3. Set the push-button ignition switch at ACC or OFF, and try to start the hybrid system.
4. If the hybrid system will not start, refer to the “If the vehicle does not start” section of this
manual.
HYBRID SYSTEM STOPS OPERATING
WHILE DRIVING
6-10In case of emergency

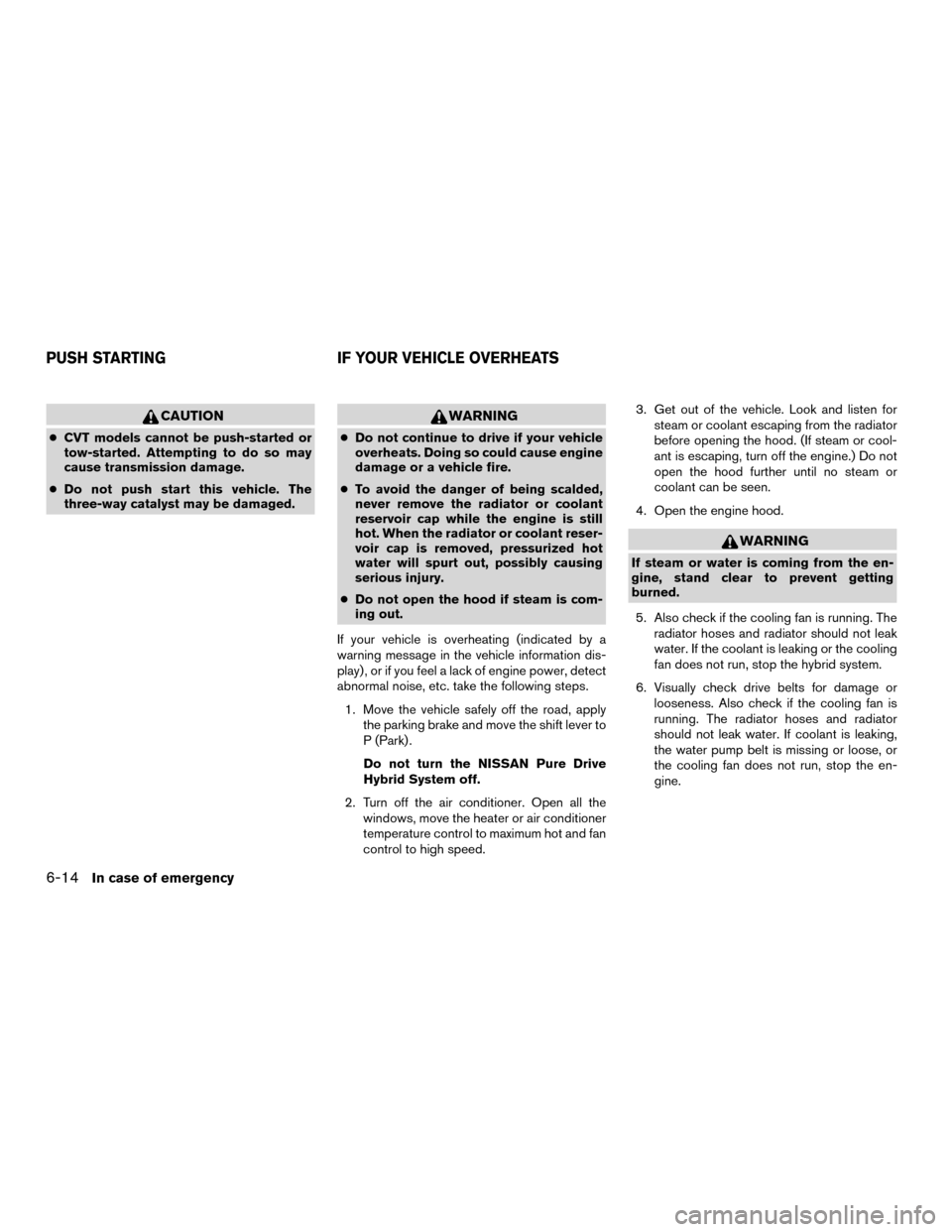

CAUTION
●CVT models cannot be push-started or
tow-started. Attempting to do so may
cause transmission damage.
● Do not push start this vehicle. The
three-way catalyst may be damaged.
WARNING
●Do not continue to drive if your vehicle
overheats. Doing so could cause engine
damage or a vehicle fire.
● To avoid the danger of being scalded,
never remove the radiator or coolant
reservoir cap while the engine is still
hot. When the radiator or coolant reser-
voir cap is removed, pressurized hot
water will spurt out, possibly causing
serious injury.
● Do not open the hood if steam is com-
ing out.
If your vehicle is overheating (indicated by a
warning message in the vehicle information dis-
play) , or if you feel a lack of engine power, detect
abnormal noise, etc. take the following steps. 1. Move the vehicle safely off the road, apply the parking brake and move the shift lever to
P (Park) .
Do not turn the NISSAN Pure Drive
Hybrid System off.
2. Turn off the air conditioner. Open all the windows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed. 3. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. (If steam or cool-
ant is escaping, turn off the engine.) Do not
open the hood further until no steam or
coolant can be seen.
4. Open the engine hood.
WARNING
If steam or water is coming from the en-
gine, stand clear to prevent getting
burned.
5. Also check if the cooling fan is running. The radiator hoses and radiator should not leak
water. If the coolant is leaking or the cooling
fan does not run, stop the hybrid system.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the water pump belt is missing or loose, or
the cooling fan does not run, stop the en-
gine.
PUSH STARTING IF YOUR VEHICLE OVERHEATS
6-14In case of emergency

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect socket
can damage the spark plugs.
If replacement is required, it is recommended you
visit a NISSAN dealer for this service.
The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the “NISSAN Service and Mainte-
nance Guide.”
To remove the air cleaner filter:1. Unlatch the retaining clips
A.
2. Move the air cleaner cover upwards.
3. Remove the air cleaner filter. Wipe the inside of the air cleaner filter housing and the cover
with a damp cloth, then replace air cleaner
filter. NOTE:
After installing a new air cleaner filter,
make sure the air cleaner cover is seated in
the housing and latch the clips.
WARNING
●
Operating the engine with the air
cleaner removed can cause you or oth-
ers to be burned. The air cleaner not
only cleans the air, it stops the flame if
the engine backfires. If it isn’t there, and
the engine backfires, you could be
burned. Do not drive with the air cleaner
removed, and be careful when working
on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or
attempt to start the engine with the air
cleaner removed. Doing so could result
in serious injury.
IN-CABIN MICROFILTER
The in-cabin microfilter restricts the entry of air-
borne dust and pollen particles and reduces
some objectionable outside odors. The filter is
located behind the glove box. For additional in-
formation, refer to the “NISSAN Service and
Maintenance Guide” for change intervals.
LDI2730
AIR CLEANER
8-20Maintenance and do-it-yourself

Trailer lights
CAUTION
When splicing into the vehicle electrical
system, a commercially available power-
type module/converter must be used to
provide power for all trailer lighting. This
unit uses the vehicle battery as a direct
power source for all trailer lights while
using the vehicle tail light, stoplight and
turn signal circuits as a signal source. The
module/converter must draw no more that
15 milliamps from the stop and tail lamp
circuits. Using a module/converter that
exceeds these power requirements may
damage the vehicle’s electrical system.
See a reputable trailer retailer to obtain
the proper equipment and to have it
installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, it is recommended you contact a
NISSAN dealer or reputable trailer retailer. Ve-
hicles equipped with the optional trailer tow
package are equipped with a 7-pin trailer har-
ness connector. If your trailer is equipped with a
flat 4-pin connector, an adapter will be needed to
connect the trailer lights to the vehicle. Adapters
are available at auto parts stores and hitch retail-
ers.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has an abnormal nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in
the trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation, and
trailer wheel lug nuts every time you attach a
trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,
install any mirrors required for towing before
driving the vehicle. ●
Determine the overall height of the vehicle
and trailer so the required clearance is
known.
Trailer towing tips
In order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadver-
tently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
back up slowly. If possible, have someone
guide you when you are backing up.
Technical and consumer information9-23

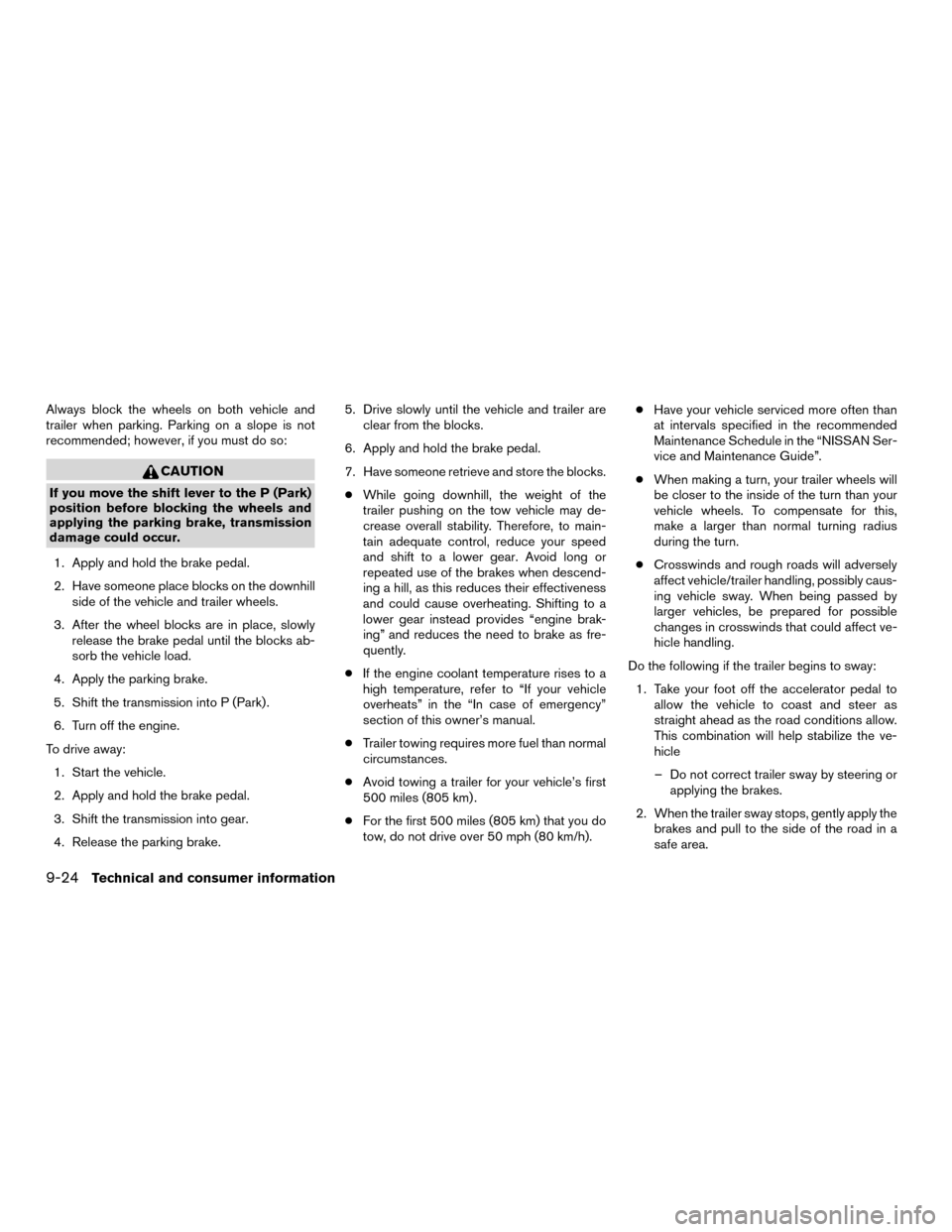

Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so:
CAUTION
If you move the shift lever to the P (Park)
position before blocking the wheels and
applying the parking brake, transmission
damage could occur.1. Apply and hold the brake pedal.
2. Have someone place blocks on the downhill side of the vehicle and trailer wheels.
3. After the wheel blocks are in place, slowly release the brake pedal until the blocks ab-
sorb the vehicle load.
4. Apply the parking brake.
5. Shift the transmission into P (Park) .
6. Turn off the engine.
To drive away: 1. Start the vehicle.
2. Apply and hold the brake pedal.
3. Shift the transmission into gear.
4. Release the parking brake. 5. Drive slowly until the vehicle and trailer are
clear from the blocks.
6. Apply and hold the brake pedal.
7. Have someone retrieve and store the blocks. ● While going downhill, the weight of the
trailer pushing on the tow vehicle may de-
crease overall stability. Therefore, to main-
tain adequate control, reduce your speed
and shift to a lower gear. Avoid long or
repeated use of the brakes when descend-
ing a hill, as this reduces their effectiveness
and could cause overheating. Shifting to a
lower gear instead provides “engine brak-
ing” and reduces the need to brake as fre-
quently.
● If the engine coolant temperature rises to a
high temperature, refer to “If your vehicle
overheats” in the “In case of emergency”
section of this owner’s manual.
● Trailer towing requires more fuel than normal
circumstances.
● Avoid towing a trailer for your vehicle’s first
500 miles (805 km) .
● For the first 500 miles (805 km) that you do
tow, do not drive over 50 mph (80 km/h). ●
Have your vehicle serviced more often than
at intervals specified in the recommended
Maintenance Schedule in the “NISSAN Ser-
vice and Maintenance Guide”.
● When making a turn, your trailer wheels will
be closer to the inside of the turn than your
vehicle wheels. To compensate for this,
make a larger than normal turning radius
during the turn.
● Crosswinds and rough roads will adversely
affect vehicle/trailer handling, possibly caus-
ing vehicle sway. When being passed by
larger vehicles, be prepared for possible
changes in crosswinds that could affect ve-
hicle handling.
Do the following if the trailer begins to sway: 1. Take your foot off the accelerator pedal to allow the vehicle to coast and steer as
straight ahead as the road conditions allow.
This combination will help stabilize the ve-
hicle
– Do not correct trailer sway by steering or applying the brakes.
2. When the trailer sway stops, gently apply the brakes and pull to the side of the road in a
safe area.
9-24Technical and consumer information

10 Index
A
Active noise control ...............5-90
Air bag (See supplemental restraint
system) .....................1-46
Air bag system Front (See supplemental front impact
air bag system) ...............1-54
Air bag warning labels .............1-66
Air bag warning light ...........1-66, 2-10
Air bag warning light, supplemental . .1-66, 2-10
Air Cleaner ...................8-20
Air cleaner housing filter ............8-20
Air conditioner Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Air conditioner system refrigerant
recommendations ..............9-7
Heater and air conditioner (automatic)
(if so equipped) ...............4-19
Heater and air conditioner controls . . . .4-20
Servicing air conditioner ..........4-22
Alarm system
(See vehicle security system) .........2-33
Anchor point locations .............1-31
Antenna .....................4-22
Antifreeze ....................5-89
Anti-lock brake warning light ..........2-8
Anti-lock Braking System (ABS) ........5-84
Armrests .....................1-6
Around View® Monitor .............4-2 Audible reminders
...............2-13
Audio system ..................4-22
Radio ....................4-22
Autolight switch .................2-38
Automatic Automatic drive positioner . .3-34, 3-35, 3-36
Automatic power window switch .....2-57
Automatic door locks ..............3-6
Automatic drive positioner . . . .3-34, 3-35, 3-36
B
Battery ..................5-89, 8-17
Charge warning light .............2-8
Battery replacement ..............8-26
Keyfob ...................8-26
NISSAN Intelligent Key® ..........8-27
Before starting the engine ...........5-14
Belt (See drive

belt)..............8-19
Blind Spot Warning (BSW) warning
system ......................5-22
Bluetooth® Hands-Free Phone System with
Navigation System ...............4-24
Booster seats ..................1-43
Brake Anti-lock Braking System (ABS) ......5-84
Brake fluid ..................8-15
Brake light (See stop light) .........8-30
Brake system ................5-83
Brake warning light ...........2-8, 2-9
Brake wear indicators ........2-13, 8-23
Parking brake operation ..........5-21 Self-adjusting brakes
............8-23
Brake fluid ....................8-15
Brakes ......................8-23
Brake system ..................5-83
Break-in schedule ...............5-77
Brightness control Instrument panel ..............2-40
Bulb check/instrument panel ..........2-7
Bulb replacement ................8-30
C
Capacities and recommended
fuel/lubricants ...................9-2
Cargo light ...................2-62
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-23
Check tire pressure ...............2-25
Child restraints .......1-23, 1-24, 1-26, 1-28
LATCH (Lower Anchors and Tethers for
CHildren) System ..............1-28
Precautions on child
restraints ........1-26, 1-33, 1-39, 1-43
Top tether strap anchor point locations . .1-31
Child restraint with top tether strap ......1-30
Child safety rear door lock ............3-6
Chimes, audible reminders ...........2-13
Cleaning exterior and interior .......7-2, 7-4
C.M.V.S.S. certification label ..........9-11
Cold weather driving ..............5-89
Console box .................. .2-50
Continuously

Variable Transmission (CVT) . .5-16

G
Garage door opener, HomeLink® Universal
Transceiver .............2-63, 2-65, 2-66
Gascap .....................3-26
Gauge Fuel gauge ...................2-6
Odometer ...................2-5
Power meter ..................2-6
Speedometer .................2-5
Tachometer ..................2-5
Trip odometer .................2-5
General maintenance ...............8-2
Glove box .....................2-50
H
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-37
Headlight control switch ............2-37
Headlights ....................8-28
Head restraints ..................1-9
Heated rear seats ................2-43
Heated seats ...............2-42, 2-45
Heated steering wheel .............2-45
Heater Heater and air conditioner (automatic)
(if so equipped) ...............4-19
Heater and air conditioner controls .....4-20
Heater operation ...............4-21
Heater and air conditioner (automatic) .....4-19
High voltage components ..........HEV-10
Hill start assist system ..............5-88 HomeLink® Universal
Transceiver
.............2-63, 2-65, 2-66
Hood .......................3-20
Hook Luggage hook ................2-54
Horn .......................2-41
Hybrid System Stops operating while driving ........6-10
Vehicle does not start ............6-11
Hybrid vehicle characteristics ........HEV-11
I
Ignition Switch Push-Button Ignition Switch.......

.5-11
Immobilizer system ............2-34, 5-14
Important vehicle information label .......9-11
In-cabin microfilter ................8-20
Increasing fuel economy .............5-79
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) ...............2-7, 2-8, 2-11
Instrument brightness control ..........2-40
Instrument panel ...............0-6, 2-2
Instrument panel dimmer switch ........2-40
Intelligent cruise control (ICC) system Brake assist .................5-42
Intelligent Key system Key operating range ..............3-8
Key operation .................3-9
Mechanical key ................3-3
Remote keyless entry operation .......3-12
Troubleshooting guide ............3-16
Warning signals ...............3-16
Interior light ....................2-60 Inverter
Checking inverter coolant level .......8-10
Inverter cooling system ...........8-10
ISOFIX child restraints .............1-28
J
Jump starting ...............6-12, 8-18
K
Key.........................3-2
Key fob battery replacement ..........8-26
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-12
Keys NISSAN Intelligent Key® ........3-2, 3-7
NISSAN Vehicle Immobilizer System keys . .3-3
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emission control information label .....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification

number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-66
10-3

Power steering fluid.............8-15
Power steering system ...........5-83
Power windows ...............2-56
Rear power windows ............2-57
Power meter ....................2-6
Power outlet ...................2-46
Power steering ..................5-83
Power steering fluid ...............8-15
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-7
Precautions on booster
seats ...........1-26, 1-33, 1-39, 1-43
Precautions on child
restraints .........1-26, 1-33, 1-39, 1-43
Precautions on seat belt usage .......1-13
Precautions on supplemental restraint
system ....................1-46
Precautions when starting and
driving ...................5-2, 5-9
Push starting ...................6-14
R
Radio Car phone or CB radio ...........4-23
Readiness for inspection maintenance (I/M)
test ........................9-28
Rear center seat belt ..............1-19
Rear power windows ..............2-57
Rear seat ......................1-5
Rear window and outside mirror defroster
switch .......................2-37
Rear window wiper and washer switches . . .2-36 Recommended Fluids
...............9-2
Recorders Event Data ..................9-29
Refrigerant recommendation ...........9-7
Registering a vehicle in another country . . . .9-10
Remote Start ...............3-18, 5-15
Reporting safety defects (US only) .......9-27
Roof rack .....................2-55
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-26, 1-33, 1-39, 1-43
Reporting safety defects (US only) .....9-27
Seat adjustment
Front power

seat adjustment .........1-3
Seatback pockets ................2-49
Seat belt Child safety ..................1-23
Infants and small children ..........1-24
Injured Person ................1-16
Larger children ................1-24
Precautions on seat belt usage .......1-13
Pregnant women ...............1-16
Rear center seat belt ............1-19
Seat belt extenders .............1-22
Seat belt maintenance ............1-23
Seat belts ................1-13, 7-5
Shoulder belt height adjustment ......1-22
Three-point type with retractor .......1-16
Seat belt extenders ...............1-22
Seat belt warning light ..........1-16, 2-10
Seats Adjustment ...................1-2 Armrests
....................1-6
Automatic drive positioner. . .3-34, 3-35, 3-36
Front seats ...................1-2
Heated seats .............2-42, 2-45
Rear seat ....................1-5
Seats/floor mats ..................7-5
Security indicator light ..............2-12
Security system (NISSAN Vehicle Immobilizer
System) , engine start ...........2-34, 5-14
Security systems Vehicle security system ...........2-33
Self-adjusting brakes ..............8-23
Service manual order form ...........9-30
Servicing air conditioner .............4-22
Shoulder belt height adjustment ........1-22
Spark plug replacement .............8-19
Spark plugs ...................8-19
Specifications ...................9-8
Speedometer ...................2-5
Speedometer and odometer ..........

.2-4
Spotlights (See map light) ...........2-61
SRS warning label ................1-66
Starting Before starting the engine ..........5-14
Jump starting .............6-12, 8-18
Precautions when starting and
driving ...................5-2, 5-9
Push starting .................6-14
Starting the engine .............5-15
Starting the engine ...............5-15
Steering Heated steering wheel ...........2-45
Power steering fluid .............8-15
Power steering system ...........5-83
Steering wheel ..................3-29
Stop light .....................8-30
10-5
