2016 NISSAN MAXIMA buttons

The vehicle information display is located to the
left of the speedometer. It displays such items as:● Home
● Audio Information
● Navigation Information
● Drive Computer Information
● Fuel Economy Information
● Driving Aids Information (if so equipped)
● Tire Pressure Information ●
Sport Information (Oil pressure, Gear Oil
Temperature, Digital Speedometer, Horse-
power)
● Indicators and Warnings
● Vehicle and Meter Display Settings
● Cruise Control Status
● Odometer/twin trip odometer
● Gear Position Indicator (P, R, N, D)
● Distance To Empty and Fuel IndicatorHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the
andbuttons located
on the steering wheel.
1SOURCE - Pressing SOURCE with the ig-
nition ON will display a list of available audio
sources in the vehicle information display.
The audio sources can then be selected with
the
, and OK buttons on the
steering switch for direct access.
2OK - Change or select an item in the vehicle
information display.
LIC3224LIC3177
VEHICLE INFORMATION DISPLAY
Instruments and controls2-15

3— Scroll up or down the vehicle infor-
mation menu items. If the vehicle information
display is not showing a menu with
the
buttons, pressing
orwill change to the previous/next au-
dio preset.
4— go back or forward through
the vehicle information menu items or to
change from one display screen to the next.
The OK,
andbuttons also
control audio and control panel functions in some
conditions. Most screens and menus offer in-
struction prompts of the steering switch buttons
to indicate how to control the vehicle information
display. An orange cursor is shown to indicate
where you are in the available menu items. A
scroll bar with up and down arrows will appear if
there is more than one page of menu items. For
additional information, refer to the separate Navi-
gation System Owner’s Manual.
STARTUP DISPLAY
When the vehicle in placed in the ON or ACC
position the screens that display in the vehicle
information display include:
● Home
● Audio ●
Navigation
● Drive Computer
● Fuel economy
● Driving Aids (if so equipped)
● Tire Pressures
● SPORT
● Warning Review
● Settings
The warnings review title section will show how
many active warnings exist, or 0 in the event that
no warnings are active. For additional informa-
tion, refer to “vehicle information display warn-
ings and indicators” in this section.
To control what items display in the vehicle infor-
mation display, refer to “Main menu selection” in
this section.
DRIVE COMPUTER
The Drive Computer displays driving and average
trip information, and can be accessed from the
startup display on the vehicle information display.
Select the Drive Computer icon, and press the
OK button. To reset the driving and average trip
information, use the
orbutton to
select which item to reset, or select Reset All.
Select YES, and press the OK button to reset
information history.
LIC3261
2-16Instruments and controls

●View History - Select to display the vehicle’s
recorded fuel economy information history.
To reset the information, press the OK but-
ton and confirm the reset by pressing the OK
button again when prompted.
Navigation Settings
This setting allows the customer to configure the
navigation options in the vehicle information dis-
play as well as the navigation display mode in the
meter.
1. Use the
buttons to select “Navigation
Setting”.
2. Press the OK button to turn ON/OFF the Navigation alert that appears in the meter.
3. Press the OK button to change the “View Mode” between “City” and “Arrow” which
changes how the road intersection is dis-
played when a route is set.
Welcome Effect
The welcome screen display can be adjusted
when the ignition switch is placed in the ACC or
ON position. Press the
button to toggle
through the menu options. Press the OK button
to turn on/off the following:
● Gauges - Enables/disables the needle
movement at startup. ●
Animation - Enables/disables the vehicle
video at startup.
Vehicle Settings
The vehicle settings allows the customer to
change settings for interior lights, turn signals,
intelligent key settings, unlock settings and other
vehicle settings.
The vehicle settings can be changed using
the
,, and the OK buttons.
Lighting
Select the Lighting menu option to adjust the
following: ● Auto Room Lamp
● Accent Lighting
● Light Sensitivity - The light sensitivity can be
set to illuminate earlier based on the bright-
ness outside the vehicle. Press OK to
change the sensitivity timing.
● Light Off Delay - The duration of the auto-
matic headlights can be changed from 0 to
180 seconds. Press OK to change the du-
ration. Turn Indicator
The 3 flash pass can be set to be ON or OFF.
From the Turn Indicator menu, select “3 Flash
On”. Use the OK button to turn this feature ON or
OFF.
Locking
Select the “Locking” menu option to turn on/off
the following locking indicators:
● Ext. Door Switch — When this item is turned
on, the request switches are activated for
door locking and unlocking. From the Ve-
hicle Settings menu, select “Ext. Door
Switch”. Use the OK button to toggle be-
tween ON and OFF. When “ON” is high-
lighted, Ext. Door Switch is turned on.
2-18Instruments and controls

Other
Other maintenance items can include such
things as air filter or tire rotation. The distance for
checking or replacing the items can be set or
reset.
Clock
For additional information, refer to the separate
Navigation Owner’s Manual.
TPMS Settings
The unit for tire pressure that displays in the
vehicle information display can be changed to:● psi
● kPa
● bar
● kgf/cm
2
Use thebuttons and the OK button to
select and change the unit.
Unit/Language
Select “Unit/Language” to adjust vehicle units
and language on the vehicle information display.
The vehicle information display language can
also be changed by operating the navigation unit
(if so equipped) . For additional information, refer to the separate Navigation Owner’s Manual. Use
the
buttons to choose from the following
menu options:
● Mileage/Fuel
● Tire Pressure Unit
● Temperature
● Language
Mileage/Fuel
The unit for the mileage that displays in the ve-
hicle information display can be changed to: ● miles, MPG
● km, km/l
● km, l/100km
Use the
buttons and the OK button to
select and change the unit.
Tire Pressures
The unit for tire pressure that displays in the
vehicle information display can be changed to:
● psi
● kPa
● bar
● kgf/cm
2
Use thebuttons and the OK button to
select and change the unit.
Temperature
The temperature that displays in the vehicle infor-
mation display can be changed from:
● °F (Fahrenheit)
● °C (Celsius)
Use the OK button to toggle choices.
Language
The language of the vehicle information display
can be changed to: ● English
● Français
● Español
Use the
buttons and the OK button to
select and change the language of the vehicle
information display.
2-20Instruments and controls

Key-Linked Settings
The Key-Linked Setting can be turned ON/OFF
using the OK button. It will display the key syn-
chronized and in use for this vehicle.
The linked items include:● Enabled Main Content Screens
● Car Icon Color
● Welcome Effects
● Units
● Language (Meter only)
● Navigation Style (Arrow/City)
● I-Key Link System On/Off
● Content Screen from Previous Ignition ON
● Illumination Level
● Memory seat/ pedal position (if so
equipped)
Settings will be memorized automatically as they
are changed, if the Key-Linked system is enabled
for the currently recognized key. The vehicle set-
tings and Navigation settings are not included in
the Key-Linked system. In the event that two
linked keys are in the vehicle and the undesired key is detected, turn ignition to OFF, press the
door lock or unlock button on the desired key,
and restart the vehicle.
Factory Reset
The settings in the vehicle information display can
be reset back to the factory default. To reset the
vehicle information display:
1. Use the
buttons to select “Set-
tings”, and press the OK button.
2. Select “Factory Reset” using the
but-
tons and press the OK button.
3. Select “YES” to confirm the reset and set all settings back to default by pressing the OK
button.
Instruments and controls2-21

MAP LIGHTS
To turn the map lights on, push the switches. To
turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
For additional information, refer to “Exterior and
interior lights” in the “Maintenance and do-it-
yourself” section of this manual.
The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
● Will operate most Radio Frequency devices
such as garage doors, gates, home and of-
fice lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.
When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” in this section.
LIC2304
TRUNK LIGHT HOMELINK® UNIVERSAL
TRANSCEIVER
2-60Instruments and controls

WARNING
●Do not use the HomeLink® Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.
PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink® for quicker programming and
accurate transmission of the radio-
frequency. 1. Position the end of your hand-held transmit-
ter 5–14 cm (1–3 inches) away from the
HomeLink® surface, keeping the
HomeLink® indicator light
1in view.
LIC2365
Instruments and controls2-61

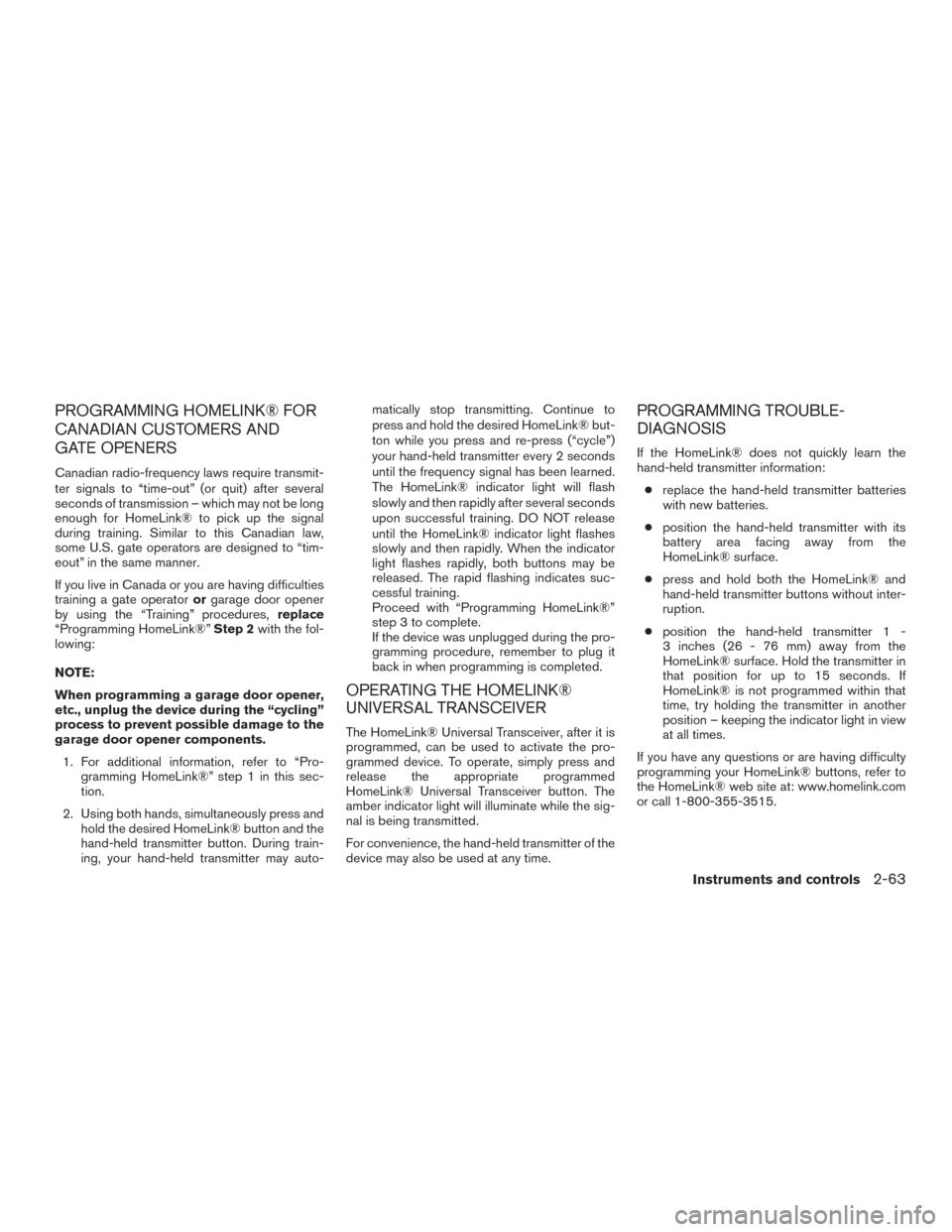

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having difficulties
training a gate operatororgarage door opener
by using the “Training” procedures, replace
“Programming HomeLink®” Step 2with the fol-
lowing:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
1. For additional information, refer to “Pro- gramming HomeLink®” step 1 in this sec-
tion.
2. Using both hands, simultaneously press and hold the desired HomeLink® button and the
hand-held transmitter button. During train-
ing, your hand-held transmitter may auto- matically stop transmitting. Continue to
press and hold the desired HomeLink® but-
ton while you press and re-press (“cycle”)
your hand-held transmitter every 2 seconds
until the frequency signal has been learned.
The HomeLink® indicator light will flash
slowly and then rapidly after several seconds
upon successful training. DO NOT release
until the HomeLink® indicator light flashes
slowly and then rapidly. When the indicator
light flashes rapidly, both buttons may be
released. The rapid flashing indicates suc-
cessful training.
Proceed with “Programming HomeLink®”
step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release the appropriate programmed
HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted.
For convenience, the hand-held transmitter of the
device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink® surface.
● press and hold both the HomeLink® and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 1 -
3 inches (26 - 76 mm) away from the
HomeLink® surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLink® is not programmed within that
time, try holding the transmitter in another
position – keeping the indicator light in view
at all times.
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
Instruments and controls2-63
