2016 NISSAN MAXIMA CD player


> (GLW    0RGHO 1&*1-1 @
3. Audio system
*7USB operation keys:
Touch an icon for operations.
[] Each time [] is touched, the
repeat mode changes.
ªChanging play modeº
(page 3-24)
[
] Touch to return to the beginning of the current track. Touch again to
select the previous track. Touch and
hold to rewind the current track.
[
] Touch to play the track.
[
] Touch to pause the track.
[
] Touch to select the next track. Touch and hold to fast-forward the track.
[
] Each time [] is touched, the
random mode changes.
ªChanging play modeº
(page 3-24)
*8Track and folder number:
Indicates the track number and the folder
number.
*9Data type indicator:
Indicates the type of data currently playing.
USB memory device player operationNCGNJN1402-120906-D6F756B8-A874-4D4F-BD71-90C3D033F1C0
Activation and playing:
Connecting the USB memory device into the
port will activate the USB mode.
USB memory device can also be played by
selecting the source on the audio source menu
screen.
ªSelecting audio sourceº (page 3-12)
To pause playing the USB memory device, touch
[
]. To resume playing, touch [].
Skipping tracks:
To skip the tracks, push <
>/<>, touch
[
]/[] on the screen, or tilt up/down
<
>/<> on the steering wheel repeatedly
until preferred track is selected.
INFO:
Depending on the condition, skipping to the
previous track may require pushing the button or
touching the key twice. Pushing the button or
touching the key once may only restart the
current track from the beginning.
Changing folders:
To change folders, touch [USB Menu] and touch
[Folder List].
ªUSB Menuº (page 3-24)
For U.S. and Canada
Turn to skip to
different folders. If no folders are found, tracks
will be skipped.
Fast-forwarding/rewinding:
To rewind or fast-forward the track, push and
hold <
>/<>, touch and hold []/[],
or tilt and hold <
>/<>on the steering
wheel.
Changing play mode:
Repeat mode
Touch [
] on the screen to change the repeat
mode as follows.
[All] ?[1 Track] ?[1 Folder] ?[All]
Random mode
Touch [
] on the screen to change the random
mode as follows.
(off) ?[1 Folder] ?[All] ?(off)
USB MenuGUID-D7405901-8E6D-4B27-8B77-BD50EA7A85CFTouch [USB Menu] on the USB screen to display
the USB Menu screen.
The following items are available.
&RQGLWLRQ
3-24


> (GLW    0RGHO 1&*1-1 @
AUXILIARY (AUX) DEVICESNCGNJN1402-7E4C982E-CE83-4819-8396-9601FE8561DB
Connecting auxiliary devicesNCGNJN1402-120906-9776C08E-803B-4D3E-857D-1723F8FE9887The auxiliary input jack is located in the media
pocket.
ªUSB (Universal Serial Bus) Connection
Ports and AUX (auxiliary) input jackº
(page 2-7)
The auxiliary input jack accepts any standard
analog audio input such as from a portable
cassette player, CD player or MP3 player.
INFO:
Insert a 1/8 in (3.5 mm) stereo mini plug in the
audio input jack. If a cable with a mono plug is
used, the audio output may not function normally.
AUX operationGUID-8467D2B9-7D28-4DAB-8F80-11B9ACDD5164
Activation and playing:
Turn on an AUX device.
Connect an AUX cable to the AUX device and
the AUX jack. Select AUX mode from the audio
source menu screen.
ªSelecting audio sourceº (page 3-12)
How to view AUX screenNCGNJN1402-120906-3A8A4717-B982-4AEC-B5FA-083909A32A94
5GA0066X
*1[Source]:
Touch to switch to the source list screen.
ªSelecting audio sourceº (page 3-12)
*2Audio source indicator:
Indicates that an AUX device is currently
selected among other sources.
*3Turn direction indicator:
When a route to the destination is set, the
turn direction and the distance to the next
turn are displayed.
*4Volume Setting keys:
Touch one of the keys to select the sound
output gain from [Low], [Medium] and
[High].
3. Audio system
&RQGLWLRQ
3-33


> (GLW    0RGHO 1&*1-1 @
8 Troubleshooting guide
Customer assistance...
................................................................ 8-2
System unit ...
........................................................................\
......... 8-3
Liquid crystal display ...
.......................................................... 8-3
Audio system ...
........................................................................\
...... 8-5
HD Radio technology (for U.S.) ...
....................................... 8-5
Compact Disc (CD) player ...
............................................... 8-7
iPod


> (GLW    0RGHO 1&*1-1 @
COMPACT DISC (CD) PLAYERNCGNJN1402-120906-8097E05E-298F-400A-AE85-F2150D8AD7BC
SymptomPossible cause Possible solution
Music cannot be played back. The disc is inserted upside down.Insert a CD with the label side facing up.
Moisture condensation occurs inside the unit. Wait until the moisture evaporates (approximately 1 hour).
The cabin temperature is too high. Wait until the cabin temperature becomes moderate.
The disc is scratched or dirty. A disc is not always
playable if it is scratched. Wipe off any dirt from the disc.
Depending on the condition in which they are stored,
discs may become unreadable due to deterioration
(for example, keeping the discs in the passenger
compartment, etc.) . Change the disc with a deterioration-free disc. Do
not use a deteriorated disc. The label surface of the
disc may crack or chip, and the layer of the label
surface may eventually peel off.
The compressed audio files cannot be played back. If both music CD files (CD-DA data) and com- pressed audio files (MP3 data, etc.) are mixed on one
disc, the audio compression files cannot be played
back.Prepare a disc that includes compressed audio files
only.
The files are not named using characters that are
compliant with the specifications. Use the character codes and the number of
characters that are compliant with the specifications
for folder names and file names. In addition, always
use ª.MP3º, ª.WMAº, ª.mp3º or ª.wmaº for file
extensions.
It takes a long time before the music starts playing. The disc contains a large amount of data. Some time may be required to check the files. It is
recommended that unnecessary folders or any files
other than compressed audio files should not be
recorded in a disc.
The sound quality is poor. The disc is dirty.Wipe off any dirt from the disc.
8. Troubleshooting guide
&RQGLWLRQ
8-7


> (GLW    0RGHO 1&*1-1 @

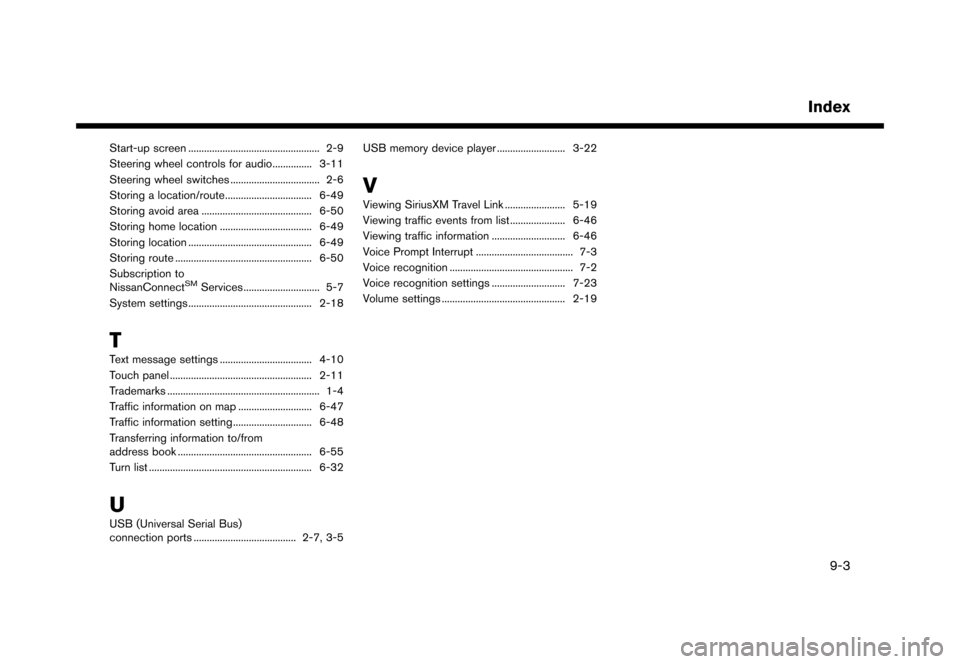

Start-up screen...
.................................................. 2-9
Steering wheel controls for audio ...
............... 3-11
Steering wheel switches ...
.................................. 2-6
Storing a location/route ...
................................. 6-49
Storing avoid area ...
.......................................... 6-50
Storing home location ...
................................... 6-49
Storing location ...
............................................... 6-49
Storing route ...
.................................................... 6-50
Subscription to
NissanConnect
SMServices ...
............................. 5-7
System settings ...
............................................... 2-18
T
Text message settings ...
................................... 4-10
Touch panel ...
...................................................... 2-11
Trademarks ...
.......................................................... 1-4
Traffic information on map ...
............................ 6-47
Traffic information setting ...
.............................. 6-48
Transferring information to/from
address book ...
................................................... 6-55
Turn list ...
.............................................................. 6-32
U
USB (Universal Serial Bus)
connection ports ...
....................................... 2-7, 3-5 USB memory device player
...
.......................... 3-22
V
Viewing SiriusXM Travel Link ...
....................... 5-19
Viewing traffic events from list ...
..................... 6-46
Viewing traffic information ...
............................ 6-46
Voice Prompt Interrupt ...
..................................... 7-3
Voice recognition ...
............................................... 7-2
Voice recognition settings ...
............................ 7-23
Volume settings ...
............................................... 2-19
Index
&RQGLWLRQ
9-3
