2016 NISSAN LEAF navigation system


> (GLW    0RGHO (1-1 (91$01&*. @
5GB0445X
4. Touch the item you would like to set.Available settings
.[Delete]:A selected destination or waypoint that
has already been set can be deleted.
.[Change Order]:The order of a destination and waypoints
that are already set can be changed.
.[Move Dest.]:
The location of the destination or way-
point can be adjusted by moving the
cross pointer across the map on the
touch screen display.
5. Touch [Calculate] to apply the change.
INFO:
If the destination is deleted, the final waypoint of
the route becomes the destination.
Changing route calculation conditionsENJN1502-120906-2CFF4089-B7EE-40B4-A210-DBBEF76EF02BEach section of the route between waypoints
can have different route calculation conditions.
5GB0575X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch the route condition shown on the preferred section of the route to the destina-
tion or waypoint.
4. Touch the preferred condition.
ªRoute Settingsº (page 3-47)
5. The conditions are changed and the display returns to the edit route screen.
6. Touch [Calculate] to apply the change.
INFO:
. The recalculated route may not be the
shortest route because the system prioritizes
roads that are easy to drive on for safety
reasons.
Changing order of destination and
waypoints
ENJN1502-A503E69F-4403-4F87-813B-70DF8CB10CE1The order of a destination and waypoints that are
already set can be changed.
5GB0447X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch a destination or waypoint that is
already set.
4. Touch [Change Order].
5. Touch a preferred destination or waypoint to replace the previously selected destination
or waypoint.
&RQGLWLRQ
3-42
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
6. Touch [Calculate] to apply the change.
RECALCULATING ROUTEENJN1502-120906-338AF520-F4FD-419B-8060-6AF4890C9F43A route can be manually searched again after
changing the search conditions, etc.
1. Touch [Navi] on the Launch Bar.
2. Touch [Recalculate]. A message is displayedand the route is recalculated.
3. Touch [Start] or conduct other operations as necessary.
ªOptions before starting the route
guidanceº (page 3-29)
INFO:
. When a waypoint has been set on the route,
the system will search for only one route,
even if route recalculation is performed.
. When the vehicle deviates from the sug-
gested route, the route from the current
location to the destination is automatically
searched again by the Auto Reroute func-
tion.
ªRoute Settingsº (page 3-47)
SEARCHING FOR DETOUR ROUTE
USING TRAFFIC INFORMATION
ENJN1502-120906-0A49E97D-AC1D-49EB-B83A-39F16B0B4406When a serious traffic event occurs on the route,
or if the system finds a faster route, a detour alert
will display automatically. If the automatic alert is
not noticed, a detour can also be searched for
manually.
1. Touch [Navi] on the Launch Bar.
2. Touch [Traffic Detour].
5GB0448X
3. When the detour search is successful,
detailed information about the detour route
and the comparison screen of the two routes
are displayed.
*1Original route (blue)
*2Detour route (purple)
*3The change of distance and estimated
travel time to destination when the
detour route is taken.
4. To accept the suggested detour route, touch [Yes].
INFO:
. Without a subscription to SiriusXM Traffic, it
will not be possible to receive traffic detour
information or apply settings for functions
related to traffic information. A message
appears when a related menu item is
selected.
ªNotes on SiriusXM Traffic informationº
(page 6-9)
. If no route is set, or [Use Real Time Traffic
Information] is turned off, this function cannot
be operated.
ªRoute Settingsº (page 3-47)
. If a detour route is not selected and no
further action is performed, the detour route
will be automatically canceled.
. The detour suggestion can be retrieved even
after the message disappears by manually
selecting [Traffic Detour]. The system will
then search for the detour again and will
suggest a detour if one is available at that
&RQGLWLRQ
3-43
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
time.
Automatic detour guidanceENJN1502-120906-854F6AA1-84E5-4CCD-AD90-94804E5267B5When [Auto Reroute] and [Use Real Time Traffic
Information] are turned on in the detailed route
settings, a message will be displayed automati-
cally when the system finds a detour.
ªRoute Settingsº (page 3-47)
5GB0449X
To accept the suggested detour route, touch
[Yes].
INFO:
. If no operation is performed for 1 minute after
the message is displayed, the message
disappears. The detour will not be accepted,
and the current suggested route will remain
unchanged.
. When [Traffic Announcements] is turned on
in the guidance settings, the system will announce voice guidance at the same time
the message appears on the screen.
ªGuidance settingsº (page 3-45)
SETTING DETOUR ROUTEENJN1502-120906-69587962-3FE9-4EAB-B845-77B0F01E889CTo detour from the suggested route, a route
detouring for a specified distance can be
calculated.
1. Touch [Navi] on the Launch Bar.
2. Touch [Detour].
3. Touch a detour distance select from 1/2 mile
(1 km), 1 mile (2 km) , 3 miles (5 km) or 5
miles (10 km). After calculating the detour,
the system displays the detour route on the
map.
INFO:
. When the vehicle has deviated from the
suggested route, [Detour] cannot be se-
lected.
. If the system cannot calculate a detour with
the specified conditions the previous sug-
gested route is displayed.
. If the vehicle is traveling very fast, the detour
route may start from a location that the
vehicle has already passed.
ROUTE GUIDANCE SETTINGSENJN1502-120906-B305A766-8852-4620-9FC5-A9AFBECB3ECDThe route search conditions and route guidance
can be set.
&RQGLWLRQ
3-44
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Guidance settingsENJN1502-7A6444E0-AFEC-465E-93B2-F84FA292326BVarious guidance information can be set to be played during route guidance and the route and/or voice guidance can be activated or deactivated.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Guidance Settings].
3. Touch an item you would like to set.
Setting itemAction
[Guidance Volume] Adjusts the volume level of voice guidance.
[Guidance Voice] Activates or deactivates voice guidance.
[Traffic Announcement] Activates/deactivates the traffic announcement.
When this item is activated, the system provides an announcement of a traffic information event on
the route. The indicator illuminates if traffic announcement is activated.
[Intersection Guidance Set-
tings] [Tones Only]
When this item is turned on, a tone will sound at the timing of [At Turing Point], [Near Guidance]
and [Basic Guidance].
[1 Voice Guide] When this item is turned on, a tone will sound at the timing of [At Turning Point] and [Near
Guidance], and the voice guidance will be announced at the timing of [Basic Guidance].
[2 Voice Guide] When this item is turned on, a tone will sound at the timing of [At Turning Point], and the voice
guidance will be announced at the timing of [Near Guidance] and [Basic Guidance].
[3 Voice Guide] When this item is turned on, a tone will sound at the timing of [At Turning Point], and the voice
guidance will be announced at the timing of [Near Guidance], [Basic Guidance] and [Far
Guidance].
[Estimated Time] [Destination]Displays
and the travel time to the destination on the map screen.
[Waypoint] Displays
and the travel time to the waypoint on the map screen.
&RQGLWLRQ
3-45
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

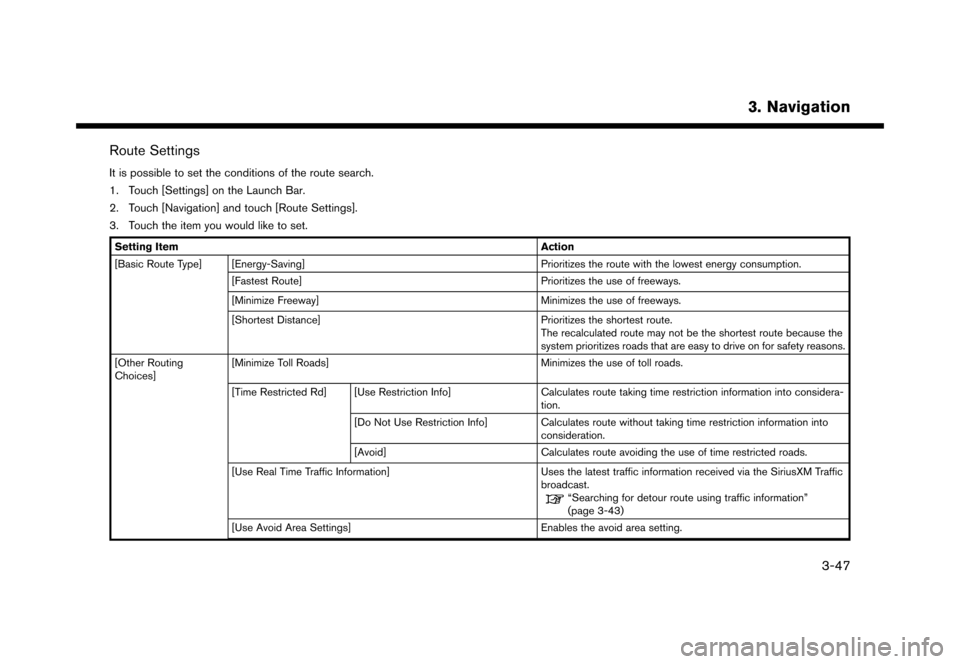

Route SettingsENJN1502-126160A4-D2D4-4B8A-8C2C-7E583DEBCA04It is possible to set the conditions of the route search.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Route Settings].
3. Touch the item you would like to set.
Setting ItemAction
[Basic Route Type] [Energy-Saving] Prioritizes the route with the lowest energy consumption.
[Fastest Route] Prioritizes the use of freeways.
[Minimize Freeway] Minimizes the use of freeways.
[Shortest Distance] Prioritizes the shortest route.
The recalculated route may not be the shortest route because the
system prioritizes roads that are easy to drive on for safety reasons.
[Other Routing
Choices] [Minimize Toll Roads]
Minimizes the use of toll roads.
[Time Restricted Rd] [Use Restriction Info] Calculates route taking time restriction information into considera-
tion.
[Do Not Use Restriction Info] Calculates route without taking time restriction information into consideration.
[Avoid] Calculates route avoiding the use of time restricted roads.
[Use Real Time Traffic Information] Uses the latest traffic information received via the SiriusXM Traffic
broadcast.
ªSearching for detour route using traffic informationº
(page 3-43)
[Use Avoid Area Settings] Enables the avoid area setting.
&RQGLWLRQ
3-47
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
[Use Ferries]Includes the use of ferries.
[Use Learned Routes] Uses the roads that are most frequently traveled with the help of
self-learning technology.
[Use HOV Lanes] Uses the HOV lanes.
[Auto Reroute] If the vehicle deviates from the suggested route, the system
automatically recalculates a route that leads the vehicle to the
suggested route.
INFO:
. If the vehicle greatly deviates from the suggested route, the system calculates a new route.
. Traffic jam information displayed on the map screen is not statistical traffic information.
. If [Do Not Use Restriction Info] is selected for [Time Restricted Rd] setting, the system calculates a route without any consideration of the regulations
concerning the time or day of the week. Therefore, the suggested route may include a road subject to traffic regulations concerning the time or day of the
week. When driving along the route, always follow all traffic regulations regardless of whether [Time Restricted Rd] is set to be considered or not.
. Even when [Use Real Time Traffic Information] is turned on, if traffic information has not been provided for the area, a detour may not always be indicated
in a location where a traffic jam occurs.
. The system calculates to reduce the time required for the entire route from the start to the destination. If there are no appropriate routes, the system may
lead to a route where a traffic jam occurs instead of leading to a detour.
. The system may not lead to a detour if traffic closure or a traffic jam occurs far from the present location.
&RQGLWLRQ
3-48
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
VIEWING TRAFFIC INFORMA-
TION
ENJN1502-BB5C14C6-68BD-4F62-9328-48182A5DAB5CSiriusXM Traffic information is a subscription
service offered by SiriusXM Satellite Radio.
This service provides real-time information re-
garding traffic flow, accidents, road construction
and other incidents, where available.
SiriusXM Traffic combines information from
commercial and public traffic data providers
including government departments of transpor-
tation, police, emergency services, road sensors,
cameras and aircraft reports. The traffic informa-
tion is broadcast to the vehicle by the SiriusXM
satellites. Available traffic information on the
route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major roadways
are shown on the navigation system:
* Unscheduled traffic data for example, accidents
and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .
WARNING(1-1'$(&))&$%%SiriusXM Traffic information is not a
substitute for attentive driving. Traffic
conditions change constantly and emer-
gency situations can arise without warn-
ing. Relying only on SiriusXM Traffic
information may lead to a collision and
could result in serious personal injury.
NOTE:
. Flow information is provided only for
roads equipped with traffic sensors and
is not available in all markets covered
by the service. Flow data may not be
available on portions of a road that is
under construction.
. A SiriusXM Traffic subscription is ne-
cessary to view Traffic Info.
ªSiriusXM Travel Linkº (page 6-8)
VIEWING AVAILABLE TRAFFIC IN-
FORMATION
ENJN1502-7D5D383F-5F4C-4E8B-A72D-F7A55E47CC9E
Viewing traffic events from listENJN1502-98BC0A20-0A3E-4182-9DC8-E6BE6A36F52D1. Touch [Info] on the Launch Bar.
2. Touch [SXM Traffic]. A list of available types
of information are displayed.
Avail-
able
items Function
[Info on
Route] Displays a list of traffic information
found on the route from the
current vehicle location to the
destination. Available only when a
route is set.
[Nearby
Traffic
Info] Displays a list of available traffic
information around the current
vehicle location.
3. Touch the preferred information. A list of
available events are displayed.
5GB0459X
&RQGLWLRQ
3-49
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
*4Remaining distance and estimated time to
the destination calculated with considera-
tion of traffic information on route.
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
TRAFFIC INFORMATION SETTINGENJN1502-9E862250-858D-4540-8106-66DE14C1E881Settings for the traffic information related func-
tions can be changed.
5GB0499X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Traffic Info Setting].
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available setting items .
[Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
ªViewing traffic events from listº
(page 3-49)
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency in-
formation and weather information will not be
turned off.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command. Use the following voice command to turn the
traffic information system on/off:
ªTraffic Informationº
&RQGLWLRQ
3-51
3. Navigation
