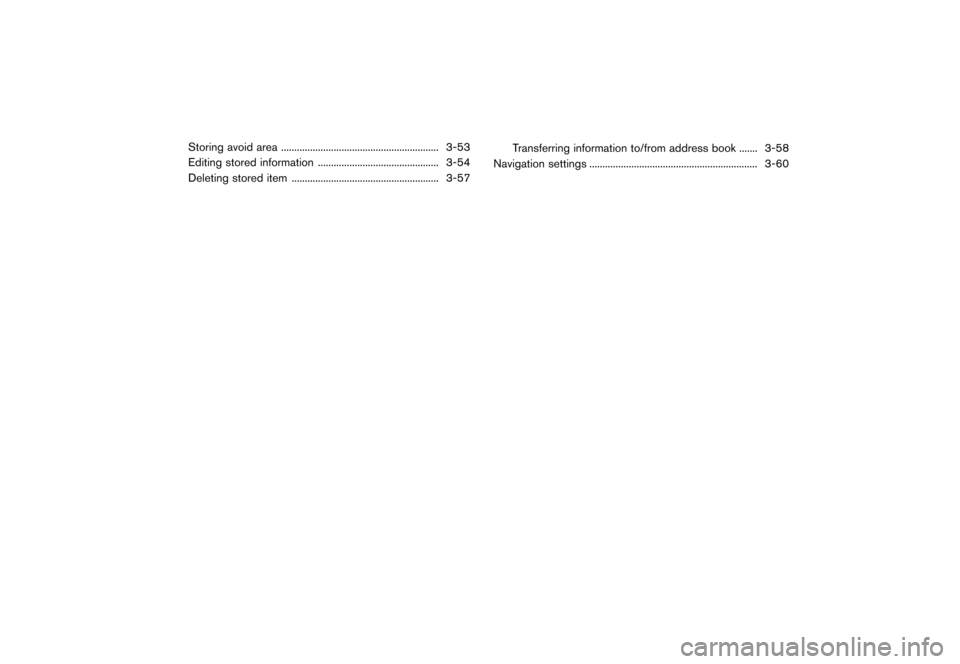

Storing avoid area...
............................................................ 3-53
Editing stored information ...
.............................................. 3-54
Deleting stored item ...
........................................................ 3-57 Transferring information to/from address book
...
....... 3-58
Navigation settings ...
................................................................ 3-60
& R Q G L W L R Q
Page 61 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
SAFETY INFORMATIONENJN1502-86E86BA3-BF7E-40C4-BA2C-BCE97C60A7D2The navigation system is primarily designed to
help you reach your destination. However, you,
the driver, must use the system safely and
properly. Information concerning road condi-
tions, traffic signs and the availability of services
may not always be up to date. The system is not a
substitute for safe, proper, and legal driving.
WARNING ( 1 - 1 ' % $ & & $ % $ .Do not rely on route guidance alone.
Always be sure that all driving man-
euvers are legal and safe in order to
avoid accidents.
MAP OPERATIONENJN1502-120906-C5FCA318-4BBA-4D15-A857-9B542ACCC9A3
DISPLAYING CURRENT VEHICLE
LOCATION
ENJN1502-120906-D8AC00A2-1C2D-4A70-9906-9AEEE4DB75F8
5GB0602X
Push
Page 62 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
2D mapENJN1502-120906-EE372FB2-4CFF-45FF-B632-64E8205D13D0The 2D map displays the map in a two-dimensional environment similar to a road map.
5GB0568X
Screen information:
*1Destination:
Indicates the location of the final destina-
tion.
*2Waypoint:
Displays the location of the waypoint the
vehicle will stop by before heading to the
final destination. A maximum of 5 waypoints
can be set.
*3Guide point:
Indicates a guide point on the route.
*4Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*5Avoid area:
Displays the areas to avoid that are stored in
the Address Book. Route guidance can be
set to avoid the registered avoid areas.
ªStoring avoid areaº (page 3-53)
Green: Freeways included
Blue: Freeways not included
*6Speed limit icon:
Displays the speed limit of the road the
vehicle is on.
& R Q G L W L R Q
3-4
3. Navigation
Page 63 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
*7Arrow and distance:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
*8icon:
Touch the icon to display the Map Menu.
ªMap Menu screenº (page 3-16)
*9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. The
map scale can be adjusted using the scale
bar.
ªChanging scale of mapº (page 3-10)
*10/Direction indicator:
Indicates the directional setting of the map.
: North always pointing up.
: Direction of the vehicle heading always
pointing up.
Touch the icon to change the map view and
the map orientation.
ªChanging map view and map orienta-
tionº (page 3-11)
*11Remaining distance to the destination:
Indicates the approximate remaining dis-
tance to the destination or waypoint. This
indicator will appear when a destination or waypoint is set and route guidance is
started.
The arrow displayed here indicates the
direction of the destination. It can be
displayed only when the map scale is in
the range of 1/64 miles (25 m) - 1/8 miles
(200 m) .
*12Estimated time to the destination:
Indicates the estimated time to the destina-
tion or waypoint. This indicator will appear
when a destination or waypoint is set and
route guidance is started.
ªGuidance settingsº (page 3-45)
*13Traffic indicator:
Indicates the reception condition of the
traffic information transmitted from the
provider.
Green: Reception condition is good.
Gray: Reception condition is not good.
The indicator does not appear without a
SiriusXM Traffic subscription.
*14Vehicle icon:
Indicates the current vehicle location and
the direction the vehicle is heading.
*15Suggested route:
Appears in bold blue during route guidance.
*16Stored location (yellow):
Displays the locations that are stored in the
Address Book.
ªStoring locationº (page 3-52)
The icons can be changed according to
your preferences.
*17Street name:
Displays the name of the street that the
vehicle is currently driving on.
BirdviewTM(3D) mapENJN1502-120906-587FA18F-02CE-4C96-A6DD-1A627158824CBirdviewTMdisplays the map from an elevated
perspective. In BirdviewTM, it is easy to recognize
an image of the route because it provides a
panoramic view over a long distance.
5GB0598X
& R Q G L W L R Q
3-5
3. Navigation
Page 64 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
INFO:
Note the following items about the Birdview
TM
display. . ªBirdviewTMº is a registered trademark of
Clarion Co., Ltd.
. The map in Birdview
TMalways appears with
the current forward direction facing up.
Building graphicsENJN1502-D52D68EF-B8E2-45F4-A665-3D4F393E1605In an area where the building graphics are stored
in the map data, the building graphics are
displayed when the map is zoomed in. On the
2D map display, these are called ªBuilding
footprint graphicsº, and on the Birdview
TMdis-
play, these are called ª3D building graphicsº.
5GB0408X
Building footprint graphics (2D map)
5GB0409X
3D building graphics (BirdviewTMmap)
INFO:
In an area where the building graphics are not
stored in the map data, the normal map is
displayed even when the map is zoomed in.
ROAD COLORENJN1502-120906-16035A1E-B7A3-449E-857D-82CE718C0B3BThe road types are differentiated by color.
Red Freeway
Brown
Dark Yellow Main road
Gray Narrow street
Dark green Road with incomplete map data
& R Q G L W L R Q
3-6
3. Navigation
Page 65 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
MAP SYMBOLSGUID-C72C2BB1-18F4-46B4-9D21-DA742F0A6011This navigation system uses symbols to display facilities.
& R Q G L W L R Q
3-7
3. Navigation
Page 66 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
2-dimensional icons (Plan View)GUID-31B3708C-D384-410C-9CA7-A807DB6A26AC
5GB0583X
& R Q G L W L R Q
3-8
3. Navigation
Page 67 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
Charging station icons:
Charging station locations are displayed with
icons below on the map.
: Normal charge icon
:Quick charge icon (for vehicle equipped
for quick charging)
INFO:
. The charging station icons are not displayed
on the map screen when the map scale is set
to 1/4 mile (500 m) or wider.
. Charging station icon display can be turned
on/off.
ªDisplaying charging station icons on
mapº (page 2-5)
When the map scale is set between 1/32 miles
(50 m) and 1/16 miles (100 m) , icons below can
be displayed. . When charging station information is up-
dated, the updated charging stations will be
displayed as icons with ªNewº marked by the
charging station icon.
Updated normal charge sta-
tion
Updated quick charge sta-
tion
.Charging stations that are registered as
open 24 hours are displayed in icons with
ª24º marked by the charging station icon.
24 hours open normal
charge station
24 hours open quick charge
station
INFO:
The ªNewº and ª24º indicators are not available
when the map scale is in 1/8 miles (200 m) level
or wider.
MOVING MAPENJN1502-120906-7786F4B5-D56C-4754-9A7C-B9979A7906F1Map can be scrolled by touch screen operations.
Map scrolling operations are limited and not fully
available while driving. Touch:
5GB0495X
2D map:
When the map on the screen is touched, the
cross pointer is displayed and the position
touched is set as the center of the screen.
After moving the map, touch [
] on the map
screen to display the current location map
screen.
INFO:
Touch [Slow] on the map screen to display the 8-
directional key for fine adjustments of the
location. Touch [Cancel] to cancel the fine
adjustment mode.
Birdview
TM(3D) map:
Touch the screen. The cross pointer is displayed
at the center of the map. Touching the screen
again will scroll the map toward the touched
location.
