2016 NISSAN LEAF steering wheel


> (GLW    0RGHO (1-1 (91$01&*. @
.[Near Current Location]:Facilities near the current vehicle location
are displayed in a list.
.[Near Destination]:When the destination is set, this indicates
a list of facilities around the destination.
5GB0423X
6. Touch the preferred destination facility from the list.
Touch [Start] to start route guidance.
INFO:
. Subcategories may not be displayed de-
pending on the selected main category.
. If there is no nearby POI, a message asking
whether to search from an extended area will
be displayed. When [Yes] is selected, the
system starts to search for POI in a wider
area. .
Touch [ i ] on the list screen to display the
detailed information about the POI that is
selected on the touch screen display.
. Touch [By Distance] to sort the list by the
distance. Touch [New Category] to select a
different POI category.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to search for
Points of Interest from category:
ªPOI Categoryº
SETTING HOME AS DESTINATIONENJN1502-120906-EFD628DF-FD10-4DDD-BDF4-340E595F2B4EThe home location can be set as the destination
if the home location is stored in advance. This
function is especially useful when searching for a
route to return to the home location.
1. Touch [Navi] on the Launch Bar.
2. Touch [Home].
INFO:
If the home location is not stored yet, the
system will display a message asking if you
wish to store a home location. Touch [Yes] to
store the home location.
ªStoring home locationº (page 3-52)
3. An entire route to the destination is dis- played. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set home as
the destination:
ªGo Homeº
SEARCHING FROM ADDRESS
BOOK
ENJN1502-120906-4C7DF925-9404-4CBE-A2DD-E3DD6D9BAF0BLocations frequently visited can be stored in the
Address Book and reused to set destinations.
ªStoring locationº (page 3-52)
1. Touch [Navi] on the Launch Bar.
2. Touch [Address Book].
&RQGLWLRQ
3-24
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
5GB0429X
3. Touch the preferred location from the list.
INFO:
.Selecting [Sort] displays a list of varioussort functions.
Ð [Sorted By Number]: The Address Book entries are displayed
in ascending numerical order.
Ð [Sorted By Name]: The Address Book entries are displayed
in alphabetic order.
Ð [Sorted By Icon]: By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
Ð [Sorted By Group]: By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
.Touch [Add New] to add a new location.
4. The selected destination is displayed. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set a
destination from the Address Book:
ªAddress Bookº
SEARCHING FROM PREVIOUS
DESTINATIONS
ENJN1502-120906-CCA4B30F-6D42-498B-97B8-C74AE29C5414A previous destination and a previous start point
can be set as the destination.
Up to 100 previous destinations will be auto-
matically stored. If the number of previous
destinations exceeds 100, the oldest one is
automatically deleted and the new destination is
added.
1. Touch [Navi] on the Launch Bar.
2. Touch [Previous Destinations]. A list screen is displayed.
3. Touch the previous destination or a previous start point from the list. 4. Touch [Start] to start route guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice commands to display the
previous destinations/start point list:
ªPrevious Destinationsº
ªPrevious Start Pointº
SETTING INTERSECTIONENJN1502-120906-4599645B-7FEB-4FFC-9904-951F14B57AFCIt is possible to set an intersection of any two
streets as the destination and have the system
calculate a route.
1. Touch [Navi] on the Launch Bar.
2. Touch [Intersection]. Intersection screen is displayed.
5GB0484X
&RQGLWLRQ
3-25
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
3. Input the Intersection.
.Touch [State/Province] to enter the stateor province name if necessary.
.Touch [City] to enter the city name.
.Touch [1st Street] to enter the first streetname. After finishing the entry, touch
[List]. A list screen is displayed.
.After 1st street information is entered,touch [2nd Street] to enter the second
street name. After finishing the entry,
touch [List]. A list screen is displayed.
4. Enter the state/province, city, and street of the destination and then touch [OK]. The
route is displayed.
5. The selected destination is displayed at the center of the map. Touch [Start] to start route
guidance.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set an
intersection as destination:
ªIntersectionº*
*: This voice command operation is available only
when the language setting is set to English.
SETTING BY PHONE NUMBERENJN1502-120906-87C28043-E7CD-4FB6-9E27-0811FF88248EIf the phone number of a facility is known, it is
possible to search for a facility by entering the
phone number.
INFO:
. If the area code of the specified telephone
number does not exist in the map data, the
system cannot search for the location.
. Only the locations included in the database
in the map data can be searched for by
phone number. Residential phone numbers
cannot be used to search for a location.
1. Touch [Navi] on the Launch Bar.
2. Touch [Phone Number]. The telephone
number input screen is displayed.
3. Enter the telephone number including the area code. After finishing entry, touch [OK].
4. The selected destination is displayed. Touch [Start] after confirming the location of the
displayed destination.
INFO:
If there are more than one location registered for
the phone number, a list screen is displayed.
Touch an item on the list to select a preferred
location.
SETTING CITY CENTERENJN1502-120906-1CBCD129-BFBE-47D9-9EF0-BE9DCF8E2B24It is possible to set the center of a specified city
as a destination.
1. Touch [Navi] on the Launch Bar.
2. Touch [City Center]. A character input
screen is displayed.
3. Enter the name of the city and touch [List]. A list screen is displayed.
INFO:
Touch [Last 5 Cities] to display the last 5
cities recently set as destinations.
4. Touch the preferred destination from the list.
INFO:
Touch [By Distance] to sort the list by the
nearest distance. Touch [Sorted By Name] to
sort the list by the alphabetic order.
5. The selected destination is displayed on the map. Touch [Start] after confirming the
location of the displayed destination.
&RQGLWLRQ
3-26
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
Use the following voice command to set city
center as a destination:
ªCity Centerº*
*: This voice command operation is available only
when the language setting is in English.
SETTING FREEWAY ENTRANCE/
EXIT
ENJN1502-120906-4515EF2C-9776-443B-97E6-E670C645B162It is possible to set the destination to an entrance
or exit of a freeway.
1. Touch [Navi] on the Launch Bar.
2. Touch [Freeway Entrance/Exit] to display the keyboard input screen.
3. Enter the name of the freeway. After finishing entry, touch [List].
4. Touch the preferred freeway.
5GB0428X
5. Touch [Entrance] or [Exit]. A list screen is displayed.
6. Touch the preferred destination from the list. The selected location is displayed in the
preview on the touch screen display.
INFO:
Touch [By Distance] to sort the list by the
nearest distance.
7. Touch [Start] to start route guidance.
SETTING FROM STORED ROUTESENJN1502-120906-174315DE-CFE8-4311-94E7-67FE9F3D0C92It is possible to select a preferred route from the
stored routes.
1. Touch [Navi] on the Launch Bar.
2. Touch [Stored Routes]. A list screen is
displayed.
3. Touch the preferred route from the list.
5GB0430X
4. The entire route is shown on the map. Touch [Start] to start route guidance.
INFO:
. The stored route only includes locations
(destination and waypoints) and route cal-
culation conditions, not the route itself.
Therefore, when the destination is set using
a stored route, a different route may be
suggested if the current vehicle location is
different from the one when the route was
stored.
. To store the current route, touch [Store
Current Route]. A route can be stored only
when it includes one or more waypoints.
ªStoring routeº (page 3-53)
&RQGLWLRQ
3-27
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @

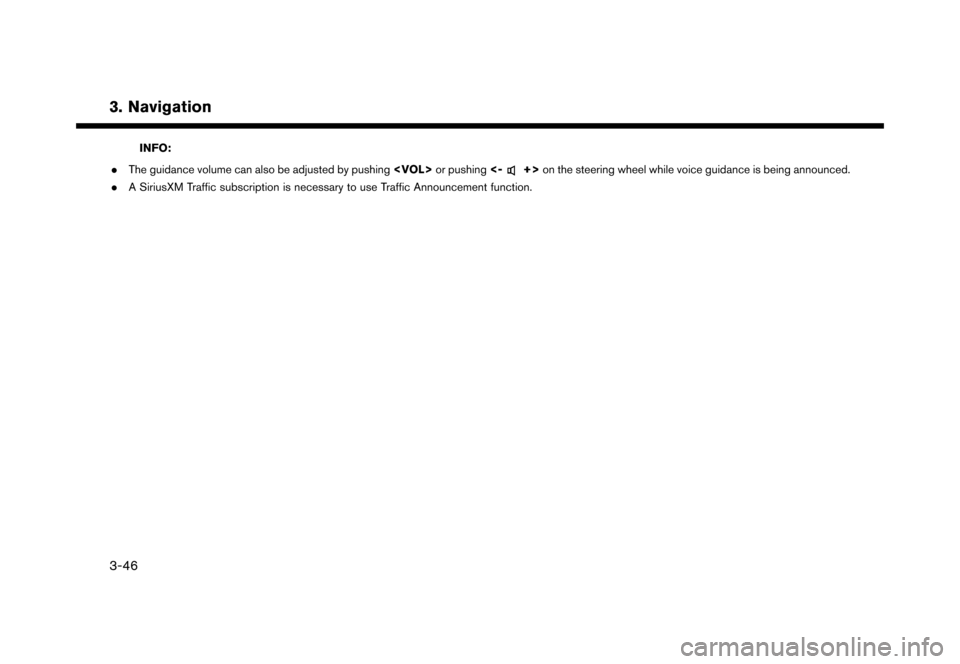

INFO:
. The guidance volume can also be adjusted by pushing or pushing <-
+>on the steering wheel while voice guidance is being announced.
. A SiriusXM Traffic subscription is necessary to use Traffic Announcement function.
&RQGLWLRQ
3-46
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
*4Remaining distance and estimated time to
the destination calculated with considera-
tion of traffic information on route.
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
TRAFFIC INFORMATION SETTINGENJN1502-9E862250-858D-4540-8106-66DE14C1E881Settings for the traffic information related func-
tions can be changed.
5GB0499X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Traffic Info Setting].
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available setting items .
[Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
ªViewing traffic events from listº
(page 3-49)
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency in-
formation and weather information will not be
turned off.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command. Use the following voice command to turn the
traffic information system on/off:
ªTraffic Informationº
&RQGLWLRQ
3-51
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
*8:
Push to open the monitor to access the CD
slot.
*9CD slot:
Insert a CD with the label side facing up.
*10<>:
Push to eject a CD.
STEERING WHEEL MOUNTED
AUDIO CONTROL BUTTONS
ENJN1502-8D8B77B0-542F-4040-8910-08948E84EDF4
5GA0115X
*1:
Push the switch to change the mode to
available audio source.
*2<>/<>:
Tilting the switch up/down while the audio
system is turned on can operate the audio system such as changing tracks and radio
preset stations or channels.
*3<-+ >
(Volume control):
Push + or - side of the switch to adjust the
volume.
AUDIO OPERATIONSENJN1502-8910DA01-FA52-4035-BC56-AEEA46A2B06E
AUDIO MAIN OPERATIONENJN1502-120906-21A3D1F2-D88E-4CCE-B170-B9485A368E7F
Turning audio system on/offENJN1502-120906-DEC1D39C-0B79-4535-9FBF-86BD31187CDDThe power switch must be pushed to the ACC or
ON position to turn on the audio system. Push
<
> to turn on the last audio source that was
playing immediately before the system was
turned off. Touching [Audio] on the Launch Bar
will also turn on the audio system and the
corresponding audio screen will be displayed for
operation. To turn off the audio system, push
<
> again.
INFO:
Even when the audio system is turned off,
operating the buttons/keys for audio may turn
on the audio system.
&RQGLWLRQ
4-11
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @
Selecting audio sourceENJN1502-120906-2A84B441-03C2-4E17-9A89-AC3DD54D9273
5GA0116X
1. Touch [Audio] on the Launch Bar when theaudio screen is displayed.
2. Select an item from the audio source menu screens.
INFO:
. Touching [Source] on the upper left corner of
the audio screen will also display the audio
source menu screen.
. Pushing switches on the control panel and
the steering wheel can also be used to
change audio sources.
ªAudio main buttonsº (page 4-10)
ªSteering wheel mounted audio con-
trol buttonsº (page 4-11)
RADIOENJN1502-120906-952EDDB7-2BDB-4ADF-BF9F-C1407C8FAA3E
How to view radio screenENJN1502-120906-C7E211CC-F05B-44A2-86A6-770B8278B318
5GA0061X
&RQGLWLRQ
4-12
4. Audio system
