INFO:
Depending on the map scale, traffic information
icons cannot be displayed on the map screen.
ªTraffic information on mapº (page 3-50)
CHANGING MAPENJN1502-EE435B0C-944B-44A6-A02B-44DFEE72CD3F
Changing map view and map orienta-
tion
ENJN1502-35401E88-4D28-4449-AE8A-C5939593E4EAThe map view and the map orientation can be
changed by touching [
] / [] on the map
screen.
The screen will change to North Up, Heading Up
and Birdview
TMeach time [] / [] is touched.
5GB0044X
North Up
5GB0413X
Heading Up
5GB0414X
BirdviewTM
INFO:
. You can also change the map view from the
map view settings screen.
ªMap view settingsº (page 3-12)
. A long range map is available that displays a
wider area in the direction the vehicle is
moving in the Heading Up view.
ªMap view settingsº (page 3-12)
Setting split screenENJN1502-59764D97-54A7-4CDA-A1FE-D6101B420713Two different maps can be displayed on a screen
with the split screen setting.
5GB0415X
1. Touch [] on the map screen.
2. Touch [Map View].
3. Touch [Change View].
4. Select [Split: 2D Map] or [Split: Birdview Map].
INFO:
The settings on the left split map can be changed
from map view settings menu.
ªMap view settingsº (page 3-12)
&RQGLWLRQ
3-11
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Ð [Fastest] (purple)Selects a route that is shortest in time.
Ð [Min. FWY] (orange) Selects a route with minimum use of
freeways.
Ð [Short. Dist.] (pink) Selects a route that is shortest in
distance.
. [Route Info]:
Route Information such as turn list and
scrolled map can be displayed. The route
can also be saved for future use.
. [Add Way Pt.]:
Route can be edited by adding a destination
or a waypoint.
Ð If a waypoint is added, 3 alternative routes cannot be selected.
Ð It is possible to edit or add a destination or waypoints to the route that is already set.
ªEditing routeº (page 3-40)
5GB0574X
INFO:
. Battery power information is displayed on the
screen after [More Routes] is touched. The
remaining battery power estimation function
cannot be used to confirm condition
changes that arise after driving starts. Utilize
the function as a reference when selecting
driving routes.
. After starting to drive, refer to the driving
range on the meter and perform battery
charging allowing for some leeway.
. In the following instances, the actual battery
power may differ from the remaining battery
power estimation.
Ð Frequent repetition of sudden accelera- tion and sudden braking
Ð Change of air conditioner operating con- ditions Ð Change of traffic conditions and driving
routes that differ from the one used for the
estimation
Ð Strong wind, cold, and snow weather conditions
Ð Tires that do not comply with specifica- tions, low air pressure tires, worn tires,
studless tires, and others.
Ð Decreased capacity of the Li-ion battery
Ð Installation of equipment that does not comply with specifications (carriers and
others)
. Choosing different route search conditions
in [More Routes] may not always generate
results search for different routes.
Example 2:
5GB0421X
. [Start]:
Starts route guidance to the selected desti-
&RQGLWLRQ
3-30
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
6. Touch [Calculate] to apply the change.
RECALCULATING ROUTEENJN1502-120906-338AF520-F4FD-419B-8060-6AF4890C9F43A route can be manually searched again after
changing the search conditions, etc.
1. Touch [Navi] on the Launch Bar.
2. Touch [Recalculate]. A message is displayedand the route is recalculated.
3. Touch [Start] or conduct other operations as necessary.
ªOptions before starting the route
guidanceº (page 3-29)
INFO:
. When a waypoint has been set on the route,
the system will search for only one route,
even if route recalculation is performed.
. When the vehicle deviates from the sug-
gested route, the route from the current
location to the destination is automatically
searched again by the Auto Reroute func-
tion.
ªRoute Settingsº (page 3-47)
SEARCHING FOR DETOUR ROUTE
USING TRAFFIC INFORMATION
ENJN1502-120906-0A49E97D-AC1D-49EB-B83A-39F16B0B4406When a serious traffic event occurs on the route,
or if the system finds a faster route, a detour alert
will display automatically. If the automatic alert is
not noticed, a detour can also be searched for
manually.
1. Touch [Navi] on the Launch Bar.
2. Touch [Traffic Detour].
5GB0448X
3. When the detour search is successful,
detailed information about the detour route
and the comparison screen of the two routes
are displayed.
*1Original route (blue)
*2Detour route (purple)
*3The change of distance and estimated
travel time to destination when the
detour route is taken.
4. To accept the suggested detour route, touch [Yes].
INFO:
. Without a subscription to SiriusXM Traffic, it
will not be possible to receive traffic detour
information or apply settings for functions
related to traffic information. A message
appears when a related menu item is
selected.
ªNotes on SiriusXM Traffic informationº
(page 6-9)
. If no route is set, or [Use Real Time Traffic
Information] is turned off, this function cannot
be operated.
ªRoute Settingsº (page 3-47)
. If a detour route is not selected and no
further action is performed, the detour route
will be automatically canceled.
. The detour suggestion can be retrieved even
after the message disappears by manually
selecting [Traffic Detour]. The system will
then search for the detour again and will
suggest a detour if one is available at that
&RQGLWLRQ
3-43
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
time.
Automatic detour guidanceENJN1502-120906-854F6AA1-84E5-4CCD-AD90-94804E5267B5When [Auto Reroute] and [Use Real Time Traffic
Information] are turned on in the detailed route
settings, a message will be displayed automati-
cally when the system finds a detour.
ªRoute Settingsº (page 3-47)
5GB0449X
To accept the suggested detour route, touch
[Yes].
INFO:
. If no operation is performed for 1 minute after
the message is displayed, the message
disappears. The detour will not be accepted,
and the current suggested route will remain
unchanged.
. When [Traffic Announcements] is turned on
in the guidance settings, the system will announce voice guidance at the same time
the message appears on the screen.
ªGuidance settingsº (page 3-45)
SETTING DETOUR ROUTEENJN1502-120906-69587962-3FE9-4EAB-B845-77B0F01E889CTo detour from the suggested route, a route
detouring for a specified distance can be
calculated.
1. Touch [Navi] on the Launch Bar.
2. Touch [Detour].
3. Touch a detour distance select from 1/2 mile
(1 km), 1 mile (2 km) , 3 miles (5 km) or 5
miles (10 km). After calculating the detour,
the system displays the detour route on the
map.
INFO:
. When the vehicle has deviated from the
suggested route, [Detour] cannot be se-
lected.
. If the system cannot calculate a detour with
the specified conditions the previous sug-
gested route is displayed.
. If the vehicle is traveling very fast, the detour
route may start from a location that the
vehicle has already passed.
ROUTE GUIDANCE SETTINGSENJN1502-120906-B305A766-8852-4620-9FC5-A9AFBECB3ECDThe route search conditions and route guidance
can be set.
&RQGLWLRQ
3-44
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
VIEWING TRAFFIC INFORMA-
TION
ENJN1502-BB5C14C6-68BD-4F62-9328-48182A5DAB5CSiriusXM Traffic information is a subscription
service offered by SiriusXM Satellite Radio.
This service provides real-time information re-
garding traffic flow, accidents, road construction
and other incidents, where available.
SiriusXM Traffic combines information from
commercial and public traffic data providers
including government departments of transpor-
tation, police, emergency services, road sensors,
cameras and aircraft reports. The traffic informa-
tion is broadcast to the vehicle by the SiriusXM
satellites. Available traffic information on the
route the driver selected is shown on the
navigation screen so traffic conditions between
you and the destination are known. Three types
of real-time traffic information for major roadways
are shown on the navigation system:
* Unscheduled traffic data for example, accidents
and disabled vehicles.
* Scheduled traffic data, for example road
construction and road closures.
* Traffic flow information (rate of speed data) .
WARNING(1-1'$(&))&$%%SiriusXM Traffic information is not a
substitute for attentive driving. Traffic
conditions change constantly and emer-
gency situations can arise without warn-
ing. Relying only on SiriusXM Traffic
information may lead to a collision and
could result in serious personal injury.
NOTE:
. Flow information is provided only for
roads equipped with traffic sensors and
is not available in all markets covered
by the service. Flow data may not be
available on portions of a road that is
under construction.
. A SiriusXM Traffic subscription is ne-
cessary to view Traffic Info.
ªSiriusXM Travel Linkº (page 6-8)
VIEWING AVAILABLE TRAFFIC IN-
FORMATION
ENJN1502-7D5D383F-5F4C-4E8B-A72D-F7A55E47CC9E
Viewing traffic events from listENJN1502-98BC0A20-0A3E-4182-9DC8-E6BE6A36F52D1. Touch [Info] on the Launch Bar.
2. Touch [SXM Traffic]. A list of available types
of information are displayed.
Avail-
able
items Function
[Info on
Route] Displays a list of traffic information
found on the route from the
current vehicle location to the
destination. Available only when a
route is set.
[Nearby
Traffic
Info] Displays a list of available traffic
information around the current
vehicle location.
3. Touch the preferred information. A list of
available events are displayed.
5GB0459X
&RQGLWLRQ
3-49
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
*4Remaining distance and estimated time to
the destination calculated with considera-
tion of traffic information on route.
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
TRAFFIC INFORMATION SETTINGENJN1502-9E862250-858D-4540-8106-66DE14C1E881Settings for the traffic information related func-
tions can be changed.
5GB0499X
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Traffic Info Setting].
4. Touch the preferred setting. The indicator for the selected setting illuminates.
Available setting items .
[Use Traffic Info]:
Enables all traffic information related func-
tions.
. [Show Incidents on Map]:
Displays the traffic incidents (e.g., accident)
on the map screen.
. [Show Traffic Flow on Map]:
Displays the traffic flow with an arrow on the
map screen.
. [Traffic Announcement]:
Announces the traffic information event on
the route.
INFO:
. Even when [Show Traffic Flow on Map] and
[Show Incidents on Map] are set to off, the
list display of [Info on Route] and [Nearby
Traffic Info] will not be affected.
ªViewing traffic events from listº
(page 3-49)
. Even when [Traffic Announcement] is set to
off, the route guidance will not be affected.
Also, the announcement of emergency in-
formation and weather information will not be
turned off.
Voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command. Use the following voice command to turn the
traffic information system on/off:
ªTraffic Informationº
&RQGLWLRQ
3-51
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
AUDIO OPERATION PRECAU-
TIONS
ENJN1502-120906-B0DBBB37-B849-425F-902A-DDABE30FE9B4
RADIOENJN1502-120906-2E7BDA12-EFEE-40F2-BD7E-0C1AD5ECA109Push the power switch to the ACC or ON
position and pushor to
turn on the radio. If you listen to the radio with the
READY to drive indicator light is OFF, the power
switch should be pushed to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external
influences. Intermittent changes in reception
quality normally are caused by these external
influences.
Using a cellular phone in or near the vehicle
may influence radio reception quality.
Radio receptionENJN1502-120906-89FE3704-0B57-4447-88CD-7BD9D337A7DCYour radio system is equipped with state-of-the-
art electronic circuits to enhance radio reception.
These circuits are designed to extend reception
range, and to enhance the quality of that
reception.
However there are some general characteristics
of both FM and AM radio signals that can affect
radio reception quality in a moving vehicle, even
when the finest equipment is used. These characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Reception conditions will constantly change
because of vehicle movement. Buildings, terrain,
signal distance and interference from other
vehicles can work against ideal reception.
Described below are some of the factors that
can affect your radio reception.
Some cellular phones or other devices may
cause interference or a buzzing noise to come
from the audio system speakers. Storing the
device in a different location may reduce or
eliminate the noise.
FM radio receptionENJN1502-120906-275BC1BF-3C52-437B-9A90-2B55439E4402
SAA0306
Range: the FM range is normally limited to 25 to
30 miles (40 to 48 km) , with monaural (single
station) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the FM
station is within 25 miles (40 km) . The strength of
the FM signal is directly related to the distance
between the transmitter and receiver. FM signals
follow a line-of-sight path, exhibiting many of the
same characteristics as light. For example they
will reflect off objects.
Fade and drift: As your vehicle moves away from
a station transmitter, the signals will tend to fade
&RQGLWLRQ
4-2
4. Audio system


> (GLW    0RGHO (1-1 (91$01&*. @

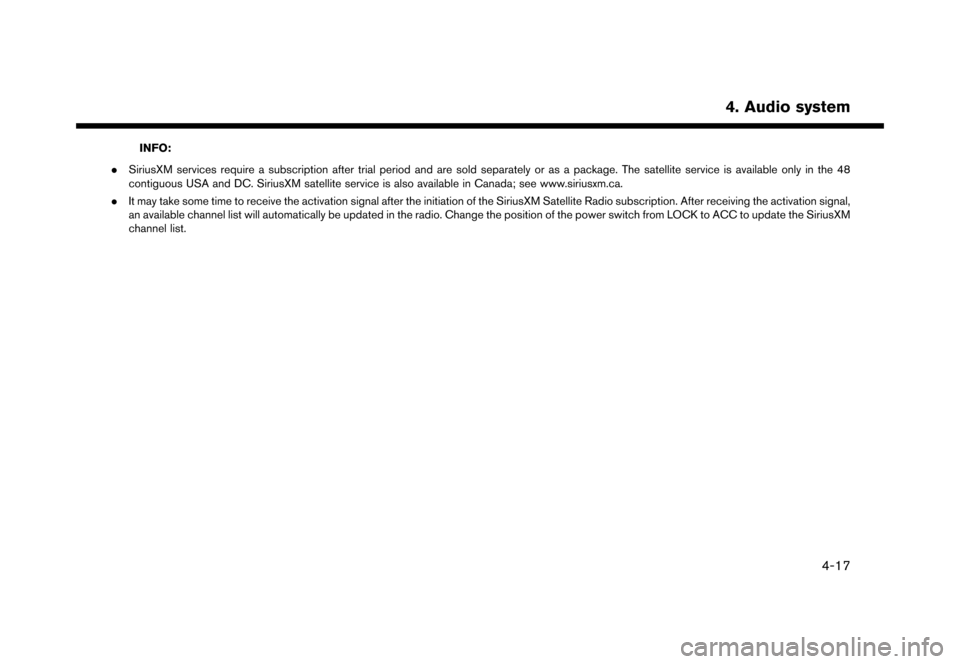

INFO:
. SiriusXM services require a subscription after trial period and are sold separately or as a package. The satellite service is available only in the 48
contiguous USA and DC. SiriusXM satellite service is also available in Canada; see www.siriusxm.ca.
. It may take some time to receive the activation signal after the initiation of the SiriusXM Satellite Radio subscription. After receiving the activation signal,
an available channel list will automatically be updated in the radio. Change the position of the power switch from LOCK to ACC to update the SiriusXM
channel list.
&RQGLWLRQ
4-17
4. Audio system
