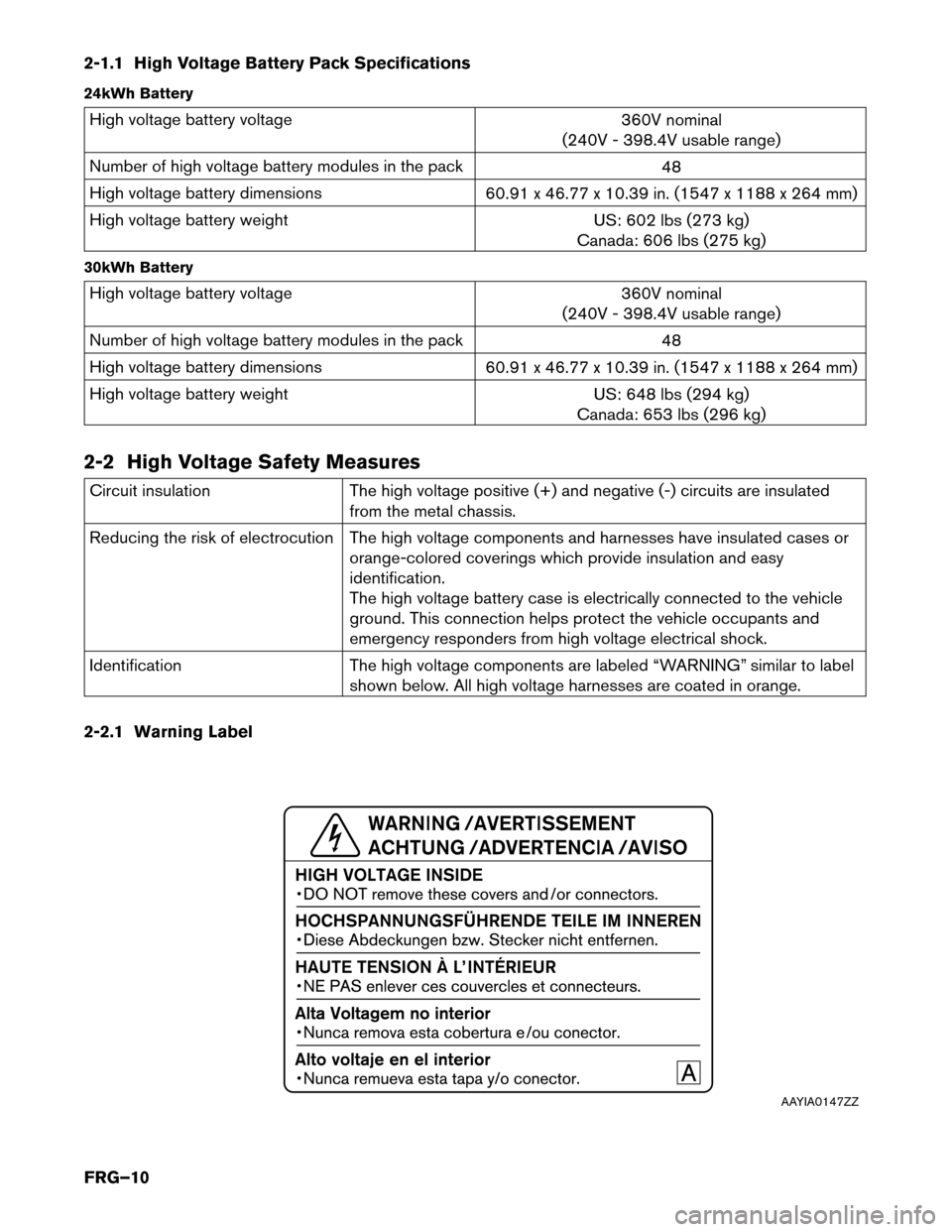

2-1.1 High Voltage Battery Pack Specifications
24kWh
Battery High voltage battery voltage
360V
nominal
(240V - 398.4V usable range)
Number of high voltage battery modules in the pack 48
High voltage battery dimensions 60.91 x 46.77 x 10.39 in. (1547 x 1188 x 264 mm)
High voltage battery weight US: 602 lbs (273 kg)
Canada: 606 lbs (275 kg)
30kWh Battery High voltage battery voltage
360V
nominal
(240V - 398.4V usable range)
Number of high voltage battery modules in the pack 48
High voltage battery dimensions 60.91 x 46.77 x 10.39 in. (1547 x 1188 x 264 mm)
High voltage battery weight US: 648 lbs (294 kg)
Canada: 653 lbs (296 kg)
2-2 High Voltage Safety Measures Circuit insulation
The high voltage positive (+) and negative (-) circuits are insulated
from
the metal chassis.
Reducing the risk of electrocution The high voltage components and harnesses have insulated cases or orange-colored coverings which provide insulation and easy
identification.
The high voltage battery case is electrically connected to the vehicle
ground. This connection helps protect the vehicle occupants and
emergency responders from high voltage electrical shock.
Identification The high voltage components are labeled “WARNING” similar to label
shown below. All high voltage harnesses are coated in orange.
2-2.1 Warning Label AAYIA0147ZZ
