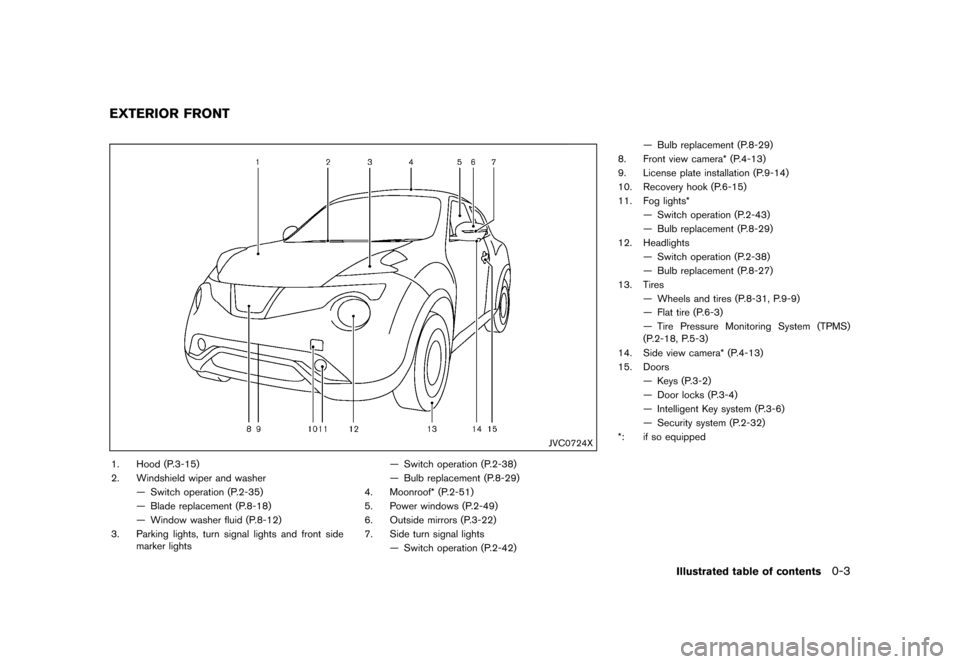

1. Hood (P.3-15)
2. Windshield wiper and washerÐ Switch operation (P.2-35)
Ð Blade replacement (P.8-18)
Ð Window washer fluid (P.8-12)
3. Parking lights, turn signal lights and front side marker lights Ð Switch operation (P.2-38)
Ð Bulb replacement (P.8-29)
4. Moonroof* (P.2-51)
5. Power windows (P.2-49)
6. Outside mirrors (P.3-22)
7. Side turn signal lights
Ð Switch operation (P.2-42) Ð Bulb replacement (P.8-29)
8. Front view camera* (P.4-13)
9. License plate installation (P.9-14)
10. Recovery hook (P.6-15)
11. Fog lights* Ð Switch operation (P.2-43)
Ð Bulb replacement (P.8-29)
12. Headlights
Ð Switch operation (P.2-38)
Ð Bulb replacement (P.8-27)
13. Tires Ð Wheels and tires (P.8-31, P.9-9)
Ð Flat tire (P.6-3)
Ð Tire Pressure Monitoring System (TPMS)
(P.2-18, P.5-3)
14. Side view camera* (P.4-13)
15. Doors Ð Keys (P.3-2)
Ð Door locks (P.3-4)
Ð Intelligent Key system (P.3-6)
Ð Security system (P.2-32)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT
&RQGLWLRQ


> (GLW    0RGHO )' @
GUID-B18D921D-58BF-4EF2-ABA7-71D7C369DE14
JVC0725X
1. Outside mirror remote control switch (P.3-22)
2. Headlight, fog light and turn signal switchÐ Headlight (P.2-39)
Ð Turn signal light (P.2-42)
Ð Fog light* (P.2-43)
3. Paddle shifter* (P.5-16)
4. Steering wheel Ð Electric power steering (P.5-34)
Ð Horn (P.2-43)
Ð Driver's supplemental air bag (P.1-38)
5. Wiper and washer switch (P.2-35)
6. Shift lever Ð Continuously Variable Transmission (CVT)
(P.5-14) Ð Manual Transmission (MT) (P.5-19)
7. Fuse box cover (P.8-22)
8. Vehicle Dynamic Control (VDC) OFF switch (P.5-37)
9. All-Wheel Drive (AWD) switch* (P.5-29)
10. Tilting steering wheel lever (P.3-20)
11. Steering-wheel-mounted controls (left side) Ð Audio control (P.4-73)
Ð Siri


> (GLW    0RGHO )' @
0-12Illustrated table of contents
GUID-56F49709-8C97-4624-BC9E-EFFB2D8B65F4
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (yellow) (AWD model) 2-16
Anti-lock Braking System
(ABS) warning light2-16
Brake warning light
2-16
Charge warning light2-17
Door open warning light2-17
Electric power steering warning
light2-17
Engine oil pressure warning
light2-17
High temperature warning light
(if so equipped)
2-17
Intelligent Key system warning
light2-18
Low fuel warning light
2-18
Low tire pressure warning light2-18
Low washer fluid warning light
(if so equipped)2-19
P position selecting warning
light2-20
Seat belt warning light
2-20Warning
light Name
Page
Supplemental air bag warning
light 2-20
Vehicle Dynamic Control (VDC)
warning light
2-20Indicator
light Name
Page
All-Wheel Drive (AWD) indica-
tor light (green) (AWD model) 2-21
All-Wheel Drive (AWD) -V indi-
cator light (green) (AWD model)
2-21
Continuously Variable Trans-
mission (CVT) indicator light (if
so equipped)2-21
Cruise indicator light
2-21
Engine start operation indicator
light2-21
Exterior light indicator
2-21
Front fog light indicator light (if
so equipped)2-21
Front passenger air bag status
light2-21
High beam indicator light
2-22
Malfunction Indicator Light
(MIL)2-22
Security indicator light
2-22
Turn signal/hazard indicator
lights2-23
Vehicle Dynamic Control (VDC)
off indicator light
2-23
WARNING AND INDICATOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO )' @
2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-7
Tachometer ...
........................................................................\
... 2-9
Engine coolant temperature gauge (Type B) (if
so equipped) ...
..................................................................... 2-10
Fuel gauge ...
........................................................................\
. 2-11
Vehicle information display (Type A) (if
so equipped) ...
..................................................................... 2-11
Vehicle information display (Type B) (if
so equipped) ...
..................................................................... 2-12
Outside air temperature ...
.................................................. 2-12
Continuously Variable Transmission (CVT) position
indicator (if so equipped) ...
............................................... 2-12
Trip computer ...
.................................................................... 2-13
Warning lights, indicator lights and
audible reminders ...
................................................................... 2-15
Checking lights ...
................................................................. 2-16
Warning lights ...
................................................................... 2-16
Indicator lights ...
................................................................... 2-21
Audible reminders ...
............................................................ 2-23
Integrated control system (if so equipped) ...
..................... 2-24
Drive mode ...
........................................................................\
. 2-24
Setup function ...
................................................................... 2-24 Drive information
...
............................................................ 2-29
Eco information ...
............................................................... 2-30
Security systems ...
................................................................... 2-32
Vehicle Security System ...
............................................... 2-32
NISSAN Vehicle Immobilizer System ...
........................ 2-33
Wiper and washer switch ...
................................................... 2-35
Rear window wiper and washer switch ...
.......................... 2-36
Rear window and outside mirror defroster switch ...
....... 2-37
Headlight and turn signal switch ...
....................................... 2-38
Xenon headlights (if so equipped) ...
............................ 2-38
Headlight switch ...
............................................................ 2-39
Turn signal switch ...
.......................................................... 2-42
Fog light switch (if so equipped) ...
.............................. 2-43
Horn ...
........................................................................\
.................. 2-43
Vehicle Dynamic Control (VDC) off switch ...
.................... 2-43
Heated seats (if so equipped) ...
........................................... 2-44
Power outlet ...
........................................................................\
.... 2-45
Storage ...
........................................................................\
............ 2-46
Cup holders ...
..................................................................... 2-46
Cargo floor box ...
............................................................... 2-47
Glove box ...
........................................................................\
. 2-47
Coat hook ...
........................................................................\
2-47
Cargo cover (if so equipped) ...
..................................... 2-48
&RQGLWLRQ
!


> (GLW    0RGHO )' @
GUID-3FDA5A2B-0FD2-4B28-A467-442E14E466B3
JVC0725X

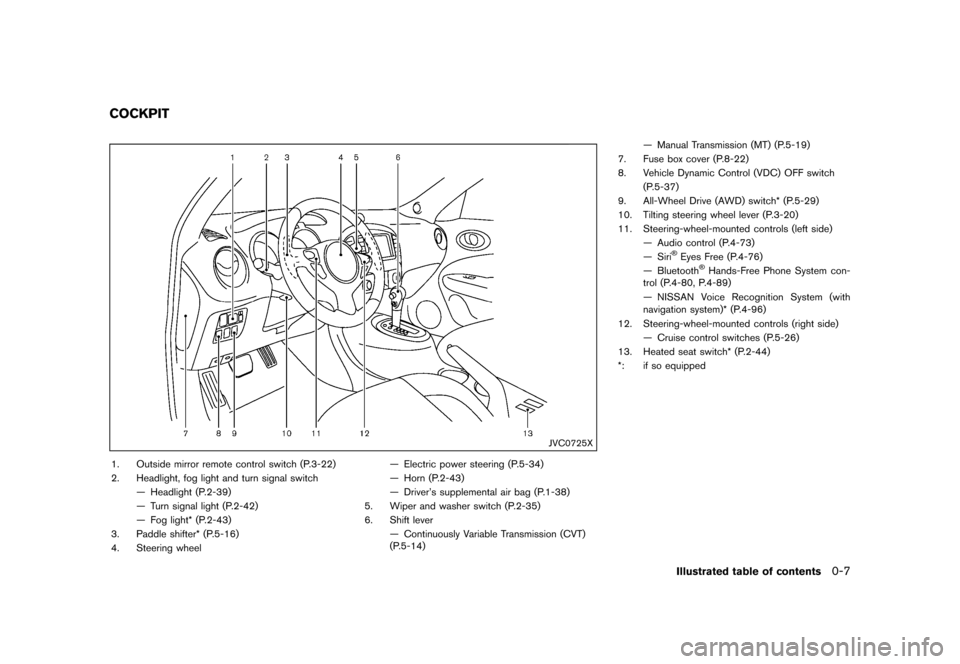

1. Outside mirror remote control switch
2. Headlight, fog light and turn signal switchÐ Headlight
Ð Turn signal light
Ð Fog light*
3. Paddle shifter*
4. Steering wheel Ð Electric power steering
Ð Horn
Ð Driver's supplemental air bag
5. Wiper and washer switch
6. Shift lever Ð Continuously Variable Transmission (CVT)
Ð Manual Transmission (MT) 7. Fuse box cover
8. Vehicle Dynamic Control (VDC) OFF switch
9. All-Wheel Drive (AWD) switch*
10. Tilting steering wheel lever
11. Steering-wheel-mounted controls (left side)
Ð Audio control
Ð Siri


> (GLW    0RGHO )' @
GUID-0AD04023-03AE-4553-915A-04F0D33BD0B8
All-Wheel Drive (AWD) warning light (AWD
model) (if so equipped)Low fuel warning lightEngine start operation indicator light
Anti-lock Braking System (ABS) warning
lightLow tire pressure warning lightExterior light indicator
Low washer fluid warning light (if so
equipped)Front fog light indicator light (if so equipped)
Brake warning lightP position selecting warning lightFront passenger air bag status light
Seat belt warning lightHigh beam indicator light
Charge warning lightSupplemental air bag warning lightMalfunction Indicator Light (MIL)
Door open warning lightVehicle Dynamic Control (VDC) warning lightSecurity indicator light
Electric power steering warning lightAll-Wheel Drive (AWD) indicator light (AWD
model) (if so equipped)Turn signal/hazard indicator lights
Engine oil pressure warning lightAll-Wheel Drive (AWD) -V indicator light
(AWD model) (if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
High temperature warning light (if so
equipped)Continuously Variable Transmission (CVT)
indicator light (if so equipped)
Intelligent Key system warning lightCruise indicator light
Instruments and controls2-15
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
&RQGLWLRQ


> (GLW    0RGHO )' @

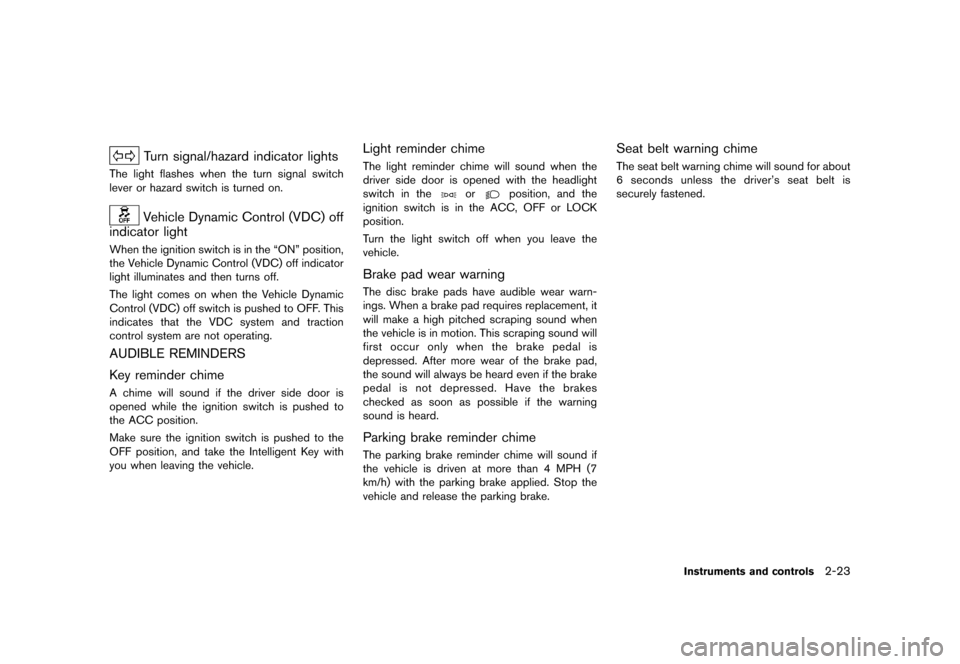

Turn signal/hazard indicator lightsGUID-938BCB58-C7D0-4656-B2E2-A3F2D5C472C5The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-BBD2CFDF-7486-4847-A2BC-6E127444B584When the ignition switch is in the ªONº position,
the Vehicle Dynamic Control (VDC) off indicator
light illuminates and then turns off.
The light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system and traction
control system are not operating.
AUDIBLE REMINDERSGUID-42904A1A-6A75-4B8C-8F34-6D9818D98A82
Key reminder chimeGUID-32BD73EC-E7A4-4435-A048-B7769B717D08A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position.
Make sure the ignition switch is pushed to the
OFF position, and take the Intelligent Key with
you when leaving the vehicle.
Light reminder chimeGUID-72168721-DFA8-448A-961A-A3FACAB0A8E3The light reminder chime will sound when the
driver side door is opened with the headlight
switch in the
orposition, and the
ignition switch is in the ACC, OFF or LOCK
position.
Turn the light switch off when you leave the
vehicle.
Brake pad wear warningGUID-EF2EB7E0-B227-4E63-9DC8-B730CC13FB1BThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
Parking brake reminder chimeGUID-8853279F-1AD6-47C7-B9A8-09A67EC2B7BEThe parking brake reminder chime will sound if
the vehicle is driven at more than 4 MPH (7
km/h) with the parking brake applied. Stop the
vehicle and release the parking brake.
Seat belt warning chimeGUID-F9E8997E-7A88-4D30-B477-C791A79F8575The seat belt warning chime will sound for about
6 seconds unless the driver's seat belt is
securely fastened.
Instruments and controls2-23
&RQGLWLRQ


> (GLW    0RGHO )' @
2-38Instruments and controls

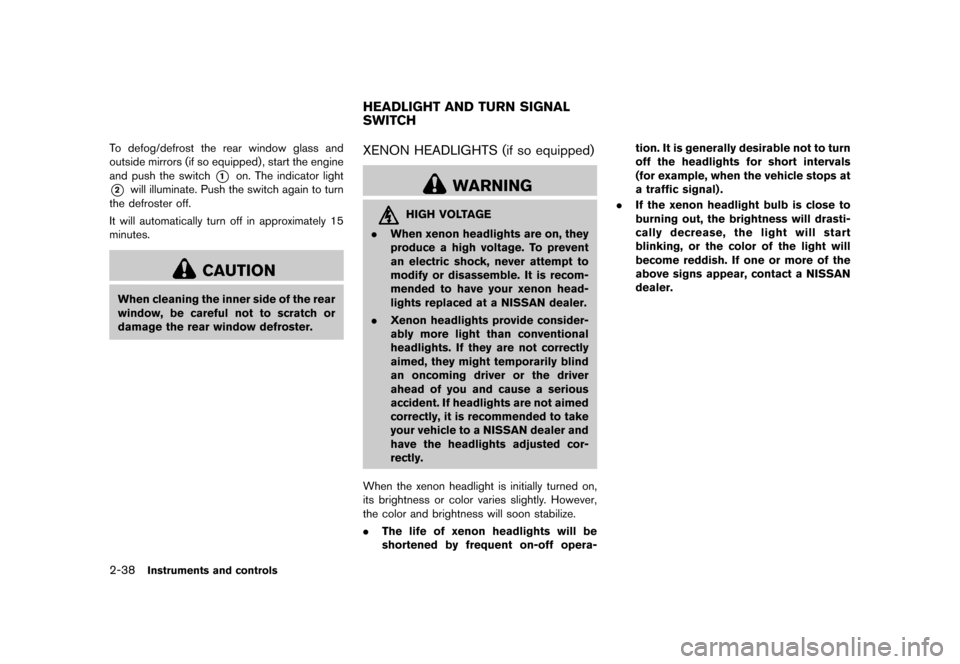

To defog/defrost the rear window glass and
outside mirrors (if so equipped) , start the engine
and push the switch
*1on. The indicator light
*2will illuminate. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
GUID-2608E54F-A0CB-4CE9-8864-9C61F01ED6F7XENON HEADLIGHTS (if so equipped)GUID-C6286FEB-AC40-4B02-B2DC-40185315008C
WARNING
HIGH VOLTAGE
. When xenon headlights are on, they
produce a high voltage. To prevent
an electric shock, never attempt to
modify or disassemble. It is recom-
mended to have your xenon head-
lights replaced at a NISSAN dealer.
. Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, it is recommended to take
your vehicle to a NISSAN dealer and
have the headlights adjusted cor-
rectly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
. The life of xenon headlights will be
shortened by frequent on-off opera- tion. It is generally desirable not to turn
off the headlights for short intervals
(for example, when the vehicle stops at
a traffic signal) .
. If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact a NISSAN
dealer.
HEADLIGHT AND TURN SIGNAL
SWITCH
&RQGLWLRQ
