2016 NISSAN GT-R tire pressure


> (GLW    0RGHO 51 @

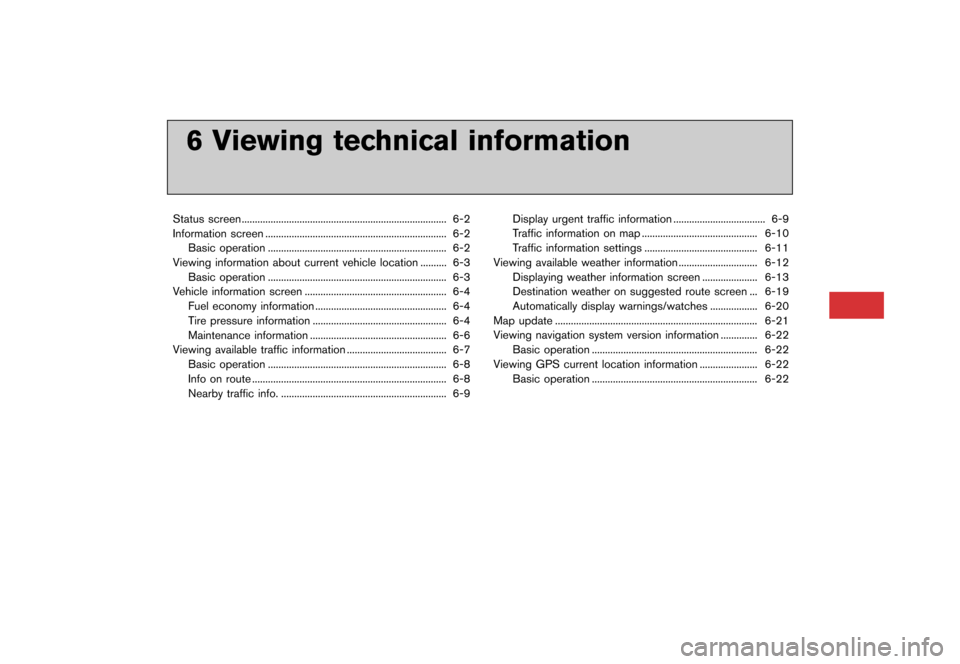

6 Viewing technical information
Status screen........................................................................\
...... 6-2
Information screen ..................................................................... 6-2
Basic operation .................................................................... 6-2
Viewing information about current vehicle location .......... 6-3 Basic operation .................................................................... 6-3
Vehicle information screen ...................................................... 6-4
Fuel economy information .................................................. 6-4
Tire pressure information ................................................... 6-4
Maintenance information .................................................... 6-6
Viewing available traffic information ...................................... 6-7 Basic operation .................................................................... 6-8
Info on route ........................................................................\
.. 6-8
Nearby traffic info. ............................................................... 6-9 Display urgent traffic information ................................... 6-9
Traffic information on map ............................................ 6-10
Traffic information settings ........................................... 6-11
Viewing available weather information .............................. 6-12 Displaying weather information screen ..................... 6-13
Destination weather on suggested route screen ... 6-19
Automatically display warnings/watches .................. 6-20
Map update ........................................................................\
..... 6-21
Viewing navigation system version information .............. 6-22
Basic operation ............................................................... 6-22
Viewing GPS current location information ...................... 6-22 Basic operation ............................................................... 6-22
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

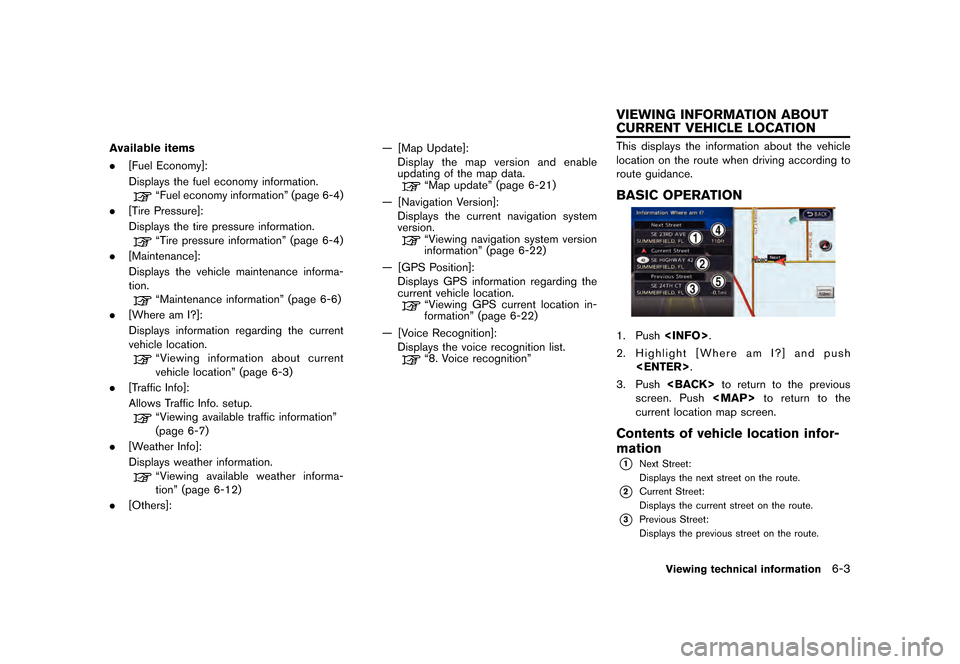

Available items
.[Fuel Economy]:
Displays the fuel economy information.
ªFuel economy informationº (page 6-4)
. [Tire Pressure]:
Displays the tire pressure information.
ªTire pressure informationº (page 6-4)
. [Maintenance]:
Displays the vehicle maintenance informa-
tion.
ªMaintenance informationº (page 6-6)
. [Where am I?]:
Displays information regarding the current
vehicle location.
ªViewing information about current
vehicle locationº (page 6-3)
. [Traffic Info]:
Allows Traffic Info. setup.
ªViewing available traffic informationº
(page 6-7)
. [Weather Info]:
Displays weather information.
ªViewing available weather informa-
tionº (page 6-12)
. [Others]: Ð [Map Update]:
Display the map version and enable
updating of the map data.
ªMap updateº (page 6-21)
Ð [Navigation Version]: Displays the current navigation system
version.
ªViewing navigation system version
informationº (page 6-22)
Ð [GPS Position]: Displays GPS information regarding the
current vehicle location.
ªViewing GPS current location in-
formationº (page 6-22)
Ð [Voice Recognition]: Displays the voice recognition list.
ª8. Voice recognitionº
This displays the information about the vehicle
location on the route when driving according to
route guidance.
BASIC OPERATION
1. Push .
2. Highlight [Where am I?] and push
.
3. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @
6-4Viewing technical information
*4Displays the distance to the next intersection on
the route.
*5Displays the distance traveled from the previous
intersection on the route.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the information about the vehicle
location:
ªInformationº ªWhere am I?º (Standard Mode)
ªWhere am I?º (Alternate Command Mode)
FUEL ECONOMY INFORMATION
The distance to empty, average fuel economy
and current fuel economy (shown on the right
side bar) will be displayed for reference.
To reset the Average Fuel Economy, highlight
[Reset Fuel Eco] and push .
If [Fuel Eco History] is highlighted and
is pushed, the average fuel con-
sumption history will be displayed in graph form
along with the average for the previous Reset-
to-Reset period. The unit can be converted between ªUSº and
ªMetricº.
ªUnit settingsº (page 7-9)
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the fuel economy information:
ªInformationº ªFuel Economyº (Standard Mode)
ªFuel Economyº (Alternate Command Mode)
TIRE PRESSURE INFORMATION
The tire pressure will be displayed for reference.
The pressure indication ª** psiº on the screen
means that the tire pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed.
In case of low tire pressure, Tire PRESSURE
Low information will be displayed on the screen.
VEHICLE INFORMATION SCREEN
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
Check the pressure for all tires.
Tire pressure rises and falls depending on the
heat caused by the vehicle's traveling condition
and the temperature.
To change the measurement units, highlight
[Select Units] and press.
ªUnit settings (Tire Pressure)º (page 7-10)
WARNING
.When a wheel is replaced, tire
pressure will not be indicated, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after 1 minute.
Contact your NISSAN dealer or GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
Tire pressure
When the system detects low tire pressure, the
following message is displayed.
.Tire Pressure Low
The low-pressure tire is displayed in orange, and
a warning message appears.
.Flat tire
If the system detects a puncture, the punctured
tire is displayed in red, and a warning message
appears. .
TPMS malfunction
When a TPMS is not functioning, the system
displays the tire pressure value as ª**º.
INFO:
The tire pressure will be displayed for reference.
In case of low tire pressure, LOW PRESSURE
information will be displayed on the screen.
Check the pressure of all tires.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the tire pressure information:
ªTire Pressureº (Alternate Command Mode)
Viewing technical information6-5
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

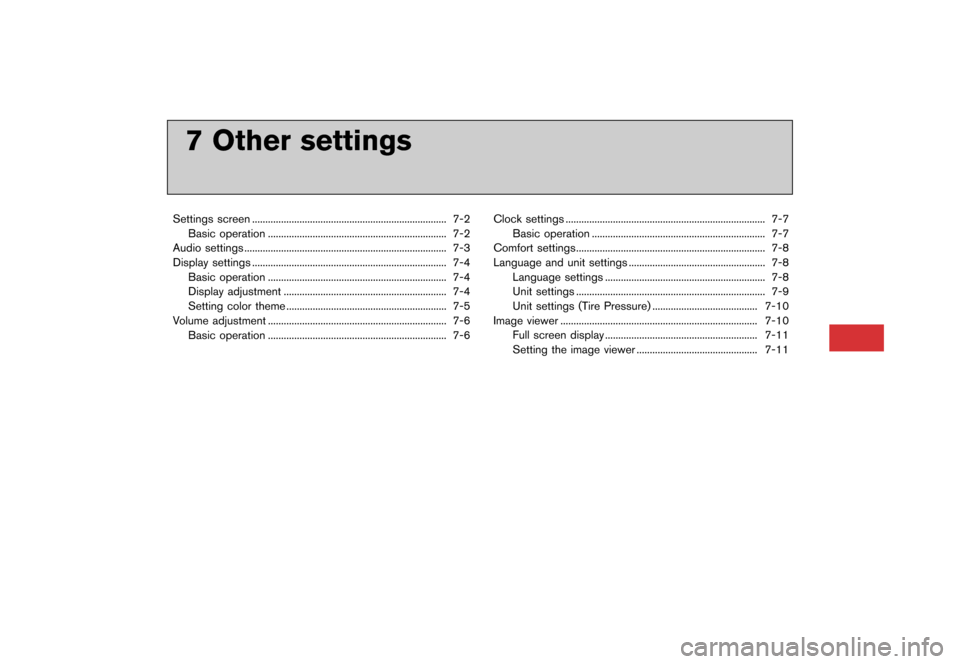

7 Other settings
Settings screen........................................................................\
.. 7-2
Basic operation .................................................................... 7-2
Audio settings ........................................................................\
..... 7-3
Display settings ........................................................................\
.. 7-4 Basic operation .................................................................... 7-4
Display adjustment .............................................................. 7-4
Setting color theme ............................................................. 7-5
Volume adjustment .................................................................... 7-6 Basic operation .................................................................... 7-6 Clock settings ........................................................................\
.... 7-7
Basic operation .................................................................. 7-7
Comfort settings........................................................................\
7-8
Language and unit settings .................................................... 7-8 Language settings ............................................................. 7-8
Unit settings ........................................................................\
7-9
Unit settings (Tire Pressure) ........................................ 7-10
Image viewer ........................................................................\
... 7-10 Full screen display .......................................................... 7-11
Setting the image viewer .............................................. 7-11
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

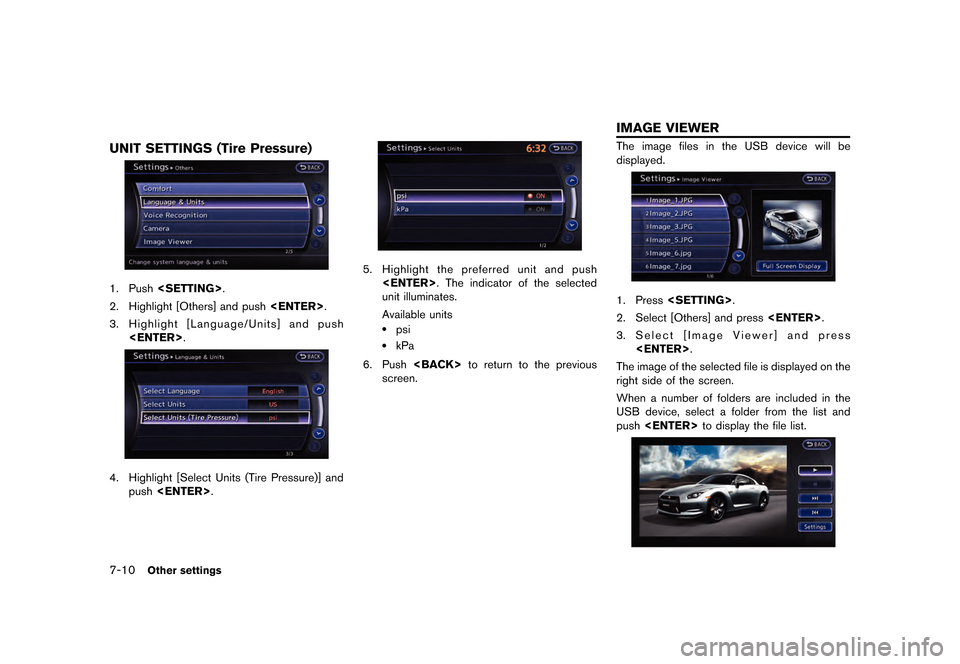

7-10Other settings
UNIT SETTINGS (Tire Pressure)
1. Push.
2. Highlight [Others] and push .
3. Highlight [Language/Units] and push
.
4. Highlight [Select Units (Tire Pressure)] and
push .
5.Highlight the preferred unit and push
. The indicator of the selected
unit illuminates.
Available units
.psi
.kPa
6. Push to return to the previous
screen.
The image files in the USB device will be
displayed.
1. Press .
2. Select [Others] and press .
3. Select [Image Viewer] and press
.
The image of the selected file is displayed on the
right side of the screen.
When a number of folders are included in the
USB device, select a folder from the list and
push to display the file list.
IMAGE VIEWER
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

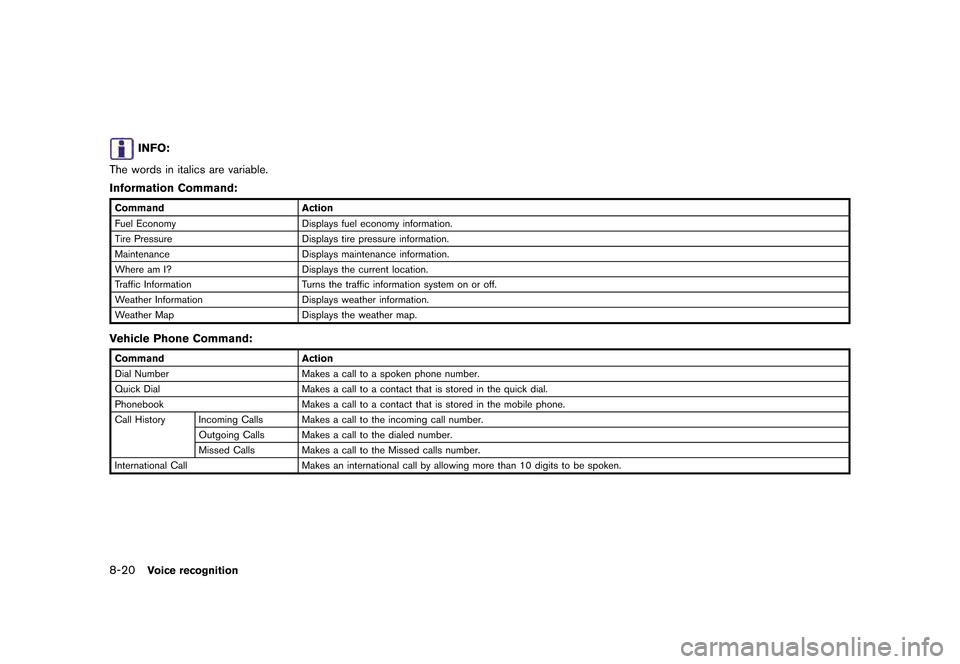

8-20Voice recognition
INFO:
The words in italics are variable.
Information Command:
Command Action
Fuel Economy Displays fuel economy information.
Tire Pressure Displays tire pressure information.
Maintenance Displays maintenance information.
Where am I? Displays the current location.
Traffic Information Turns the traffic information system on or off.
Weather Information Displays weather information.
Weather Map Displays the weather map.
Vehicle Phone Command:
CommandAction
Dial Number Makes a call to a spoken phone number.
Quick Dial Makes a call to a contact that is stored in the quick dial.
Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number. Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

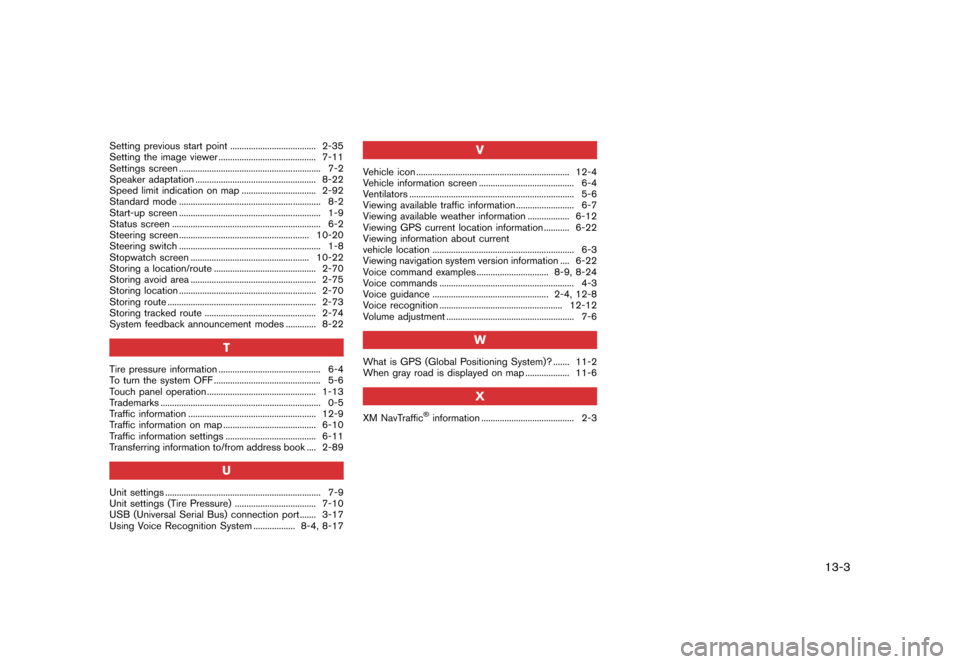

Setting previous start point ..................................... 2-35
Setting the image viewer .......................................... 7-11
Settings screen ............................................................. 7-2
Speaker adaptation .................................................... 8-22
Speed limit indication on map ................................ 2-92
Standard mode ............................................................. 8-2
Start-up screen ............................................................. 1-9
Status screen ................................................................ 6-2
Steering screen ........................................................ 10-20
Steering switch ............................................................. 1-8
Stopwatch screen ................................................... 10-22
Storing a location/route ............................................ 2-70
Storing avoid area ...................................................... 2-75
Storing location ........................................................... 2-70
Storing route ................................................................ 2-73
Storing tracked route ................................................ 2-74
System feedback announcement modes ............. 8-22
T
Tire pressure information............................................ 6-4
To turn the system OFF .............................................. 5-6
Touch panel operation ............................................... 1-13
Trademarks ..................................................................... 0-5
Traffic information ....................................................... 12-9
Traffic information on map ........................................ 6-10
Traffic information settings ....................................... 6-11
Transferring information to/from address book .... 2-89
U
Unit settings ................................................................... 7-9
Unit settings (Tire Pressure) ................................... 7-10
USB (Universal Serial Bus) connection port ....... 3-17
Using Voice Recognition System .................. 8-4, 8-17
V
Vehicle icon .................................................................. 12-4
Vehicle information screen ......................................... 6-4
Ventilators ....................................................................... 5-6
Viewing available traffic information ......................... 6-7
Viewing available weather information .................. 6-12
Viewing GPS current location information ........... 6-22
Viewing information about current
vehicle location ............................................................. 6-3
Viewing navigation system version information .... 6-22
Voice command examples ............................... 8-9, 8-24
Voice commands .......................................................... 4-3
Voice guidance .................................................. 2-4, 12-8
Voice recognition ..................................................... 12-12
Volume adjustment ....................................................... 7-6
W
What is GPS (Global Positioning System)? ....... 11-2
When gray road is displayed on map ................... 11-6
X
XM NavTraffic
