CAUTION
●Do not ground accessories directly to
the battery terminal. Doing so will by-
pass the variable voltage control sys-
tem and the vehicle battery may not
charge completely.
● Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery.
Your vehicle is equipped with a variable voltage
control system. This system measures the
amount of electrical discharge from the battery
and controls voltage generated by the generator. The current sensor
Ais located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the frame or engine block area.
1. Power steering fluid pump pulley
2. Automatic belt tensioner pulley
3. Cooling fan pulley
4. Air conditioner compressor pulley
5. Crankshaft pulley
6. Generator pulley
WARNING
Be sure the ignition key is in the OFF or
LOCK position before servicing drive belt.
The engine could rotate unexpectedly.
LDI0454
VQ40DE
WDI0639
VARIABLE VOLTAGE CONTROL
SYSTEM DRIVE BELT
Maintenance and do-it-yourself8-19

1. Visually inspect the belt for signs of unusualwear, cuts, fraying or looseness. If the belt is
in poor condition or is loose, have it replaced
or adjusted. It is recommended that you visit
a NISSAN dealer for this service.
2. Have the belt checked regularly for condi- tion and tension in accordance with the
maintenance schedule found in the
“NISSAN Service and Maintenance Guide”.
1. Power steering fluid pump pulley
2. Water pump pulley
3. Air conditioner compressor pulley (if so
equipped)
4. Crankshaft pulley
5. Generator pulleyREPLACING SPARK PLUGS
Platinum-tipped spark plugs (QR25DE
models)
It is not necessary to replace platinum-tippedA
spark plugs as frequently as conventional type
spark plugs because they last much longer. Fol-
low the maintenance log shown in the “NISSAN
Service and Maintenance Guide”. Do not service
platinum-tipped spark plugs by cleaning or re-
gapping.
● Always replace spark plugs with rec-
ommended or equivalent ones.
QR25DE
LDI0461SDI1895
SPARK PLUGS
8-20Maintenance and do-it-yourself

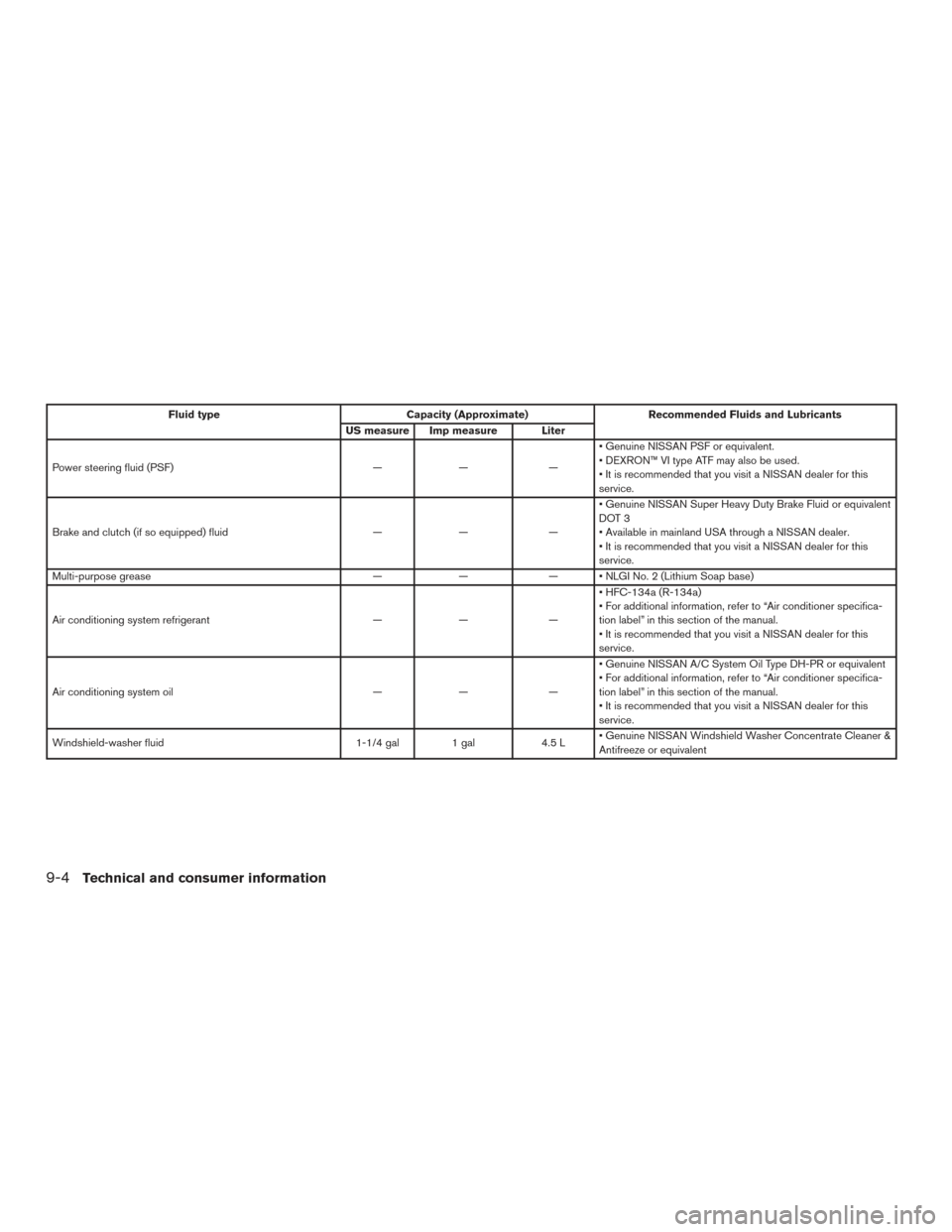

Fluid typeCapacity (Approximate) Recommended Fluids and Lubricants
US measure Imp measure Liter
Power steering fluid (PSF) —— —• Genuine NISSAN PSF or equivalent.
• DEXRON™ VI type ATF may also be used.
• It is recommended that you visit a NISSAN dealer for this
service.
Brake and clutch (if so equipped) fluid —— —• Genuine NISSAN Super Heavy Duty Brake Fluid or equivalent
DOT 3
• Available in mainland USA through a NISSAN dealer.
• It is recommended that you visit a NISSAN dealer for this
service.
Multi-purpose grease —— — • NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant —— —• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner specifica-
tion label” in this section of the manual.
• It is recommended that you visit a NISSAN dealer for this
service.
Air conditioning system oil —— —• Genuine NISSAN A/C System Oil Type DH-PR or equivalent
• For additional information, refer to “Air conditioner specifica-
tion label” in this section of the manual.
• It is recommended that you visit a NISSAN dealer for this
service.
Windshield-washer fluid 1-1/4 gal 1 gal4.5 L• Genuine NISSAN Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent
9-4Technical and consumer information

10 Index
4WDwarninglight...............2-15A
Active brake limited slip (ABLS) system . . .5-36
Air bag (See supplemental restraint
system) .....................1-70
Air bag system Front (See supplemental front impact
air bag system) ...............1-77
Airbagwarninglabels.............1-85
Airbagwarninglight...........1-85,2-20
Air bag warning light, supplemental . .1-85, 2-20
Air cleaner housing filter ............8-21
Air conditioner Air conditioner operation ..........4-25
Air conditioner service ...........4-35
Air conditioner specification label .....9-14
Air conditioner system refrigerant and
oil recommendations .............9-8
Air conditioner system refrigerant
recommendations ..............9-8
Heater and air conditioner
controls............4-16,4-22,4-33
Servicing air conditioner ..........4-35
Airflowcharts..............4-19,4-26
Alarm system
(See vehicle security system) .........2-24
Anchor point locations .............1-32
Antenna .....................4-70
Antifreeze ....................5-42 Anti-lock brake warning light
..........2-15
Anti-lock Braking System (ABS) ........5-35
Apps .......................4-70
Audible reminders ...............2-24
Audio system ..................4-35
AMradioreception.............4-36
Bluetooth®audio..........4-66,4-67
Compact disc (CD) player . .4-45, 4-50, 4-56
FM-AM radio with compact disc (CD)
player ....................4-43
FM/AM/SAT radio with compact disc (CD)
player.................4-47,4-51
FMradioreception.............4-35
iPod® Player .............4-61,4-63
iPod® player operation .......4-61,4-63
Radio ....................4-35
Steering wheel audio control switch . . .4-69
USB interface ............4-57,4-59
USB (Universal Serial Bus) Connection
Port..................4-57,4-59
Autolight switch .................2-30
Automatic Automatic power window switch .....2-50
Automatic transmission position indicator
light .....................2-20
Driving with automatic transmission ....5-14
Automatic anti-glare inside mirror .......3-15
Automatic door locks ..............3-5
AUXjack.................4-46,4-57 B
Back button ....................4-7
Battery ..................5-42, 8-17
Charge warning light ............2-17
Battery replacement ..............8-28
Keyfob................8-28,8-29
Before starting the engine ...........5-12
Belt (See drive belt) ..............8-19
Block heater Engine ....................5-43
Bluetooth® audio ............4-66,4-67
Bluetooth® hands-free phone
system..............4-75,4-90,4-101
Boosterseats..................1-65
Brake Anti-lock Braking System (ABS) ......5-35
Brake fluid ..................8-15
Brakelight(Seestoplight).........8-32
Brake system ................5-34
Brakewarninglight.............2-16
Brakewearindicators........2-24,8-24
Parking brake operation ..........5-20
Self-adjusting brakes ............8-24
Brake fluid ....................8-15
Brakes ......................8-24
Brake system ..................5-34
Break-inschedule ...............5-23
Brightness/contrast button ...........4-9
Brightness control Instrument panel ..............2-32

Engine oil viscosity..............9-8
Engine serial number ............9-13
Engine specifications .............9-9
Starting the engine .............5-13
Engine coolant temperature gauge .......2-6
Engineoilpressuregauge............2-8
Enterbutton....................4-4
Event Data recorders ..............9-41
Exhaust gas (Carbon monoxide) .........5-2
Explanation of maintenance items ........8-2
Extendedstorageswitch ............8-27
F
First aid kit .....................6-2
Flashers (See hazard warning flasher switch) . .6-2
Flat tire ....................6-3,6-4
Floor mat positioning aid .............7-5
Fluid Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Clutchfluid..................8-16
Engine coolant .................8-9
Engine oil ...................8-11
Power steering fluid .............8-15
Windshield-washerfluid...........8-16
F.M.V.S.S. certification label ...........9-13
Foglightswitch .................2-33
Front air bag system
(See supplemental restraint system) ......1-77
Front power seat adjustment ...........1-5
Frontseats.....................1-2 Fuel
Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-24
Fuel gauge ...................2-7
Fuel octane rating ...............9-6
Fuel recommendation .............9-5
Loose fuel cap warning ........2-5,3-11
Fuel Cell Vehicle (FCV) System Tirepressure.................8-34
Fuel-filler door ..................3-11
Fuelgauge.....................2-7
Fuses.......................8-25
Fusiblelinks ...................8-26
G
Garage door opener, HomeLink® Universal
Transceiver .........2-54,2-55,2-56,2-57
Gauge Engine coolant temperature gauge .....2-6
Engine oil pressure gauge ..........2-8
Fuel gauge ...................2-7
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-6
Trip computer .................2-9
Trip odometer .................2-4
Voltmeter....................2-8
General maintenance ...............8-2
Glovebox.....................2-43 H
Hands-free phone system,
Bluetooth®............4-75,4-90,4-101
Hazard warning flasher switch ..........6-2
Headlightandturnsignalswitch........2-29
Headlightcontrolswitch ............2-29
Headlights....................8-30
Head restraints ..................1-10
Heated seats ...................2-34
Heater Heater and air conditioner
controls .............4-16,4-22,4-33
Heater operation ........4-18,4-24,4-33
Hill descent control switch ...........2-35
Hill descent control system ...........
5
-40
Hill start assist system ..............5-40
HomeLink® Universal
Transceiver .........2-54,2-55,2-56,2-57
Hoodrelease...................3-10
Horn .......................2-33
I
Ignition switch ..................5-10
Immobilizer system ............2-25,5-12
Important vehicle information label .......9-13
In-cabin microfilter ................8-22
Increasing fuel economy .............5-24
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders).............2-14,2-15,2-20
Inside automatic anti-glare mirror ........3-15
Instrument brightness control ..........2-32
10-3

O
Octanerating(Seefueloctanerating)......9-6
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-11
Engine oil ...................8-11
Engine oil and oil filter recommendation . . .9-7
Engine oil viscosity ..............9-8
Oneshotcall...........4-79,4-93,4-103
Outside mirrors .................3-16
Overdrive switch .................5-17
Overheat Ifyourvehicleoverheats...........6-13
Owner’s manual order form ...........9-41
Owner’s manual/service manual order
information ....................9-41
P
Parking Parking brake operation ...........5-20
Parking/parking on hills ...........5-33
Phone, Bluetooth® hands-free
system ...............4-75,4-90,4-101
Power Front seat adjustment .............1-5
Power door locks ...............3-4
Power outlet .................2-38
Power steering fluid .............8-15 Power steering system
...........5-34
Power windows ...............2-48
Rear power windows ............2-50
Power outlet ...................2-38
Power steering ..................5-34
Power steering fluid ...............8-15
Precautions Maintenance precautions ...........8-5
On-pavement and off-road driving
precautions ..................5-6
Precautions on booster
seats...........1-27,1-39,1-54,1-65
Precautions on child
restraints .........1-27,1-39,1-54,1-65
Precautions on seat belt usage .......1-15
Precautions on supplemental restraint
system ....................1-70
Precautions when starting and driving ....5-2
Programmablefeatures..............4-7
Push starting ...................6-13
R
Radio Car phone or CB radio ...........4-75
FM-AM radio with compact disc (CD)
player .....................4-43
FM/AM/SAT radio with compact disc (CD)
player .................4-47,4-51
Steering wheel audio control switch ....4-69
Readiness for inspection maintenance (I/M)
test........................9-40
Rear power windows ..............2-50
Rearseat......................1-6
Rear sliding window ...............2-51 Rear sonar system
................5-41
Rear sonar system off switch ..........2-38
Rearview mirror .................3-15
RearView Monitor ................4-10
Rear window and outside mirror defroster
switch.......................2-28
Rear window defroster switch .........2-28
Recommended Fluids ...............9-2
Recorders EventData..................9-41
Refrigerant recommendation ...........

9-8
Registering a vehicle in another country ....9-12
Remote keyless entry system ........3-6,3-7
Reporting safety defects (US only) .......9-39
Roof rack .....................2-47
S
Safety Child safety rear door lock ..........3-6
Child seat belts .....1-27,1-39,1-54,1-65
Reporting safety defects (US only) .....9-39
Seat Jumpseat ...................1-7
Seat adjustment Front manual seat adjustment ........1-3
Front power seat adjustment .........1-5
Seatbackpockets................2-45
Seat belt Child safety ..................1-24
Infants and small children ..........1-25
Injured Person ................1-18
Largerchildren................1-25
Precautions on seat belt usage .......1-15
Pregnant women ...............1-18
10-5

Seat belt extenders.............1-23
Seat belt maintenance ............1-23
Seat belts ................1-15,7-5
Shoulder belt height adjustment ......1-23
Three-point type with retractor .......1-18
Seat belt extenders ...............1-23
Seatbeltwarninglight..........1-18,2-19
Seats Adjustment ...................1-2
Frontseats...................1-2
Heatedseats.................2-34
Manual front seat adjustment .........1-3
Rear seat ....................1-6
Seats/floor mats ..................7-4
Security indicator light ..............2-22
Security system (NISSAN Vehicle Immobilizer
System) , engine start ...........2-25,5-12
Security systems Vehicle security system ...........2-24
Self-adjusting brakes ..............8-24
Service manual order form ...........9-41
Servicing air conditioner .............4-35
Setting button ...................4-7
Shifting Automatic transmission ...........5-15
Manual transmission .............5-18
Shift lock release .................5-16
Shoulder belt height adjustment ........1-23
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-82
Smartphone connectivity ............4-70
Sonar Rear system .................5-41
Spark plug replacement .............8-20
Spark plugs ...................8-20
Specifications ...................9-9 Speedometer
...................2-4
SRSwarninglabel................1-85
Stability control .................5-37
Starting Before starting the engine ..........5-12
Jump starting .............6-11,8-18
Precautions when starting and driving ....5-2
Push starting .................6-13
Starting the engine .............5-13
Starting the engine ...............5-13
Steering Power steering fluid .............8-15
Power steering system ...........5-34
Tilting steering wheel ............3-13
Steeringwheel..................3-13
Steering wheel audio control switch ......4-69
Stoplight.....................8-32
Storage......................2-39
Storage tray ................2-39,2-42
Sunglassescase.................2-43
Sunroof(seeMoonroof).............2-51
Sun visors ....................3-14
Supplemental air bag warning labels ......1-85
Supplemental air bag warning light . . .1-85, 2-20
Supplemental front impact air bag system . . .1-77
Supplemental restraint system Information and warning labels .......1-85
Precautions on supplemental restraint
system ....................1-70
Supplemental restraint system
(Supplemental air bag system) .........1-70
Switch Autolightswitch...............2-30
Automatic power window switch ......2-50
Clutch interlock (clutch start) switch ....2-37Electronic locking rear differential (E-Lock)
system
switch ................
2-36
Fog light switch ...............2-33
Hazard warning flasher switch ........6-2
Headlightandturnsignalswitch......2-29
Headlight control switch ..........2-29
Hilldescentcontrolswitch.........2-35
Ignition switch ................5-10
Instrument brightness control ........2-32
Overdrive switch ...............5-17
Power door lock switch ............3-4
Rear sonar system off switch ........2-38
Rear window and outside mirror defroster
switch .....................2-28
Rearwindowdefrosterswitch .......2-28
Turnsignalswitch..............2-32
Vehicle dynamic control (VDC) off
switch .....................2-35
T
Tachometer ....................2-6
Tailgate ..................3-17,3-17
Tailgate latch ...............3-21,3-22
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (NISSAN Vehicle Immobilizer System) ,
engine start ................2-25,5-12
Three-way catalyst ................5-3
Tie down hooks .................3-22
Tilting steering wheel ..............3-13
Tire Flat tire ..................6-3,6-4
Spare tire ...................6-5
Tire and Loading Information label .....9-14
10-6
