2016 NISSAN ALTIMA SEDAN parking sensors

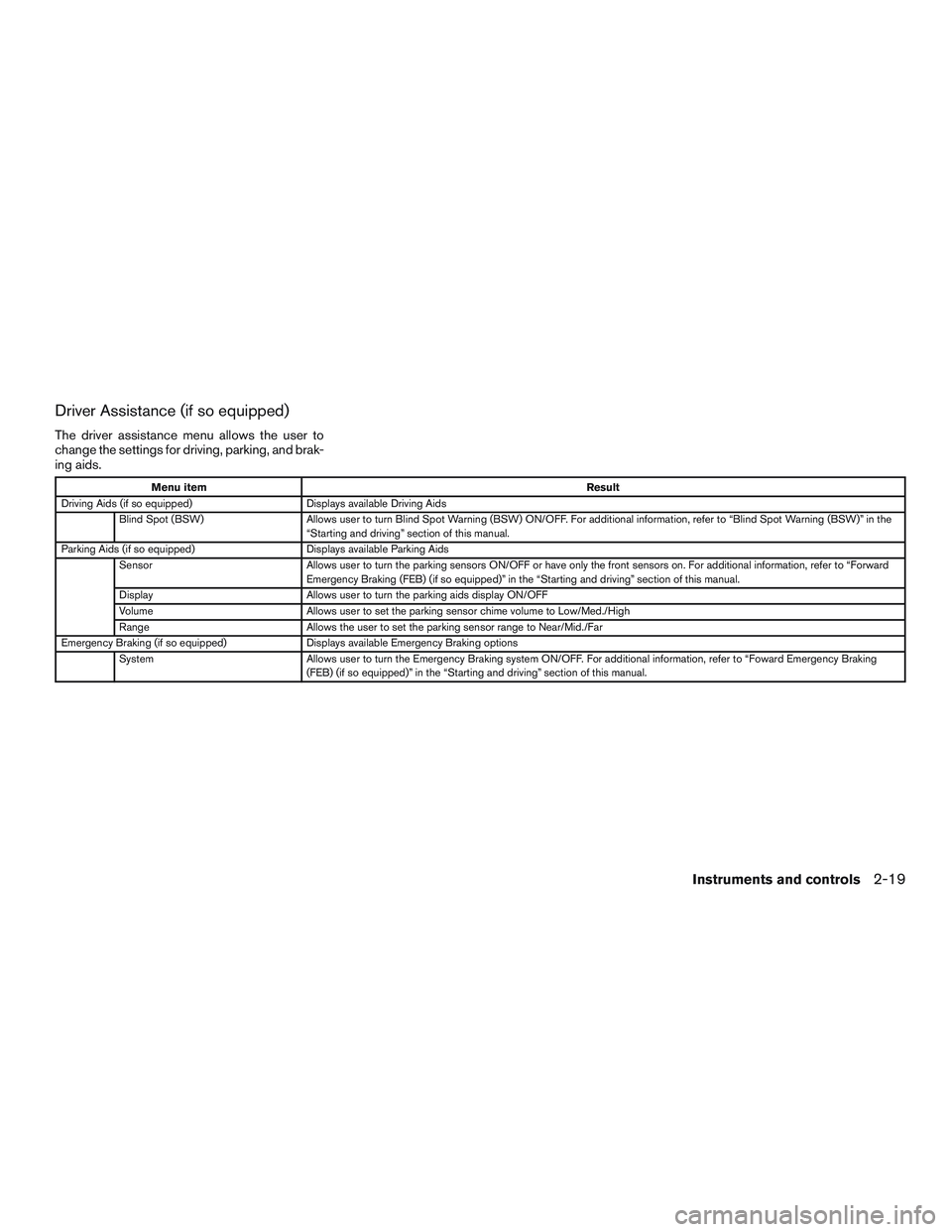

Driver Assistance (if so equipped)
The driver assistance menu allows the user to
change the settings for driving, parking, and brak-
ing aids.
Menu itemResult
Driving Aids (if so equipped) Displays available Driving Aids
Blind Spot (BSW) Allows user to turn Blind Spot Warning (BSW) ON/OFF. For additional information, refer to “Blind Spot Warning (BSW)” in the
“Starting and driving” section of this manual.
Parking Aids (if so equipped) Displays available Parking Aids
Sensor Allows user to turn the parking sensors ON/OFF or have only the front sensors on. For additional information, refer to “Forward
Emergency Braking (FEB) (if so equipped)” in the “Starting and driving” section of this manual.
Display Allows user to turn the parking aids display ON/OFF
Volume Allows user to set the parking sensor chime volume to Low/Med./High
Range Allows the user to set the parking sensor range to Near/Mid./Far
Emergency Braking (if so equipped) Displays available Emergency Braking options
System Allows user to turn the Emergency Braking system ON/OFF. For additional information, refer to “Foward Emergency Braking
(FEB) (if so equipped)” in the “Starting and driving” section of this manual.
Instruments and controls2-19

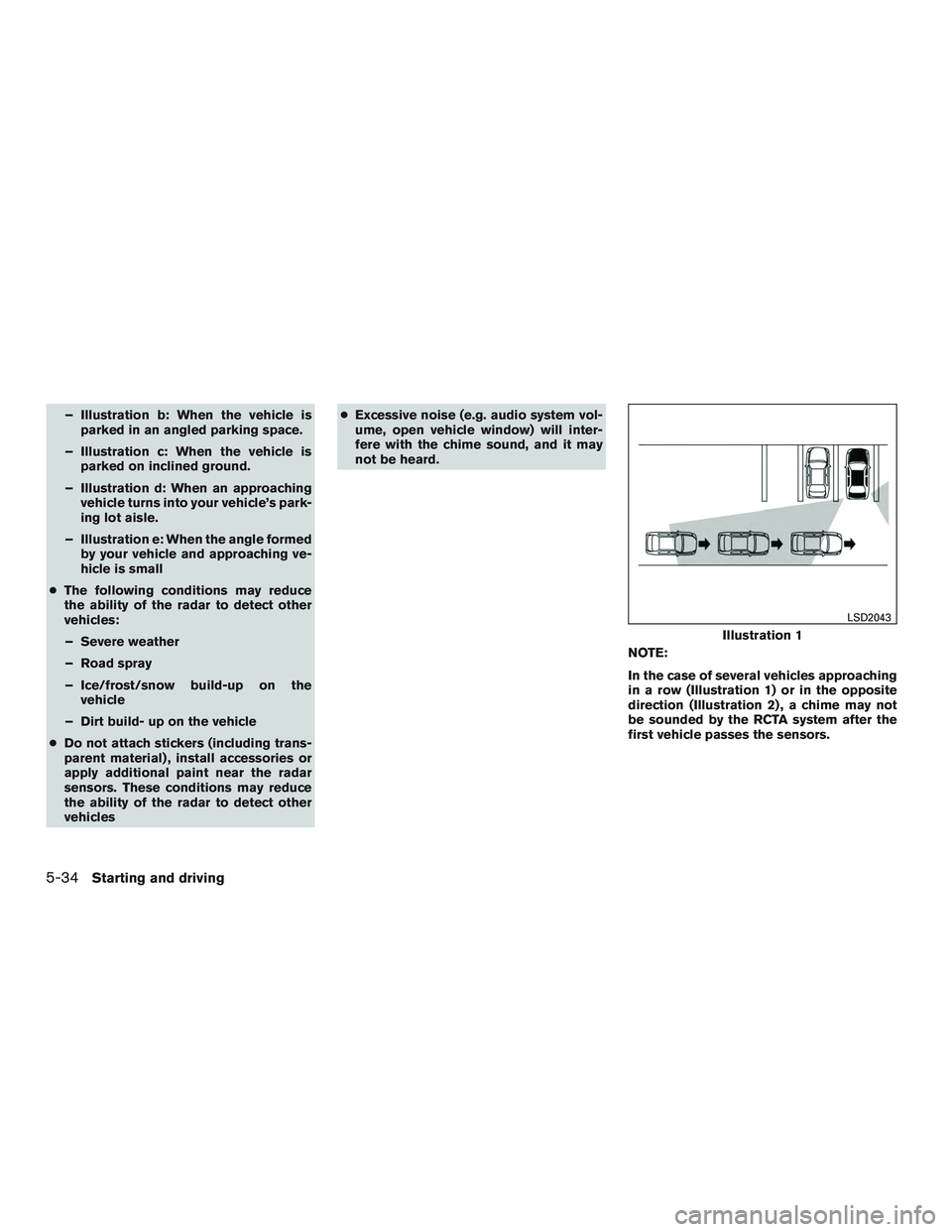

– Illustration b: When the vehicle isparked in an angled parking space.
– Illustration c: When the vehicle is parked on inclined ground.
– Illustration d: When an approaching vehicle turns into your vehicle’s park-
ing lot aisle.
– Illustration e: When the angle formed by your vehicle and approaching ve-
hicle is small
● The following conditions may reduce
the ability of the radar to detect other
vehicles:
– Severe weather
– Road spray
– Ice/frost/snow build-up on the vehicle
– Dirt build- up on the vehicle
● Do not attach stickers (including trans-
parent material) , install accessories or
apply additional paint near the radar
sensors. These conditions may reduce
the ability of the radar to detect other
vehicles ●
Excessive noise (e.g. audio system vol-
ume, open vehicle window) will inter-
fere with the chime sound, and it may
not be heard.
NOTE:
In the case of several vehicles approaching
in a row (Illustration 1) or in the opposite
direction (Illustration 2) , a chime may not
be sounded by the RCTA system after the
first vehicle passes the sensors.
Illustration 1
LSD2043
5-34Starting and driving

onds. Once the system detects an object ap-
proaching, the tone will sound again.
The RSS automatically turns on when the shift
lever is placed in R (Reverse) and the ignition
switch is ON.
Keep the RSS sensors (located on the rear bum-
per fascia) free from snow, ice and large accumu-
lations of dirt (do not clean the sensors with sharp
objects) . If the sensors are covered, it will affect
the accuracy of the RSS.The sonar (parking sensor) sytem sounds a tone
to inform the driver of obstacles near the bumper.
When the “DISPLAY” key is ON, the sonar view
will automatically appear in the meter.
WARNING
Failure to follow the warnings and instruc-
tions for proper use of the sonar system
could result in serious injury or death.
●The sonar system is not a replacement
for proper driving procedures and is not
designed to prevent contact with ve-
hicles or objects. ●
The driver is always responsible for
safety during parking and other maneu-
vers. Always look around and check that
it is safe to do so before parking.
● This function is designed as an aid to
the driver in detecting large stationary
objects to help avoid damaging the
vehicle.
If your vehicle sustains damage to the bumper
fascia, leaving it misaligned or bent, the sensing
zone may be altered causing inaccurate mea-
surement of obstacles or false alarm.
CAUTION
● Excessive noise (such as audio system
volume or an open vehicle window) will
interfere with the tone and it may not be
heard
● Keep the sonar sensors (located on the
bumper fascia’s) free from snow, ice
and large accumulations of dirt. Do not
clean the sensors with sharp objects. If
the sensors are covered, the accuracy of
the sonar function will be diminished.
LSD2135
FRONT AND REAR SONAR SYSTEM
(if so equipped)
Starting and driving5-79

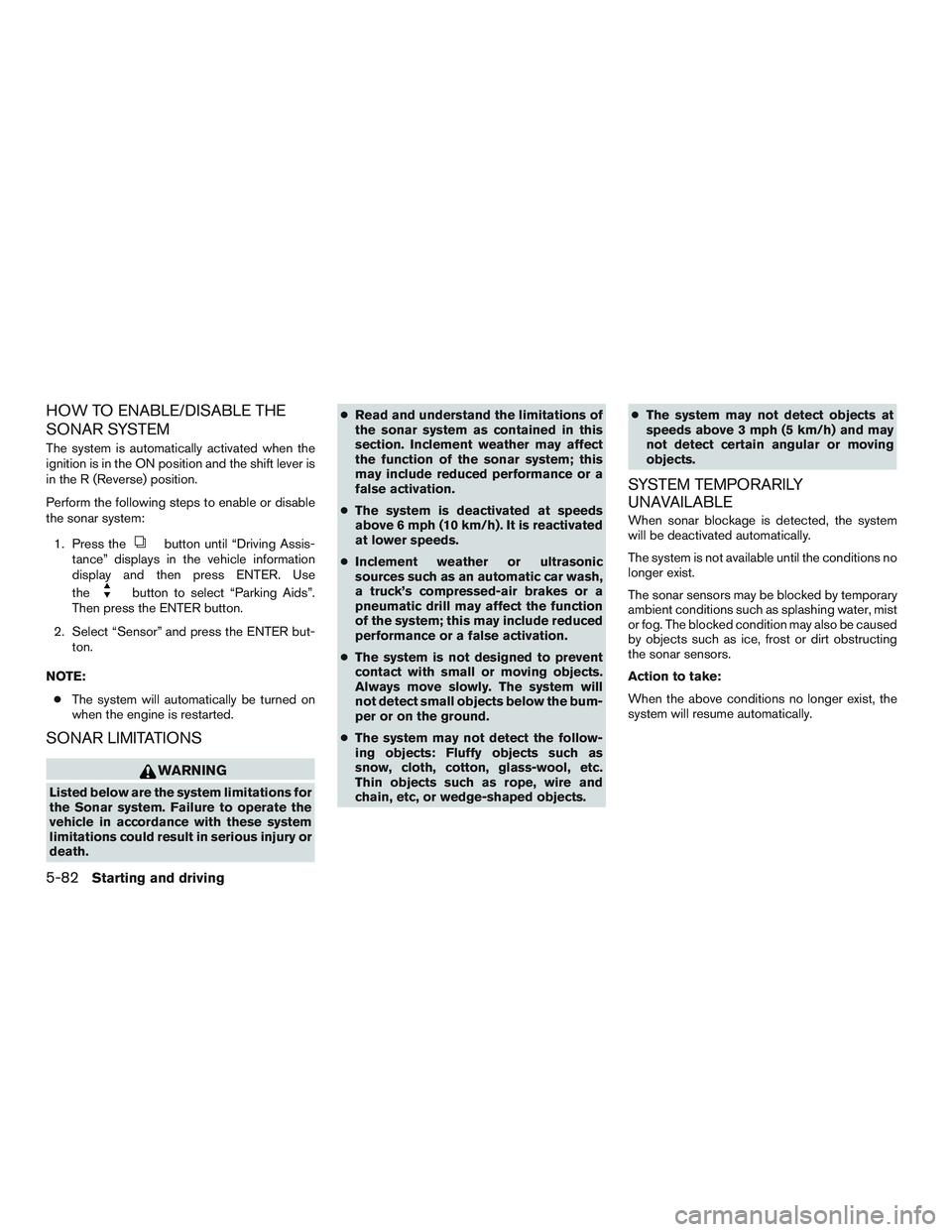

HOW TO ENABLE/DISABLE THE
SONAR SYSTEM
The system is automatically activated when the
ignition is in the ON position and the shift lever is
in the R (Reverse) position.
Perform the following steps to enable or disable
the sonar system:1. Press the
button until “Driving Assis-
tance” displays in the vehicle information
display and then press ENTER. Use
the
button to select “Parking Aids”.
Then press the ENTER button.
2. Select “Sensor” and press the ENTER but- ton.
NOTE: ● The system will automatically be turned on
when the engine is restarted.
SONAR LIMITATIONS
WARNING
Listed below are the system limitations for
the Sonar system. Failure to operate the
vehicle in accordance with these system
limitations could result in serious injury or
death. ●
Read and understand the limitations of
the sonar system as contained in this
section. Inclement weather may affect
the function of the sonar system; this
may include reduced performance or a
false activation.
● The system is deactivated at speeds
above 6 mph (10 km/h). It is reactivated
at lower speeds.
● Inclement weather or ultrasonic
sources such as an automatic car wash,
a truck’s compressed-air brakes or a
pneumatic drill may affect the function
of the system; this may include reduced
performance or a false activation.
● The system is not designed to prevent
contact with small or moving objects.
Always move slowly. The system will
not detect small objects below the bum-
per or on the ground.
● The system may not detect the follow-
ing objects: Fluffy objects such as
snow, cloth, cotton, glass-wool, etc.
Thin objects such as rope, wire and
chain, etc, or wedge-shaped objects. ●
The system may not detect objects at
speeds above 3 mph (5 km/h) and may
not detect certain angular or moving
objects.
SYSTEM TEMPORARILY
UNAVAILABLE
When sonar blockage is detected, the system
will be deactivated automatically.
The system is not available until the conditions no
longer exist.
The sonar sensors may be blocked by temporary
ambient conditions such as splashing water, mist
or fog. The blocked condition may also be caused
by objects such as ice, frost or dirt obstructing
the sonar sensors.
Action to take:
When the above conditions no longer exist, the
system will resume automatically.
5-82Starting and driving

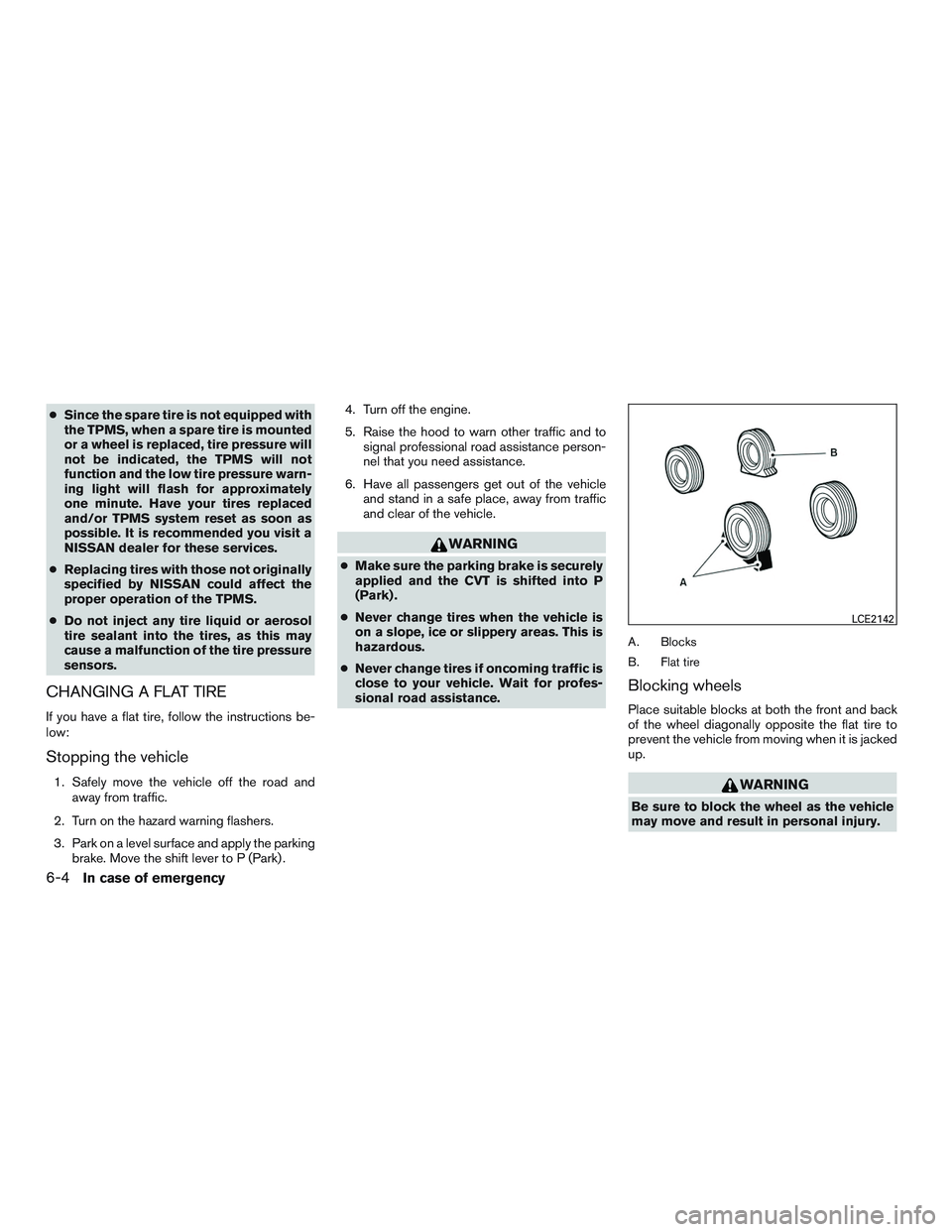

●Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, tire pressure will
not be indicated, the TPMS will not
function and the low tire pressure warn-
ing light will flash for approximately
one minute. Have your tires replaced
and/or TPMS system reset as soon as
possible. It is recommended you visit a
NISSAN dealer for these services.
● Replacing tires with those not originally
specified by NISSAN could affect the
proper operation of the TPMS.
● Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions be-
low:
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to P (Park) . 4. Turn off the engine.
5. Raise the hood to warn other traffic and to
signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
●Make sure the parking brake is securely
applied and the CVT is shifted into P
(Park) .
● Never change tires when the vehicle is
on a slope, ice or slippery areas. This is
hazardous.
● Never change tires if oncoming traffic is
close to your vehicle. Wait for profes-
sional road assistance.
A. Blocks
B. Flat tire
Blocking wheels
Place suitable blocks at both the front and back
of the wheel diagonally opposite the flat tire to
prevent the vehicle from moving when it is jacked
up.
WARNING
Be sure to block the wheel as the vehicle
may move and result in personal injury.
LCE2142
6-4In case of emergency
