2016 NISSAN 370Z COUPE light

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS) ........................................................................\
.... 0-2Coupe models ...................................................................... 0-2
Roadster models ................................................................. 0-3
Exterior front ........................................................................\
....... 0-4
Exterior rear ........................................................................\
........ 0-5
Coupe models ...................................................................... 0-5
Roadster models ................................................................. 0-6
Exterior (NISMO models) ........................................................ 0-7 Passenger compartment ......................................................... 0-8
Coupe models ................................................................... 0-8
Roadster models ............................................................... 0-9
Cockpit ........................................................................\
............. 0-10
Instrument panel .................................................................... 0-11
Meters and gauges ............................................................... 0-12
Engine compartment ............................................................ 0-13 VQ37VHR engine model ............................................. 0-13
Warning and indicator lights .............................................. 0-14

0-4Illustrated table of contents
JVC0287X
1. Hood (P.3-16)
2. Headlight and turn signal— Operation (P.2-33)
— Bulb replacement (P.8-26)
3. Windshield wiper and washer — Operation (P.2-31)
— Maintenance (P.8-20) 4. Power windows (P.2-45)
5. Outside mirrors (P.3-38)
6. Recovery hook (P.6-21)
7. License plate installation (P.9-14)
8. Daytime running light
— Operation (P.2-33)
— Bulb replacement (P.8-26) 9. Tires
— Wheels and tires (P.8-30, P.9-9)
— Flat tire (P.6-3)
— Tire Pressure Monitoring System (TPMS)
(P.2-13, P.5-3)
10. Side turn signal light (if so equipped) — Operation (P.2-33)
— Bulb replacement (P.8-26)
11. Doors — Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
EXTERIOR FRONT

SSI0811
COUPE MODELS1. High-mounted stop light (bulb replacement)(P.8-26)
2. Rear window defroster (P.2-32)
3. Satellite antenna (if so equipped) (P.4-30)
4. Rear view camera (if so equipped) (P.4-17) 5. Rear hatch
— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
— Rear hatch opener switch (P.3-17)
6. Rear fog light (if so equipped) (P.2-37)
7. Rear combination light (bulb replacement) (P.8-26) 8. Fuel-filler door
— Operation (P.3-34)
— Fuel information (P.9-4)
Illustrated table of contents0-5
EXTERIOR REAR

0-6Illustrated table of contents
SSI0812
ROADSTER MODELS1. Trunk lid (P.3-19)— Intelligent Key system (P.3-6)
— Remote keyless entry system (P.3-13)
— Rear hatch release switch (P.3-17)
— Trunk lid release switch (P.3-19) 2. High-mounted stop light (bulb replacement)
(P.8-27)
3. Antenna (P.4-30)
4. Rear window defroster (P.2-32)
5. Soft top (P.3-21)
6. Interior trunk lid release (P.3-20)
7. Rear view camera (if so equipped) (P.4-17) 8. Rear fog light (if so equipped) (P.2-37)
9. Rear combination light (bulb replacement)
(P.8-27)
10. Fuel — Fuel-filler door (P.3-34)
— Fuel information (P.9-4)

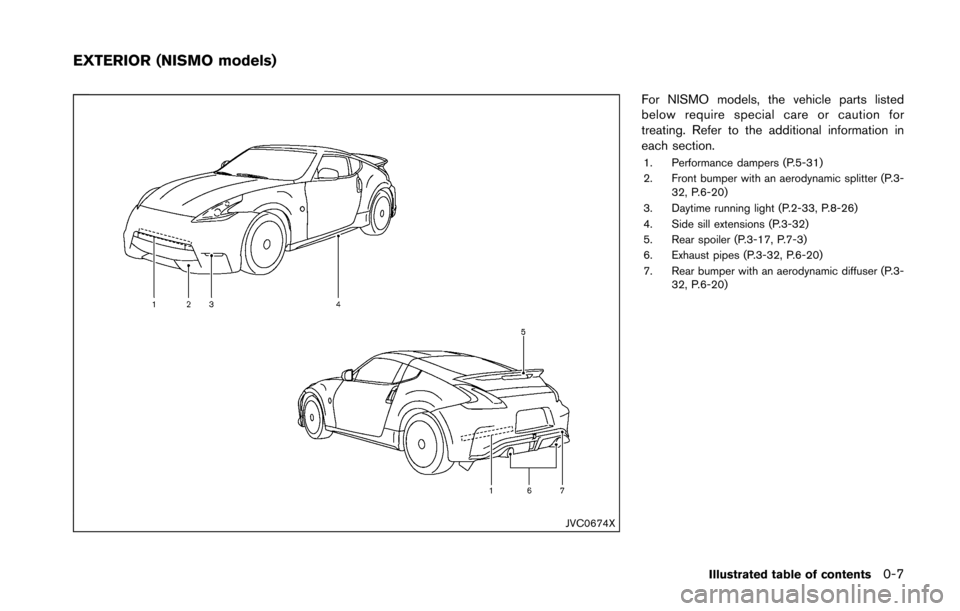

JVC0674X
For NISMO models, the vehicle parts listed
below require special care or caution for
treating. Refer to the additional information in
each section.
1. Performance dampers (P.5-31)
2. Front bumper with an aerodynamic splitter (P.3-32, P.6-20)
3. Daytime running light (P.2-33, P.8-26)
4. Side sill extensions (P.3-32)
5. Rear spoiler (P.3-17, P.7-3)
6. Exhaust pipes (P.3-32, P.6-20)
7. Rear bumper with an aerodynamic diffuser (P.3- 32, P.6-20)
Illustrated table of contents0-7
EXTERIOR (NISMO models)

0-8Illustrated table of contents
SSI0650
COUPE MODELS1. Cargo cover (if so equipped) (P.2-44)
2. Secondary rear hatch release (under the cargoroom carpet) (P.3-18)
3. Power windows (P.2-45) — Outside mirror remote control switch
(P.3-38) 4. Sun visors (P.3-36)
5. Map light (P.2-48)
6. Inside rearview mirror
— Operation (P.3-37)
— HomeLink
Š(if so equipped) (P.2-50)
7. Rear parcel box (P.2-43) 8. Console box
— Power outlet (P.2-40)
— USB memory operation (if so equipped) (P.4-
47, P.4-58)
—iPod
Šplayer operation (if so equipped) (P.4-
49, P.4-67)
9. Front cup holders (P.2-42)
PASSENGER COMPARTMENT

JVC0679X
ROADSTER MODELS1. Power windows (P.2-45)— Outside mirror remote control switch
(P.3-38)
2. Sun visors (P.3-36)
3. Map light (P.2-48)
4. Inside rearview mirror — Operation (P.3-37)
— HomeLinkŠ(if so equipped) (P.2-50)
5. Rear parcel box (P.2-43) — Secondary trunk lid release (P.3-20)
6. Console box — Power outlet (P.2-40)
— USB memory operation (if so equipped) (P.4-
47, P.4-58) —iPod
Šplayer operation (if so equipped) (P.4-
49, P.4-67)
7. Front cup holders (P.2-42)
Illustrated table of contents0-9

0-10Illustrated table of contents
SSI0652
1. Vehicle Dynamic Control (VDC) OFF switch(P.5-28)
2. Headlight, fog light and turn signal switch (P.2-33)
3. Meters and Gauges (combimeter) (P.2-5)
4. Triple meter (P.2-8)
5. Wiper and washer switch (P.2-31) 6. Hood release handle (P.3-16)
7. Intelligent Key port (P.5-10)
8. Paddle shifter (if so equipped) (P.5-14)
9. Steering-wheel-mounted controls (left side)
— Menu control switch or tuning switch
(P.4-72)
— BACK switch (P.4-72) — Phone switch (if so equipped) (P.4-75,
P.4-86)
— Volume control switches (P.4-72)
— Source select switch (P.4-72)
10. Tilt steering lever (P.3-36)
11. Steering wheel — Horn (P.2-37)
— Driver supplemental air bag (P.1-29)
12. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-21)
13. Shift lever — Automatic Transmission (AT) (P.5-12)
— Manual Transmission (MT) (P.5-16)
14. Parking brake (P.5-20)
COCKPIT
