Fuses 9-26 Vehicle care and maintenance
9

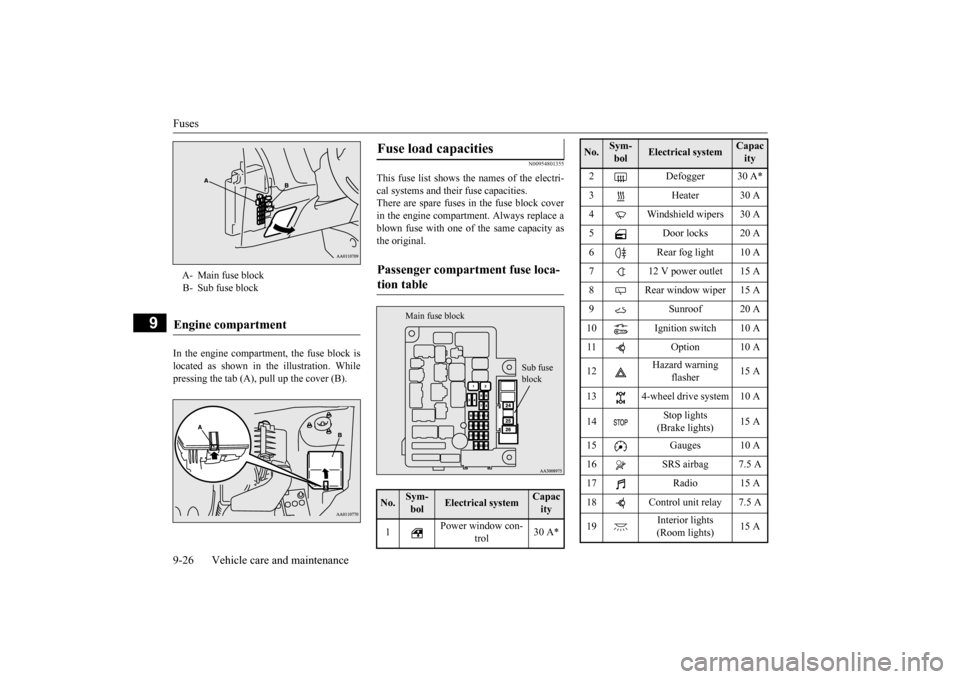

In the engine compartment, the fuse block is located as shown in the illustration. Whilepressing the tab (A), pull up the cover (B).
N00954801355
This fuse list shows the names of the electri- cal systems and their fuse capacities. There are spare fuses in the fuse block coverin the engine compartment. Always replace a blown fuse with one of the same capacity as the original.
A- Main fuse block B- Sub fuse blockEngine compartment
Fuse load capacities Passenger compartment fuse loca- tion table No.
Sym- bol
Electrical system
Capacity
1
Power window con-
trol
30 A*
Sub fuse block
Main fuse block
2 Defogger 30 A* 3 Heater 30 A 4 Windshield wipers 30 A 5 Door locks 20 A6 Rear fog light 10 A7 12 V power outlet 15 A8 Rear window wiper 15 A9 Sunroof 20 A 10 Ignition switch 10 A 11 Option 10 A 12
Hazard warning
flasher
15 A
13 4-wheel drive system 10 A 14
Stop lights (Brake lights)
15 A
15 Gauges 10 A 16 SRS airbag 7.5 A 17 Radio 15 A18 Control unit relay 7.5 A 19
Interior lights (Room lights)
15 A
No.
Sym- bol
Electrical system
Capacity
BK0223400US.book 26 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Replacement of light bulbs 9-32 Vehicle care and maintenance
9
N00950401656
N00901801173

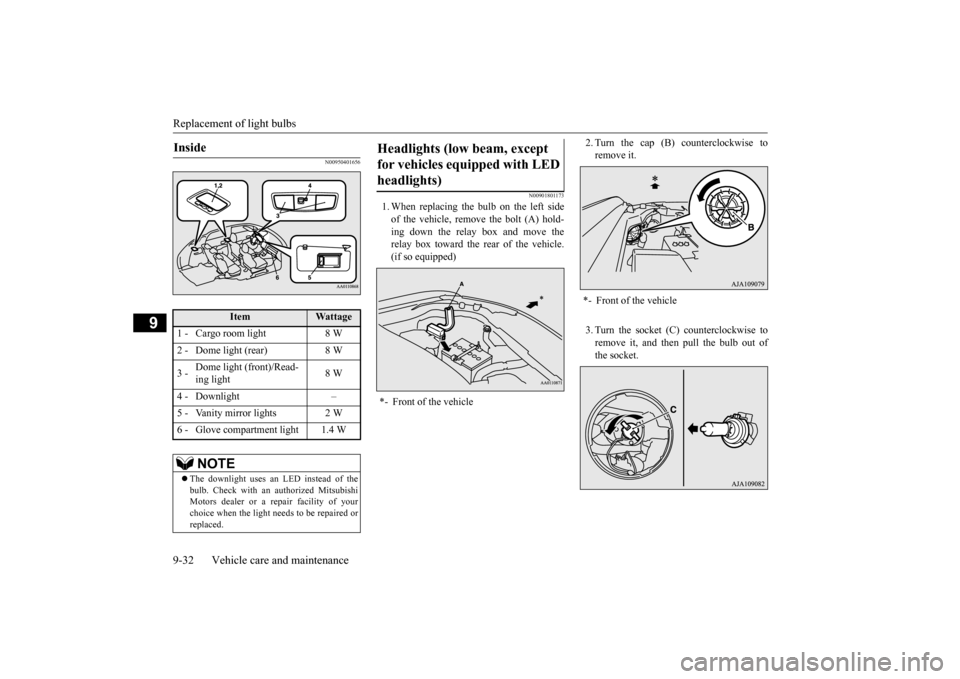

1. When replacing the bulb on the left side of the vehicle, remo
ve the bolt (A) hold-
ing down the relay box and move the relay box toward the rear of the vehicle.(if so equipped)
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it, and then pull the bulb out of the socket.
Inside
Item
Wattage
1 - Cargo room light 8 W 2 - Dome light (rear) 8 W 3 -
Dome light (front)/Read- ing light
8 W
4 - Downlight – 5 - Vanity mirror lights 2 W 6 - Glove compartment light 1.4 W
NOTE
 The downlight uses an LED instead of the bulb. Check with an
authorized Mitsubishi
Motors dealer or a re
pair facility of your
choice when the light needs to be repaired or replaced.
Headlights (low beam, except for vehicles e
quipped with LED
headlights) *- Front of the vehicle
*- Front of the vehicle
BK0223400US.book 32 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Replacement of light bulbs
Vehicle care and maintenance 9-33
9
4. To install the bulb, perform the removal steps in reverse.
N00900301142
N00901901132

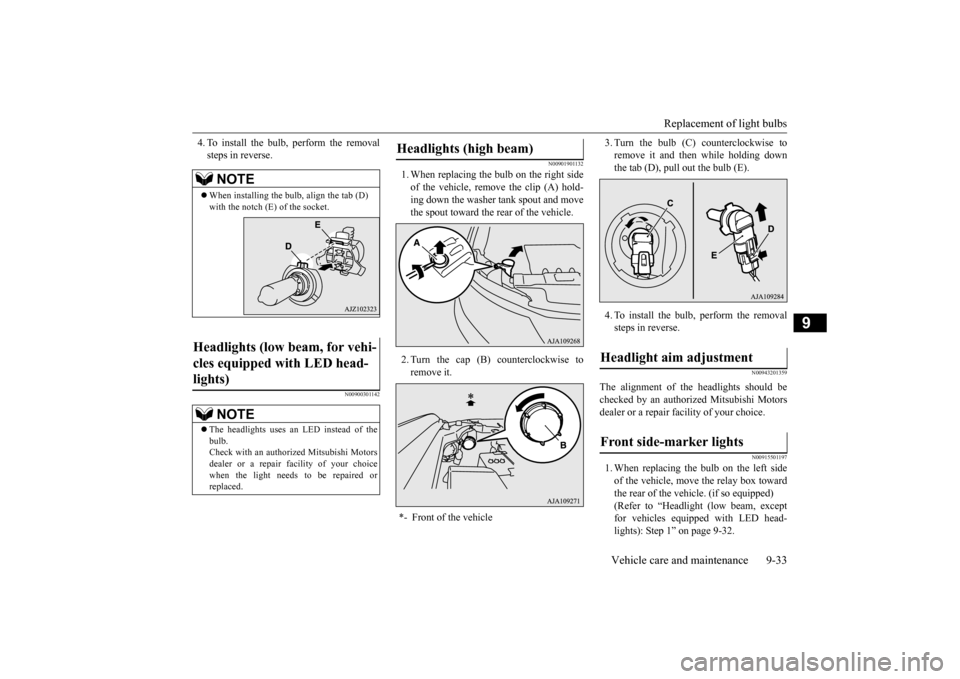

1. When replacing the bulb on the right side of the vehicle, remove the clip (A) hold- ing down the washer
tank spout and move
the spout toward the rear of the vehicle. 2. Turn the cap (B) counterclockwise to remove it.
3. Turn the bulb (C) counterclockwise to remove it and then while holding downthe tab (D), pull out the bulb (E). 4. To install the bulb, perform the removal steps in reverse.
N00943201359
The alignment of the headlights should be checked by an authorized Mitsubishi Motors dealer or a repair fa
cility of your choice.
N00915501197
1. When replacing the bulb on the left side of the vehicle, move the relay box towardthe rear of the vehicle. (if so equipped) (Refer to “Headlight
(low beam, except
for vehicles equipped with LED head-lights): Step 1” on page 9-32.
NOTE
 When installing the bul
b, align the tab (D)
　
with the notch (E) of the socket.
Headlights (low beam, for vehi- cles equipped with LED head- lights)
NOTE
 The headlights uses an LED instead of the bulb.Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when the light needs to be repaired orreplaced.
Headlights (high beam) *- Front of the vehicle
Headlight aim adjustment Front side-marker lights
