Interior 1-3 Overview
1
N00100302372
Interior
Sun visors P.5-218 Vanity mirror P.5-218Card holder P.5-218
Supplemental restraint system (SRS) - side airbag (for front seats) P.4-44
Sunglasses holder (if so equipped) P.5-231
Adjustable seat belt shoulder anchor P.4-23 Seat belts P.4-17
Cargo room light P.5-227, 9-32
Electric remote-controlled outside
rearview mirrors switch P.5-58
Lock switch P.5-50
Power door lock switch P.5-35
Power window switch P.5-49
Second row seat P.4-8
Third row seat (7 persons) P. 4 - 1 0
Dome light (rear) P.5-226
Inside rearview mirror P.5-55 HomeLink
® Wireless Control System (if so
equipped) P.5-220 Front seat P.4-4
BK0223400US.book 3 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Outside (Front)
Overview 1-6
1
N00100602564
Outside (Front)
Sunroof (if so equipped) P.5-51
Windshield wipers P.5-185 Engine hood P.9-3
Front fog lights (if so equipped) P.5-184, 9-30, 9-35
Outside rearview mirrors P.5-57 Side turn-signal lights (if so equipped) P.5-183, 9-30, 9-35 Fuel tank filler P.3-3
Power window P.5-49
Front turn-s
ignal lights
P.5-183, 9-30, 9-34
Front turn signal lights P.5-183, 9-30, 9-34
Headlights, low beam P.5-177, 9-30, 9-33
Parking lights P.5-177, 9-30, 9-34 Daytime running lights (if so equipped) P.5-177, 9-30, 9-34
Headlights, low beam P.5-177, 9-30, 9-32
Parking lights P.5-177, 9-30, 9-34 Daytime running lights (if so equipped) P.5-177, 9-30, 9-34
Headlights, high beam P.5-177, 9-30, 9-33
Headlights, high beam P.5-177, 9-30, 9-33
Halogen headlights type LED headlights type
Front side-marker lights P.5-177, 9-30, 9-33
Front side-marker lights P.5-177, 9-30, 9-33
BK0223400US.book 6 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

5
Features and controlsBreak-in recommendations ..............................................................5-3 Keys .................................................................................................5-3 Electronic immobilizer (Anti-theft starting system) ........................5-4Keyless entry system (if so equipped) ..............................................5-7 Free-hand Advanced Security Tr
ansmitter (F.A.S.T.-key) (if so
equipped).....................................................................................5-12Door locks ......................................................................................5-33 Power door locks ......
...........
...........
...........
...........
...........
.........
.....5-35
Child safety locks for rear door ..........
...........
.........
.........
.........
.....5-36
Liftgate (except for vehi
cles equipped with the
power liftgate) ....5-36
Power liftgate (if so equipped) .......................................................5-38 Inside liftgate release .....................................................................5-44Theft-alarm system ........................................................................5-45 Power window control ...................................................................5-49 Sunroof (if so equipped) .................................................................5-51Parking brake .................................................................................5-53 Steering wheel height and reach adjustment ..................................5-54 Inside rearview mirror ...................................................................5-55Outside rearview mirrors ...............................................................5-57 Ignition switch ...............................................................................5-60 Steering wheel lock (if so equipped) ..............................................5-62Starting the engine .........................................................................5-62 Automatic transaxle (if so equipped)..............................................5-64 Continuously variable transmission
(CVT) (if so equipped)..........5-71
Electronically controlled
4WD system (if so equipped).................5-79
S-AWC (Super-All Wheel Control) (if
so equipped) .....................5-81
4-wheel drive operation .................................................................5-85Inspection and maintenance followi
ng rough road operation ........5-87
Cautions on the handling of 4-wheel dr
ive vehicles ..................... 5-88
Service brake ................................................................................. 5-89 Hill start assist (if so equipped) ...................................................... 5-89Brake assist system ........................................................................ 5-90 Anti-lock braking system .............................................................. 5-91 Electric power steering system (EPS) ........................................... 5-93Active stability control (ASC) ....................................................... 5-94 Cruise control (if so equipped) ....................................................... 5-96 Adaptive Cruise Control System (ACC)
(if so equipped) ............ 5-100
Forward Collision Mitigation System
(FCM) (if so equipped) .... 5-111
Lane Departure Warning System (LDW
) (if so equipped)........... 5-116
Tire pressure monitoring system ................................................. 5-119Rear-view camera (if so equipped)............................................... 5-124 Instrument cluster ........................................................................ 5-126 Multi Information display - Type 1 ............................................. 5-128Multi Information display - Type 2 ............................................. 5-146 Indicator light, warning light, and
information screen display list
(multi information display - Type 1) ....................................... 5-154Indicator and warning light package
(multi information display - Type
2) .............................................................................................. 5-171 Indicators ..................................................................................... 5-172Warning lights .............................................................................. 5-173 Information screen display (Vehicle equipped with the multi informa- tion display - Type 1) ............................................................... 5-175Combination headlights and dimmer switch ............................... 5-177 Headlight leveling switch (if so equipped)................................... 5-182 Turn signal lever .......................................................................... 5-183Hazard warning flasher switch .................................................... 5-184
BK0223400US.book 1 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Keyless entry system (if so equipped)
Features and controls 5-7
5
N00562301094
Your electronic immo
bilizer operates on a
radio frequency subject to Federal Communi- cations Commission (FCC)
Rules (For vehi-
cles sold in U.S.A.
) and Industry Canada
Rules (For vehicles so
ld in Canada). This
device complies with part 15 of FCC Rulesand Industry Canada
licence-exempt RSS
standard(s). Operation is subject to the following two con- ditions.  This device may not
cause harmful inter-
ference. This device must ac
cept any interference
received, including interference that may cause undesired operation.
N00509001959
Press the remote control transmitter buttonsto lock or unlock the doors and the liftgate.It can also help you signal for attention by setting off the panic alarm.
Press the LOCK button (1) to lock all the doors and the liftgate.The turn signal lights
will also blink once.
Press the UNLOCK button (2) to unlock the driver’s door only.
General information
CAUTION Changes or modifica
tions not expressly
approved by the manufacturer for compli- ance could void the user’s authority to oper-ate the equipment.
Keyless entry system
(if so
equipped)1-
LOCK ( ) button
2-
UNLOCK ( ) button
3- PANIC button 4- Indicator light
NOTE
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto-matically retract or extend when the doorsand the liftgate are locked or unlocked using the remote control swit
ches of the keyless
entry system.Refer to “Features and controls: Outside rearview mirrors” on page 5-57.
To l o c k

NOTE
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto- matically retract when
the LOCK button(1)
is pressed.  If you press the LOCK button (1) twice the horn will sound once.
To unlock

BK0223400US.book 7 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Keyless entry system (if so equipped) 5-8 Features and controls
5
Within about 2 seconds, press the UNLOCK button one more time to unlock all the doorsand liftgate. The dome light will turn on for 30 seconds. The turn signal lights will also blink twice.The front side-marker and parking lights will also turn on for about 30 seconds. Refer to “Welcome light” on page 5-181.
Within 30 seconds of locking the doors and liftgate using the LOCK button, press the LOCK button twice rapidly to retract the out- side rearview mirrors. Within 30 seconds of unlocking the doors and liftgate using the UNLOCK button, press the UNLOCK button twice rapidly to return theoutside rearview mirrors to their extended positions. The outside rearview mirrors are not initially set to work as described above. If you wantthem to work as described above, you need to set them so that they do not retract/extend when the doors and liftgate arelocked/unlocked using
the keyless entry sys-
tem. For details, please consult an authorized Mit-subishi Motors dealer.
In a vehicle equipped
with the Mitsubishi
Multi-Communication Syst
em, it is possible
to change the setting by means of screen operations. Refer to the separate owner’s manual fordetails. The horn and turn signal lights of the keyless entry system answerback function can be changed as required. This is done with thekey removed from the ignition switch. The answerback function can be set in the following three ways. Each time the answerback function is set, a chime will sound to
tell you the condition of
the answerback function.
NOTE
 On vehicles equipped wi
th the mirror retrac-
tor switch, the outside rearview mirrors auto- matically extend when the UNLOCK button(2) is pressed.  On vehicles equippe
d with a Mitsubishi
Multi-Communication System, the functionscan be adjusted on the screen. For details, refer to the separate operation manual.  The door and liftgate
unlock function can be
set so that all doors a
nd liftgate unlock when
the UNLOCK button (2) is pressed once.Refer to “Setting of door
and liftgate unlock
function” on page 5-9.
Operation of the outside rear- view mirrors (Vehicles equipped with the mirror retractor switch)

To r e t r a c t

To e x t e n d

Answerback function

NOTE
 The answerback functi
on will not operate if
any of the doors are open.
Horn deactivation/reactivation

One chime: The horn will not sound. Two chimes: The horn will sound.
BK0223400US.book 8 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-15
5
N00503301077
The operating range is the interior of the vehicle.
N00503401283

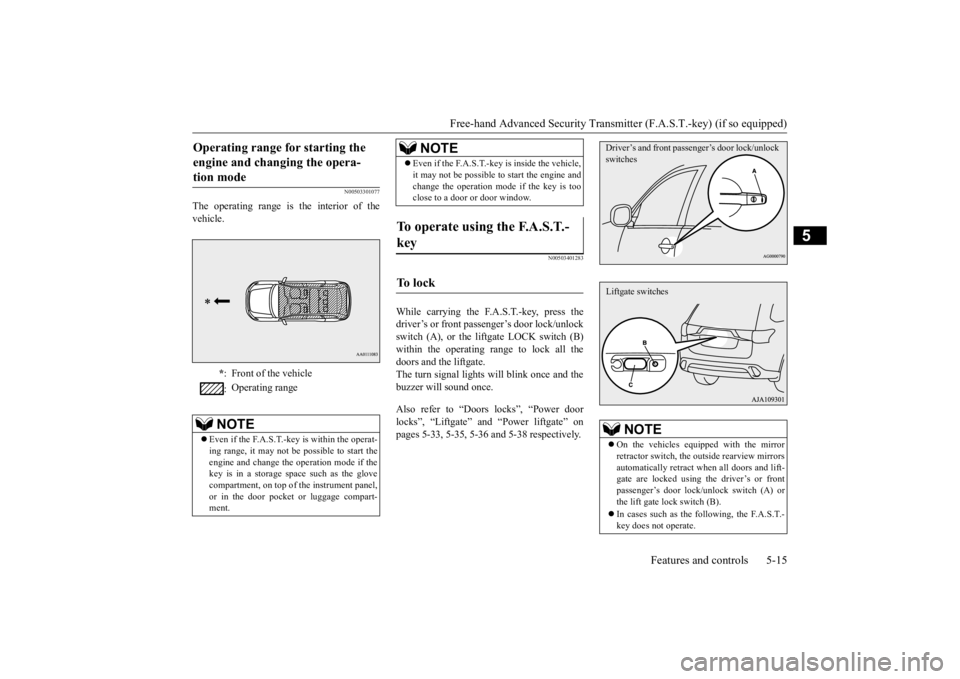

While carrying the F.A.S.T.-key, press thedriver’s or front passenger’s door lock/unlock switch (A), or the liftgate LOCK switch (B) within the operating range to lock all thedoors and the liftgate. The turn signal lights will blink once and the buzzer will sound once. Also refer to “Doors locks”, “Power door locks”, “Liftgate” and “Power liftgate” on pages 5-33, 5-35, 5-36 and 5-38 respectively.
Operating range for starting the engine and changing the opera-tion mode

* : Front of the vehicle : Operating range
NOTE
 Even if the F.A.S.T.-key is within the operat- ing range, it may not be possible to start theengine and change the
operation mode if the
key is in a storage space such as the glove compartment, on top of the instrument panel,or in the door pocket or luggage compart- ment.
 Even if the F.A.S.T.-key is inside the vehicle, it may not be possible to
start the engine and
change the operation mode if the key is tooclose to a door or door window.
To operate using the F.A.S.T.- key

To l o c k

NOTE
NOTE
 On the vehicles equipped with the mirror retractor switch, the outside rearview mirrorsautomatically retract when all doors and lift- gate are locked using the driver’s or front passenger’s door lock/unlock switch (A) orthe lift gate lock switch (B).  In cases such as the following, the F.A.S.T.- key does not operate.Driver’s and front passenger’s door lock/unlock switchesLiftgate switches
BK0223400US.book 15 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Free-hand Advanced
Security Transmitter (F.A.S
.T.-key) (if so equipped)
5-16 Features and controls
5
While carrying the F.A.S.T.-key within the operating range, you can unlock the doors and the liftgate by using the F.A.S.T.-keyoperation. The dome light will turn on for 30 seconds. The turn signal lights will blink twice and thebuzzer will
sound twice.
Also refer to “Door locks”, “Power door locks”, “Liftgate” and “Power liftgate” on pages 5-33, 5-35, 5-36 and 5-38 respectively.
Press the driver’s door lock/unlock switch (A) to unlock only the driver’s door.Within about 2 seconds, press the driver’s door lock/unlock switch one more time to unlock all the doors and the liftgate.
Press the front passenger’s door lock/unlock switch (B) or the liftgate OPEN switch (C) tounlock all the doors and the liftgate.
• There is a F.A.S.T.-key in the passenger compartment • A door or the liftgate is open or ajar • The operation mode
is not in OFF.
 The liftgate OPEN switch (C) can be used to confirm that the vehicl
e is locked properly.
Press the liftgate OP
EN switch within about
3 seconds of locking.  If the liftgate OPEN switch is pressed 3 sec- onds or more after the
vehicle is locked, the
doors and the liftga
te are unlocked.
 The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors
dealer for details.
On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functioncan be adjusted on the screen. For details, refer to the separate operation manual.
To unlock

NOTE
NOTE
 On the vehicles equipped with the mirror retractor switch, the outside rearview mirrors automatically extend wh
en the driver’s door
is unlocked using the driver’s lock/unlock switch (A), front passenger’s door lock/unlock switch (B)
or the liftgate open
switch (C).  Settings can be changed so that all doors and the liftgate are unlocked automatically by pressing the driver’s door lock/unlock switch once.Refer to “Setting of door
and liftgate unlock
function” on page 5-30.Driver’s door lock/unlock switch
Front passenger’s door lock/unlock switchLiftgate OPEN switch
BK0223400US.book 16 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Free-hand Advanced Securi
ty Transmitter (F.A.S.T.-key) (if so equipped)
Features and controls 5-17
5
N00585700027
Within 30 seconds of locking the doors and liftgate using the LOCK switch, press the LOCK switch twice rapidly to retract the out- side rearview mirrors. Within 30 seconds of unlocking the doors and liftgate using the UNLOCK switch, press the UNLOCK switch twice rapidly to return theoutside rearview mirrors to their extended positions. The outside rearview mi
rrors are not initially
set to work as described above. If you wantthem to work as described above, you need to set them so that they do not retract/extend when the doors and liftgate arelocked/unlocked using the F.A.S.T.-key or the keyless entry system of the F.A.S.T.-key. For details, please consult an authorized Mit-subishi Motors dealer.
NOTE
 If the doors and the liftgate are unlocked using the driver’s or front passenger’s doorlock/unlock switch when all doors and theliftgate are locked and no doors or the lift- gate are opened within
about 30 seconds, the
doors and the liftgate wi
ll automatically re-
lock.  The amount of time after unlocking until the vehicle re-locks au
tomatically can be
adjusted. See an authorized Mitsubishi Motors dealer for details.On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functions can be adjusted on the screen. For details,refer to the separa
te operation manual.
 In cases such as the following, the F.A.S.T.- key does not operate. • A door or the liftgate is open or ajar• The operation mode is not in OFF.  The doors and the liftgate cannot be unlocked by using the li
ftgate OPEN switch
for about 3 seconds after locking.  The time within which locking confirmation is possible can be adjusted. See an autho-rized Mitsubishi Motors
dealer for details.
On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functioncan be adjusted on the screen. For details, refer to the separa
te operation manual.
Functions settings can
be modified as stated
below.See an authorized Mitsubishi Motors dealerfor details. On a vehicle equippe
d with a Mitsubishi
Multi-Communication System, the functionscan be adjusted on the screen. For details, refer to the separate operation manual. • Activating the operati
on confirmation func-
tion (blinking of the turn signal lights) only during locking, or only during unlocking. • Deactivating the operation confirmation function (blinking of the turn signal lights)and buzzer. • Modifying the number of blinks in the operation confirmati
on function (blinking
of the turn signal lights). • Making the buzzer sound when the F.A.S.T.-key is removed from the passenger compartment when all the doors and theliftgate are closed.NOTE
Operation of the outside rear- view mirrors (Vehicles equipped with the mirror retractor switch)

To r e t r a c t

To e x t e n d

BK0223400US.book 17 ページ ２０１５年２月１３日　金曜日　午後１２時１５分
