2016 MINI Countryman key battery

Opening and closingVehicle features and op‐
tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
Remote control/key
Buttons on the remote control1Opening tailgate2Unlocking3Locking
General information
Each remote control contains a rechargeable
battery that is automatically recharged when it
is in the ignition lock while the car is being
driven. Use each remote control at least twice a
year for longer road trips in order to maintain
the batteries' charge status.
In vehicles equipped with Comfort Access, the
remote control contains a replaceable battery,
refer to page 30.
The settings called up and implemented when
the vehicle is unlocked depend on which re‐
mote control is used to unlock the vehicle, Per‐
sonal Profile, refer to page 21.
In addition, information about service require‐
ments is stored in the remote control, Service
data in the remote control, refer to page 172.
Integrated key
Press button 1 to unlock the key.
The integrated key fits the following locks:
▷Driver's door, refer to page 25.
New remote controls
New remote controls are available from a
dealer’s service center or another qualified
service center or repair shop.
Loss of the remote controls A lost remote control can be blocked by a
dealer’s service center or another qualified
service center or repair shop.
Seite 20CONTROLSOpening and closing20
Online Edition for Part no. 01 40 2 964 433 - VI/15

▷ Confirmation signal during locking7.Press and hold the button until the display
changes.8.Press the button to select:▷
The hazard warning system flashes dur‐
ing unlocking/locking.▷
An acoustic signal sounds during un‐
locking/locking.▷
The hazard warning system lights up
and an acoustic signal sounds during
unlocking/locking.▷
The function is deactivated.9.Press and hold the button until the display
changes. The setting is stored.
Switching on the interior lamps
When the vehicle is locked:
Press the button.
You can also use this function to locate your ve‐
hicle in parking garages, etc.
Unlocking the tailgate
Press the button for approx. 1 second
and then release it.
Malfunctions
The function of the remote control may be im‐
paired by local radio waves. If this occurs, un‐ lock and lock the vehicle at the door lock with
the integrated key.
If it should become impossible to lock the vehi‐
cle with a remote control, the battery in the re‐
mote control is discharged. Use this remote control on an extended trip to recharge the
battery, refer to page 20.
For US owners only The transmitter and receiver units comply with
part 15 of the FCC/Federal Communication
Commission regulations. Operation is governed
by the following:
FCC ID:
LX8766S
LX8766E
LX8CAS
Compliance statement:
This device complies with part 15 of the FCC
Rules. Operation is subject to the following two
conditions:▷This device may not cause harmful interfer‐
ence, and▷this device must accept any interference re‐
ceived, including interference that may
cause undesired operation.
Any unauthorized modifications or changes to
these devices could void the user's authority to
operate this equipment.
Seite 24CONTROLSOpening and closing24
Online Edition for Part no. 01 40 2 964 433 - VI/15

control or when a mobile phone is being
charged in the vehicle.
If this occurs, open or close the vehicle using
the buttons on the remote control or use the
integrated key in the door lock.
To start the engine afterward, insert the remote
control into the ignition switch.
Warning lights The warning light in the instrument
cluster lights up when you attempt to
start the engine: the engine cannot be
started.
The remote control is not in the vehicle or has a
malfunction. Take the remote control with you
inside the vehicle or have it checked. If neces‐
sary, insert another remote control into the ig‐
nition switch.
The warning lamp in the instrument
cluster lights up while the engine is run‐
ning: the remote control is no longer in‐
side the vehicle.
After switching off the engine, the engine can
only be started again within approx. 10 sec‐
onds if no door has been opened.
The indicator lamp lights up: replace
the remote control battery.Replacing the battery
The remote control for Comfort Access contains
a battery that will need to be replaced from
time to time.1.Remove the cover.2.Insert a new battery with the positive side
facing upwards.3.Press the cover closed.
Take the old battery to a collection point,
a dealer’s service center or another quali‐
fied service center or repair shop.
Alarm system
The concept
The enabled alarm system reacts to the follow‐
ing:
▷Opening of a door, the hood or the tailgate.▷Movements inside the vehicle.▷Changes in the vehicle tilt, e.g., during at‐
tempts to steal a wheel or tow the car.▷Interruptions in battery voltage.
Depending on the market-specific version, the
alarm system briefly signals unauthorized entry
attempts by:
▷By sounding an acoustic alarm.▷By switching on the hazard warning system.Seite 30CONTROLSOpening and closing30
Online Edition for Part no. 01 40 2 964 433 - VI/15

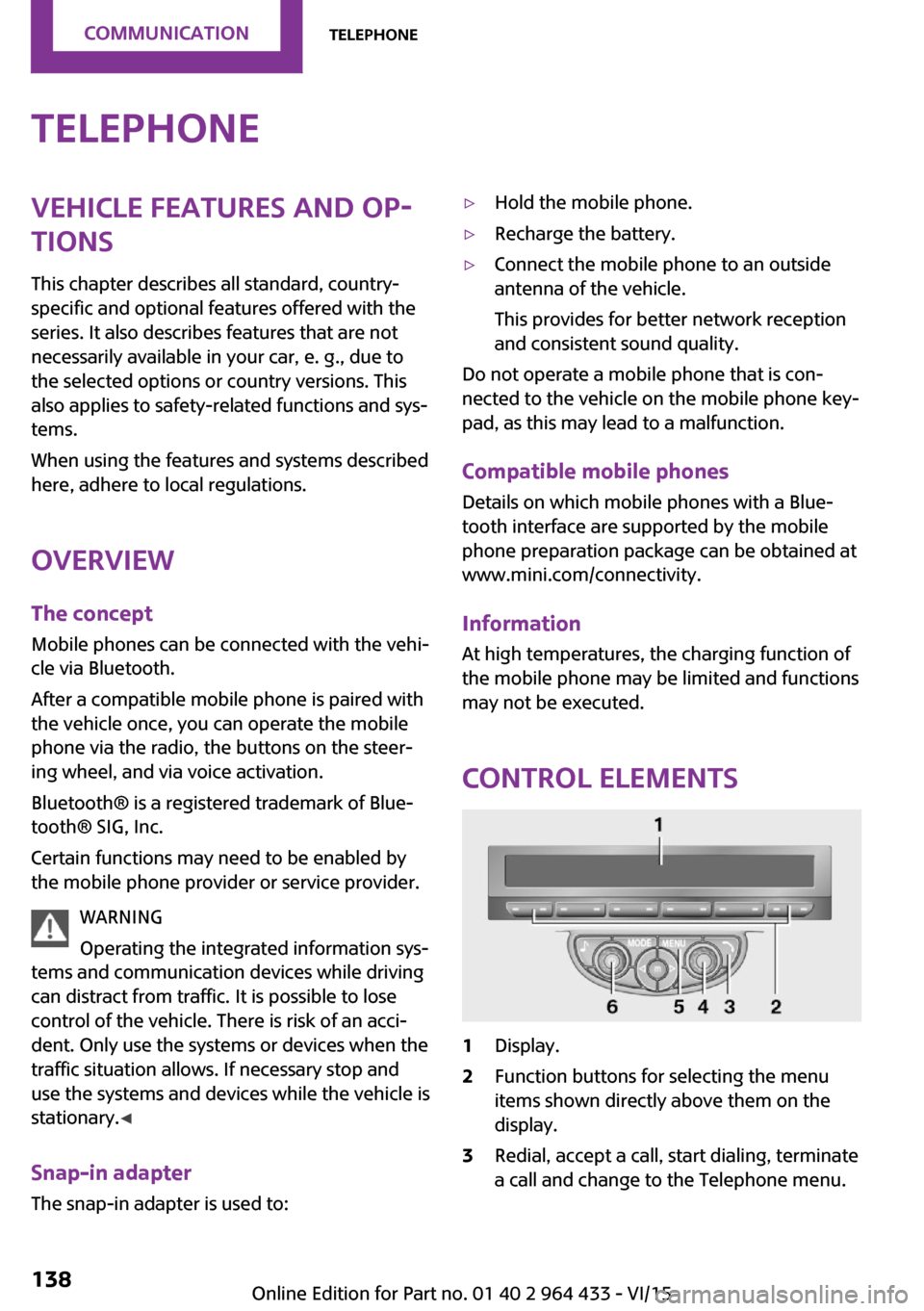

TelephoneVehicle features and op‐
tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
Overview
The concept
Mobile phones can be connected with the vehi‐
cle via Bluetooth.
After a compatible mobile phone is paired with
the vehicle once, you can operate the mobile phone via the radio, the buttons on the steer‐
ing wheel, and via voice activation.
Bluetooth® is a registered trademark of Blue‐
tooth® SIG, Inc.
Certain functions may need to be enabled by
the mobile phone provider or service provider.
WARNING
Operating the integrated information sys‐
tems and communication devices while driving can distract from traffic. It is possible to lose
control of the vehicle. There is risk of an acci‐
dent. Only use the systems or devices when the
traffic situation allows. If necessary stop and
use the systems and devices while the vehicle is
stationary. ◀
Snap-in adapter
The snap-in adapter is used to:▷Hold the mobile phone.▷Recharge the battery.▷Connect the mobile phone to an outside
antenna of the vehicle.
This provides for better network reception
and consistent sound quality.
Do not operate a mobile phone that is con‐
nected to the vehicle on the mobile phone key‐
pad, as this may lead to a malfunction.
Compatible mobile phones
Details on which mobile phones with a Blue‐
tooth interface are supported by the mobile
phone preparation package can be obtained at
www.mini.com/connectivity.
InformationAt high temperatures, the charging function of
the mobile phone may be limited and functions
may not be executed.
Control elements
1Display.2Function buttons for selecting the menu
items shown directly above them on the
display.3Redial, accept a call, start dialing, terminate
a call and change to the Telephone menu.Seite 138COMMUNICATIONTelephone138
Online Edition for Part no. 01 40 2 964 433 - VI/15

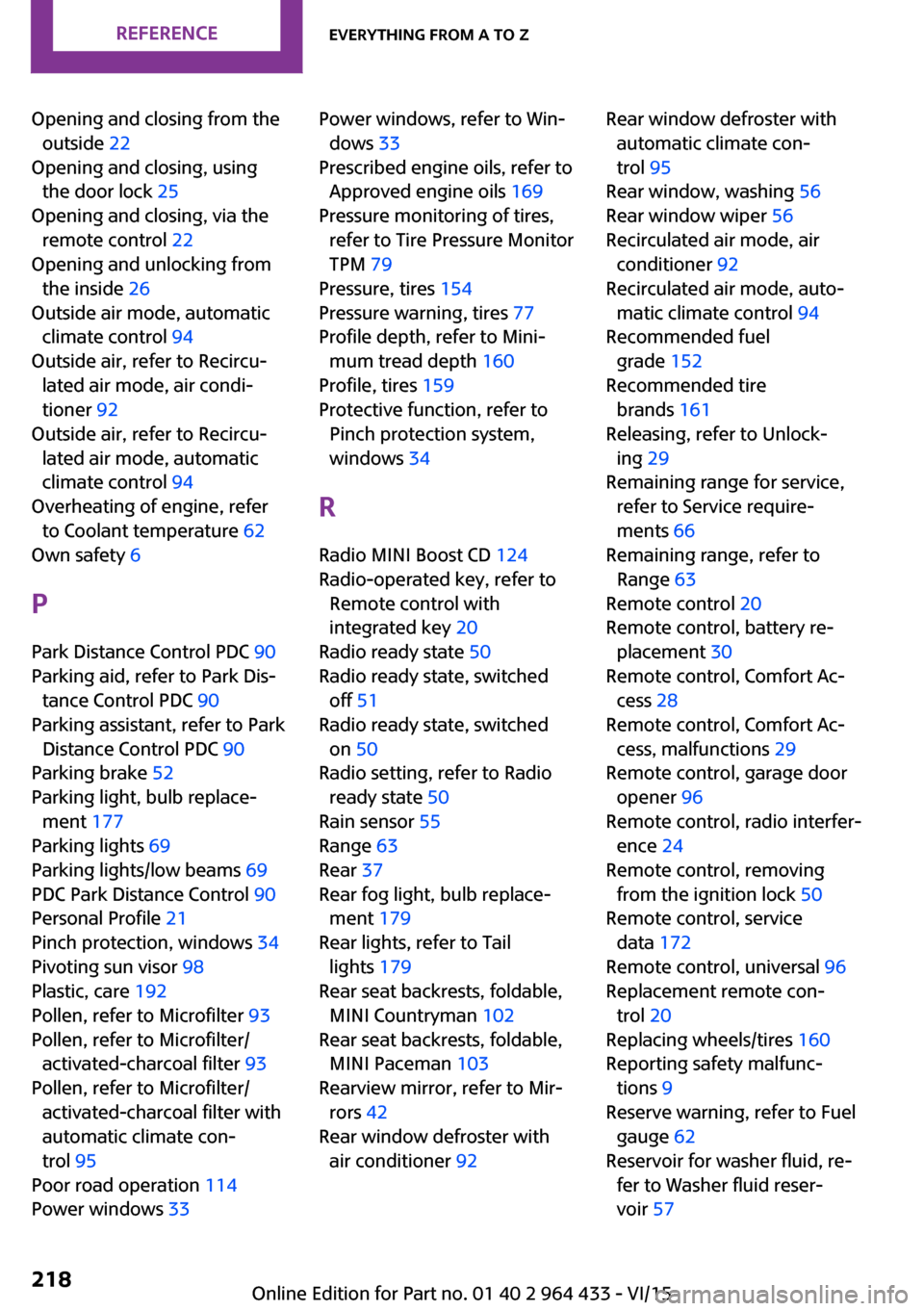

Opening and closing from theoutside 22
Opening and closing, using the door lock 25
Opening and closing, via the remote control 22
Opening and unlocking from the inside 26
Outside air mode, automatic climate control 94
Outside air, refer to Recircu‐ lated air mode, air condi‐
tioner 92
Outside air, refer to Recircu‐ lated air mode, automatic
climate control 94
Overheating of engine, refer to Coolant temperature 62
Own safety 6
P
Park Distance Control PDC 90
Parking aid, refer to Park Dis‐ tance Control PDC 90
Parking assistant, refer to Park Distance Control PDC 90
Parking brake 52
Parking light, bulb replace‐ ment 177
Parking lights 69
Parking lights/low beams 69
PDC Park Distance Control 90
Personal Profile 21
Pinch protection, windows 34
Pivoting sun visor 98
Plastic, care 192
Pollen, refer to Microfilter 93
Pollen, refer to Microfilter/ activated-charcoal filter 93
Pollen, refer to Microfilter/ activated-charcoal filter with
automatic climate con‐
trol 95
Poor road operation 114
Power windows 33 Power windows, refer to Win‐
dows 33
Prescribed engine oils, refer to Approved engine oils 169
Pressure monitoring of tires, refer to Tire Pressure Monitor
TPM 79
Pressure, tires 154
Pressure warning, tires 77
Profile depth, refer to Mini‐ mum tread depth 160
Profile, tires 159
Protective function, refer to Pinch protection system,
windows 34
R
Radio MINI Boost CD 124
Radio-operated key, refer to Remote control with
integrated key 20
Radio ready state 50
Radio ready state, switched off 51
Radio ready state, switched on 50
Radio setting, refer to Radio ready state 50
Rain sensor 55
Range 63
Rear 37
Rear fog light, bulb replace‐ ment 179
Rear lights, refer to Tail lights 179
Rear seat backrests, foldable, MINI Countryman 102
Rear seat backrests, foldable, MINI Paceman 103
Rearview mirror, refer to Mir‐ rors 42
Rear window defroster with air conditioner 92 Rear window defroster with
automatic climate con‐
trol 95
Rear window, washing 56
Rear window wiper 56
Recirculated air mode, air conditioner 92
Recirculated air mode, auto‐ matic climate control 94
Recommended fuel grade 152
Recommended tire brands 161
Releasing, refer to Unlock‐ ing 29
Remaining range for service, refer to Service require‐
ments 66
Remaining range, refer to Range 63
Remote control 20
Remote control, battery re‐ placement 30
Remote control, Comfort Ac‐ cess 28
Remote control, Comfort Ac‐ cess, malfunctions 29
Remote control, garage door opener 96
Remote control, radio interfer‐ ence 24
Remote control, removing from the ignition lock 50
Remote control, service data 172
Remote control, universal 96
Replacement remote con‐ trol 20
Replacing wheels/tires 160
Reporting safety malfunc‐ tions 9
Reserve warning, refer to Fuel gauge 62
Reservoir for washer fluid, re‐ fer to Washer fluid reser‐
voir 57 Seite 218REFERENCEEverything from A to Z218
Online Edition for Part no. 01 40 2 964 433 - VI/15
