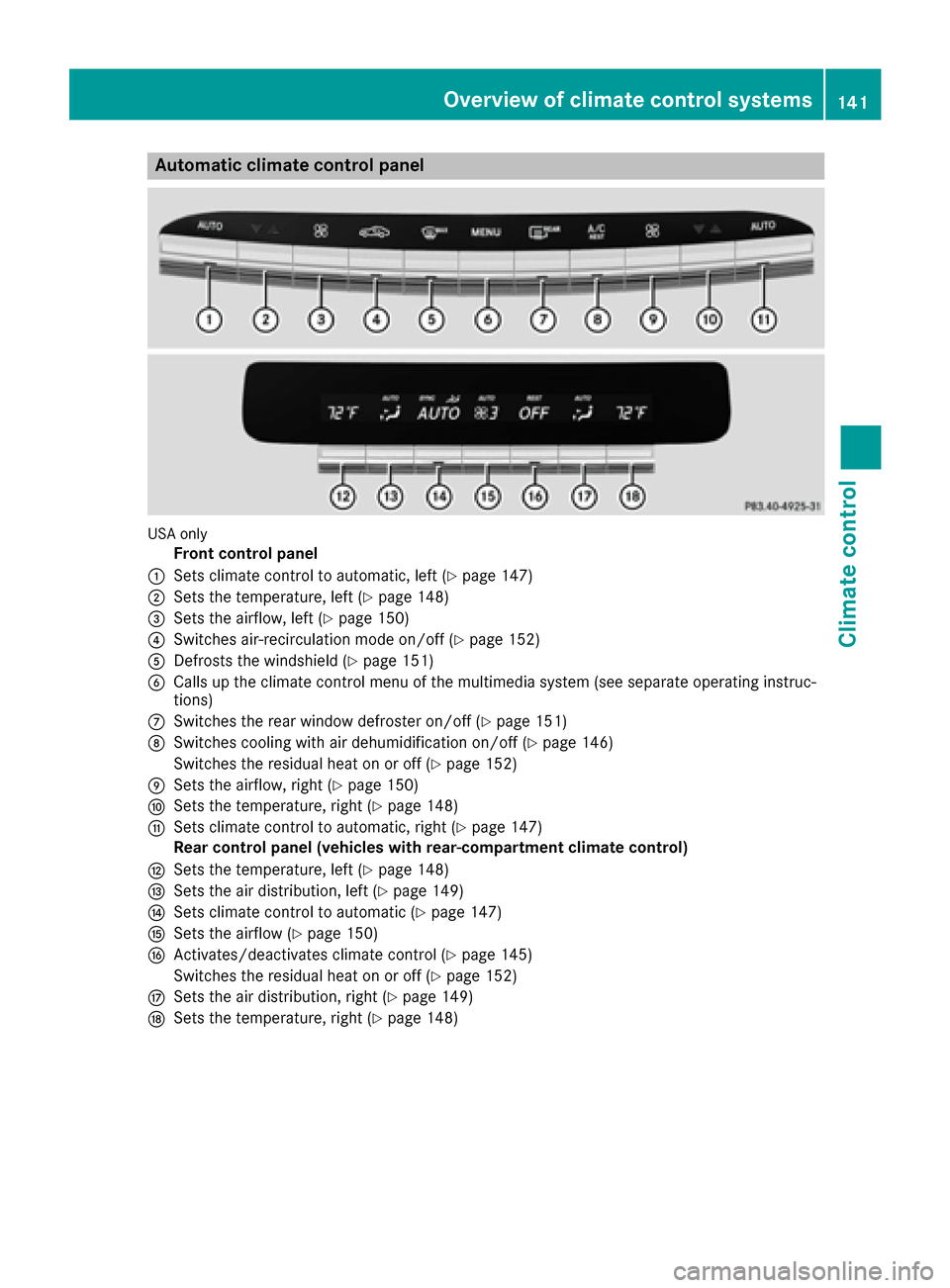

Automa tic climate control panel
USAonly
Front control panel
:Sets climat econtrol to automatic, lef t (Ypage 147)
;Sets thetemperature, lef t (Ypage 148)
=Sets theairflow, lef t (Ypage 150)
?Switches air-recirculation mod eon/off (Ypage 152)
ADefrost sth ewindshield (Ypage 151)
BCalls up theclimat econtrol men uof th emultimedia system (see separat eoperating instruc-
tions)
CSwitches th erear window defroste ron/off (Ypage 151)
DSwitches coolin gwit hair dehumidification on/off (Ypage 146)
Switches th eresidual heat on or off (
Ypage 152)
ESets theairflow, right (Ypage 150)
FSets thetemperature, right (Ypage 148)
GSets climatecontrol to automatic, right (Ypage 147)
Rea rcontrol panel (vehicles wit hrear-compartmen tclimat econtrol )
HSets thetemperature, lef t (Ypage 148)
ISets theair distribution ,lef t (Ypage 149)
JSets climat econtrol to automatic (Ypage 147)
KSets theairflow (Ypage 150)
LActivates/deactivates climat econtrol (Ypage 145)
Switches th eresidual heat on or off (
Ypage 152)
MSets theair distribution ,right (Ypage 149)
NSets th etemperature, right (Ypage 148)
Overview of climate control systems141
Climate control

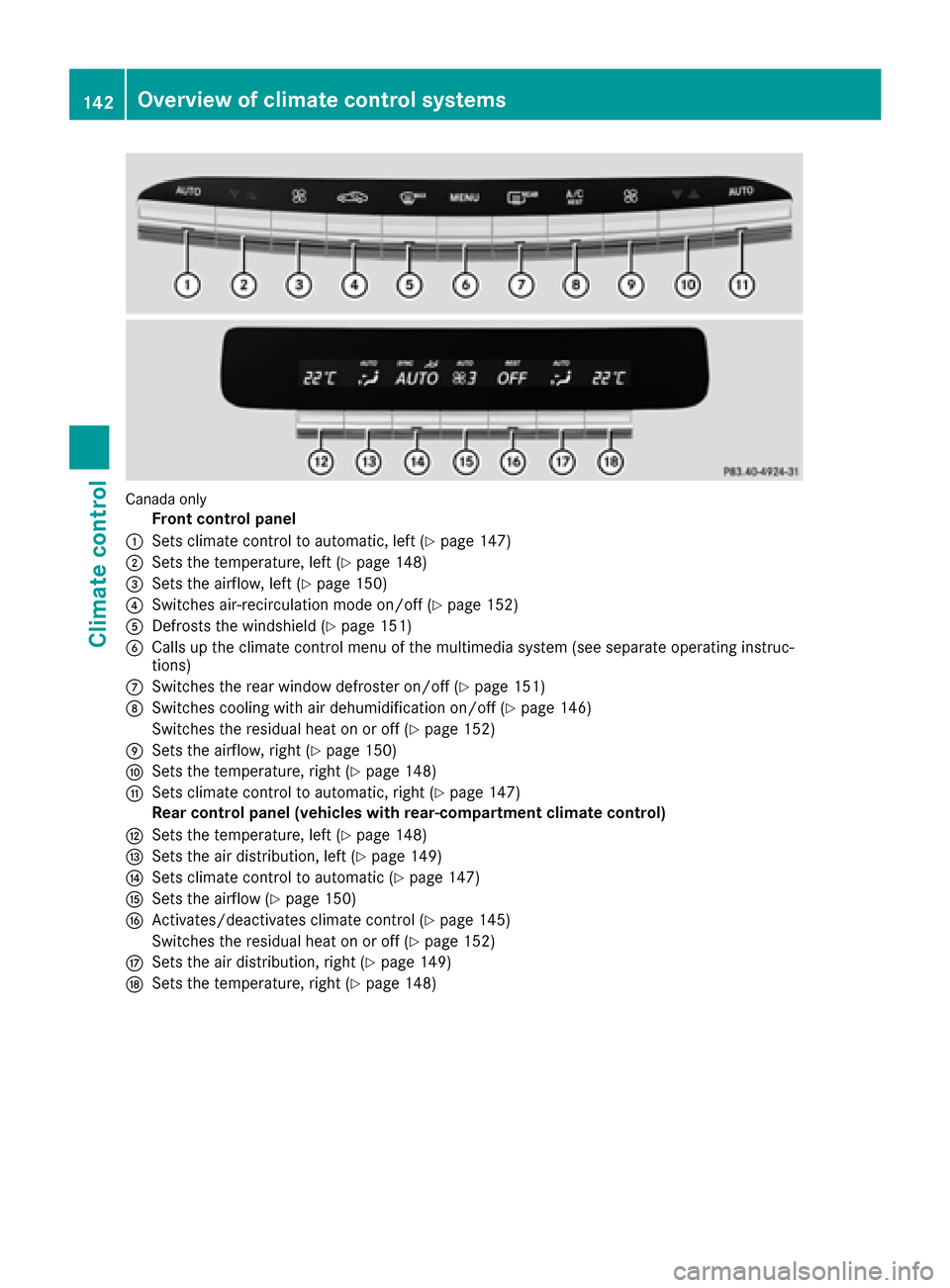

Canada only
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Switches air-recirculation mode on/off (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
CSwitches the rear window defroster on/off (Ypage 151)
DSwitches cooling with air dehumidification on/off (Ypage 146)
Switches the residual heat on or off (
Ypage 152)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
142Overview of climate control systems
Climate control

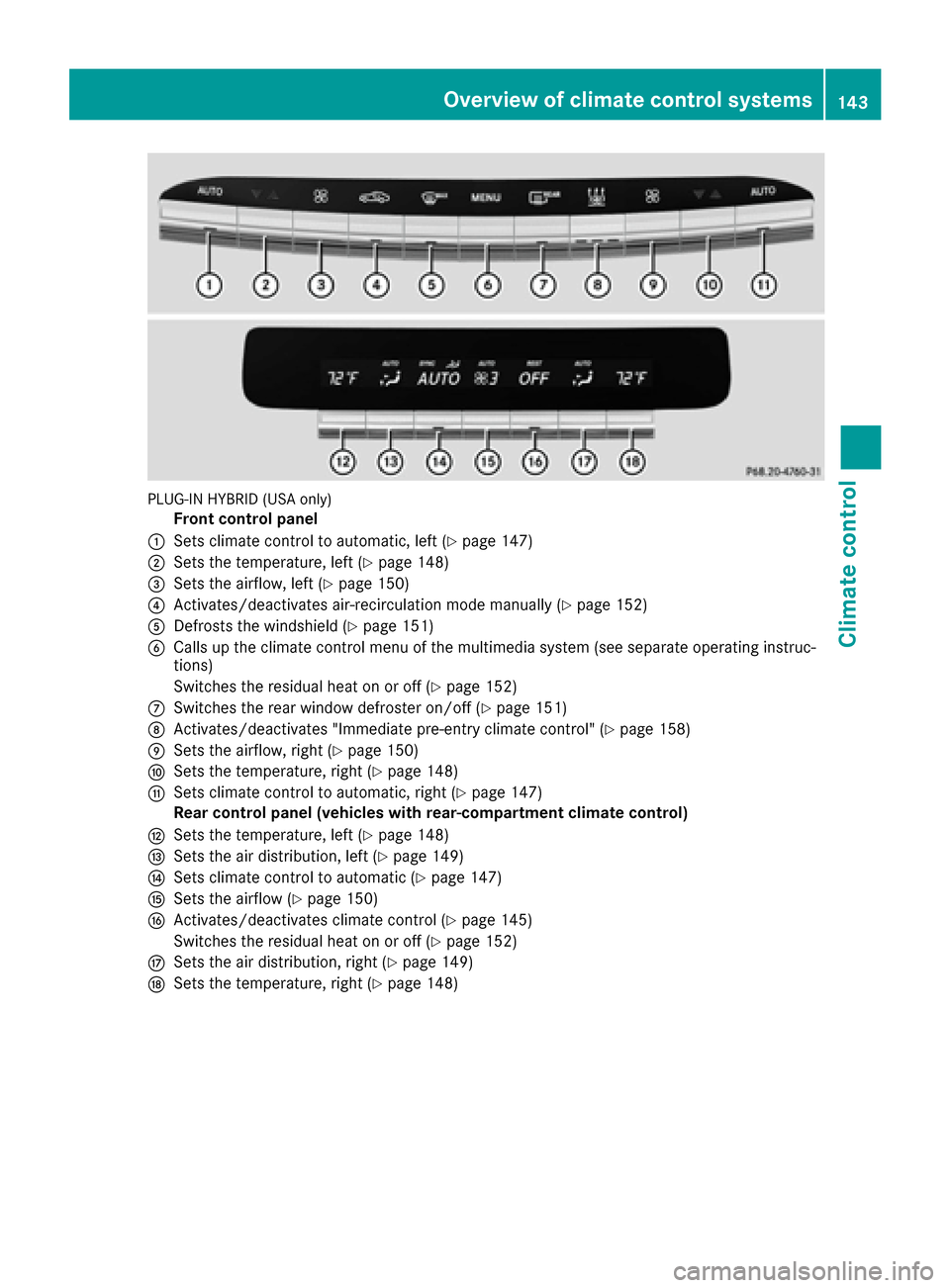

PLUG-IN HYBRID (USA only)
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Activates/deactivates air-recirculation mode manually (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
Switches the residual heat on or off (
Ypage 152)
CSwitches the rear window defroster on/off (Ypage 151)
DActivates/deactivates "Immediate pre-entry climate control" (Ypage 158)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
Overview of climate control systems143
Climate control

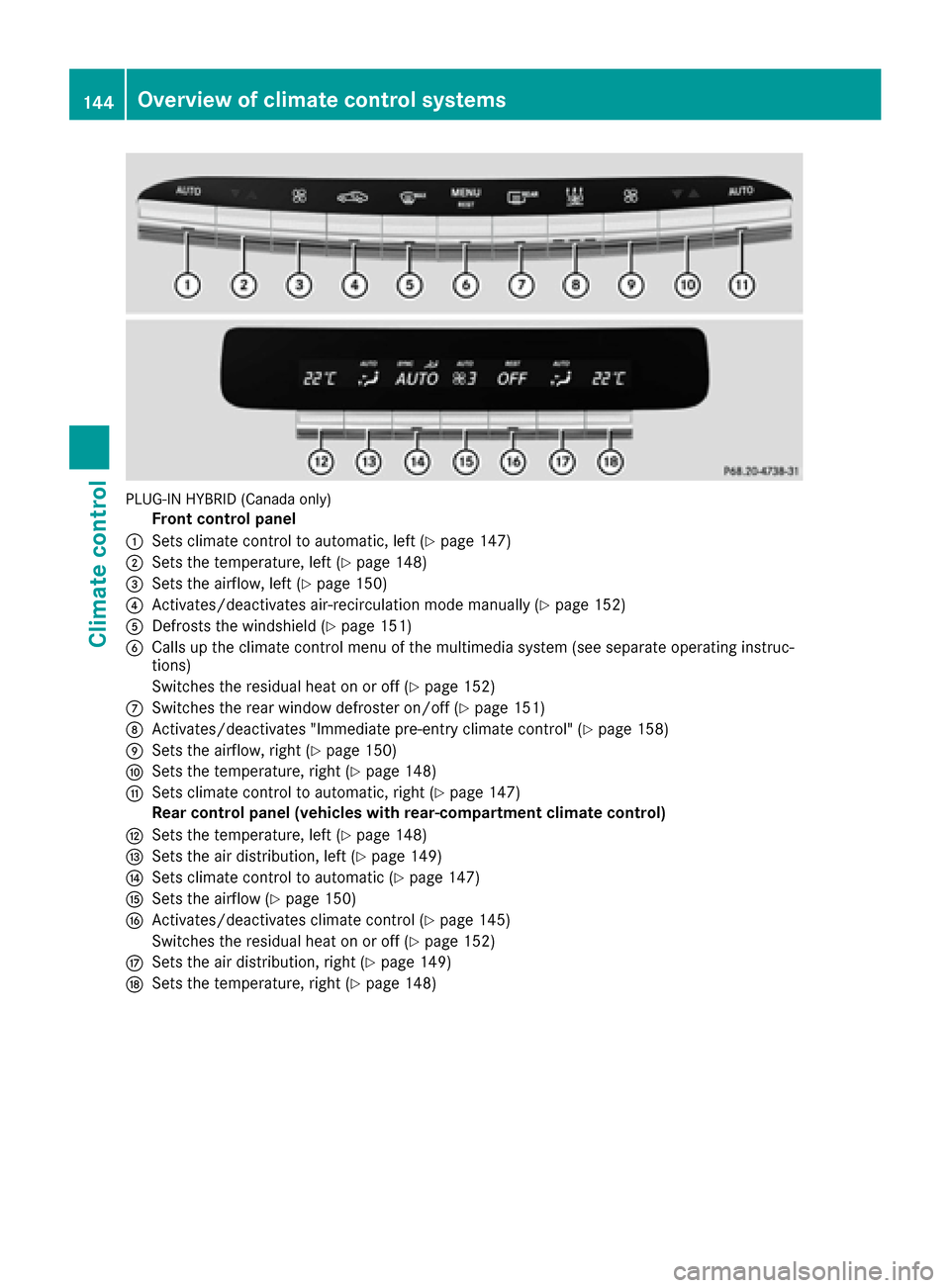

PLUG-IN HYBRID (Canada only)
Front control panel
:Sets climate control to automatic, left (Ypage 147)
;Sets the temperature, left (Ypage 148)
=Sets the airflow, left (Ypage 150)
?Activates/deactivates air-recirculation mode manually (Ypage 152)
ADefrosts the windshield (Ypage 151)
BCalls up the climate control menu of the multimedia system (see separate operating instruc-
tions)
Switches the residual heat on or off (
Ypage 152)
CSwitches the rear window defroster on/off (Ypage 151)
DActivates/deactivates "Immediate pre-entry climate control" (Ypage 158)
ESets the airflow, right (Ypage 150)
FSets the temperature, right (Ypage 148)
GSets climate control to automatic, right (Ypage 147)
Rear control panel (vehicles with rear-compartment climate control)
HSets the temperature, left (Ypage 148)
ISets the air distribution, left (Ypage 149)
JSets climate control to automatic (Ypage 147)
KSets the airflow (Ypage 150)
LActivates/deactivates climate control (Ypage 145)
Switches the residual heat on or off (
Ypage 152)
MSets the air distribution, right (Ypage 149)
NSets the temperature, right (Ypage 148)
144Overview of climate control systems
Climate control

Notes on using automatic climate
control
Climate control system
Below, you can find a number of notes and rec-
ommendations to help you use climate control
optimally.
RActivate climate control using the Ã
rocker switch. The indicator lamp in the Ã
rocker switch lights up.
RSet the temperature to 72 ‡ (22 †).
ROnly use the "Windshield defrosting" function
briefly until the windshield is clear again.
ROnly use air-recirculation mode briefly, e.g. if
there are unpleasant outside odors or when in
a tunnel. The windows could otherwise fog up, since no fresh air is drawn into the vehicle in
air-recirculation mode.
RUse the residual heat function if you want to
heat or ventilate the vehicle interior when the
ignition is switched off. The residual heat
function can only be activated or deactivated
with the ignition switched off. The residual
heat function is switched off when the ignition
is switched on.
If you are controlling the rear-compartment cli-
mate control using the front control panel, note
the following:
RIf you set rear-compartment climate control
using the front control panel, the Ysym-
bol appears in the rear-compartment control
panel display.
RIf the rear-compartment climate control is set
using the front control panel, it cannot be set
at the same time using the rear control panel. After completing the settings for the rear-
compartment climate control using the front
control panel, wait five seconds. You will then
be able to control the rear climate control
using the rear control panel.
RAfter selecting the rear compartment set-
tings, the front climate control can be con-
trolled automatically again via the multimedia
system after five seconds.
Alternatively, you can select "Cancel rear
compartment" in the multimedia system air-
conditioning function bar.
ECO start/stop function
During automatic engine switch-off, the climate
control system only operates at a reduced capa-
city. If you require the full climate control output,
you can switch off the ECO start/stop function
by pressing the ECO button (
Ypage 167).
Operating the climate control sys-
tems
Activating/deactivating climate con-
trol
General notes
When the climate control is switched off, the air
supply and air circulation are also switched off.
The windows could fog up. Therefore, switch off
climate control only briefly
Switch on climate control primarily using the
à rocker switch (
Ypage 147).
Activating/deactivating front climate
control using the front control panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XTo activate: press thetor! rocker
switch up or down.
The climate control menu opens.
XActivate climate control via the air-condition-
ing setting bar in the multimedia system (see
the separate operating instructions).
XTo deactivate: press thetor!
rocker switch up or down.
The climate control menu opens.
XActivate climate control via the air-condition-
ing setting bar in the multimedia system (see
the separate operating instructions).
Activating/deactivating rear-compart-
ment climate control using the front
control panel
Observe the notes on controlling the rear-com-
partment climate control using the front control
panel (
Ypage 145).
Operating the climate control systems145
Climate control

XTurn the SmartKey to position2in the ignition
lock (Ypage 162).
XTo activate: press thetor! rocker
switch up or down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition-
ing setting bar (see the separate operating
instructions).
You can control the rear-compartment cli-
mate control using the front control panel or
via the multimedia system.
XActivate rear-compartment climate control
via the air-conditioning setting bar.
XTo deactivate: press thetor!
rocker switch up or down.
The climate control menu opens.
XSelect "Rear adjustment" in the air-condition- ing setting bar (see the separate operating
instructions).
XDeactivate rear-compartment climate control
via the air-conditioning setting bar.
Activating/deactivating rear-compart-
ment climate control using the rear con-
trol panel
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XTo activate: press rocker switch Lup or
down (Ypage 141).
The indicator lamp in rocker switch Lgoes
out. All settings are displayed in full in the
rear-compartment display.
XTo deactivate: press rocker switch Lup or
down (Ypage 141).
The indicator lamp in rocker switch Llights
up. OFF is displayed in the rear-compartment
display.

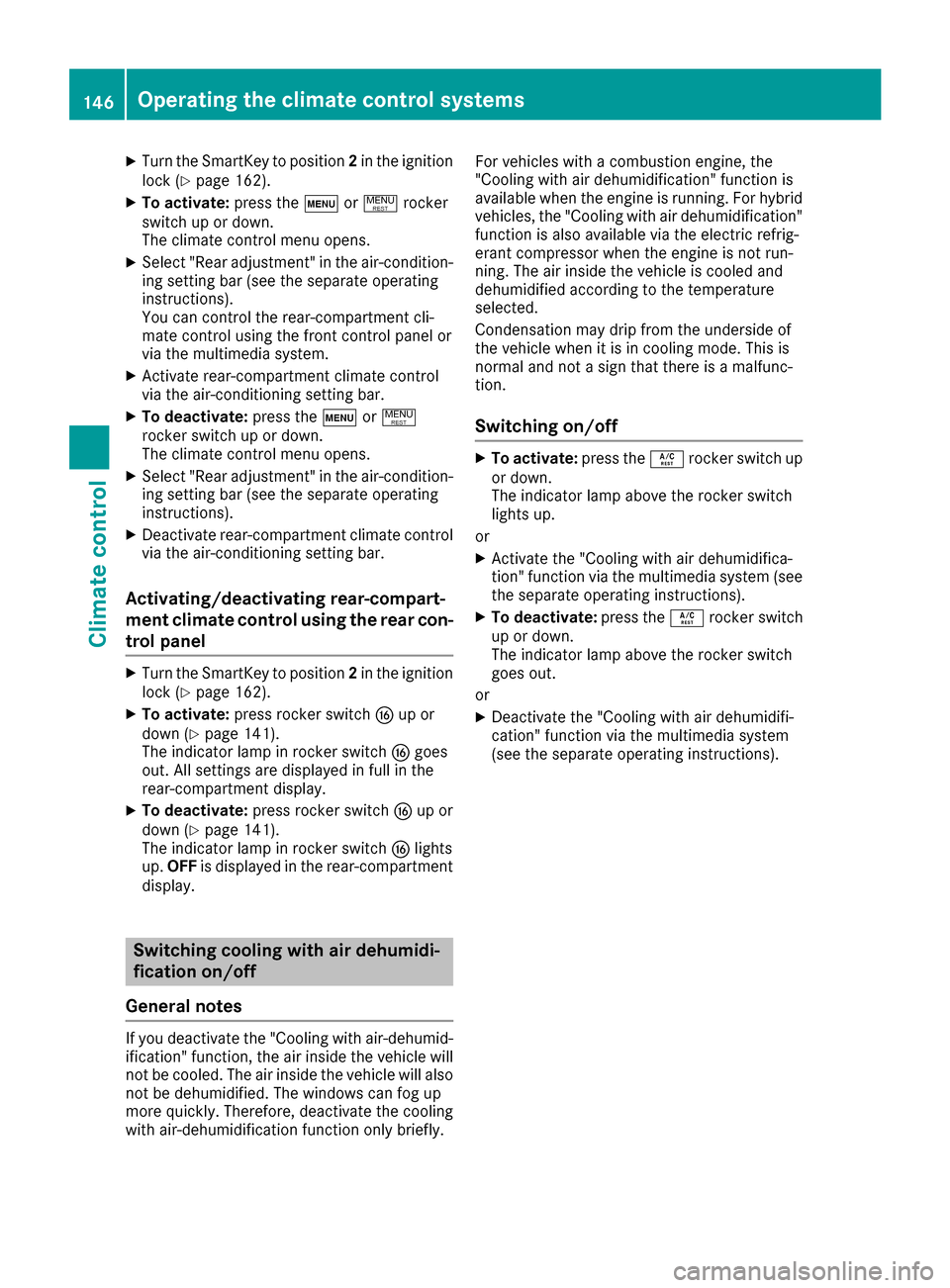

Switching cooling with air dehumidi-
fication on/off
General notes
If you deactivate the "Cooling with air-dehumid-
ification" function, the air inside the vehicle will
not be cooled. The air inside the vehicle will also
not be dehumidified. The windows can fog up
more quickly. Therefore, deactivate the cooling
with air-dehumidification function only briefly. For vehicles with a combustion engine, the
"Cooling with air dehumidification" function is
available when the engine is running. For hybrid
vehicles, the "Cooling with air dehumidification"
function is also available via the electric refrig-
erant compressor when the engine is not run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of
the vehicle when it is in cooling mode. This is
normal and not a sign that there is a malfunc-
tion.
Switching on/off
XTo activate: press theÁrocker switch up
or down.
The indicator lamp above the rocker switch
lights up.
or
XActivate the "Cooling with air dehumidifica-
tion" function via the multimedia system (see
the separate operating instructions).
XTo deactivate: press theÁrocker switch
up or down.
The indicator lamp above the rocker switch
goes out.
or
XDeactivate the "Cooling with air dehumidifi-
cation" function via the multimedia system
(see the separate operating instructions).
146Operating the climate control systems
Climate control

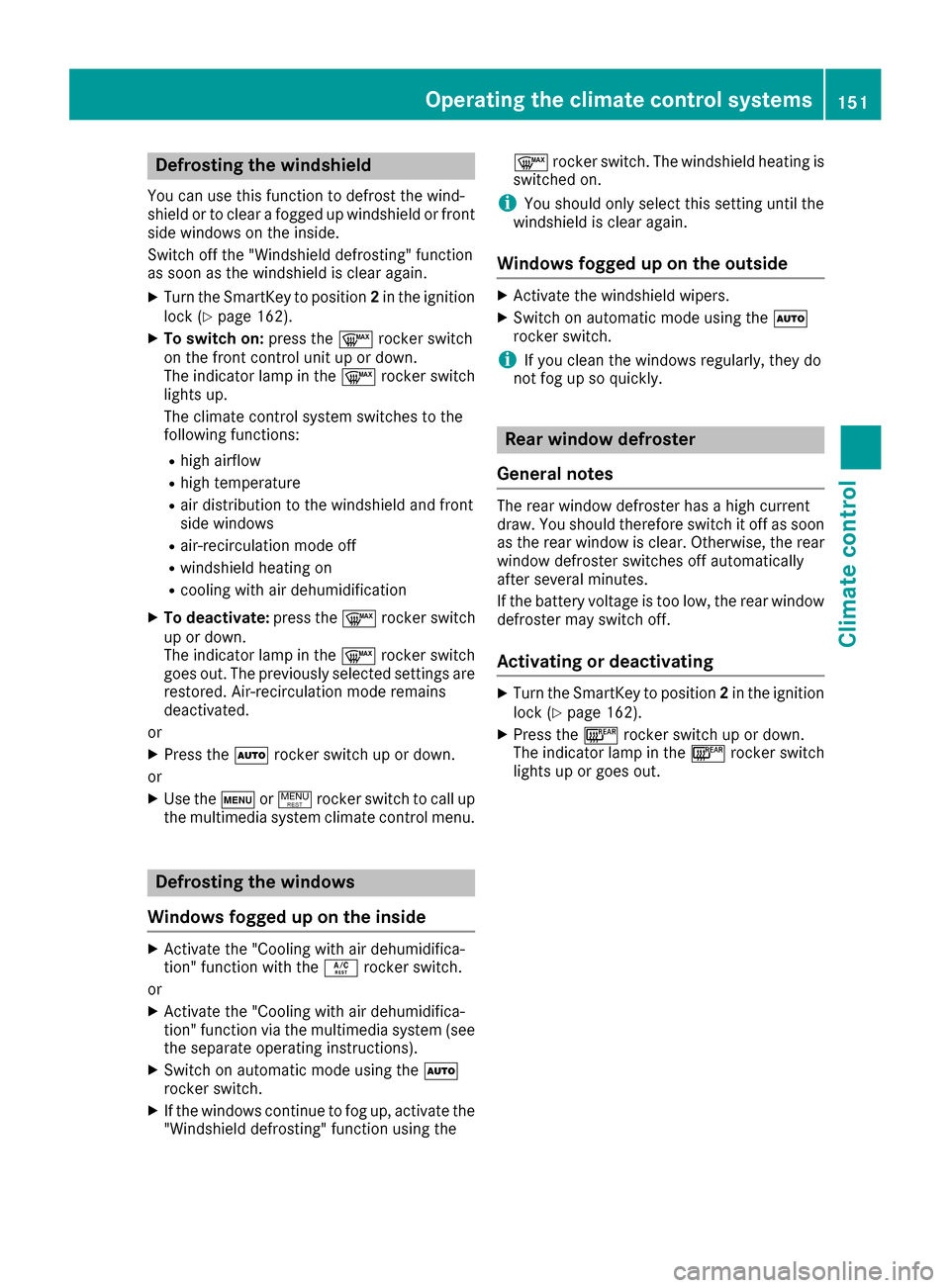

Defrosting thewindshield
You can use this function to defrost th ewind-
shield or to clear afogge dup windshield or fron t
sid ewindows on th einside.
Switc hof fth e"Windshield defrosting" function
as soo nas th ewindshield is clear again .
XTurnth eSmartKey to position 2in th eignition
loc k (Ypage 162).
XTo switch on: press the¬ rocker switch
on th efron tcontro luni tup or down .
The indicator lamp in th e¬ rocker switch
lights up.
The climat econtro lsyste mswitches to th e
followin gfunctions:
Rhig hairflow
Rhig htemperature
Rair distribution to th ewindshield and fron t
sid ewindows
Rair-recirculation mode of f
Rwindshield heatingon
Rcoolin gwit hair dehumidification
XTo deactivate :press th e¬ rocker switch
up or down .
The indicator lamp in th e¬ rocker switch
goe sout .The previously selecte dsetting sare
restored .Air-recirculation mode remain s
deactivated.
or
XPress th eà rocker switch up or down .
or
XUse th et or! rocker switch to cal lup
th emultimedia syste mclimat econtro lmenu.
Defrosting th ewindows
Windows fogged up on th einside
XActivat eth e"Coolin gwit hair dehumidifica-
tion "function wit hth eÁ rocker switch .
or
XActivat eth e"Coolin gwit hair dehumidifica-
tion "function via th emultimedia syste m(se e
th eseparat eoperatin ginstructions).
XSwitc hon automatic mode usin gth eÃ
rocker switch .
XIf thewindows continue to fo gup, activat eth e
"Windshield defrosting" function usin gth e ¬
rocker switch .The windshield heatin gis
switched on .
iYou should only selec tthis setting until th e
windshield is clear again .
Windows fogged up on th eoutsid e
XActivat eth ewindshield wipers .
XSwitchon automatic mode usin gth eÃ
rocker switch .
iIf you clean th ewindows regularly, they do
no tfo gup so quickly.
Rea rwindow defroster
General notes
The rea rwindow defroster has ahig hcurren t
draw. You should therefore switch it of fas soo n
as th erea rwindow is clear .Otherwise ,th erea r
window defroster switches of fautomatically
after severa lminutes.
If th ebattery voltage is to olow, th erea rwindow
defroster may switch off.
Activating or deactivating
XTur nth eSmartKey to position 2in th eignition
loc k (Ypage 162).
XPress th e¤ rocker switch up or down .
The indicator lamp in th e¤ rocker switch
lights up or goe sout .
Operating the climate control systems151
Climate control

Problems with the rear window defroster
ProblemPossible causes/consequences andMSolutions
The rear window
defroster has deactiva-
ted prematurely or can-
not be activated.The battery has not been sufficiently charged.
XSwitch off any consumers that are not required, e.g. reading lamps,
interior lighting or the seat heating.
When the battery is sufficiently charged, the rear window defroster
can be activated again.
Switching air-recirculation mode
on/off
General notes
You can also temporarily deactivate the flow of
fresh air manually if unpleasant odors are enter-
ing the vehicle from outside. The air already
inside the vehicle will then be recirculated.
If you switch on air-recirculation mode, the win-
dows can fog up more quickly, in particular at
low temperatures. Only use air-recirculation
mode briefly to prevent the windows from fog-
ging up.
Activating/deactivating
XTurn the SmartKey to position 2in the ignition
lock (Ypage 162).
XTo activate: press thegrocker switch up
or down.
The indicator lamp in the grocker switch
lights up.
Air-recirculation mode switches on automati-
cally:
Rat high outside temperatures
Rat high levels of pollution
Rin a tunnel
The indicator lamp in the grocker switch is
not lit when automatic air-recirculation mode is
activated. Outside air is added after about
30 minutes.
XTo deactivate: press thegrocker switch
up or down.
The indicator lamp in the grocker switch
goes out. Air-recirculation mode deactivates automati-
cally:
Rafter approximately five minutes at outside
temperatures below approximately 41 ‡
(5 †)
Rafter approximately five minutes if cooling
with air dehumidification is deactivated
Rafter approximately 30 minutes at outside
temperatures above approximately 41 ‡
(5 †) if the "Cooling with air dehumidifica-
tion" function is activated
Switching the residual heat on or off
General notes
Vehicles with rear-compartment climate
control: once the engine is switched off, it is
possible to make use of the residual heat of the
engine to continue heating or ventilating the
rear and front compartment of the vehicle for
approximately 15 minutes. If the "Residual heat"
function is set for only the front or only the rear compartment, it is possible to continue heating
or ventilating for approximately 30 minutes.
Vehicles without rear-compartment climate
control: once the engine is switched off, it is
possible to make use of the residual heat of the
engine to continue heating or ventilating the
front compartment of the vehicle for approx-
imately 30 minutes.
The heating or ventilation time depends on the
temperature that has been set.
152Operating the climate control systems
Climate control
