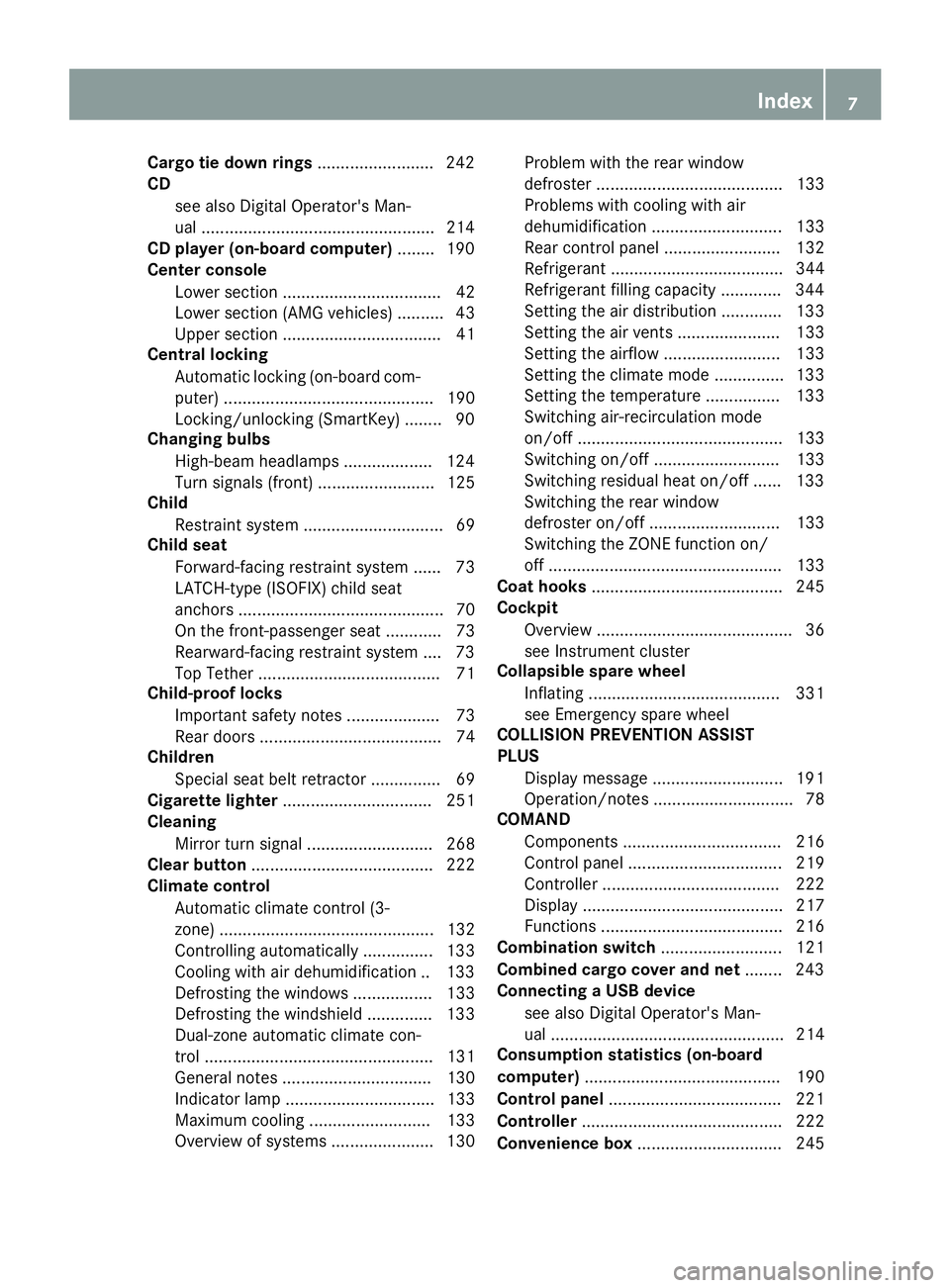

Cargo tie down rings.........................242
CD
see also Digital Operator's Man-
ual ..................................................2 14
CD player (on-board computer) ........190
Center console
Lower section .................................. 42
Lower section (AMG vehicles) .......... 43
Upper section .................................. 41
Central locking
Automatic locking (on-board com-
puter) ............................................. 190
Locking/unlocking (SmartKey) ........9 0
Changing bulbs
High-beam headlamps .................. .124
Turn signals (front) ......................... 125
Child
Restraint system .............................. 69
Child seat
Forward-facing restraint system ...... 73
LATCH-type (ISOFIX) child seat
anchors ............................................ 70
On the front-passenger seat ............ 73
Rearward-facing restraint system .... 73
Top Tether ....................................... 71
Child-proof locks
Important safety notes .................... 73
Rear doors ....................................... 74
Children
Special seat belt retractor ............... 69
Cigarette lighter ................................ 251
Cleaning
Mirror turn signal ........................... 268
Clear button ....................................... 222
Climate control
Automatic climate control (3-
zone) .............................................. 132
Controlling automatically ............... 133
Cooling with air dehumidification .. 133
Defrosting the windows ................. 133
Defrosting the windshield .............. 133
Dual-zone automatic climate con-
trol ................................................. 131
General notes ................................ 130
Indicator lamp ................................ 133
Maximum cooling .......................... 133
Overview of systems ...................... 130 Problem with the rear window
defroster ........................................ 133
Problems with cooling with air
dehumidification ............................ 133
Rear control panel ......................... 132
Re
frigera
nt ..................................... 344
Refrigerant filling capacity ............. 344
Setting the air distribution ............. 133
Setting the air vents ...................... 133
Setting the airflow ......................... 133
Setting the climate mode ............... 133
Setting the temperature ................ 133
Switching air-recirculation mode
on/off ............................................ 133
Switching on/off ........................... 133
Switching residual heat on/off ...... 133
Switching the rear window
defroster on/off ............................ 133
Switching the ZONE function on/
off .................................................. 133
Coat hooks ......................................... 245
Cockpit
Overview .......................................... 36
see Instrument cluster
Collapsible spare wheel
Inflating ......................................... 331
see Emergency spare wheel
COLLISION PREVENTION ASSIST
PLUS
Display message ............................ 191
Operation/notes .............................. 78
COMAND
Components .................................. 216
Control panel ................................. 219
Controller ...................................... 222
Display ........................................... 217
Functions ....................................... 216
Combination switch .......................... 121
Combined cargo cover and net ........ 243
Connecting a USB device
see also Digital Operator's Man-
ual .................................................. 214
Consumption statistics (on-board
computer) .......................................... 190
Control panel ..................................... 221
Controller ........................................... 222
Convenience box ............................... 245
Index7

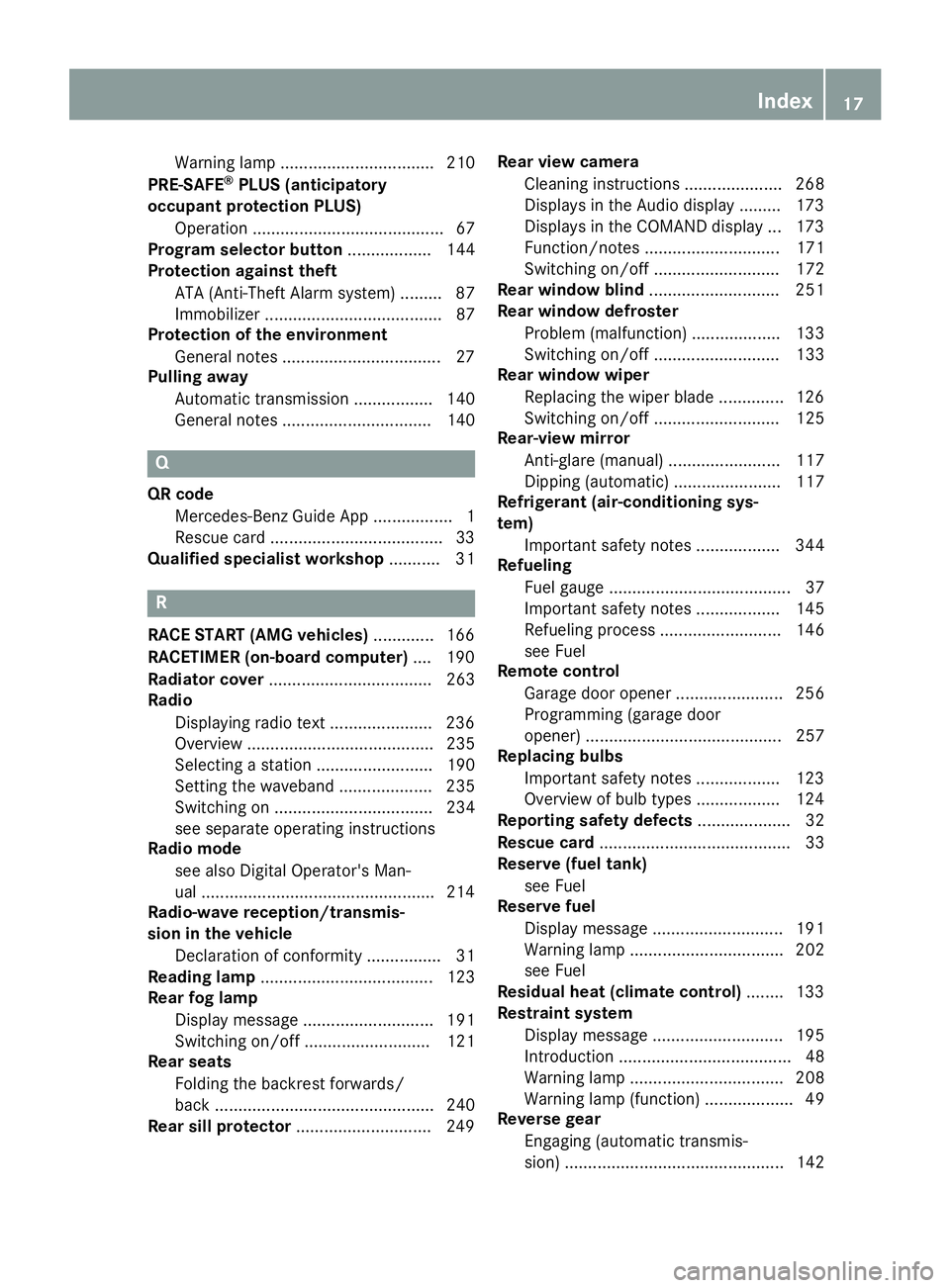

Warning lamp ................................. 210
PRE-SAFE®PLUS (anticipatory
occupant protection PLUS)
Operation ......................................... 67
Program selector button .................. 144
Protection against theft
ATA (Anti-Theft Alarm system) ......... 87
Immobilizer ...................................... 87
Protection of the environment
General notes ..................................2 7
Pulling away
Automatic transmission ................. 140
General notes ................................ 140
Q
QR codeMercedes-Benz Guide App ................. 1
Rescue card .....................................3 3
Qualified specialist workshop ........... 31
R
RACE START (AMG vehicles).............166
RACETIMER (on-board computer) .... 190
Radiator cover ................................... 263
Radio
Displaying radio text ......................2 36
Overview ........................................ 235
Selecting a station ......................... 190
Setting the waveband .................... 235
Switching on .................................. 234
see separate operating instructions
Radio mode
see also Digital Operator's Man-
ual ..................................................2 14
Radio-wave reception/transmis-
sion in the vehicle
Declaration of conformity ................ 31
Reading lamp ..................................... 123
Rear fog lamp
Display message ............................ 191
Switching on/off ........................... 121
Rear seats
Folding the backrest forwards/
back ............................................... 240
Rear sill protector .............................2 49Rear view camera
Cleaning instructions ..................... 268
Displays in the Audio display ......... 173
Displays in the COMAND display ... 173
Function/notes ............................. 171
Switching on/off ........................... 172
Rear window blind ............................ 251
Rear window defroster
Problem (malfunction) ................... 133
Switching on/off ........................... 133
Rear window wiper
Replacing the wiper blade .............. 126
Switching on/off ........................... 125
Rear-view mirror
Anti-glare (manual) ........................ 117
Dipping (automatic) ....................... 117
Refrigerant (air-conditioning sys-
tem)
Important safety notes .................. 344
Refueling
Fuel gauge ....................................... 37
Important safety notes .................. 145
Refueling process .......................... 146
see Fuel
Remote control
Garage door opener ....................... 256
Programming (garage door
opener) .......................................... 257
Replacing bulbs
Important safety notes .................. 123
Overvi

ew of bulb types .................. 124
Reporting safety defects .................... 32
Rescue card ......................................... 33
Reserve (fuel tank)
see Fuel
Reserve fuel
Display message ............................ 191
Warning lamp ................................. 202
see Fuel
Residual heat (climate control) ........ 133
Restraint system
Display message ............................ 195
Introduction ..................................... 48
Warning lamp ................................. 208
Warning lamp (function) ................... 49
Reverse gear
Engaging (automatic transmis-
sion) ............................................... 142
Index17

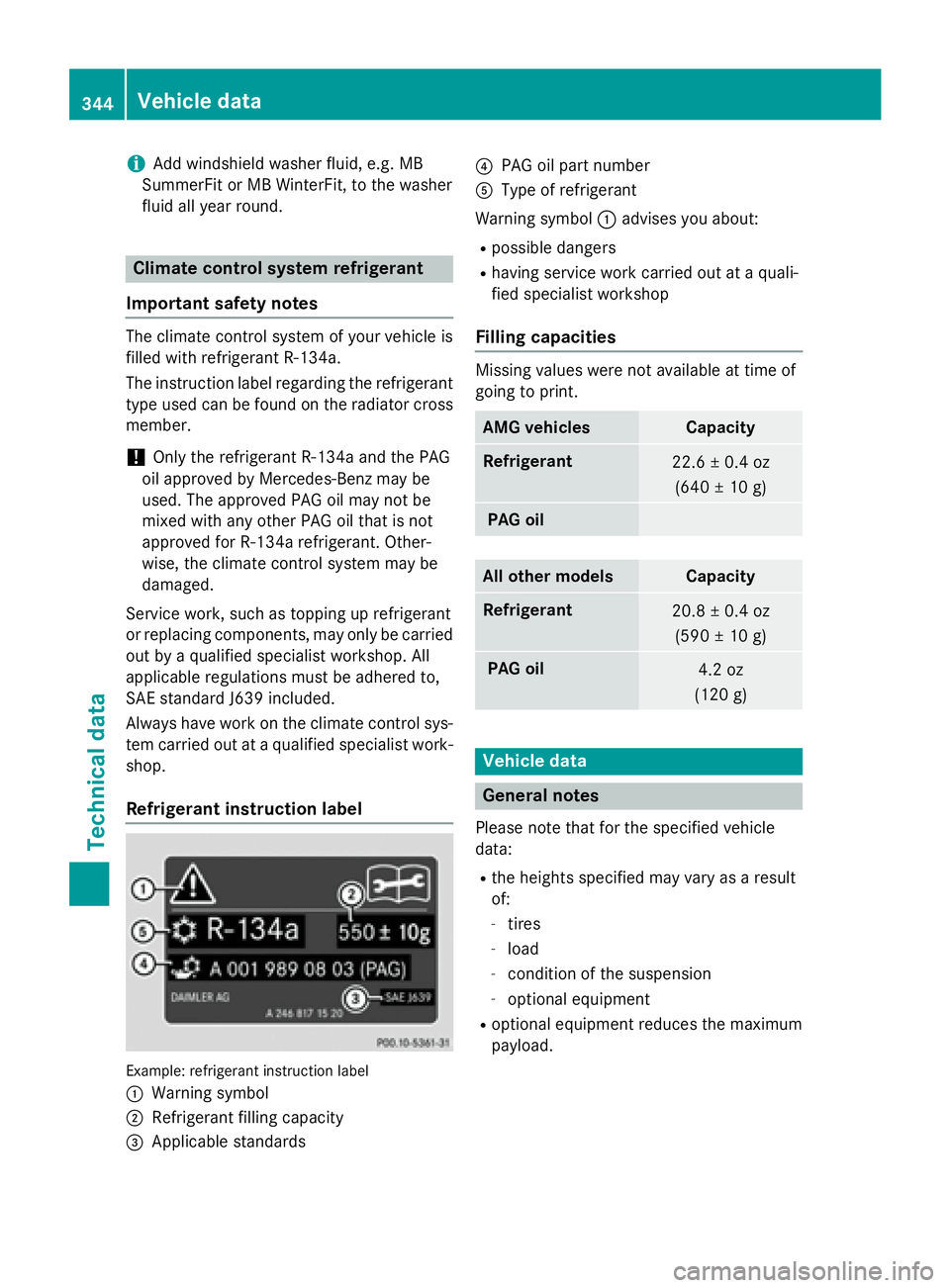

iAdd windshield washer fluid, e.g. MB
SummerFit or MB WinterFit, to the washer
fluid all year round.
Climate control system refrigerant
Important safety notes
The climate control system of your vehicle is
filled with refrigerant R ‑134a.
The instruction label regarding the refrigerant
type used can be found on the radiator cross
member.
!Only the refrigerant R ‑134a and the PAG
oil approved by Mercedes-Benz may be
used. The approved PAG oil may not be
mixed with any other PAG oil that is not
approved for R-134a refrigerant. Other-
wise, the climate control system may be
damaged.
Service work, such as topping up refrigerant
or replacing components, may only be carried out by a qualified specialist workshop. All
applicable regulations must be adhered to,
SAE standard J639 included.
Always have work on the climate control sys-
tem carried out at a qualified specialist work-
shop.
Refrigerant instruction label
Example: refrigerant instruction label
:
Warning symbol
;Refrigerant filling capacity
=Applicable standards
?PAG oil part number
AType of refrigerant
Warning symbol :advises you about:
Rpossible dangers
Rhaving service work carried out at a quali-
fied specialist workshop
Filling capacities
Missing values were not available at time of
going to print.
AMG vehiclesCapacity
Refrigerant22.6 ± 0.4 oz
(640 ± 10 g)
PAG oil
All other modelsCapacity
Refrigerant20.8 ± 0.4 oz
(590 ± 10 g)
PAG oil4.2 oz
(120 g)
Vehicle data
General notes
Please note that for the specified vehicle
data:
Rthe heights specified may vary as a result
of:
-tires
-load
-condition of the suspension
-optional equipment
Roptional equipment reduces the maximum
payload.
