Warning/Indicator Lights
qType A
Warning/Indicator lights will appear in any of the highlighted areas
(Display example)
Displays as follows:
Master
warning
light
Indication in display and master warning light in instrument cluster are illuminated
at same time
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer. For details, refer to the explanations for
the warning/indicator lights, in the warning/indicator lights section, which match the
symbol in the upper part of the display. If a message is not indicated in the display, operate
the INFO switch to display the“Warning”screen.
Multi-information display
A message such as the system operation status, a malfunction, or an abnormality is
indicated.
l(When a symbol and message are indicated in the display)
For details on the symbols indicated in the upper part of the screen, check the indication
and method for taking action list.
4-20
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page154
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (155,1)
l(When only a message is indicated in the display)
Follow the instructions indicated in the display.
If any of the content in the following illustrations is indicated, there may be a problem with
the vehicle. The method for taking action differs depending on the indication.
Check the following illustrations below.
Action: Park the vehicle immediately, view the symbol indicated in the upper part of
the screen and then refer to the“Indication and method for taking action list”
containing the symbol to see what action should be taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected. View the
symbol indicated in the upper part of the screen and refer to the“Indication and
method for taking action list”containing the symbol to see what action should be
taken.
Indication on display
Action: Consult an Authorized Mazda Dealer to have your vehicle inspected.
Indication on display
When Driving
Instrument Cluster and Display
4-21
CX-5_8DV2-EA-14K_Edition3 Page155
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (156,1)
Indication and method for taking action list
Signal Warning/Indicator Lights Page
Master Warning Light 4-27
Brake System Warning Light 4-27
ABS Warning Light 4-28
Electric Parking Brake Warning Light 4-29
Charging System Warning Indication/Warning Light 4-29
Engine Oil Warning Light 4-30
Check Engine Light 4-30
High Engine Coolant Temperature Warning Light (Red) 4-31
Lane Departure Warning System (LDWS) Indication 4-31
Lane Departure Warning System (LDWS) OFF Indication 4-32
AWD Warning Indication 4-32
Automatic Transaxle Warning Indication 4-33
Power Steering Malfunction Indication 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-35
4-22
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page156
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (157,1)
Signal Warning/Indicator Lights Page
Check Fuel Cap Warning Indication 4-35
Seat Belt Warning Light 4-35
Door-Ajar Warning Indication 4-36
Liftgate-Ajar Warning Indication 4-37
Low Washer Fluid Level Warning Indication 4-37
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Indication 4-39
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-41
Wrench Indication 4-41
TCS/DSC Indicator Light 4-41
TCS OFF Indicator Light 4-42
Smart Brake Support/Smart City Brake Support (SBS/SCBS) OFF Indicator
Light4-42
Smart City Brake Support (SCBS) Warning Indication 4-42
Low Engine Coolant Temperature Indicator Light (Blue) 4-42
When Driving
Instrument Cluster and Display
4-23
CX-5_8DV2-EA-14K_Edition3 Page157
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (158,1)
Signal Warning/Indicator Lights Page
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Mazda Radar Cruise Control (MRCC) Warning Light (Amber)/Indicator
Light (Green)4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
Select Mode Indication 4-43
Blind Spot Monitoring (BSM) OFF Indication 4-45
Lights-On Indicator Light 4-45
LED Headlight Warning Light 4-46
qType B
Warning/Indicator lights will appear in any of the highlighted areas
4-24
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page158
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (159,1)

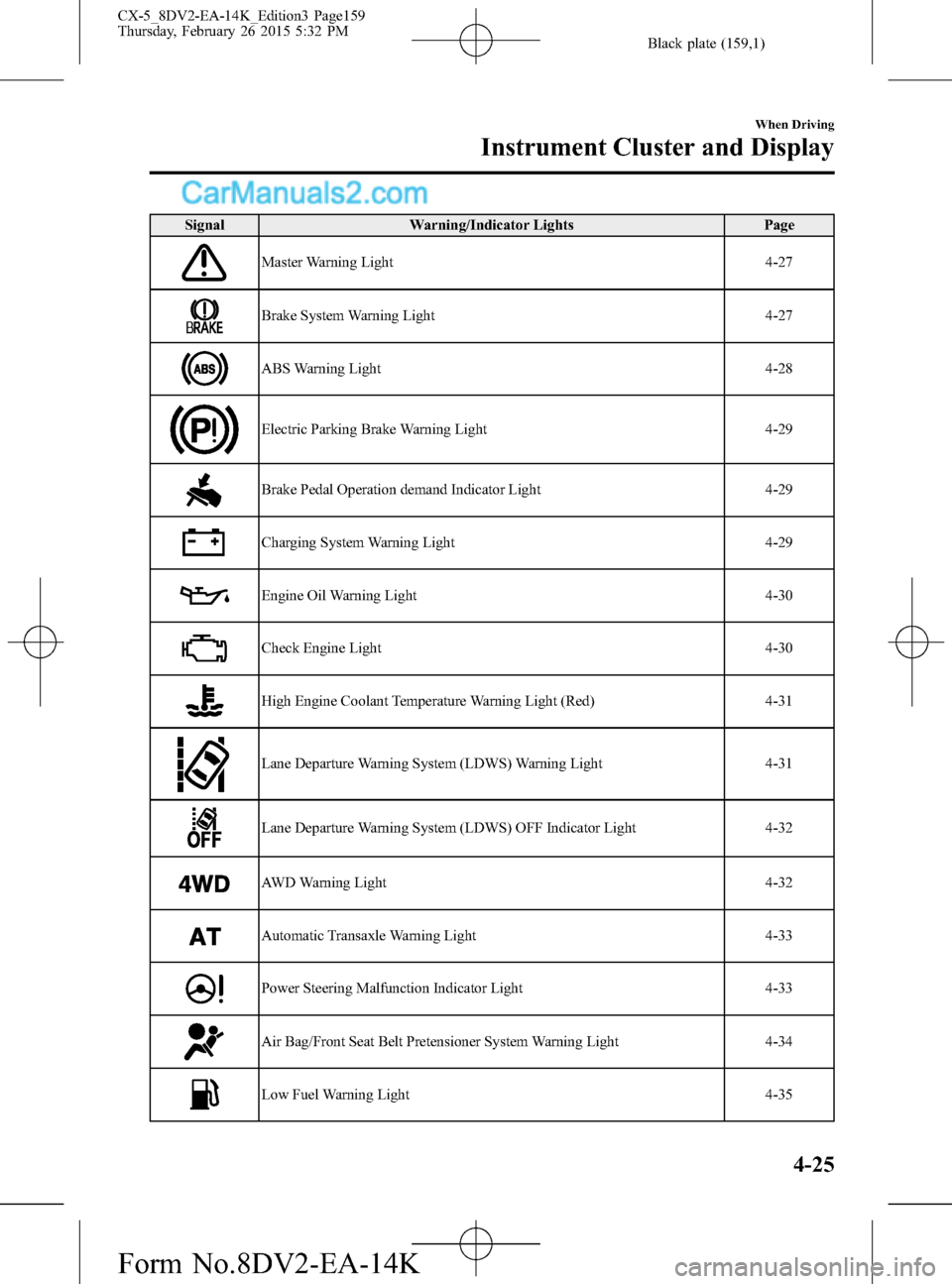

Signal Warning/Indicator Lights Page
Master Warning Light 4-27
Brake System Warning Light 4-27
ABS Warning Light 4-28
Electric Parking Brake Warning Light 4-29
Brake Pedal Operation demand Indicator Light 4-29
Charging System Warning Light 4-29
Engine Oil Warning Light 4-30
Check Engine Light 4-30
High Engine Coolant Temperature Warning Light (Red) 4-31
Lane Departure Warning System (LDWS) Warning Light 4-31
Lane Departure Warning System (LDWS) OFF Indicator Light 4-32
AWD Warning Light 4-32
Automatic Transaxle Warning Light 4-33
Power Steering Malfunction Indicator Light 4-33
Air Bag/Front Seat Belt Pretensioner System Warning Light 4-34
Low Fuel Warning Light 4-35
When Driving
Instrument Cluster and Display
4-25
CX-5_8DV2-EA-14K_Edition3 Page159
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (160,1)
Signal Warning/Indicator Lights Page
Check Fuel Cap Warning Light 4-35
Seat Belt Warning Light 4-35
Door-Ajar Warning Light 4-36
Low Washer Fluid Level Warning Light 4-37
Tire Pressure Monitoring System Warning Light 4-37
KEY Warning Light (Red)/Indicator Light (Green) 4-39
High Beam Control System (HBC) Warning Light (Amber)/Indicator Light
(Green)4-41
Wrench Indicator Light 4-41
TCS/DSC Indicator Light 4-41
TCS OFF Indicator Light 4-42
Low Engine Coolant Temperature Indicator Light (Blue) 4-42
Shift Position Indication 4-43
Headlight High-Beam Indicator Light 4-43
Turn Signal/Hazard Warning Indicator Lights 4-43
Security Indicator Light 4-44
Cruise Main Indicator Light (Amber)/Cruise Set Indicator Light (Green) 4-44
4-26
When Driving
Instrument Cluster and Display
CX-5_8DV2-EA-14K_Edition3 Page160
Thursday, February 26 2015 5:32 PM
Form No.8DV2-EA-14K

Black plate (161,1)
Signal Warning/Indicator Lights Page
Select Mode Indication 4-43
Blind Spot Monitoring (BSM) OFF Indicator Light 4-45
Lights-On Indicator Light 4-45
LED Headlight Warning Light 4-46
qMaster Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
Type A
Displays when notification of the system
malfunctions is required.
Check the message indicated in the
display and consult an Authorized Mazda
Dealer.
Type B
The light illuminates continuously if any
one of the following occurs. Consult an
Authorized Mazda Dealer.
lThere is a malfunction in the battery
management system.
lThere is a malfunction in the brake
switch.
qBrake System Warning Light
This warning light stays on for a few
seconds when the ignition is switched
ON.
This warning has the following functions:
When the light turns on
The light turns on when the electric
parking brake is applied and the light
turns off when the brake is released.
If the brake system warning light remains
turned on even though the electric parking
brake is released, the brake fluid may be
low or there could be a problem with the
brake system. Park the vehicle in a safe
place immediately and contact an
Authorized Mazda Dealer.
