2016 MAZDA MODEL 6 engine

3
Before Driving
Mirror switch
Centre position
Outside Mirrors
1. Rotate the mirror switch to the left (L) or
right (R) to choose the left or right side
mirror.
2. Press the mirror switch in the appropriate
direction.
ON/OFF button
Indicator light
Rearview Mirror
Auto-dimming mirror
The auto-dimming mirror automatically reduces
glare of headlights from cars at the rear when the
ignition is switched ON.
Press the ON/OFF button to cancel the automatic
dimming function. The indicator light will turn off.
To reactivate the automatic dimming function, press the
ON/OFF button. The indicator light will illuminate.
For details, refer to Section 3, “Mirrors”.
Automatic folding mechanism
The automatic folding mechanism
operates when the ignition is switched to
ACC or OFF.
When the outer mirror automatic folding
switch is pressed to the AUTO position
(neutral position), the outside mirrors
automatically fold in and out when the
doors are locked and unlocked.
Also, when the ignition is switched ON
or the engine is started, the outside
mirrors fold out automatically.AUTO position
(neutral position)


6
When Driving
Starting the Engine
(SKYACTIV-D 2.2)
• The starter does not rotate until the glow indicator light turns off.
• When starting the engine, do not release the clutch pedal (manual transaxle) or
the brake pedal (automatic transaxle) until the glow indicator light in the
instrument cluster turns off and the engine starts, after pressing the push button
start.
1. Make sure the parking brake is on.
2. Continue to press the brake pedal firmly until
the engine has completely started.
3. (Manual transaxle)
Continue to press the clutch pedal firmly until
the engine has completely started.
(Automatic transaxle)
Put the vehicle in park (P). If you must restart the
engine while the vehicle is moving, shift into
neutral (N).
4. Press the push button start after both the KEY indicator
light (green) (if equipped) in the instrument cluster and
the push button start indicator light (green) illuminate.
• If the clutch pedal (manual transaxle) or the brake pedal (automatic transaxle) is
released before the engine starts, depress the clutch pedal (manual transaxle) or
the brake pedal (automatic transaxle) again and press the push button start to
start the engine.
• If the ignition is left switched ON for a long period of time without the engine
running after the glow plugs are warmed up, the glow plugs may warm up again
which will illuminate the glow indicator light.
For details, refer to Section 4, “Start/Stop Engine”.
Indicator
light


7
When Driving
Operation of i-stop Function
The i-stop function automatically stops the engine when the vehicle is stopped at a
traffic light or stuck in traffic, and then restarts the engine automatically to resume
driving. The system provides improved fuel economy, reduced exhaust gas
emissions, and eliminates idling noise while the engine is stopped.
Engine idle stopping and restarting
NOTE
• The i-stop indicator light (green) turns on under the following conditions:
• When engine idling is stopped.
• The i-stop indicator light (green) turns off when the engine is restarted.
Manual transaxle
2. While depressing the clutch pedal, shift the shift lever to the neutral position.
Engine idling stops after the clutch pedal is released.
3. The engine restarts automatically when the clutch pedal is depressed. 1. Stop the vehicle by depressing the brake pedal and then the clutch pedal.
Automatic transaxle
2. The engine restarts automatically when the brake pedal is released with the
selector lever in the D or M position (not in second gear fixed mode).
3. If the selector lever is in the N or P position, the engine does not restart when
the brake pedal is released. The engine restarts when the brake pedal is
depressed again or the selector lever is shifted to the D, M (not in second gear
fixed mode) or the R position. (For the purposes of safety, always keep the
brake pedal depressed when shifting the selector lever while engine idling is
stopped.) 1. Engine idling stops when the brake pedal is depressed while the vehicle is
driven (except for driving in the R or M position second gear fixed mode) and
the vehicle is stopped.Engine idling stop conditions are met while the vehicle is being driven. • (Except European model)
For details, refer to Section 4, “Start/Stop Engine”.


8
When Driving
For details, refer to Section 4, “Start/Stop Engine”.
i-stop OFF Switch
By pressing the switch until a beep sounds,
the i-stop function is turned off and the i-stop
warning light (amber) in the instrument
cluster turns on. By pressing the switch again
until the beep sounds, the i-stop function
becomes operational and the i-stop warning
light (amber) turns off.
i-stop Warning Beep
If the driver's door is opened while engine idling is stopped, the warning sound
operates to notify the driver that engine idling is stopped. It stops when the driver's
door is closed.
i-stop indicator light (green)/i-stop warning light (amber)
i-stop indicator light (green)
• When the engine idling is stopped.
Engine idling stop conditions are met while the vehicle
is being driven.
• The light turns on when the ignition is switched ON and
turns off when the engine is started. i-stop warning light (amber)
• The light turns on when the i-stop OFF switch is
pressed and the system is turned off. • (Except European model)


When Driving
For details, refer to Section 4, “Instrument Cluster and Display”.
Warning Indication/Warning Lights
Signal Warning
1
2
3
4
5
6
7
8
9
10Charging System Warning
Indication/Warning Light Brake System Warning Light
Engine Oil Warning Light
High Engine Coolant Temperature
Warning Indication/Warning Light
Power Steering Malfunction
Indication/Malfunction Indicator
Light
Master Warning
Indication/Warning Light
Electric Parking Brake Warning
Indication/Warning Light
Check Engine Light
11
12
13
14Automatic Transaxle Warning
Indication/Warning Light
KEY Warning Indication 4WD Warning Indication/Warning
Light
15KEY Warning Light Air Bag/Front Seat Belt
Pretensioner System Warning Light
20Mazda Radar Cruise Control
(MRCC) Warning Indication
Lane Departure Warning System
(LDWS) Warning Light
LED Headlight Warning Light
120 km/h Warning Light
Seat Belt Warning Light (Front seat)
Low Washer Fluid Level Warning
Indication/Warning Light
Liftgate-Ajar Warning Indication
Door-Ajar Warning Light Boot lid-Ajar Warning Indication Signal Warning
ABS Warning Light
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
19Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Warning Indication
Driver Attention Alert (DAA)
Warning Indication
Smart Brake Support/Smart City
Brake Support (SBS/SCBS) Warning
Indication/Warning Light
21
16
17
1822
23
24
25
10
Seat Belt Warning Light (Rear seat)
26
27
28
29
30
31
32
33
34
35
Tyre Pressure Monitoring System
Warning Indication/Warning Light
High Beam Control System (HBC)
Warning Indication/Warning Light i-stop Warning Light i-ELOOP Warning Indication
Blind Spot Monitoring (BSM)
Warning Indication Adaptive LED Headlights (ALH)
Warning Indication/Warning Light
Door-Ajar Warning Indication Low Fuel Warning
Indication/Warning Light


When Driving
30
Indication/Indicator Lights
Signal Indicator Lights
1
2
3
4
5
6
7
8
9
10Security Indicator Light Seat Belt Indicator Light (Rear seat)
KEY Indication/Indicator Light
Vehicle Speed Alarm Indication
Wrench Indication/Indicator Light
Diesel Particulate Filter
Indication/Indicator Light
Low Engine Coolant Temperature
Indicator Light Glow Indicator Light
Shift Position Indication
11
12
13
14Lights-On Indication/Indicator Light
Headlight High-Beam Indicator
Light
Direction Indicator/Hazard Warning
Indicator Lights
15Front Fog Light Indicator Light20
Adaptive LED Headlights (ALH)
Indicator Light
Blind Spot Monitoring (BSM) OFF
Indicator Light
Mazda Radar Cruise Control
(MRCC) Main Indication
Lane Departure Warning System
(LDWS) OFF Indicator Light
Lane-keep Assist System (LAS) &
Lane Departure Warning System
(LDWS) Indication
Driver Attention Alert (DAA)
Indication Smart Brake Support/Smart City
Brake Support (SBS/SCBS) OFF
Indicator Light
Cruise Set Indication Cruise Main Indication i-ELOOP Indication Light Smart City Brake Support (SCBS)
Indicator Light
Smart Brake Support/Smart City
Brake Support (SBS/SCBS)
Indication Signal Indicator Lights
Front Passenger Air Bag
Deactivation Indicator Light
These lights turn on or flash to notify the user of the system operation status or a
system malfunction.
19
29Mazda Radar Cruise Control
(MRCC) Set Indication
21
17
1822
23
24
25
26
27
28
Rear Fog Light Indicator Light
Electric Parking Brake
Indication/Indicator Light
Brake Pedal Operation demand
Indicator LightHigh Beam Control System (HBC)
Indicator Light
TCS/DSC Indicator Light
DSC OFF Indicator LightSelect Mode Indication
16
31
32
33
34
11For details, refer to Section 4, “Instrument Cluster and Display”.


When Driving
26
NOTE

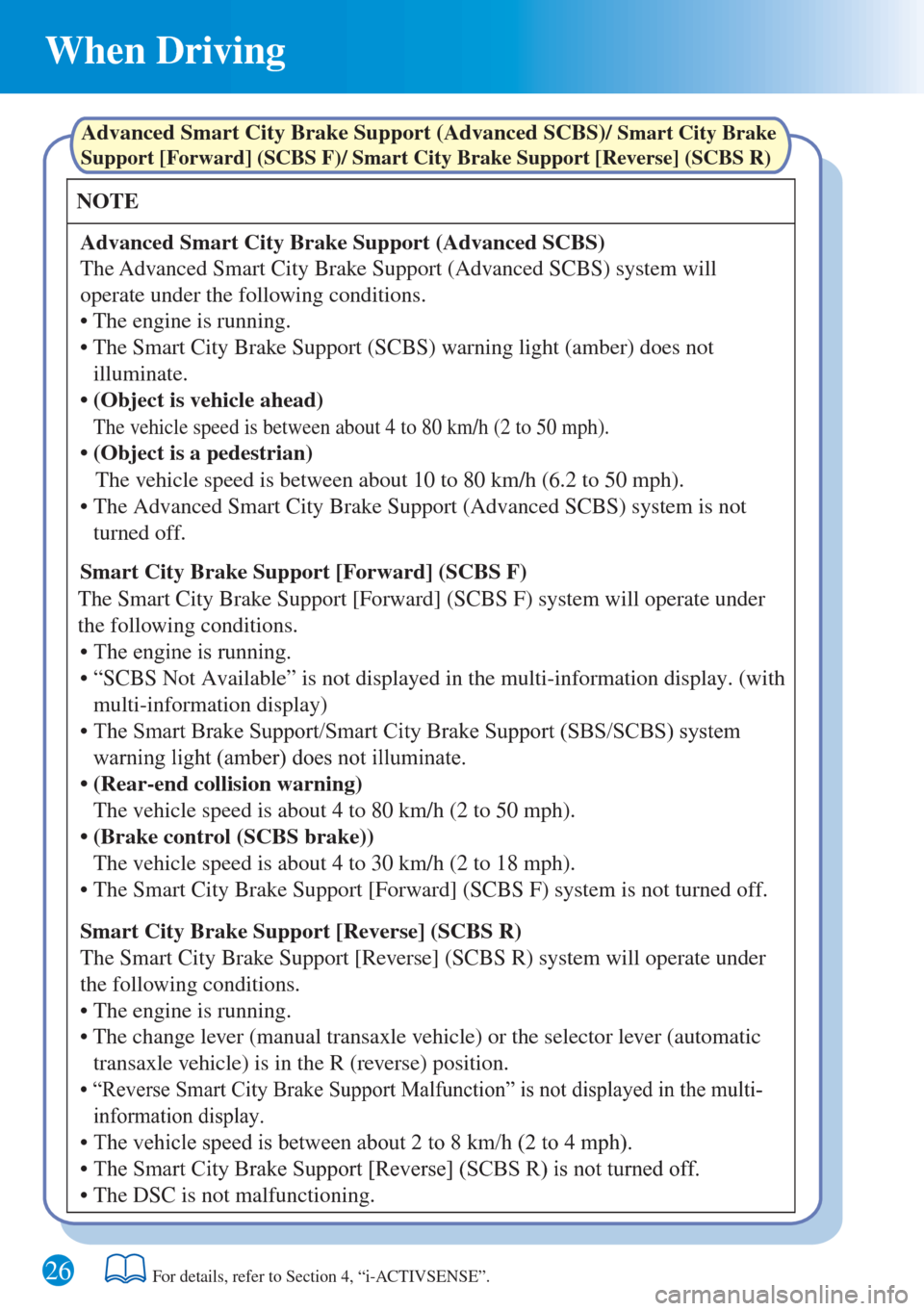

Advanced Smart City Brake Support (Advanced SCBS)Advanced Smart City Brake Support (Advanced SCBS)/
Smart City Brake
Support [Forward] (SCBS F)/ Smart City Brake Support [Reverse] (SCBS R)
• The Advanced Smart City Brake Support (Advanced SCBS) system is not
turned off. • The engine is running.
The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).
Smart City Brake Support [Forward] (SCBS F)
The Smart City Brake Support [Forward] (SCBS F) system will operate under
the following conditions.
•
The engine is running.
• The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system
warning light (amber) does not illuminate.
• “SCBS Not Available” is not displayed in the multi-information display. (with
multi-information display)
• (Rear-end collision warning)
Smart City Brake Support [Reverse] (SCBS R)
• The change lever (manual transaxle vehicle) or the selector lever (automatic
transaxle vehicle) is in the R (reverse) position.
• “Reverse Smart City Brake Support Malfunction” is not displayed in the multi-
information display.
• The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).
• The Smart City Brake Support [Reverse] (SCBS R) is not turned off.
• The DSC is not malfunctioning. The Advanced Smart City Brake Support (Advanced SCBS) system will
operate under the following conditions.
• The Smart City Brake Support (SCBS) warning light (amber) does not
illuminate.
• (Object is vehicle ahead)
• (Object is a pedestrian)
The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).
The vehicle speed is about 4 to 80 km/h (2 to 50 mph).
• (Brake control (SCBS brake))
The vehicle speed is about 4 to 30 km/h (2 to 18 mph).
• The Smart City Brake Support [Forward] (SCBS F) system is not turned off.
The Smart City Brake Support [Reverse] (SCBS R) system will operate under
the following conditions.
• The engine is running.
For details, refer to Section 4, “i-ACTIVSENSE”.


29
When Driving
i-ELOOP System
Electric componentsEngine ComponentsVehicle Systems:Air-conditioningAudioHead-lights, etc
Accelerator OFF
Accelerator ONEnergy
regeneration
ChargeBattery
Battery Power
Power
Electric components
Engine Components
Vehicle Systems:
Air-conditioning
Audio
Head-lights, etc
Engine
Variable
Voltage
alternator
Variable
Voltage
alternator Engine
Tyre TyreCapacitor
CapacitorDC-DC
converter
DC-DC
converter
Kinetic energy
Electrical power
For details, refer to Section 4, “i-ELOOP”.
i-ELOOP is a regenerative braking system. When you depress the brake pedal or
use engine braking, the kinetic energy that occurs is converted to electrical energy
by the power generator and the converted electrical energy is stored in the
rechargeable battery (capacitor and battery). The stored electricity is used as
power to charge the battery and the vehicle's electrical devices.
• A variable voltage alternator is incorporated in the power generator which
converts the kinetic energy to electricity and can generate electricity efficiently
according to the vehicle conditions.
• A capacitor is used to store large amounts of electricity instantly which can be
utilized quickly.
• A DC-DC converter is incorporated which steps down the stored electricity to
voltage useable by the vehicle's electrical devices.
