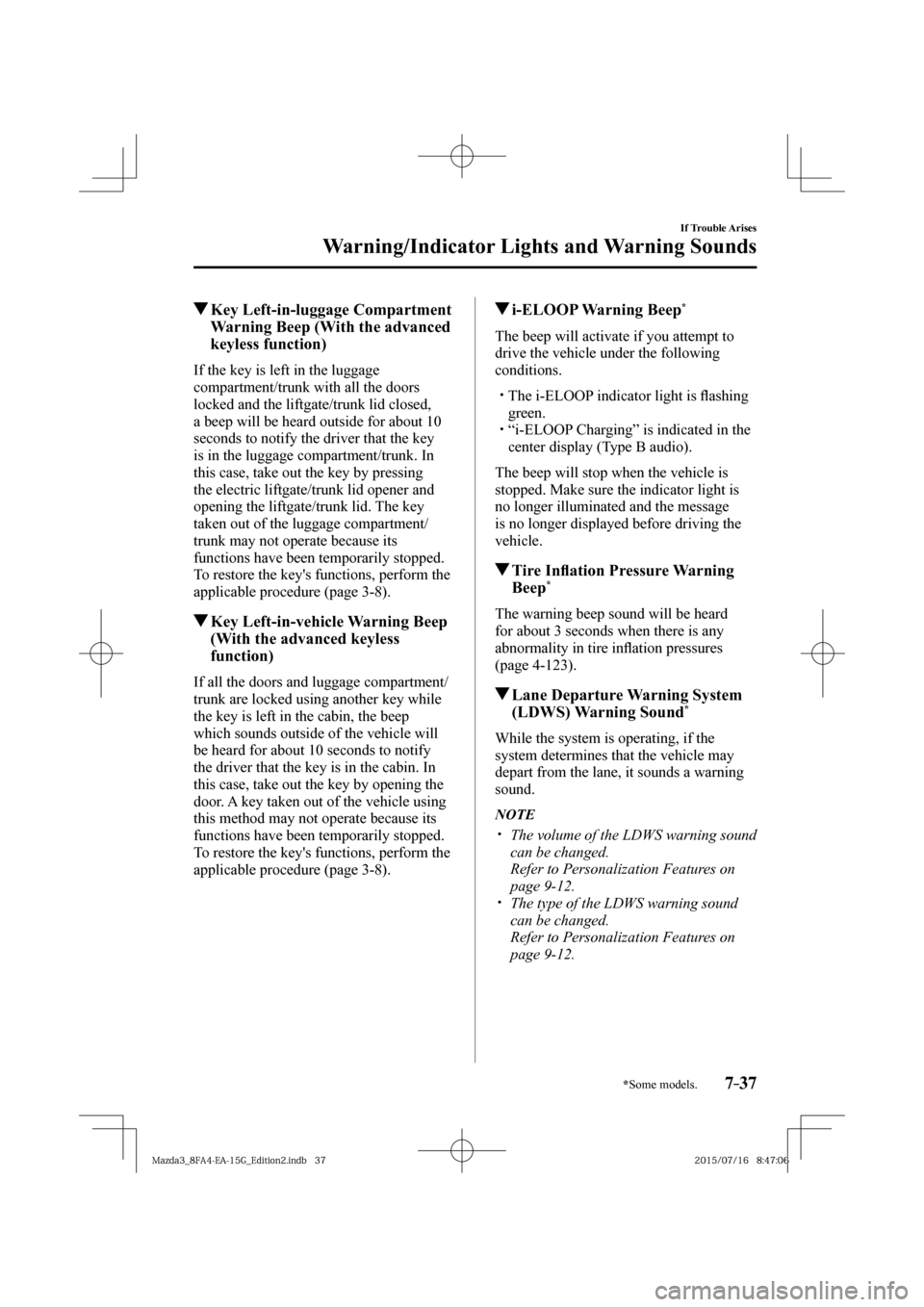

7–37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.
Key Left-in-luggage Compartment
Warning Beep (With the advanced
keyless function)
If the key is left in the luggage
compartment/trunk with all the doors
locked and the liftgate/trunk lid closed,
a beep will be heard outside for about 10
seconds to notify the driver that the key
is in the luggage compartment/trunk. In
this case, take out the key by pressing
the electric liftgate/trunk lid opener and
opening the liftgate/trunk lid. The key
taken out of the luggage compartment/
trunk may not operate because its
functions have been temporarily stopped.
To restore the key's functions, perform the
applicable procedure (page 3-8 ).
Key Left-in-vehicle Warning Beep
(With the advanced keyless
function)
If all the doors and luggage compartment/
trunk are locked using another key while
the key is left in the cabin, the beep
which sounds outside of the vehicle will
be heard for about 10 seconds to notify
the driver that the key is in the cabin. In
this case, take out the key by opening the
door. A key taken out of the vehicle using
this method may not operate because its
functions have been temporarily stopped.
To restore the key's functions, perform the
applicable procedure (page 3-8 ).
i-ELOOP Warning Beep *
The beep will activate if you attempt to
drive the vehicle under the following
conditions.



y The i-ELOOP indicator light is À ashing
green.



y “i-ELOOP Charging” is indicated in the
center display (Type B audio).

The beep will stop when the vehicle is
stopped. Make sure the indicator light is
no longer illuminated and the message
is no longer displayed before driving the
vehicle.
Tire InÀ ation Pressure Warning
Beep *
The warning beep sound will be heard
for about 3 seconds when there is any
abnormality in tire inÀ ation pressures
(page 4-123 ).
Lane Departure Warning System
(LDWS) Warning Sound *
While the system is operating, if the
system determines that the vehicle may
depart from the lane, it sounds a warning
sound.
N O T E



y The volume of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-12 .



y The type of the LDWS warning sound
can be changed.
  Refer to Personalization Features on
page 9-12 .

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










8–43
Customer Information and Reporting Safety Defects
Declaration of Conformity
Declaration of Conformity
Keyless Entry System/Immobilizer System

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–14
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Power door
lock
Refer to Auto
Lock/Unlock
Function on
page 3-16 . Changes the auto
lock/unlock function
setting for all the
doors according to
the vehicle speed,
the vehicle power
supply condition,
and the selector lever
position. Lock: When
Driving
Unlock:
IGN Off Lock: Out
of Park
Unlock: In
Park/
Lock:
Shifting
Out of
Park/
Lock:
When
Driving
Unlock:
IGN Off/
Lock:
When
Driving/
O f f

Refer to
Settings
on page
5-55 .
Refer to Auto
Lock/Unlock
Function on
page 3-16 .

Keyless entry
system
Refer to
Keyless Entry
System on
page 3-3 . The method for
unlocking the doors
using the transmitter
can be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice

Refer to
Settings
on page
5-55 .
Refer to
Transmitter
on page
3-4 .

The time required for
the doors to relock
automatically after
unlocking with the
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










9–15
Speci¿ cations
Personalization Features
Item Feature Factory
Setting Available
Settings Settings change method

Vehicle Advanced
keyless entry
system
Refer to
Advanced
Keyless Entry
System on
page 3-9 . The volume of the
answer-back beep
during advanced
keyless entry system
operation can be
changed. Medium High/
Medium/
L o w /
O f f

Refer to
Settings
on page
5-55 .

Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-13 .

The function to
automatically lock
the doors when
leaving the vehicle
while carrying the
key can be changed. Off On/Off

Refer to
Settings
on page
5-55 . —


The method for
unlocking the doors
using the request
switch/transmitter
can be changed. Driver's:
Once, All
Doors:
Twice All Doors:
Once/
Driver's:
Once, All
Doors:
Twice

Refer to
Settings
on page
5-55 .

Refer to
Locking,
Unlocking
with Request
Switch (With
the advanced
keyless
function) on
page 3-13 .
Refer to
Transmitter
on page
3-4 .

The time required
for the doors to
relock automatically
after unlocking with
the request switch/
transmitter can be
changed. 60 seconds 90 seconds/
60 seconds/
30 seconds

Refer to
Settings
on page
5-55 . —


Illumination
entry
Refer to
Illuminated
Entry System
on page
5-136 . The time required for
the interior lamp to
turn off automatically
can be changed
(prevents battery
depletion when a
door is open/ajar). 30 minutes 60 minutes/
30 minutes/
10 minutes

Refer to
Settings
on page
5-55 . —


The time required for
the interior lamp to
turn off automatically
after all doors
are closed can be
changed. 15 seconds 60 seconds/
30 seconds/
15 seconds/
7.5 seconds

Refer to
Settings
on page
5-55 . —


.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










10–2
Index
A
Accessory Socket .............................. 5-137
Active Driving Display ....................... 4-18
Adaptive Front Lighting System
(AFS)................................................... 4-76
AFS OFF indicator light................ 4-76
AFS OFF switch ............................ 4-76
Add-On Non-Genuine Parts and
Accessories ......................................... 8-18
Advanced Key
Advanced keyless entry system ...... 3-9
Operational range .......................... 3-10
Advanced Key removed from vehicle
warning beep ....................................... 7-36
Air Bag/Front Seat Belt Pretensioner
System Warning Beep ......................... 7-35
Air Bag Systems ................................. 2-40
Ambient Temperature Display ............ 4-16
Antilock Brake System (ABS) ............ 4-62
Audio Control Switch
Adjusting the Volume .................... 5-58
Mute Switch .................................. 5-58
Seek Switch ................................... 5-58
Audio System ...................................... 5-16
AUX/USB/iPod mode ................... 5-59
Antenna ......................................... 5-16
Audio Control Switch ................... 5-57
Audio Set (Type A) ....................... 5-25
Audio Set (Type B) ....................... 5-36

Operating Tips for Audio System ... 5-17
Satellite Radio ............................... 5-47
Automatic Transaxle ........................... 4-29
Active Adaptive Shift (AAS) ........ 4-31
Direct Mode .................................. 4-38
Driving tips.................................... 4-39
Manual shift mode......................... 4-32
Shift-lock system ........................... 4-31
Shift position indication ................ 4-30
Warning light ................................. 4-30
B
Battery ................................................. 6-38
Maintenance .................................. 6-40
Replacement .................................. 6-40
Speci¿ cations .................................. 9-4
Battery runs out ................................... 7-15
Jump-Starting ................................ 7-15
Blind Spot Monitoring (BSM) ............ 4-86
Blind Spot Monitoring (BSM)
switch ............................................ 4-91
Blind Spot Monitoring (BSM) System
warning beep ....................................... 7-38
Bluetooth
® ........................................... 5-77
Bluetooth® Audio (Type A) ......... 5-115
Bluetooth® Audio (Type B) ......... 5-117

Bluetooth® Hands-Free (Type A) ... 5-99

Bluetooth® Hands-Free (Type B) ... 5-105
Troubleshooting .......................... 5-131
Body Lubrication ................................ 6-33
Bottle Holder ..................................... 5-139
Brakes
Brakes assist .................................. 4-60
Foot brake...................................... 4-58
Pad wear indicator ......................... 4-59
Parking brake ................................ 4-59
Warning light ................................. 4-59
Break-In Period ................................... 3-44
C
Capacities .............................................. 9-5
Carbon Monoxide ............................... 3-28
Cell Phones ......................................... 8-19
Center Console .................................. 5-141
Child Restraint
Child-restraint precautions ............ 2-22
Installing child-restraint systems... 2-28
LATCH child-restraint systems ..... 2-36
Child Safety Locks for Rear Doors ..... 3-19
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










10–5
Index
Inspecting Washer Fluid Level............ 6-32
Interior Care ........................................ 6-74
Cleaning the Lap/Shoulder Belt
Webbing ........................................ 6-76
Cleaning the Upholstery and Interior
Trim ............................................... 6-74
Cleaning the Window Interiors ..... 6-76
Dashboard Precautions .................. 6-74
Maintenance of the Active Driving
Display .......................................... 6-76
Interior Lights ................................... 5-135
Luggage Compartment Light ...... 5-135
Map Lights .................................. 5-135
Overhead Lights .......................... 5-135
J
Jack ....................................................... 7-4
Jump-Starting ...................................... 7-15
K
Key Suspend Function .......................... 3-8
Key left-in-luggage compartment warning
beep (With the advanced keyless
function) .............................................. 7-37
Key left-in-vehicle warning beep (With the
advanced keyless function) ................. 7-37
Keyless Entry System ........................... 3-3
Key removed from vehicle warning
beep ..................................................... 7-36
Keys ...................................................... 3-2
Key suspend function ...................... 3-8
Transmitter ...................................... 3-4
L
Label Information ................................. 9-2
Lane-Change Signals .......................... 4-47
Lane Departure Warning System
(LDWS) ............................................... 4-80
LDWS switch ................................ 4-83 Lane departure warning system (LDWS)
warning sound ..................................... 7-37
Laser Sensor (Front) ......................... 4-116
Liftgate ................................................ 3-20
When liftgate/trunk lid cannot be
opened ........................................... 7-40
Light Bulbs
Replacement .................................. 6-47
Speci¿ cations .................................. 9-9
Lighting Control.................................. 4-40
Lights-on reminder .............................. 7-35
Lubricant Quality .................................. 9-5
Luggage Compartment Light ............ 5-135
M
Maintenance
Information ...................................... 6-2
Scheduled ........................................ 6-4
Maintenance Monitor .......................... 6-20
Manual Transaxle Operation ............... 4-26
Recommendations for shifting ...... 4-28
Map Lights ........................................ 5-135

Mazda Radar Cruise Control (MRCC) ... 4-98
Close proximity warning ............. 4-100
Display indication ....................... 4-100
Setting the system ....................... 4-101
Shift-up/shift-down request
display ......................................... 4-105
Mazda Radar Cruise Control (MRCC)
System warnings ................................. 7-38
Meters and Gauges .............................. 4-11
Mirror Defogger .................................. 4-53
Mirrors
Outside mirrors.............................. 3-32
Rearview mirror ............................ 3-33
Moonroof ............................................ 3-38
O
Odometer and Trip Meter .................... 4-12
Outside Mirrors ................................... 3-32
Outside Temperature Display .............. 4-16
.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC










10–8
Index
W
Warning Lights .................................... 4-21
Warning Message Indicated on
Display ................................................ 7-33
Warning Sound is Activated ................ 7-35
Advanced Key removed from vehicle
warning beep ................................. 7-36
Air Bag/Front Seat Belt Pretensioner
System Warning Beep ................... 7-35
Blind Spot Monitoring (BSM) System
warning beep ................................. 7-38
Collision warning .......................... 7-38
i-ELOOP warning beep ................. 7-37
Ignition not switched off (STOP)
warning beep ................................. 7-36
Key left-in-luggage compartment
warning beep (With the advanced
keyless function) ........................... 7-37
Key left-in-vehicle warning beep (With
the advanced keyless function) ..... 7-37
Key removed from vehicle warning
beep ............................................... 7-36
Lane departure warning system
(LDWS) warning sound ................ 7-37
Lights-on reminder ........................ 7-35
Mazda Radar Cruise Control (MRCC)
System warnings ........................... 7-38
Over Rev. buzzer ........................... 7-39
Power steering warning buzzer ..... 7-38
Seat belt warning beep .................. 7-36
Tire inÀ ation pressure warning
beep ............................................... 7-37
Warranty .............................................. 8-15
Weights.................................................. 9-8
Windows
Power windows ............................. 3-35
Windshield Washer ............................. 4-51
Windshield Wipers .............................. 4-48
Winter Driving .................................... 3-46 Wiper
Replacing Rear Window Wiper Blade
(5-Door)......................................... 6-35
Replacing Windshield Wiper
Blades ............................................ 6-34

.B[EB@'"&"(@&EJUJPOJOEC


.B[EB@'"&"(@&EJUJPOJOEC
