2016 MAZDA MODEL 3 4-DOOR climate control

1–4
Pictorial Index
Interior Overview
Interior Equipment (View B)
SRS air bags ........................................................................\
..................................page 2-40
Active driving display ........................................................................\
...................page 4-18
Climate control system........................................................................\
....................page 5-2
Rear window defogger switch........................................................................\
.......page 4-52
Audio system........................................................................\
................................. page 5-16
CD player ........................................................................\
......................................page 5-16
Accessory sockets ........................................................................\
.......................page 5-137
External input terminal........................................................................\
..................page 5-59
Commander switch ........................................................................\
.......................page 5-36
Shift lever/Selector lever ........................................................................\
......page 4-26, 4-29
Fuse block (Left side) ........................................................................\
...................page 6-63
The equipment and installation position varies by vehicle
Mazda3_8FA4-EA-15G_Edition1.indb 42015/05/11 13:59:57

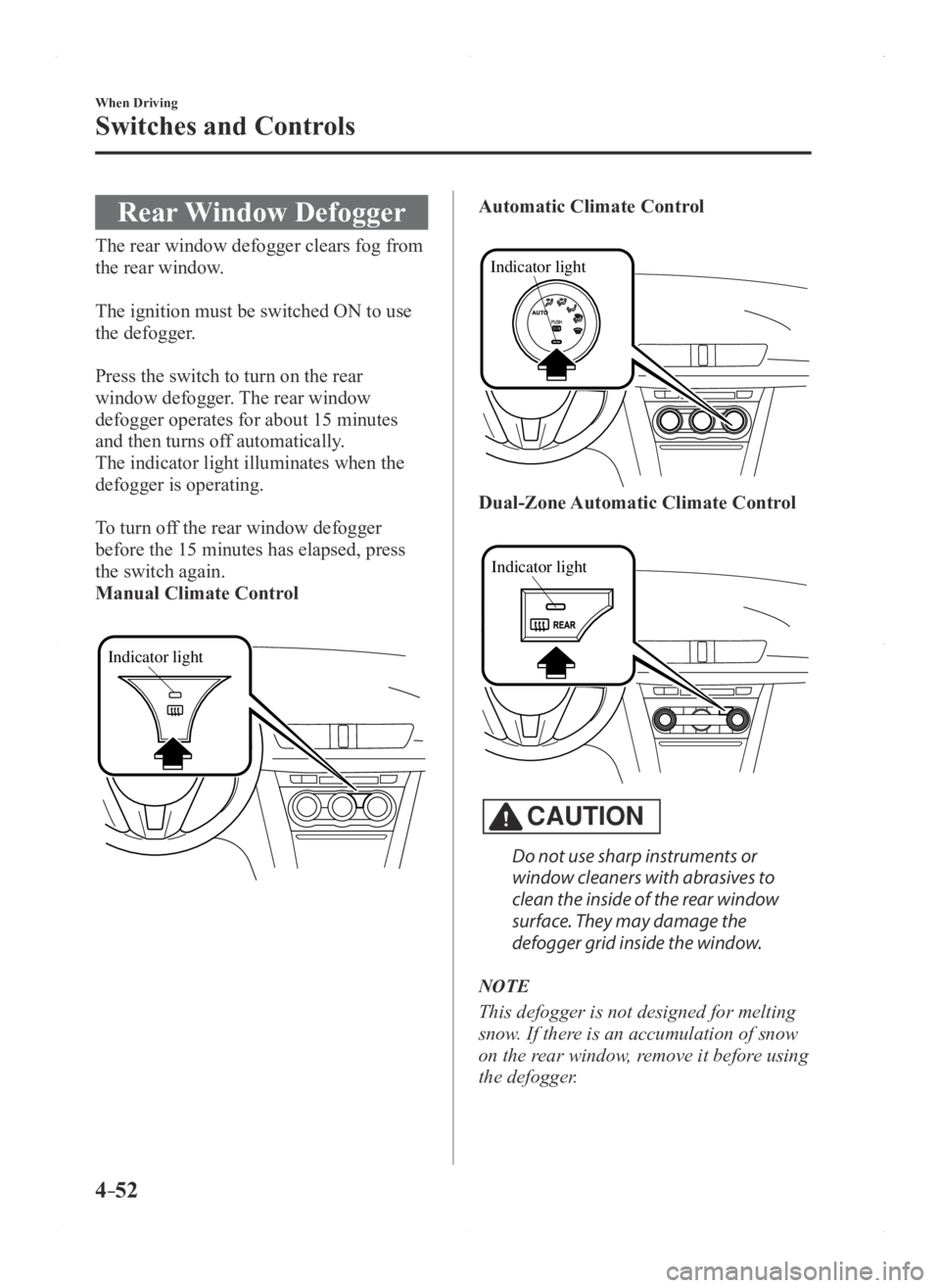

4–52
When Driving
Switches and Controls
Rear Window Defogger
The rear window defogger clears fog from
the rear window.
The ignition must be switched ON to use
the defogger.
Press the switch to turn on the rear
window defogger. The rear window
defogger operates for about 15 minutes
and then turns off automatically.
The indicator light illuminates when the
defogger is operating.
To turn off the rear window defogger
before the 15 minutes has elapsed, press
the switch again.
Manual Climate Control
Indicator light
Automatic Climate Control
Indicator light
Dual-Zone Automatic Climate Control
Indicator light
CAUTION
Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
NOTE
This defogger is not designed for melting
snow. If there is an accumulation of snow
on the rear window, remove it before using
the defogger.
Mazda3_8FA4-EA-15G_Edition1.indb 522015/05/11 14:00:53

5–1*Some models.
5Interior Features
Use of various features for ride comfort, including air-conditioning and
audio system.
Climate Control System..................................................................... 5-2
Operating Tips
........................................................................\
.......5-2
Vent Operation
........................................................................\
......5-3
Manual Climate Control
...............................................................5-5
Automatic Climate Control
...........................................................5-9
Dual-Zone Automatic Climate Control
.......................................5-12
Audio System
........................................................................\
............5-16
Antenna
........................................................................\
...............5-16
Operating Tips for Audio System
...............................................5-17
Audio set [Type A (non-touchscreen)]
........................................5-25
Audio set [Type B (touchscreen)]
...............................................5-36
Audio Control Switch Operation* ...............................................5-57
AUX/USB mode
........................................................................\
.5-59
Bluetooth
® ........................................................................\
.................5-77
Bluetooth®* ........................................................................\
..........5-77
Bluetooth® Hands-Free (Type A)* ...............................................5-99
Bluetooth® Hands-Free (Type B)* .............................................5-105
Bluetooth® Audio (Type A)* ......................................................5-115
Bluetooth® Audio (Type B)* ......................................................5-117
Troubleshooting* .......................................................................5-131
Interior Equipment
........................................................................\
5-134
Sunvisors
........................................................................\
...........5-134
Interior Lights
........................................................................\
...5-135
Accessory Sockets
....................................................................5-137
Cup Holder
........................................................................\
........5-138
Bottle Holder
........................................................................\
.....5-139
Storage Compartments
..............................................................5-140
Mazda3_8FA4-EA-15G_Edition3.indb 12015/12/04 19:23:34

5–2
Interior Features
Climate Control System
Operating Tips
 Operate the climate control system with
the engine running. To prevent the battery from being
discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.
 Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.
 Use the climate control system to defog
the windows and dehumidify the air. The recirculate mode should be used
when driving through tunnels or while in
a traffic jam, or when you would like to
shut off outside air for quick cooling of
the interior.
 Use the outside air position for
ventilation or windshield defrosting. If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.
(With A/C switch)
 Run the air conditioner about 10 minutes
at least once a month to keep internal
parts lubricated.
 Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. Check
the label before refilling the refrigerant.
If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.
For details, consult an Authorized
Mazda Dealer.
Label
Mazda3_8FA4-EA-15G_Edition1.indb 22015/05/11 14:01:17

5–3
Interior Features
Climate Control System
Vent Operation
Adjusting the Vents
Directing airflow
To adjust the direction of airflow, move the
adjustment knob.
NOTE
 When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.
 The air vents can be fully opened and
closed by operating the dial.
Side Vents
Open
Knob
Knob
Dial
Dial
Close
Open
Close
Center Vents
Knob
Mazda3_8FA4-EA-15G_Edition1.indb 32015/05/11 14:01:17

5–4
Interior Features
Climate Control System
Selecting the Airflow Mode
Dashboard Vents
Dashboard and Floo\
r Vents
Floor Vents Defroster and Floo\
r Vents
Defroster Vents
Mazda3_8FA4-EA-15G_Edition1.indb 42015/05/11 14:01:17

5–5
Interior Features
Climate Control System
*Some models.
Manual Climate Control
Rear window defogger switch
Temperature control dial
Fan control dialMode selector dial
A/C switch
Air intake selector
(recirculated air
position)Air intake selector
(outside air position)
With A/C switch
Control Switches
Temperature control dial
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
NOTE
When the mode is set to or with the
fan control dial in a position other than 0
and the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch
to turn it off.
Fan control dial
This dial allows variable fan speeds.
The fan has seven speeds.
Mode selector dial
Turn the mode selector dial to select
airflow mode (page 5-4).
NOTE
 The mode selector dial can be set at the
intermediate positions () between
each mode. Set the dial to an
intermediate position if you want to split
the airflow between the two modes.
 For example, when the mode selector
dial is at the position between the
and positions, airflow from the floor
vent is less than that of the position.
A/C switch*
Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
Press the switch once again to turn the air
conditioner off.
NOTE
The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).
Mazda3_8FA4-EA-15G_Edition3.indb 52015/12/04 19:23:37

5–6
Interior Features
Climate Control System
Air intake selector
This switch controls the source of air
entering the vehicle.
Press the air intake selector switch to
alternate between the outside air and
recirculated air positions.
Recirculated air position (
)
Outside air is shut off. Air within the
vehicle is recirculated.
Outside air position (
)
Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windshield defrosting.
WARNING
Do not use the recirculated air position
in cold or rainy weather:Using the recirculated air position in
cold or rainy weather is dangerous as it
will cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.
Rear window defogger switch
Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-52.
Heating
1. Set the mode selector dial to the
position.
2. Set the air intake selector to the outside
air position.
3. Set the temperature control dial to the
hot position.
4. Set the fan control dial to the desired
speed.
5. If dehumidified heating is desired, turn
on the air conditioner.
NOTE
 If the windshield fogs up easily , set the
mode selector dial to the position. If cooler air is desired at face level, set
the mode selector dial at the position
and adjust the temperature control dial
to maintain maximum comfort.
 The air to the floor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).
Cooling (With air conditioner)
1. Set the mode selector dial to the
position.
2. Set the temperature control dial to the
cold position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner by pressing
the A/C switch.
5. After cooling begins, adjust the fan
control dial and temperature control
dial as needed to maintain maximum
comfort.
CAUTION
If the air conditioner is used while
driving up long hills or in heavy
traffic, monitor the engine coolant
temperature warning light to see if it is
illuminated or flashing (page 4-20).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or flashing, turn the air-
conditioning off (page 7-19).
Mazda3_8FA4-EA-15G_Edition3.indb 62015/12/04 19:23:38
