If Trouble Arises
Active Driving Display Does Not Operate*
*Some models.
If the Active Driving
Display Does Not Operate
If the active driving display does not
operate, switch the ignition off and then
restart the engine. If the active driving
display does not operate even with
the engine restarted, have the vehicle
inspected at an Authorized Mazda Dealer.
Mazda3_8FA4-EA-15G_Edition1.indb 422015/05/11 14:02:47

8–16
Customer Information and Reporting Safety Defects
Warranty
Outside the United States/Canada
Government regulations in the United States/Canada require that automobiles meet specific
emission regulations and safety standards. Therefore, vehicles built for use in the United
States/Canada may differ from those sold in other countries.
The differences may make it difficult or even impossible for your vehicle to receive
satisfactory servicing in other countries. We strongly recommend that you NOT take your
Mazda outside the United States/Canada.
United States
However, in the event that you are moving to Canada permanently, Mazda vehicles built
for use in the United States could be eligible for exportation to Canada with specific vehicle
modifications to comply with the Canadian Motor Vehicle Safety Standards (CMVSS).
Canada
However, in the event that you are moving to the United States permanently, Mazda vehicles
built for use in Canada could be eligible for exportation to the United States with specific
vehicle modifications to comply with the United States Federal Motor Vehicle Safety
Standards (FMVSS).
NOTE
The above is applicable for a permanent import/export situation and not \
related to travelers
on vacation.
You may have the following problems if you do take your vehicle outside o\
f the United
States/Canada:
 Recommended fuel may be unavailable. Any kind of leaded fuel or low-octane fuel will
affect vehicle performance and damage the emission controls and engine. Proper repair facilities, tools, testing equipment, and replace ment parts may not be
available.
Please refer to your Manufacturer's Warranty Booklet for more information.
Mazda3_8FA4-EA-15G_Edition1.indb 162015/05/11 14:02:49

8–18
Customer Information and Reporting Safety Defects
Warranty
Add-On Non-Genuine Parts and Accessories
Non-genuine parts and accessories for Mazda vehicles can be found in stores.
These may fit your vehicle, but they are not approved by Mazda for use with Mazda
vehicles. When you install non-genuine parts or accessories, they could affect your vehicle's
performance or safety systems; the Mazda warranty doesn't cover this. Before you install
any non-genuine parts or accessories, consult an Authorized Mazda Dealer.
WARNING
Always consult an Authorized Mazda Dealer before you install non-genuine parts or
accessories:Improperly designed parts or accessories could seriously affect your vehicle's performance
or safety systems. This could cause you to have an accident or increase your chances of
injuries in an accident.
Be very careful in choosing and installing add-on electrical equipment, such as mobile
telephones, two-way radios, stereo systems, and car alarm systems: Incorrectly choosing or installing improper add-on equipment or choosing an improper
installer is dangerous. Essential systems could be damaged, causing engine stalling, air-
bag (SRS) activation, ABS/TCS/DSC inactivation, or a fire in the vehicle.
Mazda assumes no responsibility for death, injury, or expenses that may result from the
installation of add-on non-genuine parts or accessories.
Mazda3_8FA4-EA-15G_Edition1.indb 182015/05/11 14:02:49

8–21
Customer Information and Reporting Safety Defects

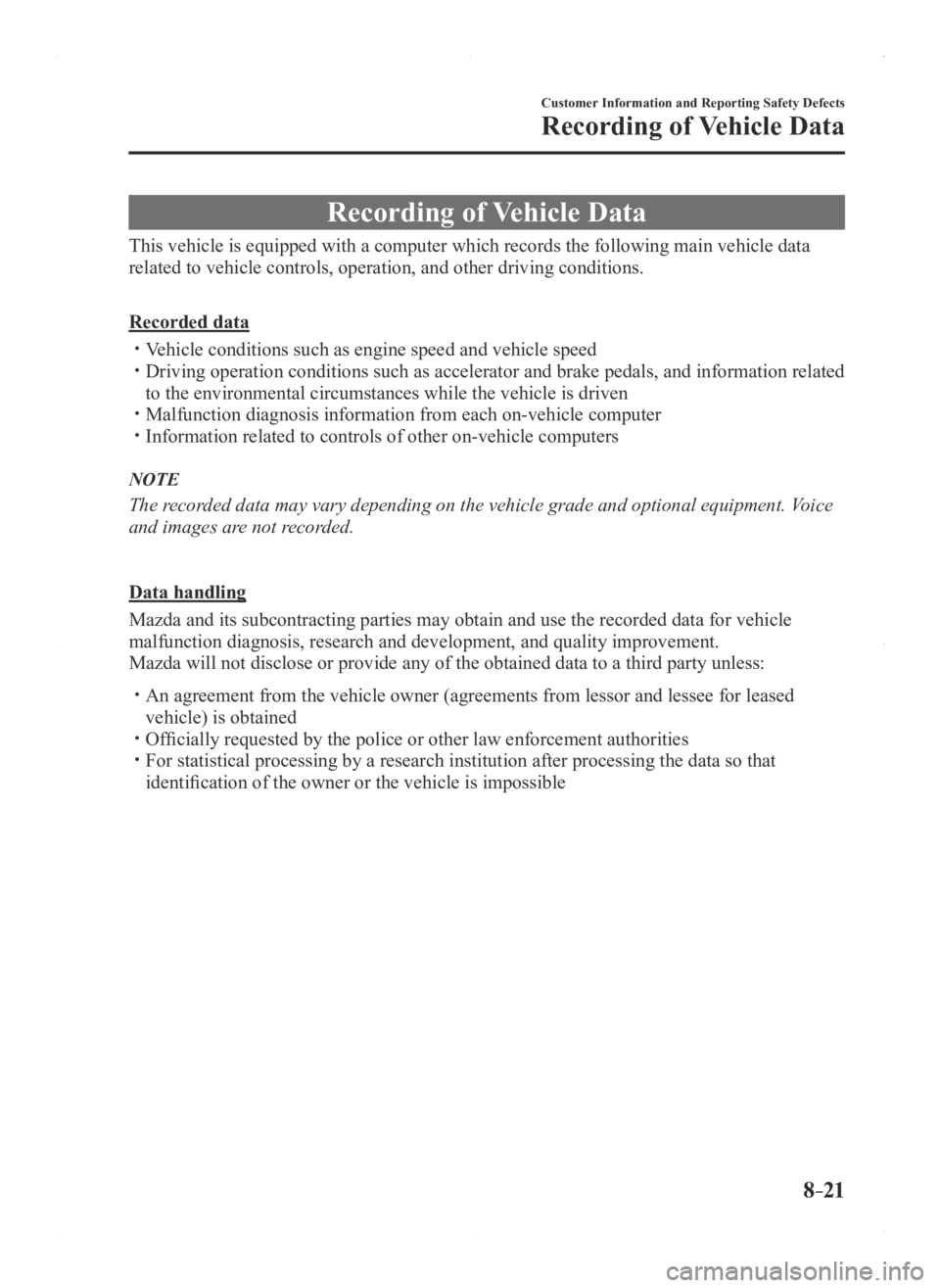

Recording of Vehicle Data
Recording of Vehicle Data
This vehicle is equipped with a computer which records the following main vehicle data
related to vehicle controls, operation, and other driving conditions.
Recorded data
 Vehicle conditions such as engine speed and vehicle speed Driving operation conditions such as accelerator and brake pedals, and i\
nformation related
to the environmental circumstances while the vehicle is driven Malfunction diagnosis information from each on-vehicle computer Information related to controls of other on-vehicle computers
NOTE
The recorded data may vary depending on the vehicle grade and optional equipment.\
Voice
and images are not recorded.
Data handling
Mazda and its subcontracting parties may obtain and use the recorded dat\
a for vehicle
malfunction diagnosis, research and development, and quality improvement.
Mazda will not disclose or provide any of the obtained data to a third p\
arty unless:
 An agreement from the vehicle owner (agreements from lessor and lessee \
for leased
vehicle) is obtained Officially requested by the police or other law enforcement authorities For statistical processing by a research institution after processing th\
e data so that
identification of the owner or the vehicle is impossible
Mazda3_8FA4-EA-15G_Edition1.indb 212015/05/11 14:02:49

8–41
Customer Information and Reporting Safety Defects
Tire Information (U.S.A.)
WARNING
Never Exceed Axle Weight Rating Limits:
Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.
GCW
GCW (Gross Combination Weight) is the weight of the loaded vehicle (GVW).
GCWR (Gross Combination Weight Rating) is the maximum allowable weight of the
vehicle - including all cargo and passengers - that the vehicle can handle without risking
damage. The GCW must never exceed the GCWR.
WARNING
Never Exceed GVWR or GAWR Specifications:
Exceeding the GVWR or the GAWR specified on the certification label is dangerous.
Exceeding any vehicle rating limitation could result in a serious accident, injury, or
damage to the vehicle.
Do not use replacement tires with lower load carrying capacities than the originals
because they may lower the vehicle's GVWR and GAWR limitations. Replacement tires
with a higher limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.
Mazda3_8FA4-EA-15G_Edition1.indb 412015/05/11 14:02:53

9–3
Specifications
Identification Numbers
Vehicle Emission Control
Information Label (U.S.A. and
Canada)
Tire Pressure Label
For vehicle identification number
beginning with JM1*1
For vehicle identification number
beginning with 3MZ*1
*1 Check the vehicle identification number
on the vehicle identification number
plate. Refer to Vehicle Identification
Number on page 9-2.
Engine Number
Forward
Mazda3_8FA4-EA-15G_Edition1.indb 32015/05/11 14:02:59

9–4
Specifications
Specifications
Specifications
Engine
ItemSpecification
SKYACTIV-G 2.0 SKYACTIV-G 2.5
Type DOHC-16V in-line, 4-cylinder
Bore × Stroke 83.5 × 91.2 mm (3.29 × 3.59 in) 89.0 × 100 mm (3.50 × 3.94 in)
Displacement 1,997.6 ml (1,997.6 cc) 2,488.5 ml (2,488.5 cc)
Compression ratio 13.0
Electrical System
ItemClassification
Battery Q-85*1
12V-60Ah/20HR*2 or 12V-65Ah/20HR*2
Spark-plug number
Mazda Genuine spark
plug*3PE5R-18-110 or PE5S-18-110
*1 Q-85 is designed for i-ELOOP
system. Only Q-85 should be used to ensure correct operation of i-ELOOP system. Consult an Authorized Mazda Dealer for details.*2 Not for i-ELOOP system.*3 This spark plug provides the SKY ACTIV-G engine with optimum performance. Contact an Authorized Mazda Dealer for details.
CAUTION
When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on
the iridium alloy and platinum tips could be damaged.
Mazda3_8FA4-EA-15G_Edition1.indb 42015/05/11 14:02:59

9–5
Specifications
Specifications
Lubricant Quality
LubricantClassification
Engine oil Refer to Recommended Oil on page
6-27.
Manual transaxle oil API Service
GL-4
SAE 75W-80
Automatic transaxle fluid Mazda Genuine ATF FZ
Brake/Clutch fluid SAE J1703 or FMVSS116 DOT-3
NOTE
Refer to Introduction on (page 6-2) for owner's responsibility in protecting your
investment.
Capacities
(Approximate Quantities)
Item Capacity
Engine oil SKYACTIV-G
2.0
With oil filter replacement
4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G
2.5 With oil filter replacement
4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant SKYACTIV-G
2.0 For vehicle
identification
number beginning
with JM1
*1
Manual transaxle
6.3 L (6.7 US qt, 5.5 Imp qt)
Automatic transaxle 6.5 L (6.9 US qt, 5.7 Imp qt)
For vehicle
identification
number beginning
with 3MZ
*1
Manual transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Automatic transaxle 6.9 L (7.3 US qt, 6.1 Imp qt)
SKYACTIV-G
2.5 U.S.A. and
Canada
Manual transaxle
6.5 L (6.9 US qt, 5.7 Imp qt)
Automatic transaxle 6.8 L (7.2 US qt, 6.0 Imp qt)
Mexico Manual transaxle
6.5 L (6.9 US qt, 5.7 Imp qt)
Automatic transaxle 6.7 L (7.1 US qt, 5.9 Imp qt)
Manual transaxle oil 1.70 L (1.80 US qt, 1.50 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Fuel tank U.S.A. and Canada
50.0 L (13.2 US gal, 11.0 Imp gal)
Mexico 51.0 L (13.5 US gal, 11.2 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
*1 Check the vehicle identification number on the vehicle identifica tion number plate. Refer to Vehicle Identification Number on page 9-2.
