TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or the
GAWR specified on the certification
label. Towing trailers beyond the
maximum recommended gross
trailer weight exceeds the limit of your
vehicle and could result in engine
damage, transmission damage,
structural damage, loss of vehicle
control, vehicle rollover and personal
injury. Note:
Your vehicle may have electrical
items, such as fuses or relays, related
to towing. See Fuses (page 269). Your vehicle's load capacity designation
is by weight, not by volume, so you
cannot necessarily use all available
space when loading a vehicle or trailer.
Towing a trailer places an extra load on
your vehicle's engine, transmission, axle,
brakes, tires and suspension. Inspect
these components periodically during,
and after, any towing operation.
Load Placement
To help minimize how trailer movement
affects your vehicle when driving:
•
Load the heaviest items closest to
the trailer floor.
• Load the heaviest items centered
between the left and right side trailer
tires. •
Load the heaviest items above the
trailer axles or just slightly forward
toward the trailer tongue. Do not
allow the final trailer tongue weight
to go above or below 10-15% of the
loaded trailer weight.
• Select a ball mount with the correct
rise or drop. When both the loaded
vehicle and trailer are connected, the
trailer frame should be level, or
slightly angled down toward your
vehicle, when viewed from the side.
When driving with a trailer or payload, a
slight takeoff vibration or shudder may
be present due to the increased payload
weight. Additional information regarding
proper trailer loading and setting your
vehicle up for towing is located in the
Load Carrying chapter. See Load Limit
(page 235).
You can also find information in the
RV
& Trailer Towing Guide available at your
authorized dealer, or online.
243
MKT (), enUSA, First Printing Towing

Protected components
Fuse amp rating
Fuse or relay number
Fan relay 2.
40A **
1
Fan relay 1.
40A **
2
Trailer brake control module.
30A **
3
Wipers.
30A **
4
Washer pump.
Anti-lock brake system pump.
50A **
5
B+ #1 access circuit (limousine/livery).
50A **
6
Power liftgate.
30A **
7
Moonroof.
20A **
8
Power sunshade.
Second row console power point.
20A **
9
Third row power seats relay.
Relay
10
Heated rear window relay.
Relay
11
Trailer tow battery charge relay.
Relay
12
270
MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Starter motor relay.
Relay
13
Cooling fan number 2 relay.
Relay
14
Fuel pump relay.
Relay
15
B+ #2 access circuit (limousine/livery).
40A **
16
110V AC power point.
30A **
17
Front blower motor relay.
40A **
18
Starter relay.
30A **
19
Storage bin power point.
20A **
A
20
Instrument panel power point / cigar lighter.
20A **
21
Third row seat module.
30A **
22
Memory module.
30A **
23
Trailer tow battery charge (non-limousine/livery).
30A **
24
271
MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Vacuum pump relay (limousine only).
40A **
Not used.
-
25
Rear window defroster.
40A **
26
Heated mirrors.
Cargo power point.
20A **
27
Front climate controlled seats.
30A **
28
Rear climate controlled seats.
30A **
29
Rear heated seats.
20A **
30
Electric fan relay 3.
25A **
31
Auxiliary blower motor relay.
Relay
32
Cooling fan #1 relay.
Relay
33
Front blower motor relay.
Relay
34
Cooling fan (series) relay.
Relay
35
Not used.
-
36
272
MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Trailer tow right-hand stop/turn lamps relay.
Relay
37
Trailer tow reverse lamps relay.
Relay
38
Auxiliary blower motor.
30A **
39
Left front smart window motor.
30A **
40
Left rear smart window motor.
30A **
41
Passenger power seat.
30A **
42
Anti-lock brake system valves.
20A **
43
Windshield washer relay.
Relay
44
Rain sensor.
5A *
45
Canister vent solenoid (EcoBoost engines).
5A *
46
Washer pump.
15A *
47
Front park lamps.
10A *
48
Not used.
-
49
273

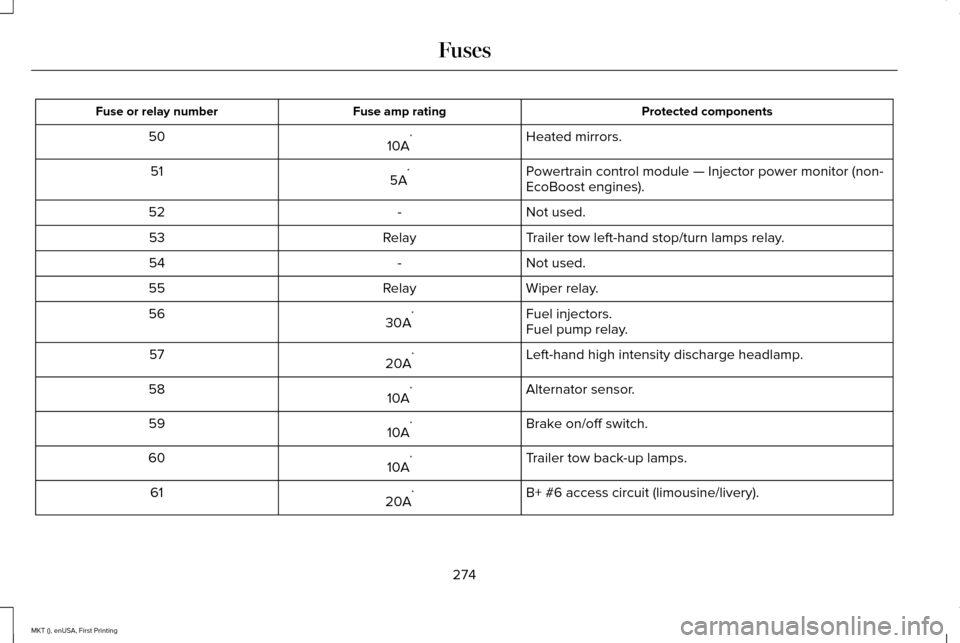

MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Heated mirrors.
10A *
50
Powertrain control module — Injector power monitor (non-
EcoBoost engines).
5A *
51
Not used.
-
52
Trailer tow left-hand stop/turn lamps relay.
Relay
53
Not used.
-
54
Wiper relay.
Relay
55
Fuel injectors.
30A *
56
Fuel pump relay.
Left-hand high intensity discharge headlamp.
20A *
57
Alternator sensor.
10A *
58
Brake on/off switch.
10A *
59
Trailer tow back-up lamps.
10A *
60
B+ #6 access circuit (limousine/livery).
20A *
61
274
MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
A/C clutch relay.
10A *
62
Trailer tow stop/turn lamps.
15A *
63
Rear wipers.
15A *
64
B+ #7 access circuit (limousine/livery).
20A *
65
Powertrain control module – vehicle power relay.
Relay
66
Vehicle power #2 – oxygen sensor heater.
20A *
67
Mass airflow sensor.
Variable camshaft timing solenoid valve.
Canister vent solenoid.
Canister purge solenoid.
Vehicle power #4 (ignition coils).
20A *
68
Vehicle power 1 (powertrain control module).
20A *
69
Vehicle power #3 (coil) – A/C clutch relay.
15A *
70
Fan control relay coils 1-3.
Variable air conditioning compressor.
Auxiliary transmission warmup.
Turbo charge waste-gate control.
275
MKT (), enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Electronic compressor bypass valve.
All-wheel drive module.
Positive crankcase ventilation heater.
Not used.
-
71
Limousine/livery run/accessory.
5A *
72
Limousine/livery battery saver.
5A *
73
Not used.
-
74
Not used.
-
75
Not used.
-
76
Trailer tow park lamps relay.
Relay
77
Right high-intensity discharge headlamp.
20A *
78
Adaptive cruise control module.
10A *
79
B+ #3 access circuit (limousine/livery).
30A *
80
B+ #4 access circuit (limousine/livery).
15A *
81
276
