TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or the
GAWR specified on the
certification label. Towing trailers beyond the
maximum recommended gross
trailer weight exceeds the limit of
your vehicle and could result in
engine damage, transmission
damage, structural damage, loss of
vehicle control, vehicle rollover and
personal injury. Note:
There may be electrical items
such as fuses or relays that can affect
trailer towing operation. See Fuses
(page 223).
The load capacity of your vehicle is
designated by weight not volume.
You may not necessarily be able to
use all available space when loading
your vehicle or trailer. Towing a trailer places extra load
on the engine, transmission, axle,
brakes, tires, and suspension.
Inspect these components before,
during and after towing.
Load Placement
To help minimize how trailer
movement affects the vehicle when
driving:
•
Load the heaviest items closest
to the trailer floor.
• Load the heaviest items in the
center of the left and right side
trailer tires. •
Load the heaviest items above
the trailer axles or just slightly
forward toward the trailer
tongue. Do not allow the final
trailer tongue weight to go above
or below 10-15% of the loaded
trailer weight.
• Select a ball mount with the
correct rise or drop. When both
the loaded vehicle and trailer are
connected, the trailer frame
should be level, or slightly angled
down toward the vehicle, when
viewed from the side.
When driving with a trailer or
payload, a slight takeoff vibration or
shudder may be present due to the
increased payload weight.
Additional information regarding
proper trailer loading and setting
your vehicle up for towing is located
in the Load Carrying chapter. See
Load Limit
(page 192).
201
MKS (CLE) Canada/United States of America, enUSA, First Printing Towing

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
1
Not used.
-
2
Not used.
-
3
Wiper motor relay.
30A 2
4
Anti-lock brake system pump.
50A 2
5
Not used.
-
6
Not used.
-
7
Moonroof.
20A 2
8
Power sunshade.
Second row power point.
20A 2
9
Not used.
-
10
Heated rear window relay.
-
11
Not used.
-
12
Starter motor relay.
-
13
Left-hand cooling fan number 2 relay.
-
14
Fuel pump relay.
-
15
224
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
16
Not used.
-
17
Front blower motor relay.
40A 2
18
Starter relay.
30A 2
19
Storage bin power point.
20A 2
20
Rear heated seat module.
20A 2
21
Not used.
-
22
Driver power seat.
30A 2
23
Memory module.
Not used.
-
24
Not used.
-
25
Heated rear window relay.
40A 2
26
Cigar lighter.
20A 2
27
Climate controlled seats.
30A 2
28
Electric fan relay 1.
40A 2
29
225
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Electric fan relay 2.
40A 2
30
Electric fan relay 3.
25A 2
31
Massage control seat relay.
Relay
32
Right-hand cooling fan relay.
-
33
Blower motor relay.
-
34
Left-hand cooling fan Number 1 relay.
-
35
Not used.
-
36
Not used.
-
37
Not used.
-
38
Not used.
-
39
Left front smart window motor.
30A 2
40
Left rear smart window motor.
30A 2
41
Passenger power seat.
30A 2
42
Anti-lock brake system valves.
20A 2
43
Not used.
-
44
Rain sensor.
5A 1
45
226
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

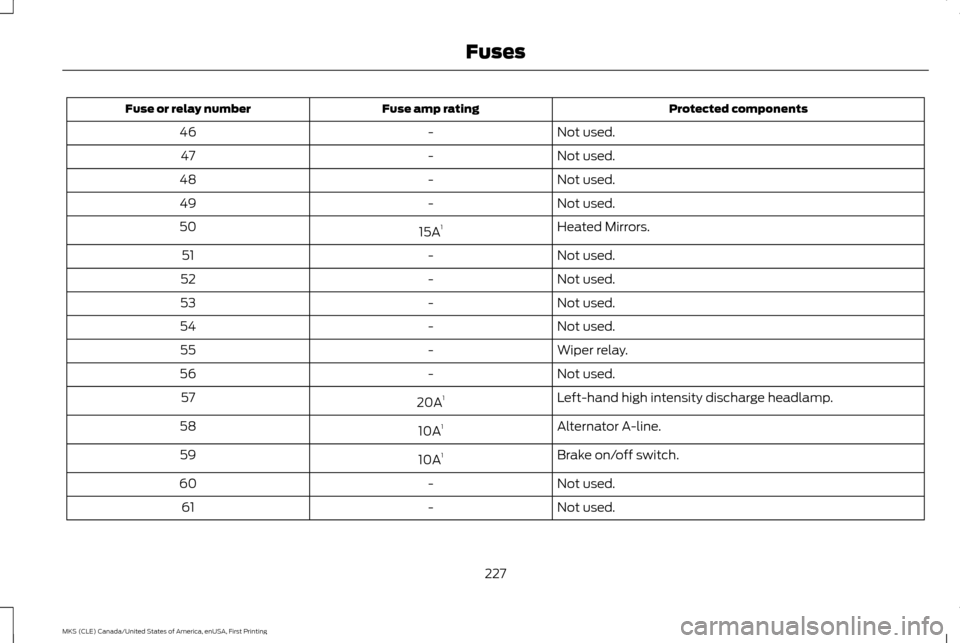

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
46
Not used.
-
47
Not used.
-
48
Not used.
-
49
Heated Mirrors.
15A 1
50
Not used.
-
51
Not used.
-
52
Not used.
-
53
Not used.
-
54
Wiper relay.
-
55
Not used.
-
56
Left-hand high intensity discharge headlamp.
20A 1
57
Alternator A-line.
10A 1
58
Brake on/off switch.
10A 1
59
Not used.
-
60
Not used.
-
61
227
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
A/C clutch.
10A 3
62
Not used.
-
63
Massage control seats.
15A 1
64
Fuel pump relay.
30A 1
65
Fuel injectors.
Powertrain control module relay.
-
66
Oxygen sensor heater.
20A 1
67
Mass airflow sensor.
Variable camshaft timing solenoid valve.
Canister vent solenoid.
Canister purge solenoid.
Ignition coils.
20A 1
68
Vehicle power 1 (powertrain control module).
20A 1
69
A/C clutch.
15A 1
70
Fan control relay coils 1-3.
Variable air conditioning compressor.
Auxiliary transmission warmup.
228
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Turbo charge waste-gate control.
Electronic compressor bypass valve.
All-wheel drive module.
Positive crankcase ventilation heater.
Not used.
-
71
Not used.
-
72
Not used.
-
73
Not used.
-
74
Not used.
-
75
Not used.
-
76
Not used.
-
77
Right high-intensity discharge headlamp.
20A 1
78
Not used.
-
79
Not used.
-
80
Not used.
-
81
Not used.
-
82
Not used.
-
83
229
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses

Protected components
Fuse amp rating
Fuse or relay number
Not used.
-
84
Not used.
-
85
Powertrain control module.
7.5A 1
86
Keep alive power and relay.
Canister vent solenoid.
Run/start relay.
5A 1
87
Run/start relay.
-
88
Front blower relay coil.
5A 1
89
Electrical power assist steering module.
Powertrain control module run/start.
10A 1
90
Adaptive cruise control module.
10A 1
91
Anti-lock brake system module.
10A 1
92
Adaptive headlamp module.
Rear window defroster relay.
5A 1
93
Passenger compartment fuse panel run/start.
30A 2
94
Not used.
-
95
230
MKS (CLE) Canada/United States of America, enUSA, First Printing Fuses
