3714-5. Using the driving support systems
4
Driving
RX450h_U_OM0E013U

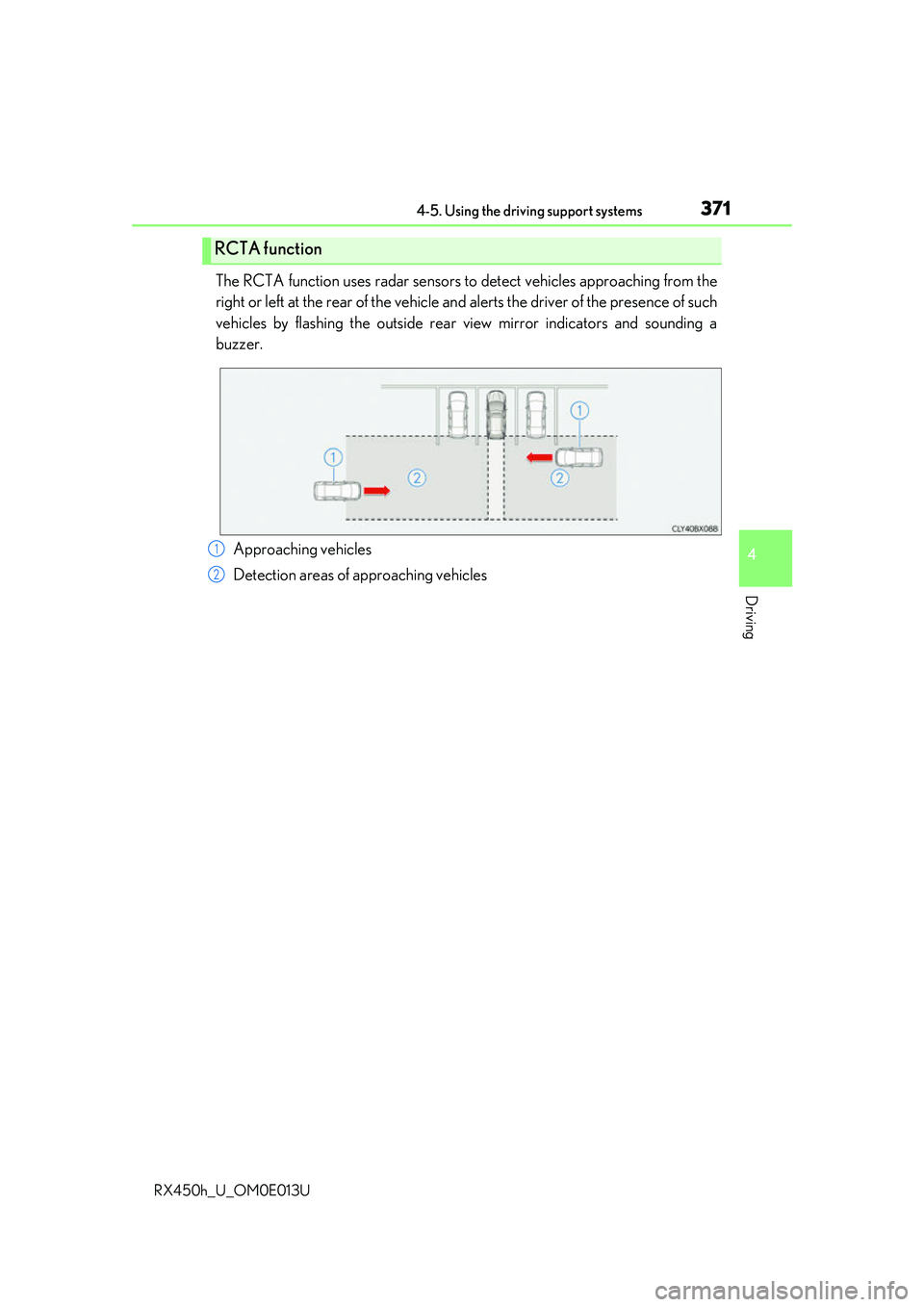

The RCTA function uses radar sensors to detect vehicles approaching from the
right or left at the rear of the vehicle and alerts the driver of the presence of such
vehicles by flashing the outside rear view mirror indicators and sounding a
buzzer.
Approaching vehicles
Detection areas of approaching vehicles
RCTA function
1
2

4065-2. Using the air conditioning system and defogger
RX450h_U_OM0E013U

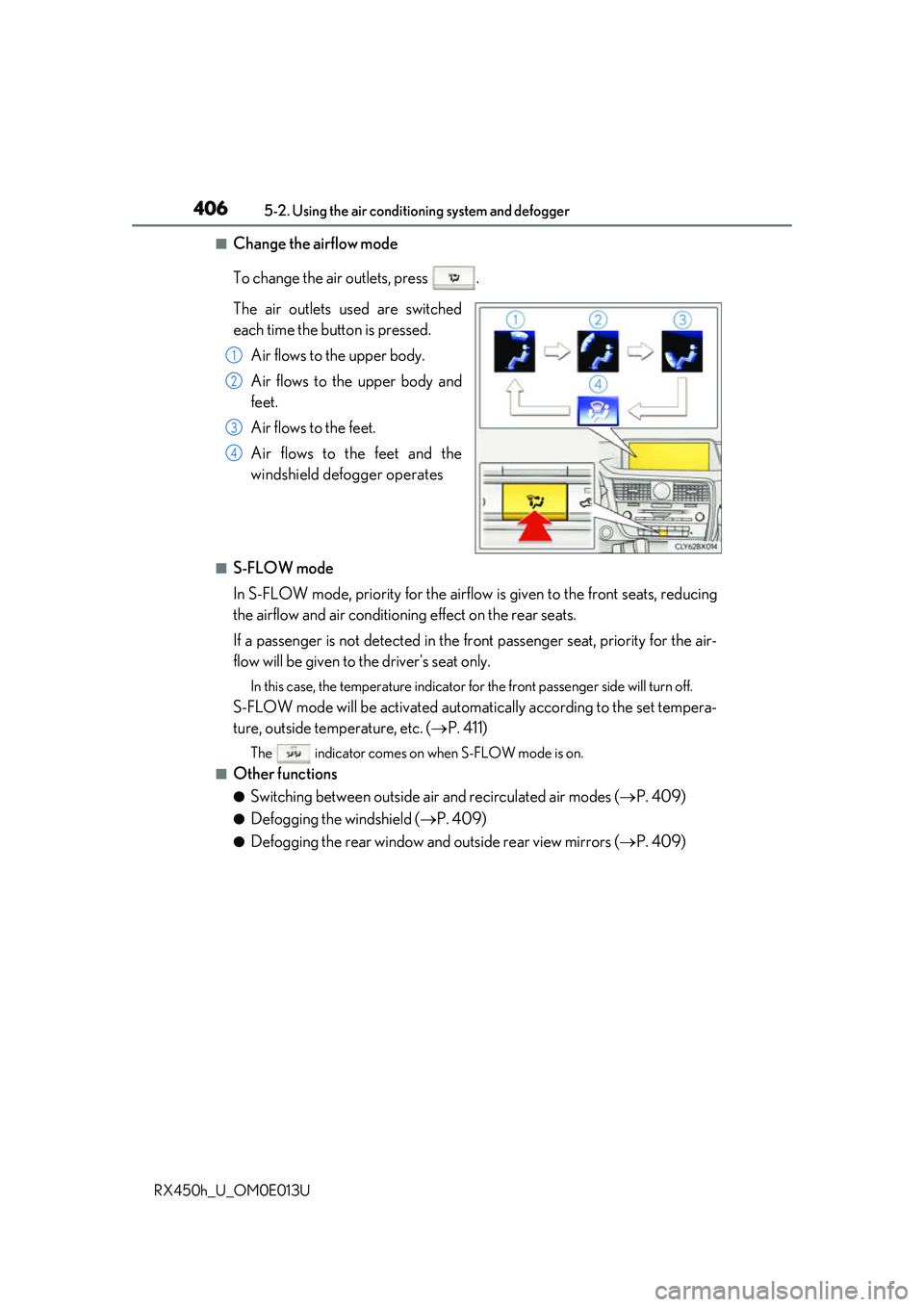

■Change the airflow mode
To change the air outlets, press .
The air outlets used are switched
each time the button is pressed. Air flows to the upper body.
Air flows to the upper body and
feet.
Air flows to the feet.
Air flows to the feet and the
windshield defogger operates
■S-FLOW mode
In S-FLOW mode, priority for the airflo w is given to the front seats, reducing
the airflow and air conditioning effect on the rear seats.
If a passenger is not detected in the fr ont passenger seat, priority for the air-
flow will be given to the driver's seat only.
In this case, the temperature indicator for the front passenger side will turn off.
S-FLOW mode will be activated automa tically according to the set tempera-
ture, outside temperature, etc. ( P. 411)
The indicator comes on when S-FLOW mode is on.
■Other functions
●Switching between outside air and recirculated air modes ( P. 409)
●Defogging the windshield ( P. 409)
●Defogging the rear window and outside rear view mirrors ( P. 409)
1
2
3
4

4095-2. Using the air conditioning system and defogger
5
Interior features
RX450h_U_OM0E013U
■Switching between outside air and recirculated air modes
Press .
The mode switches between (recir culated air mode), automatic and
(outside air mode) modes each time the button is pressed.
When the system is switched to automatic mode, the air conditioning system oper-
ates automatically.
■Defogging the windshield
Defoggers are used to defog the wi ndshield and front side windows.
Press .
Set the outside/recirculated air mode button to outside air mode if the recirculated
air mode is used. (It may switch automatically.)
To defog the windshield and the side wind ows early, turn the air flow and tempera-
ture up.
To return to the previous mode, press again when the windshield is
defogged.
■Defogging the rear window and outside rear view mirrors
Defoggers are used to defog the rear window and to remove raindrops, dew
and frost from the outside rear view mirrors.
Press .
The defoggers will automatically turn off after a period of time.
■Windshield wiper de-icer (if equipped)
This feature is used to prevent ice fr om building up on the windshield and
wiper blades.
Select on the option control screen.
When the windshield wiper de-icer is on , is displayed on the air condition-
ing control screen.
The windshield wiper de-icer will automati cally turn off after a period of time.
Other functions

4135-2. Using the air conditioning system and defogger
5
Interior features
RX450h_U_OM0E013U

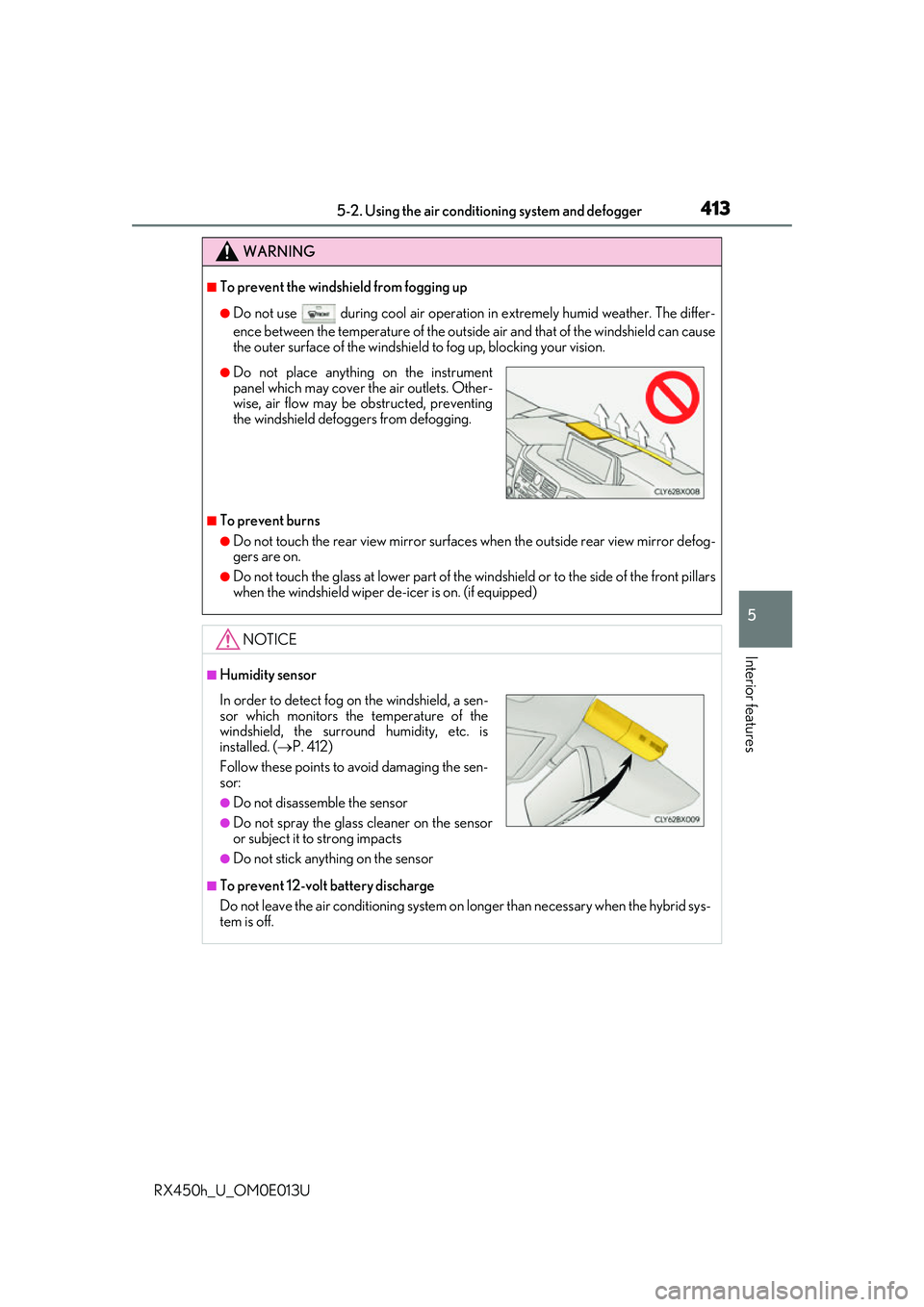

WARNING
■To prevent the windshield from fogging up
●Do not use during cool air operation in extremely humid weather. The differ-
ence between the temperature of the outside air and that of the windshield can cause
the outer surface of the windshield to fog up, blocking your vision.
■To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mirror defog-
gers are on.
●Do not touch the glass at lower part of the windshield or to the side of the front pillars
when the windshield wiper de-icer is on. (if equipped)
NOTICE
■Humidity sensor
■To prevent 12-volt battery discharge
Do not leave the air conditioning system on longer than necessary when the hybrid sys-
tem is off.
●Do not place anything on the instrument
panel which may cover the air outlets. Other-
wise, air flow may be obstructed, preventing
the windshield defoggers from defogging.
In order to detect fog on the windshield, a sen-
sor which monitors the temperature of the
windshield, the surround humidity, etc. is
installed. ( P. 412)
Follow these points to avoid damaging the sen-
sor:
●Do not disassemble the sensor
●Do not spray the glass cleaner on the sensor
or subject it to strong impacts
●Do not stick anything on the sensor

4465-5. Using the other interior features
RX450h_U_OM0E013U

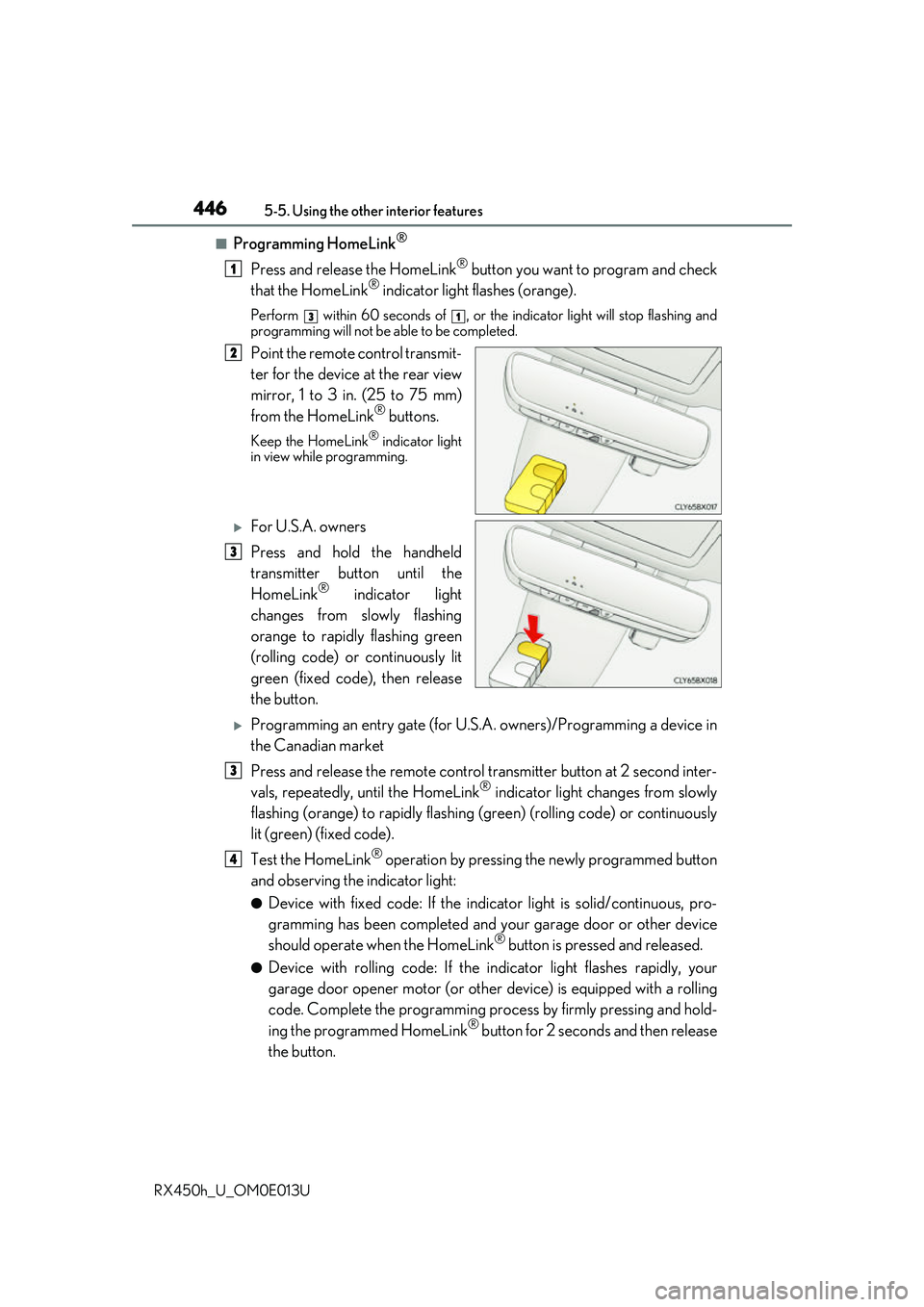

■Programming HomeLink®
Press and release the HomeLink® button you want to program and check
that the HomeLink® indicator light flashes (orange).
Perform within 60 seconds of , or the indicator light will stop flashing and
programming will not be able to be completed.
Point the remote control transmit-
ter for the device at the rear view
mirror, 1 to 3 in. (25 to 75 mm)
from the HomeLink
® buttons.
Keep the HomeLink® indicator light
in view while programming.
For U.S.A. owners
Press and hold the handheld
transmitter button until the
HomeLink
® indicator light
changes from slowly flashing
orange to rapidly flashing green
(rolling code) or continuously lit
green (fixed code), then release
the button.
Programming an entry gate (for U.S. A. owners)/Programming a device in
the Canadian market
Press and release the remote control transm itter button at 2 second inter-
vals, repeatedly, until the HomeLink
® indicator light changes from slowly
flashing (orange) to rapidly flashing (green) (rolling code) or continuously
lit (green) (fixed code).
Test the HomeLink
® operation by pressing the newly programmed button
and observing the indicator light:
●Device with fixed code: If the indicator light is solid/continuous, pro-
gramming has been completed and your garage door or other device
should operate when the HomeLink
® button is pressed and released.
●Device with rolling code: If the in dicator light flashes rapidly, your
garage door opener motor (or other device) is equipped with a rolling
code. Complete the programming process by firmly pressing and hold-
ing the programmed HomeLink
® button for 2 seconds and then release
the button.
1
31
2
3
3
4

6128-2. Customization
RX450h_U_OM0E013U
■Driving position memory ( P. 174)
■Steering wheel ( P. 181)
■Outside rear view mirrors ( P. 185)
FunctionDefault settingCustomized setting
Driver’s seat movement when
exiting the vehicleStandardOffOOPartial
Selecting doors linked to the
memory recall functionDriver’s doorAll doors—O
12
FunctionDefault settingCustomized setting
Auto tilt away functionOnOff—O
12
FunctionDefault settingCustomized setting
Automatic mirror folding and
extending operationLinked to the lock-
ing/unlocking of the
doorsOff
—OLinked to operation of the power switch
12

6158-2. Customization
8
Vehicle specifications
RX450h_U_OM0E013U
■Intuitive parking assist (P. 339)
*: When intuitive parking assist is operating.
■BSM (Blind Spot Monitor) ( P. 363)
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearOO
Detection distance of the rear
center sensorFarNearOO
Buzzer volume31 to 5OO
Display setting*All sensors dis-
playedDisplay offOO
12
FunctionDefault settingCustomized setting
Outside rear view mirror indica-
tor brightnessBrightDimOO
Alert timing for presence of
approaching vehicle (BSM func-
tion only)
Intermediate
Early
OOLate
Only when in blind spot
RCTA buzzer volumeLevel 2Level 1O—Level 3
12

643Alphabetical index
RX450h_U_OM0E013U
CoolantCapacity ................................................ 587
Checking................................................ 479
Preparing and checking before winter ................................... 390
Cooling system ..................................... 479 Hybrid system overheating ..........574
Cornering lights .................................... 252
Cruise control Cruise control..................................... 335
Dynamic radar cruise control...... 323
Dynamic radar cruise control with full-speed range ....................... 311
Cup holders ............................................ 423
Curtain shield airbags ........................... 39
Customizable features ....................... 607
Customized mode ................................377 Daytime running light system.......... 253
Defogger
Outside rear view mirrors ............409
Rear window........................................409
Windshield............................................409
Differential .............................................. 588
Dimension ............................................... 582
Dinghy towing ......................................... 231
Display Dynamic radar cruise control ..... 323
Dynamic radar cruise control with full-speed range .......................311
Energy monitor..................................... 124
LDA (Lane Departure Alert with steering control) ...................306
LKA (Lane-Keeping Assist)......... 297
Multi-information display.................102
Warning messages .......................... 543
Do-it-yourself maintenance............... 471
Doors Automatic door locking and unlocking system..............................139
Door lock................................................ 138
Outside rear view mirrors ............. 185
Power back door ................................ 142
Rear door child-p rotectors ............139
Side doors ...............................................136
Side windows ....................................... 189
Drive information ................................... 106
Drive-start control .................... 205, 242
Driver’s seat belt reminder light .... 538
Driver’s seat position memory.......... 174D
