441-1. For safe use
RX450h_U_OM0E013U
WARNING
■SRS airbag precautions
●Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause deat h or serious injury, should the SRS cur-
tain shield airbags deploy.
●If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
●Do not use seat accessories which cover the parts where the SRS side airbags and
SRS seat cushion airbag inflate as they may interfere with inflatio n of the SRS airbags.
Such accessories may prevent the side airbags and SRS seat cushion airbag from
activating correctly, disable the system or cause the side airbags and SRS seat cush-
ion airbag to inflate accidentally, re sulting in death or serious injury.
●Do not strike or apply significant levels of force to the areas around the SRS airbag
components or the front doors.
Doing so can cause the SRS airbags to malfunction.
●Do not touch any of the component part s immediately after the SRS airbags have
deployed (inflated) as they may be hot.
●Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower po rtion of the instru-
ment panel.
These items can become projectiles when the
SRS driver, front passeng er and knee airbags
deploy.
●Do not attach anything to areas such as a
door, windshield, side windows, front or rear
pillar, roof side rail and assist grip.

641-2. Child safety
RX450h_U_OM0E013U
WARNING

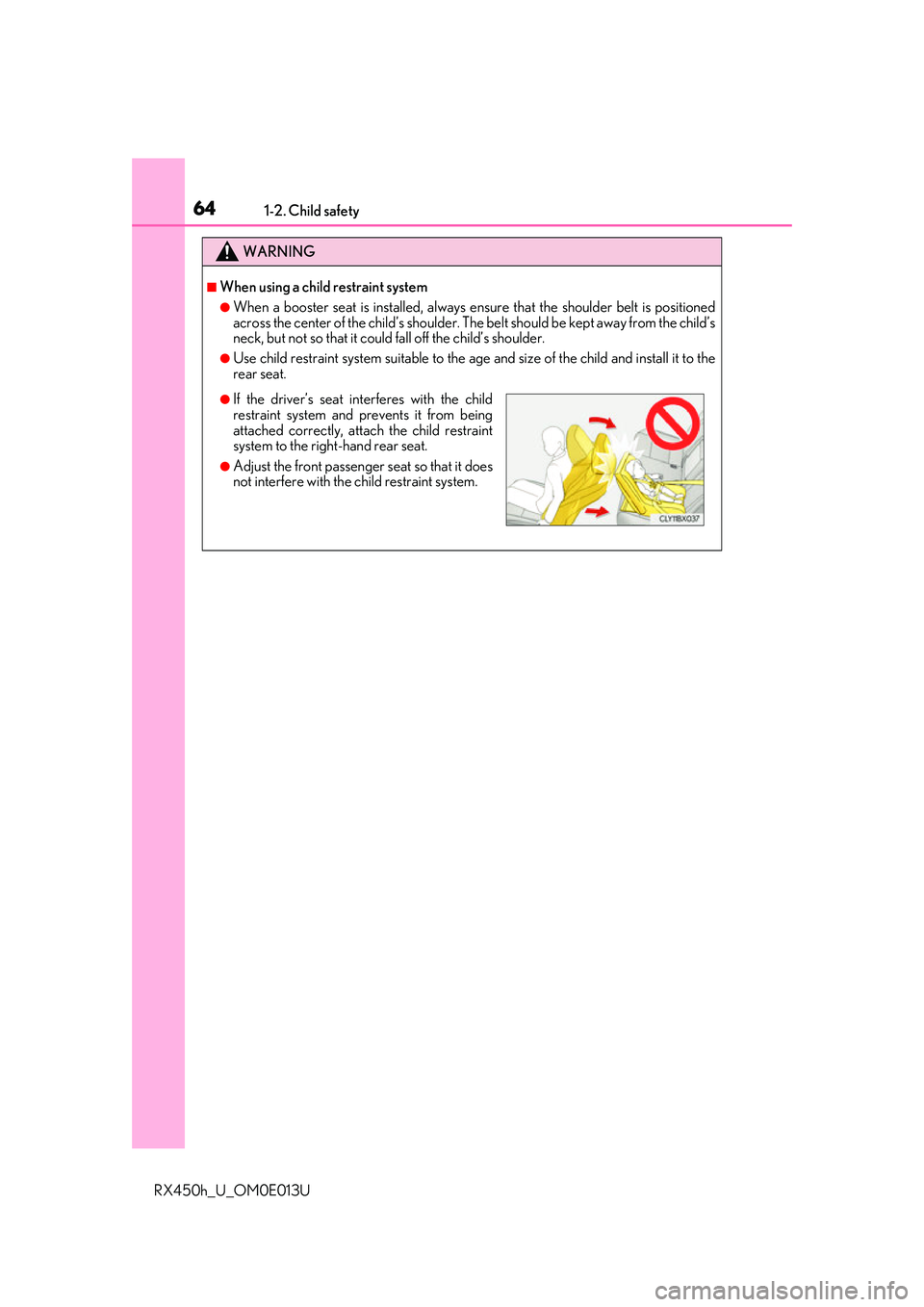

■When using a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is positioned
across the center of the child’s shoulder. The belt should be kept away from the child’s
neck, but not so that it could fall off the child’s shoulder.
●Use child restraint system suitab le to the age and size of the child and install it to the
rear seat.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, atta ch the child restraint
system to the right-hand rear seat.
●Adjust the front passenger seat so that it does
not interfere with the child restraint system.

92
RX450h_U_OM0E013U2. Instrument cluster
Except F SPORT models
F SPORT models
The units used on the meter and some indicators may differ depending on the target
region.
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration displays all warning
lights and indicators illuminated.

932. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U

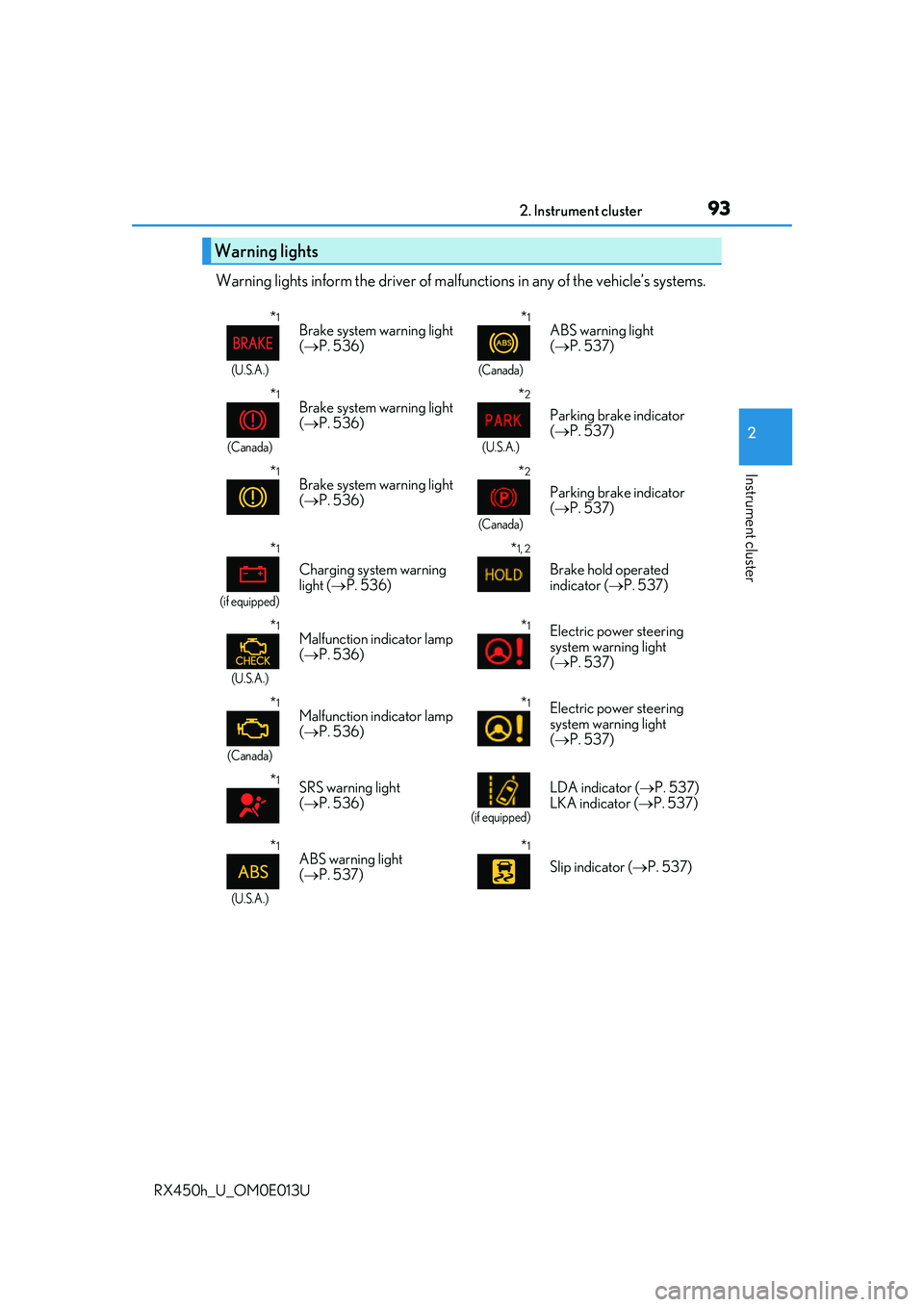

Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning light
( P. 536)*1
(Canada)
ABS warning light
( P. 537)
*1
(Canada)
Brake system warning light
( P. 536)*2
(U.S.A.)
Parking brake indicator
( P. 537)
*1Brake system warning light
( P. 536)*2
(Canada)
Parking brake indicator
( P. 537)
*1
(if equipped)
Charging system warning
light ( P. 536)
*1, 2
Brake hold operated
indicator ( P. 537)
*1
(U.S.A.)
Malfunction indicator lamp
( P. 536)*1Electric power steering
system warning light
( P. 537)
*1
(Canada)
Malfunction indicator lamp
( P. 536)*1Electric power steering
system warning light
( P. 537)
*1SRS warning light
( P. 536)
(if equipped)
LDA indicator ( P. 537)
LKA indicator ( P. 537)
*1
(U.S.A.)
ABS warning light
( P. 537)*1
Slip indicator ( P. 537)

942. Instrument cluster
RX450h_U_OM0E013U
*1: These lights turn on when the power switch is turned to ON mode to indicate that a system check is being performe d. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunctio n in a system if the lights do not turn on,
or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
The indicators inform the driver of the op erating state of the vehicle’s various sys-
tems.
*1, 2
(if equipped)
PCS warning light
(  P. 538)*1Tire pressure warning light
( P. 538)
Low fuel level warning light
(  P. 538)
*1Master warning light
( P. 538)
Seat belt reminder light
(  P. 538)
Indicators
Turn signal indicator
( P. 244) Cruise control indicator
(
 P. 311, 323, 335)
(U.S.A.)
Headlight indicator
( P. 251)
(if equipped)
Radar cruise control
indicator ( P. 311, 323)
(Canada)
Tail light indicator
( P. 251) Cruise control “SET”
indicator
(
 P. 311, 323, 335)
Headlight high beam
indicator ( P. 252)
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)
*1
(if equipped)
Automatic High Beam
indicator (P. 255)
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)
Fog light indicator
(  P. 259)
*4
(if equipped)
LDA indicator ( P. 302)
LKA indicator ( P. 292)

982. Instrument cluster
RX450h_U_OM0E013U
Engine coolant temperature gauge
Displays the engine coolant temperature
Hybrid System Indicator
Displays hybrid system power ou tput or regeneration level (P. 100)
This display changes to a tachometer depending on the drive mode, and can be set
to show the tachometer in any driv e mode on the settings display. (P. 109)
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to 122°F
(50°C). Low outside temperature indicator comes on when the ambient tempera-
ture is 37°F (3°C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 102)
Displays warning messages in case of a malfunction ( P. 543)
Clock
Time displayed is linked to the analog clock on the instrument panel. ( P. 433)
Speedometer
Fuel gauge
Shift position display
( P. 239)
Odometer and trip meter ( P. 115)
1
2
3
4
5
6
7
8
9

1022. Instrument cluster
RX450h_U_OM0E013U
The multi-information display presents the driver with a variety of driving-related
data, such as the current outside temperature. The multi-information display can
also be used to change the display settings and other settings.
Except F SPORT models
Menu icon display area
Displays the following items.
When a menu icon is not selected, the outside temperature and clock are displayed. •Menu icons ( P. 105)
• Outside temperature ( P. 97)
•Clock ( P. 97)
Content display area
A variety of information can be displayed by selecting a menu icon. Additionally,
warning or suggestion/advice pop-up displa ys will be displayed in some situations.
• Menu icon content ( P. 105)
• Suggestion function ( P. 116)
• Warning message ( P. 543)
Indicator/shift position display area
Displays the following items:
•Indicators ( P. 92)
• Shift position display ( P. 239)
Multi-information display
Summary of functions
1
2
3

1072. Instrument cluster
2
Instrument cluster
RX450h_U_OM0E013U
*1:Resetting: P. 104
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not be
updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.
■Energy monitor
 P. 124
■Sway warning (if equipped)
Detects the sway of the vehicle within a lane, which is often associated with a
decrease in the driver’s at tention level, and displays the decrease in attention
using a bar display.
The shorter the bar length, the more the driver may need to rest.
This display is a part of the LDA (Lane Departure Alert with steering control)/LKA
(Lane-Keeping Assist) system. The display is enabled when the operating condi-
tions of the vehicle sway warning are met. ( P. 292, 302)
■ AWD Control (if equipped)
Displays the driving force applie d to each wheel using segments.
The greater the number of segments di splayed, the greater the driving force
applied.
