2016 LEXUS RC F automatic

3
1
9 8
7 5 4
3
2
10
RC350_RC300_RC200t_RC F_U (OM24671U)
6
3-1. Key information Keys ...................................................132
3-2. Opening, closing and locking the doors and trunk
Doors ................................................ 137
Trunk..................................................143
Smart access system with push-button start...................... 148
3-3. Adjusting the seats Front seats.......................................155
Rear seats....................................... 158
Driving position memory......... 160
Head restraints .............................164
3-4. Adjusting the steering wheel and mirrors
Steering wheel .............................. 167
Inside rear view mirror...............169
Outside rear view mirrors......... 171
3-5. Opening, closing the windows and moon roof
Power windows ..............................174
Moon roof ....................................... 178 4-1. Before driving
Driving the vehicle ..................... 184
Cargo and luggage ....................193
Vehicle load limits ........................196
Trailer towing ................................. 197
Dinghy towing .............................. 198
4-2. Driving procedures Engine (ignition) switch.............199
Automatic transmission .......... 205
Turn signal lever ........................... 210
Parking brake ................................. 211
ASC (Active Sound Control) (RC350/RC300/
RC200t) ...................................... 212
ASC (Active Sound Control) (RC F) ............................................213
4-3. Operating the lights and wipers
Headlight switch .......................... 214
Automatic High Beam............... 217
Fog light switch ........................... 222
Windshield wipers and washer ......................................... 223
4-4. Refueling Opening the fuel tank cap .......231
3Operation of each
component4Driving

5
1
9 8
7 5 4
3
2
10
RC350_RC300_RC200t_RC F_U (OM24671U)
6
5-7. Connecting Bluetooth®
Steps for using Bluetooth®
devices .........................................373
Registering a Bluetooth
®
device ...........................................375
Selecting a Bluetooth
®
device ........................................... 376
Connecting a Bluetooth
®
audio player ...............................377
Connecting a Bluetooth
®
phone ........................................... 378
Displaying a Bluetooth
®
device details .............................379
Detailed Bluetooth
®
settings ........................................380
5-8. Bluetooth
® Audio
Listening to Bluetooth
®
Audio ............................................ 381
5-9. Bluetooth
® Phone
Using a Bluetooth
®
Phone...........................................383
Making a call................................385
Receiving a call ...........................388
Speaking on th e phone ........... 389
Using a Bluetooth
®
phone message ........................ 391
Using the steering wheel switches ...................................... 393
Bluetooth
® phone
settings ........................................ 394
5-10. Phonebook Contact settings ......................... 396
Messaging setting ..................... 399 5-11. Bluetooth
®
What to do if...
(Troubleshooting) ...................400
Bluetooth
®................................... 404
5-12. Other function “Information” screen................. 409
USB photo ....................................... 411
Weather information ..................413
Voice command system ............ 414
6-1. Using the air conditioning system
Automatic air conditioning system .......................................... 420
Heated steering wheel/ seat heaters/
seat ventilators ......................... 429
6-2. Using the interior lights Interior lights list ......................... 432• Interior lights.......................... 433
• Personal lights ....................... 434
6-3. Using the storage features List of storage features ............ 435
• Glove box ............................... 436
• Console box .......................... 436
• Cup holders ............................437
Trunk features .............................. 438
6Interior features

21Pictorial index
RC350_RC300_RC200t_RC F_U (OM24671U)
Automatic high beam switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
Windshield wiper de-icer switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 425
Active rear wing switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Odometer/trip meter/trip meter reset button . . . . . . . . . . . . . . . . . P. 95, 102
Instrument panel light control sw itches . . . . . . . . . . . . . . . . . . . . . . . . . P. 96, 103
Intuitive parking assist switch
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 259
BSM (Blind Spot Monitor) main switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 302
ASC switch
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 212
*1: If equipped
*2: For vehicles with a navigation system, refer to “NAVIGATION SYSTEM OWNER’S MANUAL”.
1
2
3
4
5
6
7
8

361-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion w ill allow the belt to extend so that you can
move around fully.
■Automatic locking retractor (ALR)
When a passenger’s shoulder belt is completely extended and then retracted even
slightly, the belt is locked in that position an d cannot be extended. This feature is used to
hold a child restraint system (CRS) firmly. To fr ee the belt again, fully retract the belt and
then pull the belt out once more. ( P. 5 9 )
■Child seat belt usage
The seat belts of your vehicle were princi pally designed for persons of adult size.
●Use a child restraint system appropriate fo r the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. ( P. 5 7 )
●When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regardin g seat belt usage. (P. 3 4 )
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisio ns, the pretensioner will activate for the first
collision, but will not activate for th e second or subsequent collisions.
■Seat belt extender
If your seat belts cannot be fastened securely
because they are not long enough, a personal-
ized seat belt extender is available from your
Lexus dealer free of charge.

461-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)
■If the SRS airbags deploy (inflate)
●Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
front seats, parts of the front and rear pillar s, and roof side rails may be hot for several
minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Lexus Enform Safety Connect subscribers, if the SRS airbags deploy or in the event
of a severe rear-end collision, the system is designed to send an emergency call to the
response center, notifying them of the vehicl e’s location (without needing to push the
“SOS” button) and an agent will attempt to speak with the occupants to ascertain the
level of emergency and assistance required . If the occupants are unable to communi-
cate, the agent automatically treats the call as an emergency and helps to dispatch the
necessary emergency services. ( P. 4 5 5 )
WA R N I N G
■Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer. The SRS airb ags may malfunction or deploy (inflate)
accidentally, causing de ath or serious injury.
●Installation, removal, disassembl y and repair of the SRS airbags
●Repairs, modifications, removal or replac ement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, fr ont, side and rear pillars or roof side rails
●Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
●Installation of a grille gu ard (bull bars, kangaroo bar, etc.), snow plows, winches
●Modifications to the vehicle’s suspension system
●Installation of electronic devices such as mobile two-way radios and CD players
●Modifications to your vehicle for a person with a physical disability

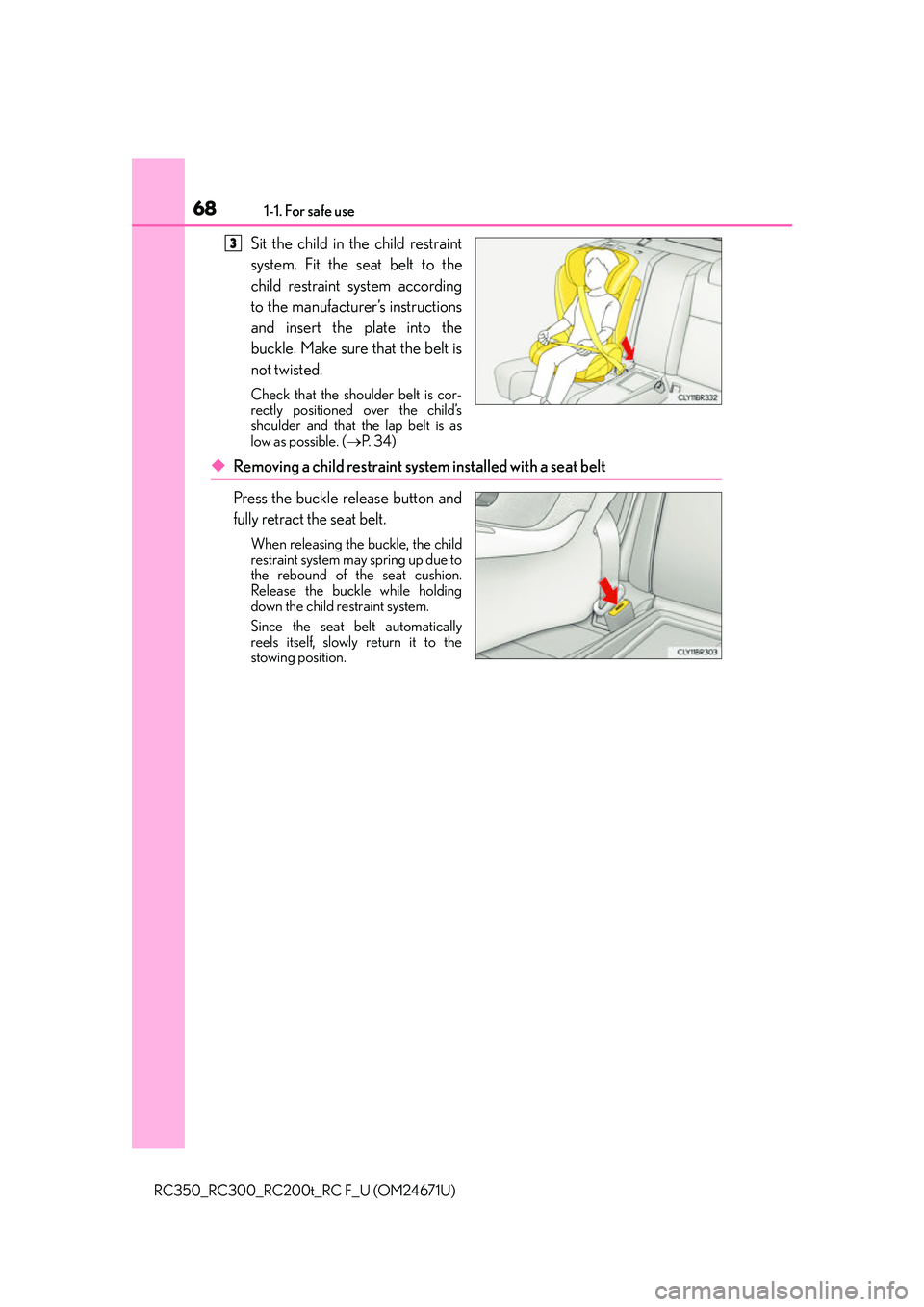

681-1. For safe use
RC350_RC300_RC200t_RC F_U (OM24671U)
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instructions
and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. (P. 3 4 )
◆Removing a child restraint system installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system ma y spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.
3

791-2. Theft deterrent system
1
For safety and security
RC350_RC300_RC200t_RC F_U (OM24671U)
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
●A locked door or trunk is unlocked or opened in any way other than using the
entry function, wireless remote control or mechanical key. (The doors will lock
again automatically.)
●The hood is opened.
Close the doors, trunk and hood, and
lock both side doors. The system will be
set automatically after 30 seconds.
The indicator light changes from being
on to flashing when the system is set.
Do one of the following to de activate or stop the alarms:
●Unlock the doors or open the trunk.
●Turn the engine switch to ACCESSORY or IGNITION ON mode, or start
the engine. (The alarm will be deactivat ed or stopped after a few seconds.)
Alarm
The alarm
Setting the alarm system
Deactivating or stopping the alarm

801-2. Theft deterrent system
RC350_RC300_RC200t_RC F_U (OM24671U)
■System maintenance
The vehicle has a maintenance-free type alarm system.
■Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the follow-
ing:
●Nobody is in the vehicle.
●The windows and moon roof (if equipped) are closed before the alarm is set.
●No valuables or other personal items are left in the vehicle.
■Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
■Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
●When a person remaining in the vehicle unlocks the door and the alarm is activated.
●While the alarm is activated, a person re maining in the vehicle unlocks the door.
●When recharging or replacing the battery
●A person inside the vehicle opens a door, the
trunk or hood, or unlocks the vehicle using a
inside lock button.
●The battery is recharged or replaced when the
vehicle is locked. (P. 6 0 6 )
NOTICE
■To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
