SRS airbag system components
Knee airbags
Curtain shield airbags
Front passenger airbag
Side impact sensors (front door)
Front side airbags
SRS warning light and “RSCA OFF”
indicator light
Side impact sensors (rear)
Rear side airbags (second outboard
seat)
Driver airbag
Driver’s seat belt buckle switch
Safing sensor (rear) Airbag sensor assembly
Front impact sensors
Seat belt pretensioners and force
limiters (front seats)
Driver’s seat position sensor
“RSCA OFF” switch
“AIR BAG ON” and “AIR BAG
OFF” indicator lights
Front passenger’s seat belt buckle
switch
Front passenger occupant classifi-
cation system (ECU and sensors)
Seat belt pretensioners (second
outboard seats)1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20

511-1. For safe use
LX570_OM_OM60N01U_(U)
1
For safety and security

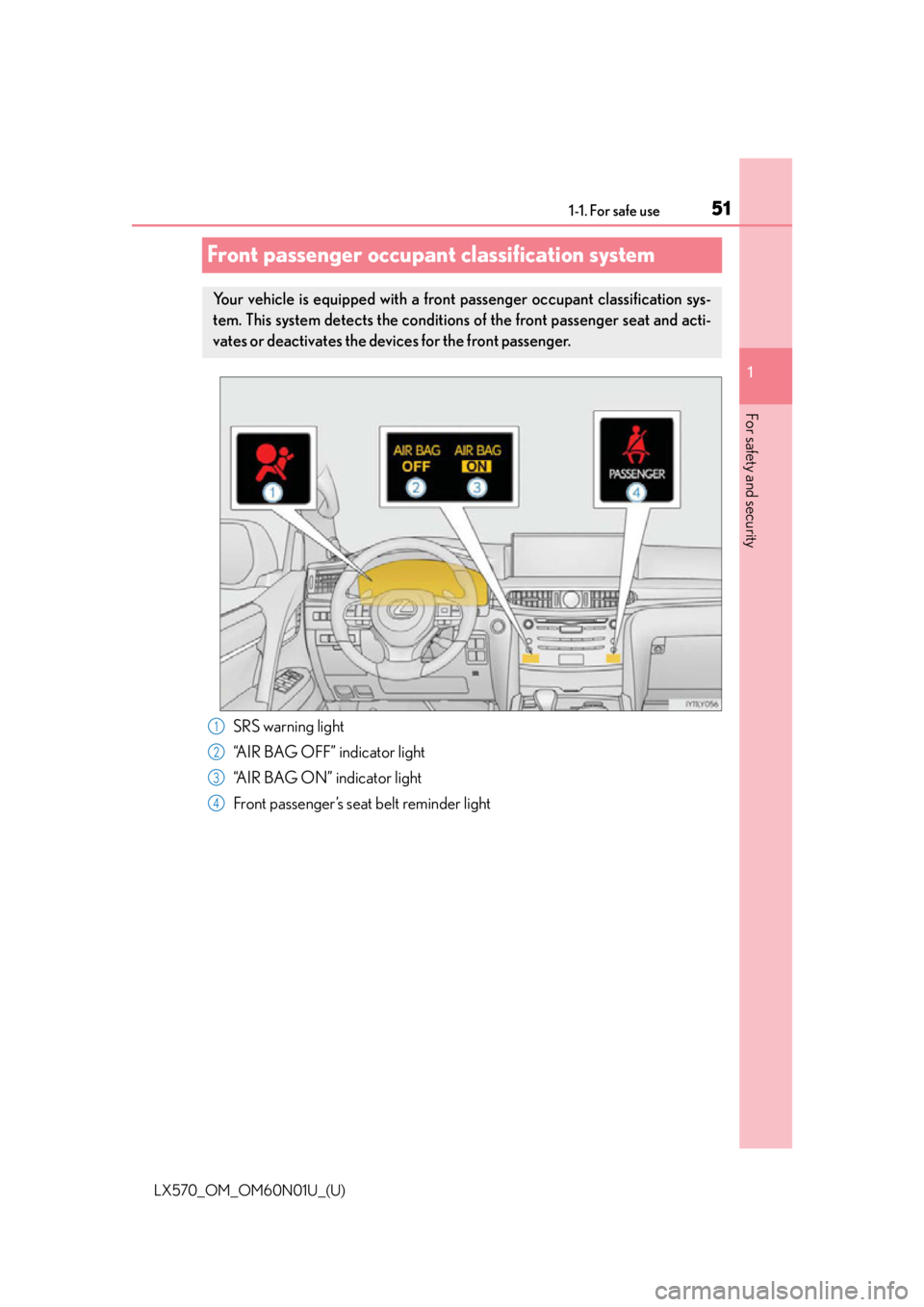

Front passenger occupant classification system
SRS warning light
“AIR BAG OFF” indicator light
“AIR BAG ON” indicator light
Front passenger’s seat belt reminder light
Your vehicle is equipped with a front passenger occupant classification sys-
tem. This system detects the conditions of the front passenger seat and acti-
vates or deactivates the devices for the front passenger.
1
2
3
4

521-1. For safe use
LX570_OM_OM60N01U_(U)
■Adult*1
■Child*4 or child restraint system with infant*5
Condition and operation in the front passenger occupant classification
system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lights“A I R B A G O N ”
SRS warning lightOff
Front passenger’s seat belt reminder lightOff*2 or flashing*3
Devices
Front passenger airbag
Activated
Side airbag
on the front passenger seat
Curtain shield airbag
in the front passenger side
Front passenger knee airbag
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ”
indicator lights“AIR BAG OFF”*6
SRS warning lightOff
Front passenger’s seat belt reminder lightOff*2 or
flashing
*3
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated

531-1. For safe use
LX570_OM_OM60N01U_(U)
1
For safety and security
■Unoccupied
■There is a malfunction in the system
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lightsNot illuminated
SRS warning light
Off
Front passenger’s seat belt reminder light
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbag
Deactivated
Front passenger’s seat belt pretensioner
Indicator/
warning light
“A I R B A G O N ” a n d “A I R B A G O F F ” indicator lights“A I R B A G O F F ”
SRS warning lightOn
Front passenger’s seat belt reminder lightOff
Devices
Front passenger airbagDeactivated
Side airbag
on the front passenger seat
ActivatedCurtain shield airbag
in the front passenger side
Front passenger knee airbagDeactivated
Front passenger’s seat belt pretensionerActivated

561-1. For safe use
LX570_OM_OM60N01U_(U)
WA R N I N G
■Front passenger occupant classification system precautions
●Do not recline the front passenger seatback so far that it touches the rear seat. This
may cause the “AIR BAG OFF” indicator light to be illuminated, which indicates that
the SRS airbags for the front passenger will no t activate in the event of a severe acci-
dent. If the seatback touches the rear seat, return the seatback to a position where it
does not touch the rear seat. Keep the fron t passenger seatback as upright as possi-
ble when the vehicle is moving. Reclining the seatback excessively may lessen the
effectiveness of the seat belt system.
●If an adult sits in the front passenger seat , the “AIR BAG ON” indicator light is illumi-
nated. If the “AIR BAG OFF” indicator is illuminated, ask the passenger to sit up
straight, well back in the seat, feet on the floor, and with the seat belt worn correctly. If
the “AIR BAG OFF” indicator still remains illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the front passenger seat fully
rearward.
●When it is unavoidable to install a forward- facing child restraint system on the front
passenger seat, install the child restraint sy stem on the front passenger seat in the
proper order. ( P. 6 3 )
●Do not modify or remove the front seats.
●Do not kick the front passenger seat or subj ect it to severe impact. Otherwise, the
SRS warning light may come on to indicat e a malfunction of the front passenger
occupant classification system. In this ca se, contact your Lexus dealer immediately.
●Child restraint systems installed on the second seat should not contact the front seat-
backs.
●Do not use a seat accessory, such as a cu shion and seat cover, that covers the seat
cushion surface.
●Do not modify or replace the upholstery of the front seat.

81
LX570_OM_OM60N01U_(U)
Instrument cluster2
2. Instrument clusterWarning and indicators lights ................................................ 82
Gauges and meters .....................88
Multi-information display ........... 91
Head-up display .......................... 100
Fuel consumption information ................................. 105
