Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s various sys-
tems.
Indicators
Turn signal indicator
( P. 2 1 6 )
(if equipped)
“LDA” (Lane Departure
Alert) indicator ( P. 2 6 3 )
(U.S.A.)
Headlight indicator
( P. 220)*1, 2
Slip indicator ( P. 3 8 0 )
(Canada)
Tail light indicator
( P. 220) *1VSC OFF indicator
( P. 3 8 0 )
Headlight high beam
indicator ( P. 221)
(if equipped)
Multi-terrain Select
indicator ( P. 3 1 4 )
(if equipped)
Automatic High Beam
indicator ( P. 2 2 4 )
*1
(if equipped)
Crawl Control indicator
( P. 3 0 9 )
(if equipped)
Fog light indicator
( P. 2 2 9 )*1, 3“RSCA OFF” indicator
( P. 5 0 )
*1Eco Driving Indicator
Light ( P. 8 7 ) Automatic transmission
second start indicator
(
 P. 2 1 0 )
Cruise control indicator
(  P. 2 8 3 , 2 7 1 ) Low speed four-wheel
drive indicator light
(
 P. 3 0 5 )
Cruise control “SET”
indicator ( P. 2 8 3 , 2 7 1 ) Center differential lock
indicator (
P. 3 0 6 )
(if equipped)
Dynamic radar cruise
control indicator
( P. 2 7 1 )*1Easy access mode
indicator ( P. 2 9 7 )

86
LX570_OM_OM60N01U_(U)2. Instrument cluster
*1: These lights turn on when the engine switch is turned to IGNITION ON mode to
indicate that a system check is being perfor med. They will turn off after the engine is
on, or after a few seconds. There may be a malfunction in a system if the lights do not
turn on, or turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off.
*4: In order to confirm operation, the BSM outs ide rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the system is set to on.
• When the system is set to on while the engine switch is in IGNITION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicat ors do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*5: This light illuminates on the outside rear view mirrors.
*6: This light illuminates on the center panel.
*7: When the outside temperature is approximately 37 F (3 C) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
(if equipped)
Intuitive parking assist
indicator ( P. 2 8 9 ) Turn Assist function
indicator (
P. 3 0 9 )
*1, 3
(if equipped)
PCS warning light
( P. 2 5 0 )
(U.S.A.)
Parking brake indicator
( P. 2 1 7 )
(if equipped)
BSM (Blind Spot Monitor)
indicator ( P. 3 6 5 )
(Canada)
Parking brake indicator
( P. 2 1 7 )
*4, 5
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 3 6 5 ) TRAC OFF indicator
(
 P. 3 8 0 )
(if equipped)
RCTA (Rear Cross Traffic
Alert) indicator ( P. 3 7 3 )*7Low outside temperature
indicator ( P. 88)
*6“A I R B A G O N /
OFF” indicator
( P. 5 1 )

LX570_OM_OM60N01U_(U)
872. Instrument cluster
2
Instrument cluster
■Eco Driving Indicator Light
●The vehicle is set to second start mode. (P. 2 1 0 )
●The vehicle is set to sport mode or customized mode. ( P. 2 8 6 )
●The vehicle speed is approximately 81 mph (130 km/h) or higher.
●The Crawl Control is operating. ( P. 3 0 9 )
●The paddle shift switch (i f equipped) is operating.
During Eco-Friendly acceleration operation
(Eco driving), Eco Driving Indicator Light will
turn on. When the acceleration exceeds Zone
of Eco driving (
P. 98), or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Light will not operate in
the following conditions:
●The shift lever is in any position other than D.
WA R N I N G
■If a safety system warning light does not come on
Should a safety system light such as the Multi Terrain ABS and the SRS warning light
not come on when you start the engine, this could mean that these systems are not
available to help protect you in an accide nt, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.

98
LX570_OM_OM60N01U_(U)2. Instrument cluster
■Eco Driving Indicator
■When disconnecting and reco
nnecting battery terminals
The drive information will be reset (o nly items that can be reset manually).
■Pop-Up display
The pop-up display is displayed on the multi- information display according to the operat-
ing conditions of the following functions:
●Route guidance display of the navigation system-linked system (if equipped)
●Incoming call display of the hands-free phone system (if equipped)
The pop-up display function can be disabled. ( P. 9 6 )
■Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the engine switch is
turned to IGNITION ON mode. It may also take a few minutes to display the tire infla-
tion pressure after inflation pressure has been adjusted.
●“---” may be displayed if the tire information cannot be determined due to unfavorable
radio wave conditions.
●Tire inflation pressure changes with temperat ure. The displayed values may also be dif-
ferent from the values measured using a tire pressure gauge.
■When setting up the display
Stop the vehicle in a safe place, apply the pa rking brake, and shift the shift lever to P.
■Suspension of the settings display
In the following situations, the settings display using the meter control switches will be
suspended.
●When a warning message appears on the multi-information display
●When the vehicle begins to move
■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is characteristic
of liquid crystal displays, and there is no problem continuing to use the display.
Eco Driving Indicator Light (
P. 8 7 )
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco driv-
ing, the right side of Eco Driving Indicator
Zone Display will illuminate.
Zone of Eco driving
1
2
3
4

106
LX570_OM_OM60N01U_(U)2. Instrument cluster
Press the “MENU” button on the Remote Touch, then select “Info” on the “Menu”
screen, and then select “Fuel Consumption”.
■Trip information
If the “Past Record” screen is displayed, select “Trip Information”.
Resetting the consumption data
Fuel consumption in the past 15
minutes
Current fuel consumption
Average vehicle speed since the
engine was started.
Elapsed time since the engine
was started.
Cruising range ( P. 1 0 7 )
Average fuel consumption for the past 15 minutes is divided by color into past
averages and averages attained since the engine switch was last turned to IGNI-
TION ON mode. Use the displayed average fuel consumption as a reference.
The image is an example only, and may vary slightly from actual conditions.
Fuel consumption
1
2
3
4
5
6

LX570_OM_OM60N01U_(U)
1113-1. Key information
3
Operation of each component

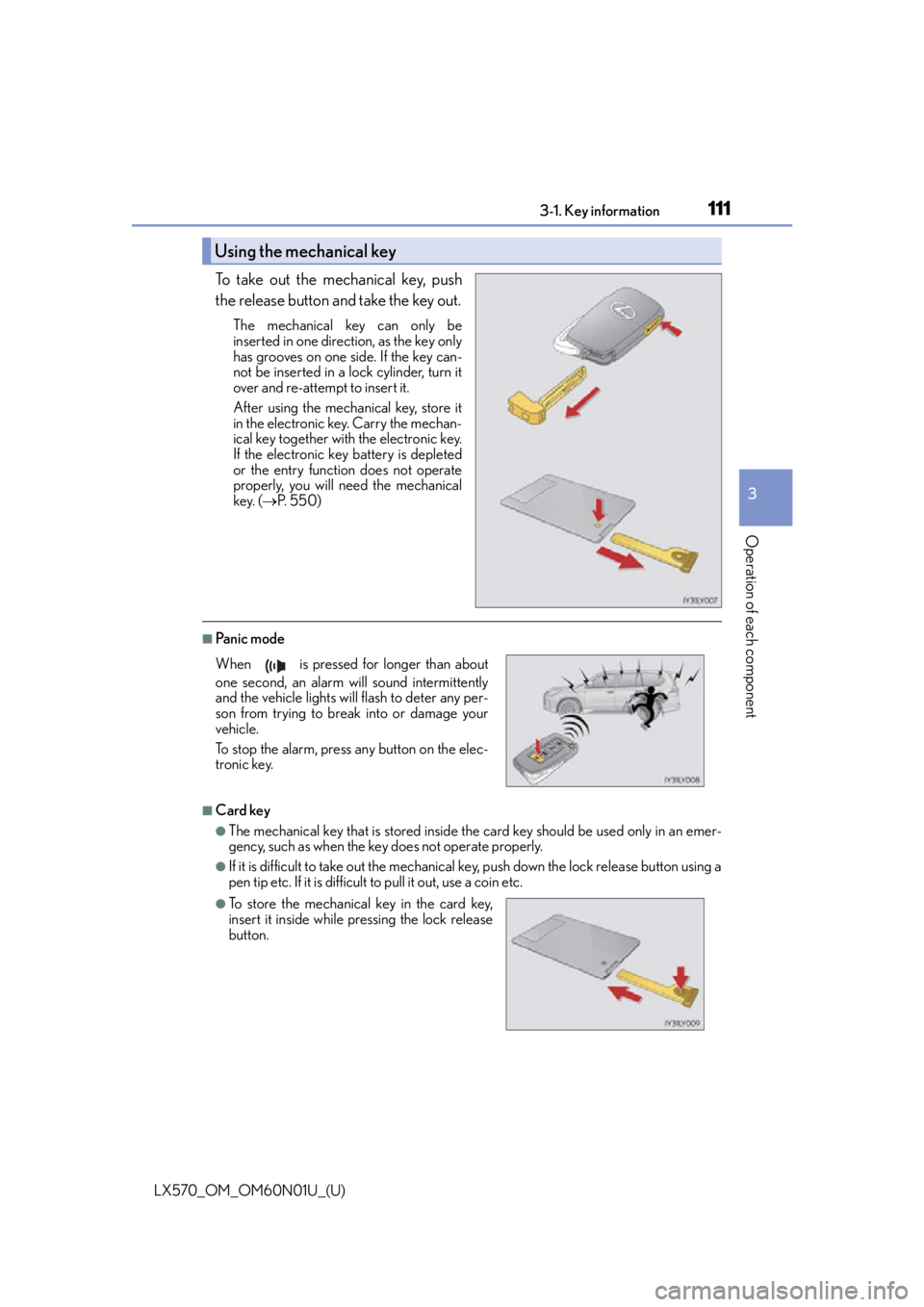

To take out the mechanical key, push
