3964-5. Using the driving support systems
LS460/LS460L_GE (OM50G06E)
CAUTION
■Before using the Lexus night view
Never depend on this system only.
Lexus night view is intended as a supplemental aid to help you see pedestrians and
road conditions ahead of the vehicle. As there are limits to the system, do not rely
solely on the system while in use, and drive safely while observing the following
precautions.
■When using the Lexus night view
Observe the following precautions.
Failure to do so may cause an accident resulting in death or serious injury.
●Never drive while looking at the Lexus night view screen only.
●Do not look continuously at the Lexus ni ght view screen while driving. Pedestri-
ans, objects etc. ahead of the vehicle may be overlooked by the system. The sys-
tem should always be used as a supplemental aid only.
●Lexus night view is designed to help you see objects better when driving in dark-
ness on a road with few curves. Do not use the Lexus night view in well-lit areas or
on roads with many curves or slopes. There may be areas that cannot be dis-
played by the system due to the road conditions (curve size, gradient, etc.)
●Lexus night view may be unable to project some features at an appropriate level
of brightness. Some or all parts of certain features may be dark or difficult to see.
Do not rely solely on the Lexus night view, and drive carefully while checking the
surroundings for safety, as you would with a normal vehicle. Also, the following
features and conditions may not be displayed clearly.
Features that are difficult to display:
• Clothing of a pedestrian made of a certain kind of material (ex. leather jackets)
• The characters on signs and billboards
• The information on road signs
Conditions in which display is difficult:
• Unfavorable weather conditions such as rain, fog, snowfall, snow storms etc.
• There are large puddles of water on the road surface following rainfall
• The area of the windshield in front of the camera is fogged up, dirty or icy
• The areas around the headlights are covered with ice, snow, mud etc.
• The battery voltage is remarkably low
• There are bright lights ahead of the vehicle

3974-5. Using the driving support systems
4
Driving
LS460/LS460L_GE (OM50G06E)
CAUTION

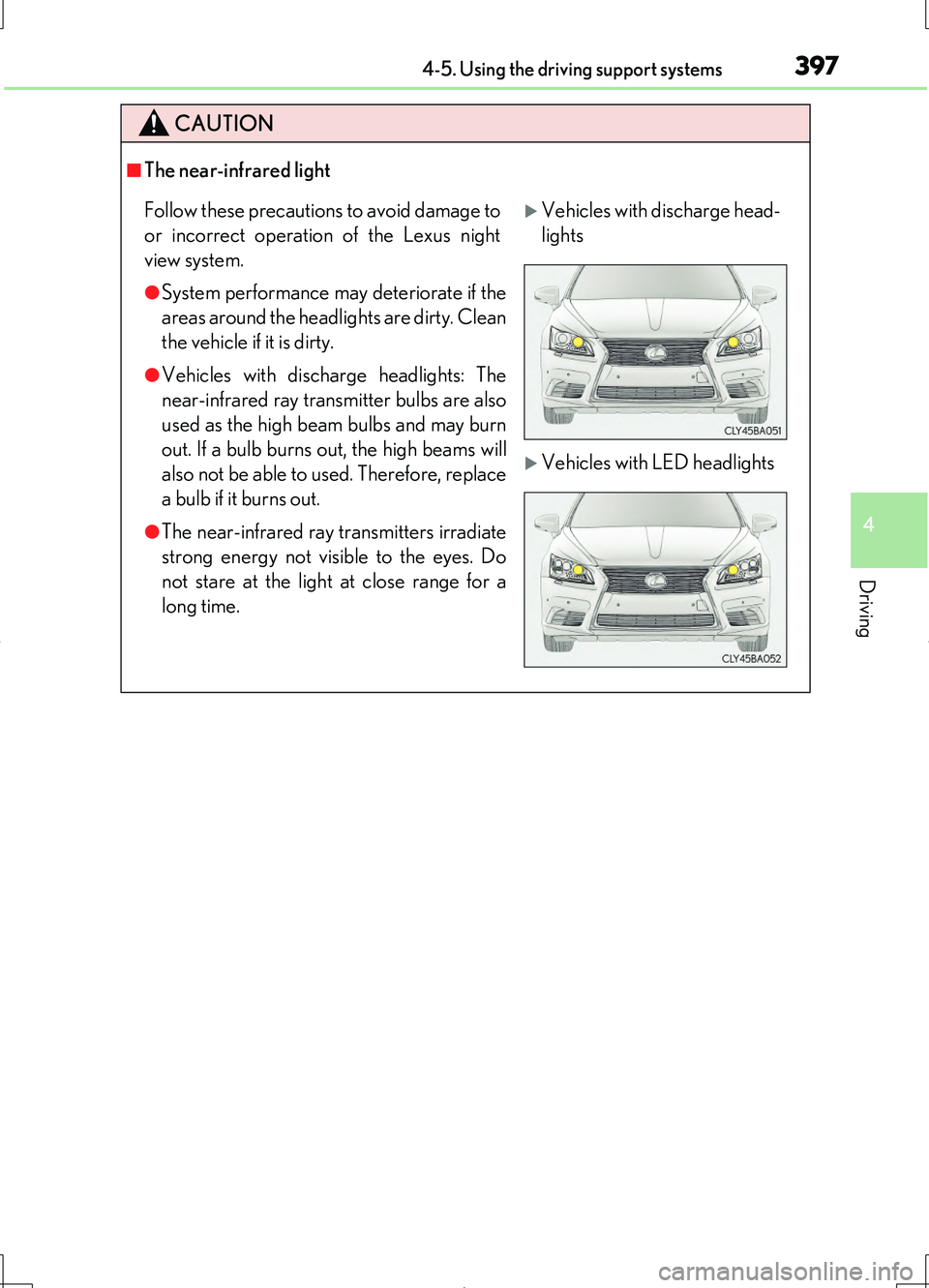

■The near-infrared light
Follow these precautions to avoid damage to
or incorrect operation of the Lexus night
view system.
●System performance may deteriorate if the
areas around the headlights are dirty. Clean
the vehicle if it is dirty.
●Vehicles with discharge headlights: The
near-infrared ray transmitter bulbs are also
used as the high beam bulbs and may burn
out. If a bulb burns out, the high beams will
also not be able to used. Therefore, replace
a bulb if it burns out.
●The near-infrared ray transmitters irradiate
strong energy not visible to the eyes. Do
not stare at the light at close range for a
long time.
Vehicles with discharge head-
lights
Vehicles with LED headlights

5856-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)
Vehicles with discharge headlights
Headlight high beams or high beam/near-infrared ray transmitters
Rear fog lights (if equipped)
Vehicles with LED headlights
Rear fog lights (if equipped)

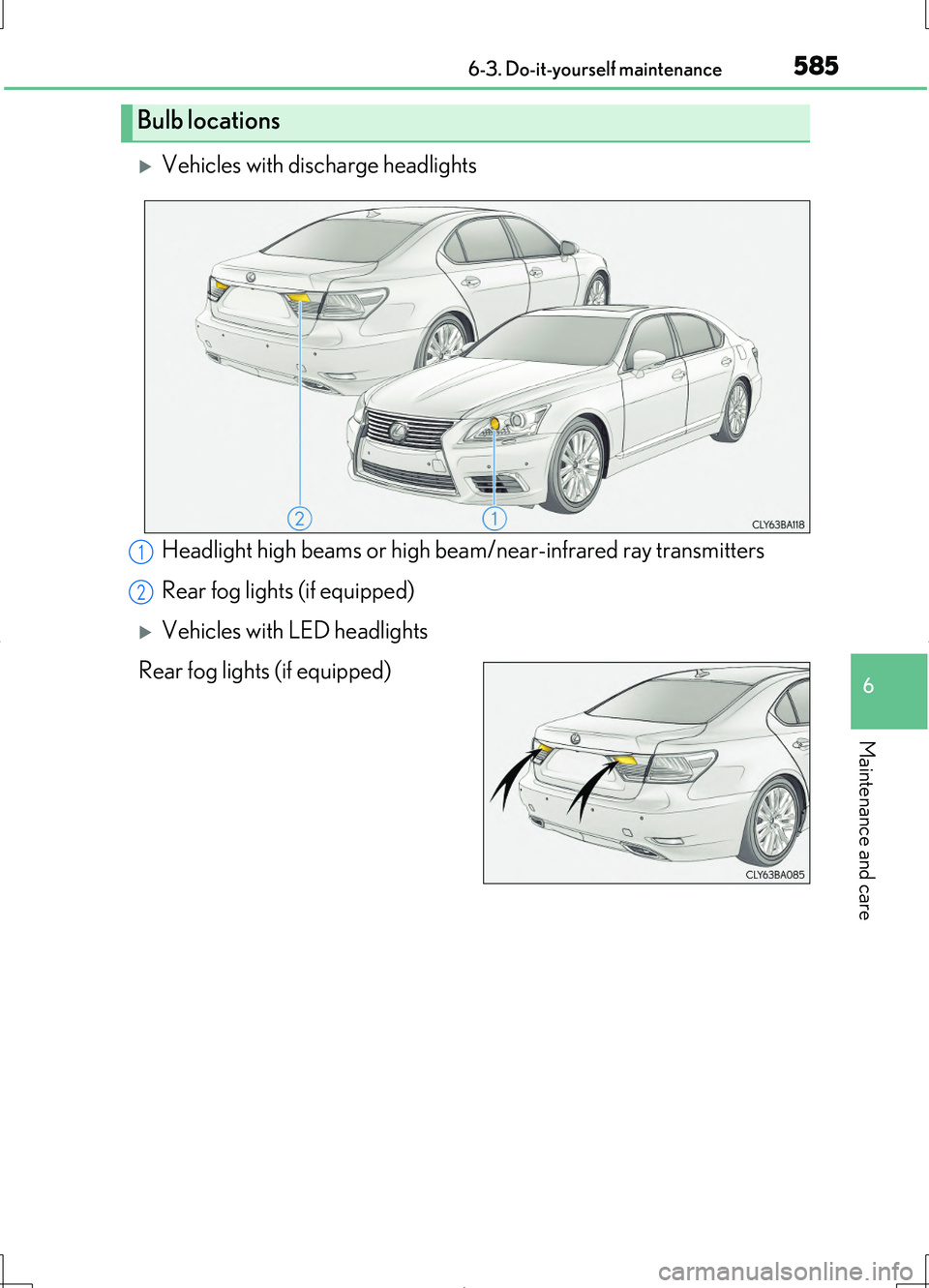

Bulb locations
1
2

5866-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Headlight high beams or high beam/near-infrared ray transmitters
(vehicles with discharge headlights)
Remove the engine compartment covers. ( P. 541)
Before replacing the bulbs:
Left side
Remove the securing bolt, and
remove the washer fluid filler
opening.
Right side
Remove the securing bolts and
nut, and move the fuse block.
Replacing light bulbs
1
2

5886-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
Replace the light bulb, and
install the bulb base.
Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base.
Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.
Install the cover and turn it
clockwise.
Install by performing the reverse of .
Install the engine compartment covers.
6
7
8
92
10

5906-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
■Replacing the following bulbs
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
●Front position lights and daytime running lights
●Front turn signal lights
●Front fog lights
●Side turn signal lights
●Outer foot lights
●Tail lights
●Stop lights
●Back-up lights
●Rear turn signal lights
●High mounted stoplight
●License plate lights
Vehicles with discharge headlights
●Headlight low/high beams
Vehicles with LED headlights
●Headlight low beams
●Headlight low/high beams
●Headlight high beams (vehicles without near-infrared ray transmit-
ters)
■Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may go
out temporarily. The discharge bulbs will come on when normal power is restored.

5916-3. Do-it-yourself maintenance
6
Maintenance and care
LS460/LS460L_GE (OM50G06E)

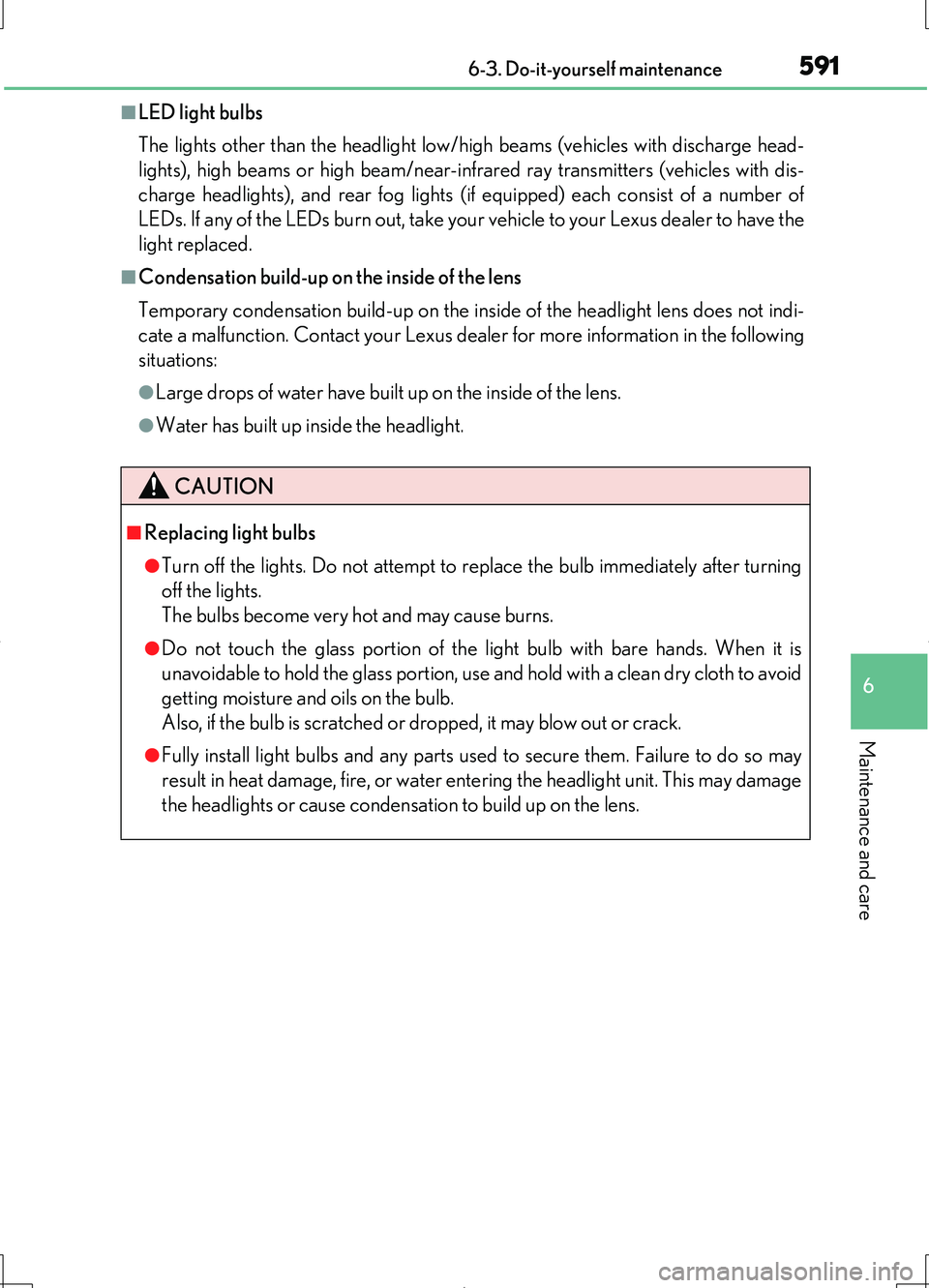

■LED light bulbs
The lights other than the headlight low/high beams (vehicles with discharge head-
lights), high beams or high beam/near-infrared ray transmitters (vehicles with dis-
charge headlights), and rear fog lights (if equipped) each consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the
light replaced.
■Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does not indi-
cate a malfunction. Contact your Lexus de aler for more information in the following
situations:
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth to avoid
getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failure to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.

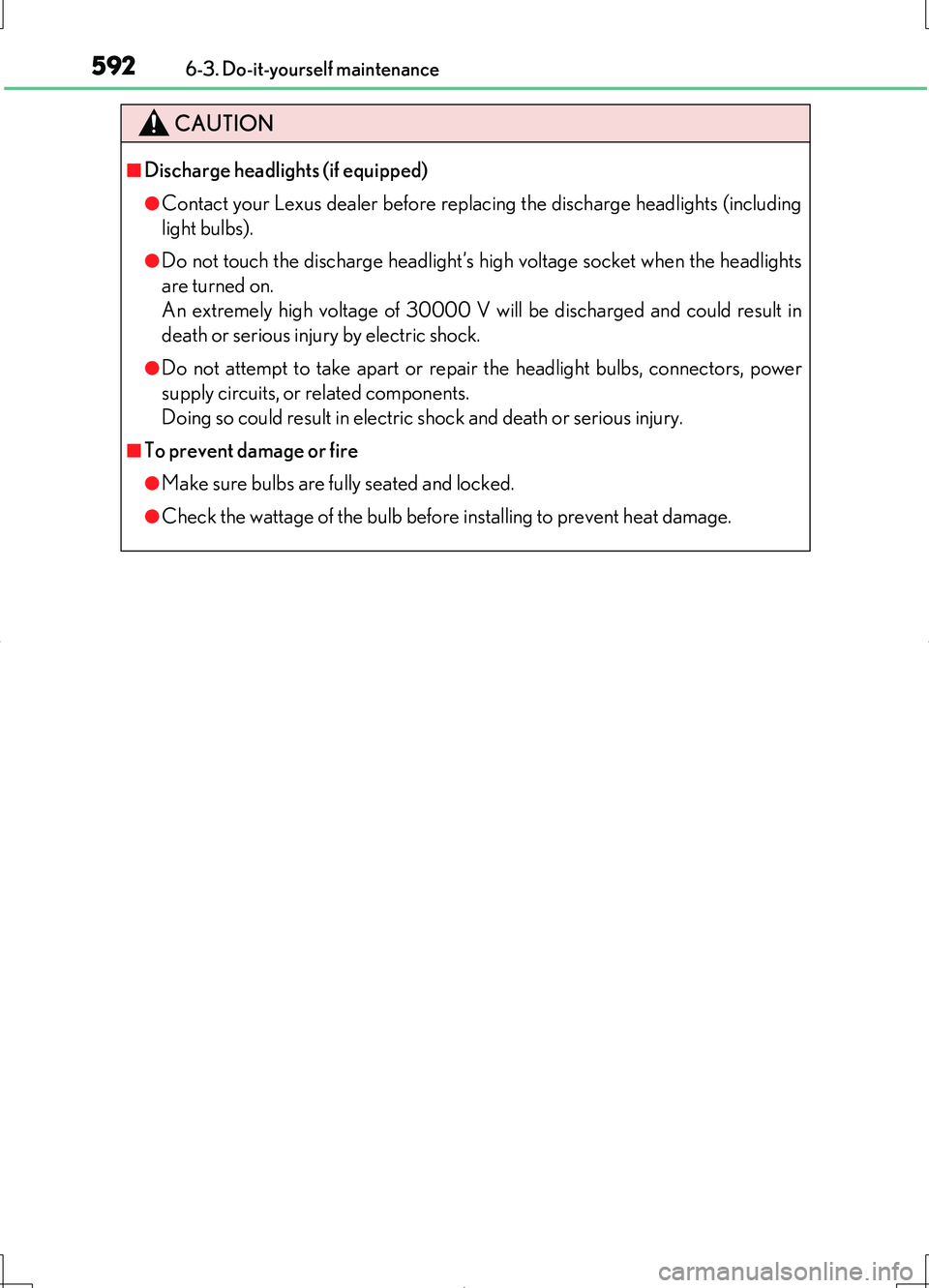

5926-3. Do-it-yourself maintenance
LS460/LS460L_GE (OM50G06E)
CAUTION
■Discharge headlights (if equipped)
●Contact your Lexus dealer before replacing the discharge headlights (including
light bulbs).
●Do not touch the discharge headlight’s high voltage socket when the headlights
are turned on.
An extremely high voltage of 30000 V will be discharged and could result in
death or serious injury by electric shock.
●Do not attempt to take apart or repair the headlight bulbs, connectors, power
supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■To prevent damage or fire
●Make sure bulbs are fully seated and locked.
●Check the wattage of the bulb before installing to prevent heat damage.
