2016 LEXUS LS460L key

1473-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■If you lose your mechanical keys
New genuine mechanical keys can be made by your Lexus dealer using the other
mechanical key and the key number stamped on your key number plate. Keep the
plate in a safe place such as your wallet, not in the vehicle.
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■Certification for the card key
For vehicles sold in Korea

1483-1. Key information
LS460/LS460L_GE (OM50G06E)
For vehicles sold in Republic of Serbia
- Replace only with the same or equivalent type recommended by the manufac-
turer.
- Dispose of used batteries according to the local laws.

1493-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

1503-1. Key information
LS460/LS460L_GE (OM50G06E)

1513-1. Key information
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
NOTICE
■To prevent key damage
●Do not drop the keys, subject them to strong shocks or bend them.
●Do not expose the keys to high temperatures for a long period of time.
●Do not get the keys wet or wash them in an ultrasonic washer etc.
●Do not attach metallic or magnetic materials to the keys or place the keys close to
such materials.
●Do not disassemble the keys.
●Do not attach a sticker or anything else to the surface of the electronic key.
●Do not place the keys near objects that produce magnetic fields, such as TVs,
audio systems and induction cookers, or medical electrical equipment, such as
low-frequency therapy equipment.
■Handling the electronic keys
●Observe the following to prevent deterioration, changes in shape and damage to
the leather area.
• Do not carry the electronic key together with hard objects, such as other keys
or accessories.
• Do not expose the electronic keys to direct sunlight or interior light for
extended periods of time.
• Do not place the electronic key on items made of vinyl, plastic or that contain
wax.
They may stick to the leather surface if the items become warm.
• Do not get the electronic key wet.
Even if the electronic gets slightly wet, dry it with a soft cloth and let it dry in the
shade.
• Do not touch the electronic key with hands that have oil, medicine, hand
cream or perfume on them.
• When cleaning, do not use a leather cleaner, solvents or leather filling agents.
●Because the leather portion is dyed, if the electronic key touches clothing while it
has sweat and moisture adhered to it, there is a possibility that the clothing may
change color.

1523-1. Key information
LS460/LS460L_GE (OM50G06E)
NOTICE
■In case of a smart entry & start system malfunction or other key-related problems
Take your vehicle with all the electronic keys provided with your vehicle, including
the card key, to your Lexus dealer.
■When an electronic key is lost
If the electronic key remains lost, the risk of vehicle theft increases significantly.
Visit your Lexus dealer immediately with all remaining electronic keys and the card
key that was provided with your vehicle.
■Handling the card key
●Do not apply excess force when inserting the mechanical key into the card key.
Doing so may damage the card key.
●If the battery or card key terminals get wet, the battery may corrode.
If the key is dropped into water, or if drinking water etc. is spilled on the key,
immediately remove the battery cover and wipe the battery and terminals. (To
remove the battery cover, lightly grasp and pull it.) If the battery is corroded, have
your Lexus dealer replace the battery.
●Do not crush the battery cover or use a screwdriver to remove the battery cover.
Forcibly removing the battery cover may bend or damage the key.
●If the battery cover is frequently removed, the battery cover may become loose.
●When installing the battery, make sure to check the direction of the battery.
Installing the battery in the wrong direction may cause the battery to deplete rap-
idly.
●The surface of the card key may be damaged, or its coating may peel off in the
following situations:
• The card key is carried together with hard objects, such as coins and keys.
• The card key is scraped with a sharp object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped with thinner or benzene.

153
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

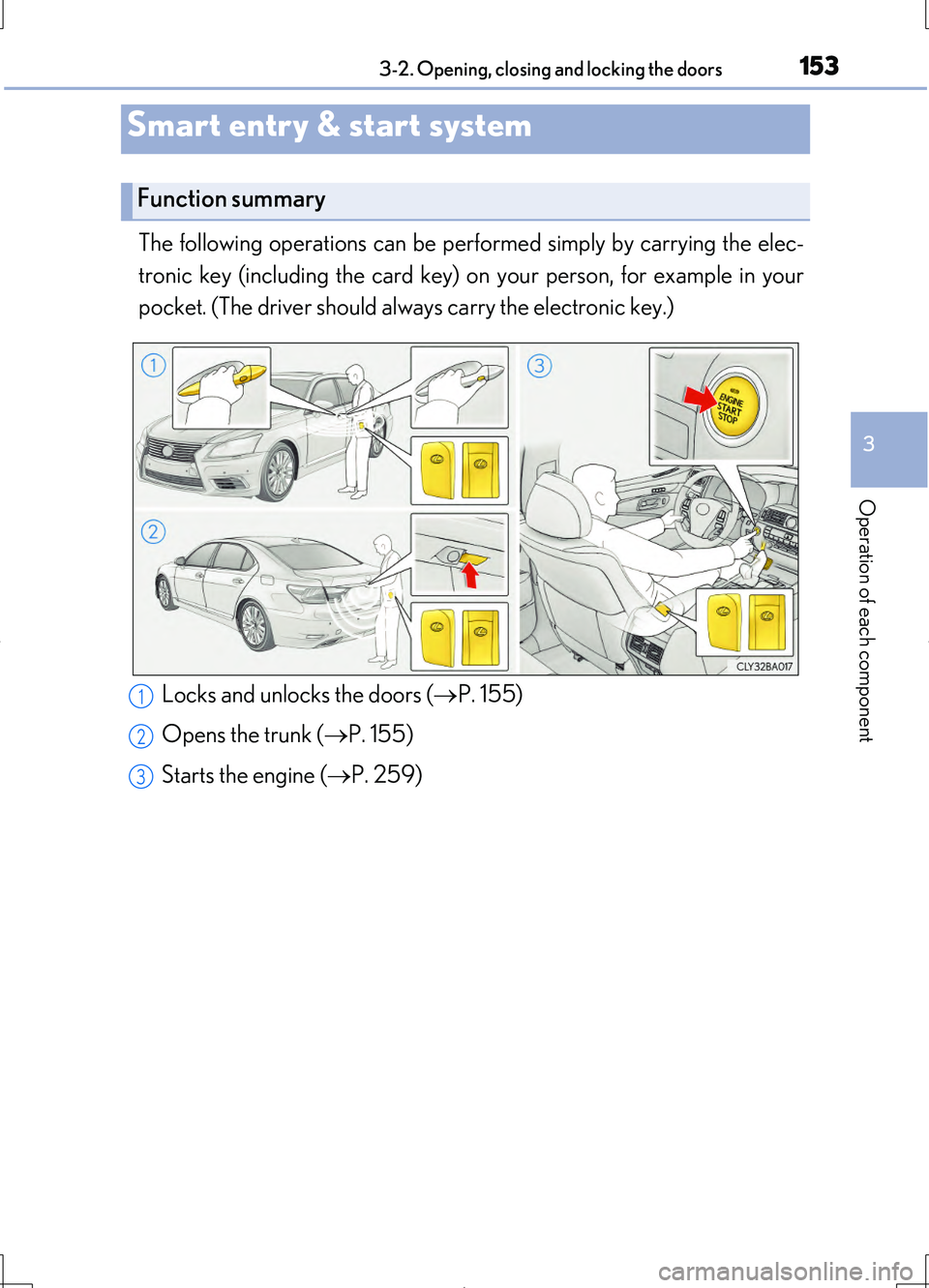

3-2. Opening, closing and locking the doors
The following operations can be performed simply by carrying the elec-
tronic key (including the card key) on your person, for example in your
pocket. (The driver should always carry the electronic key.)
Smart entry & start system
Function summary
Locks and unlocks the doors ( P. 155)
Opens the trunk ( P. 155)
Starts the engine ( P. 259)
1
2
3

1553-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Grip the handle to unlock the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3
seconds after the doors are locked.
Press the lock button to lock the
door.
Check that the door is securely
locked.
Pressing and holding the button closes
the windows.
The moon roof will also close.
(if equipped)
Press the button.
The trunk lid automatically opens fully.
When all the doors are unlocked using
one of the following methods, the
trunk can be opened without the elec-
tronic key:
• Entry function
• Wireless remote control
• Door lock switches
• Automatic door unlocking system
• Mechanical key
Unlocking and locking the doors
Opening the trunk
