8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
*: Minimum pedal clearance when depressed with a force of 500 N (51 kgf, 112 lbf)
while the engine is running.
When performing the brake pedal inspection, also be sure to check that the
brake system warning light is not illuminated when the engine is running (If the
brake system warning light is illuminated, refer to P. 605).
Brakes
Pedal clearance*147 mm (5.8 in.) Min.
Pedal free play1.0 - 2.0 mm (0.04 - 0.08 in.)
Fluid typeSAE J1703 or FMVSS No.116 DOT 3 or,
SAE J1704 or FMVSS No.116 DOT 4
Steering
Free playLess than 30 mm (1.2 in.)

665
8
8-1. Specifications
Vehicle specifications
LS460/LS460L_GE (OM50G06E)

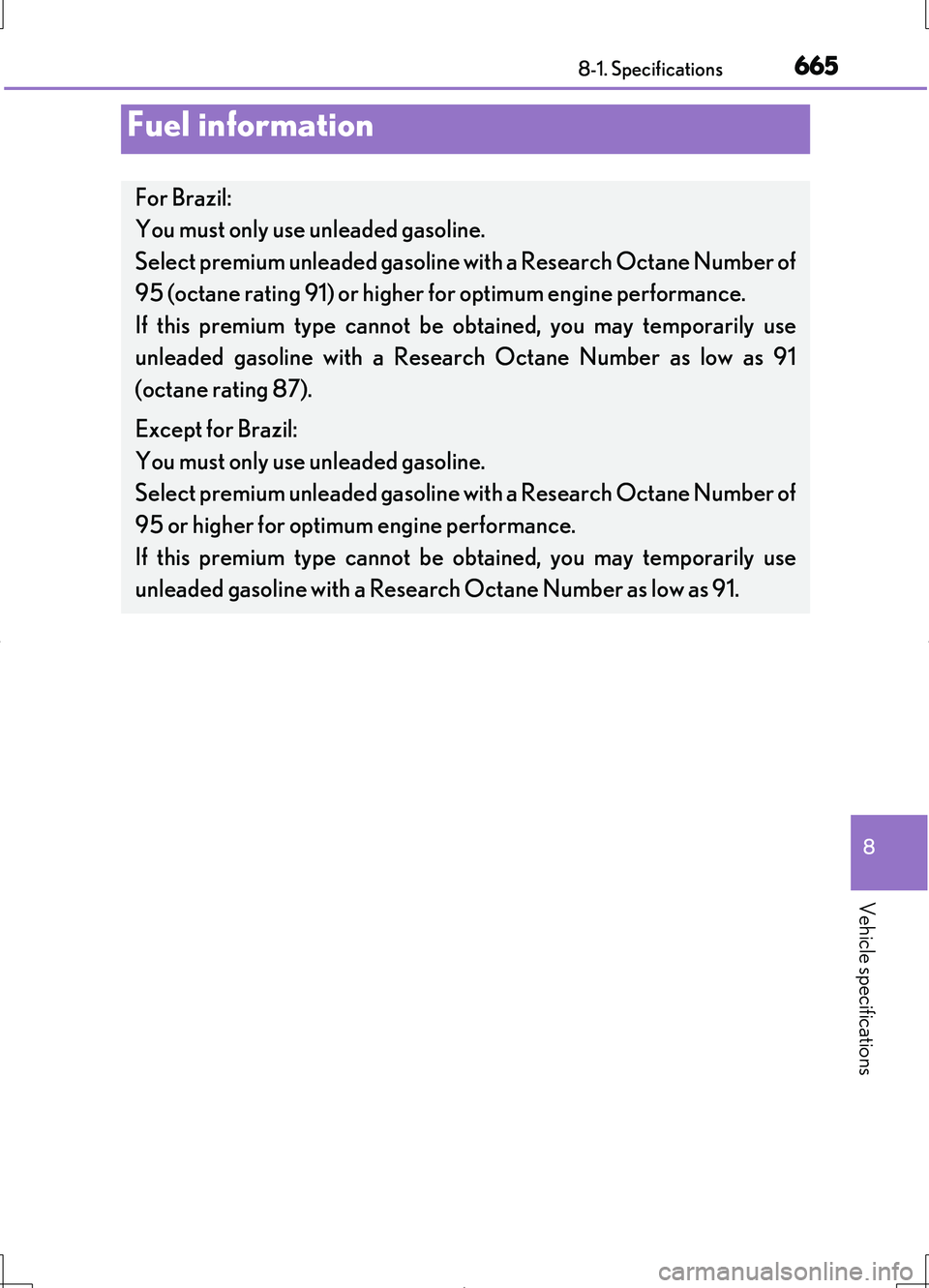

Fuel information
For Brazil:
You must only use unleaded gasoline.
Select premium unleaded gasoline wi th a Research Octane Number of
95 (octane rating 91) or higher for optimum engine performance.
If this premium type cannot be obtained, you may temporarily use
unleaded gasoline with a Resear ch Octane Number as low as 91
(octane rating 87).
Except for Brazil:
You must only use unleaded gasoline.
Select premium unleaded gasoline wi th a Research Octane Number of
95 or higher for optimum engine performance.
If this premium type cannot be obtained, you may temporarily use
unleaded gasoline with a Research Octane Number as low as 91.

6668-1. Specifications
LS460/LS460L_GE (OM50G06E)

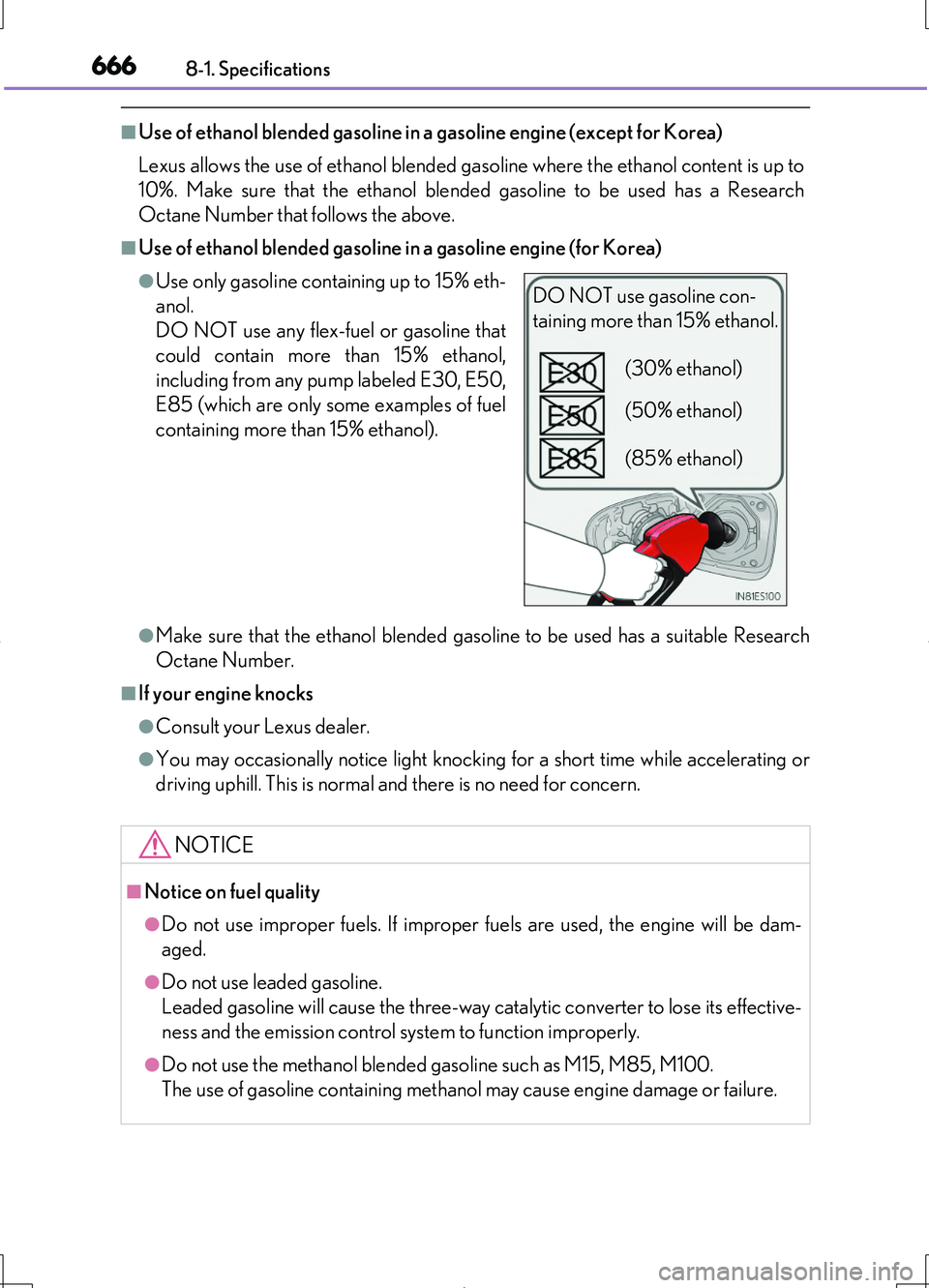

■Use of ethanol blended gasoline in a gasoline engine (except for Korea)
Lexus allows the use of ethanol blended gasoline where the ethanol content is up to
10%. Make sure that the ethanol blended gasoline to be used has a Research
Octane Number that follows the above.
■Use of ethanol blended gasoline in a gasoline engine (for Korea)
●Make sure that the ethanol blended gasoline to be used has a suitable Research
Octane Number.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating or
driving uphill. This is normal and there is no need for concern.
●Use only gasoline containing up to 15% eth-
anol.
DO NOT use any flex-fuel or gasoline that
could contain more than 15% ethanol,
including from any pump labeled E30, E50,
E85 (which are only some examples of fuel
containing more than 15% ethanol).
NOTICE
■Notice on fuel quality
●Do not use improper fuels. If improper fuels are used, the engine will be dam-
aged.
●Do not use leaded gasoline.
Leaded gasoline will cause the three-way catalytic converter to lose its effective-
ness and the emission control system to function improperly.
●Do not use the methanol blended gasoline such as M15, M85, M100.
The use of gasoline containing methanol may cause engine damage or failure.
DO NOT use gasoline con-
taining more than 15% ethanol.
(30% ethanol)
(50% ethanol)
(85% ethanol)

6768-2. Customization
LS460/LS460L_GE (OM50G06E)

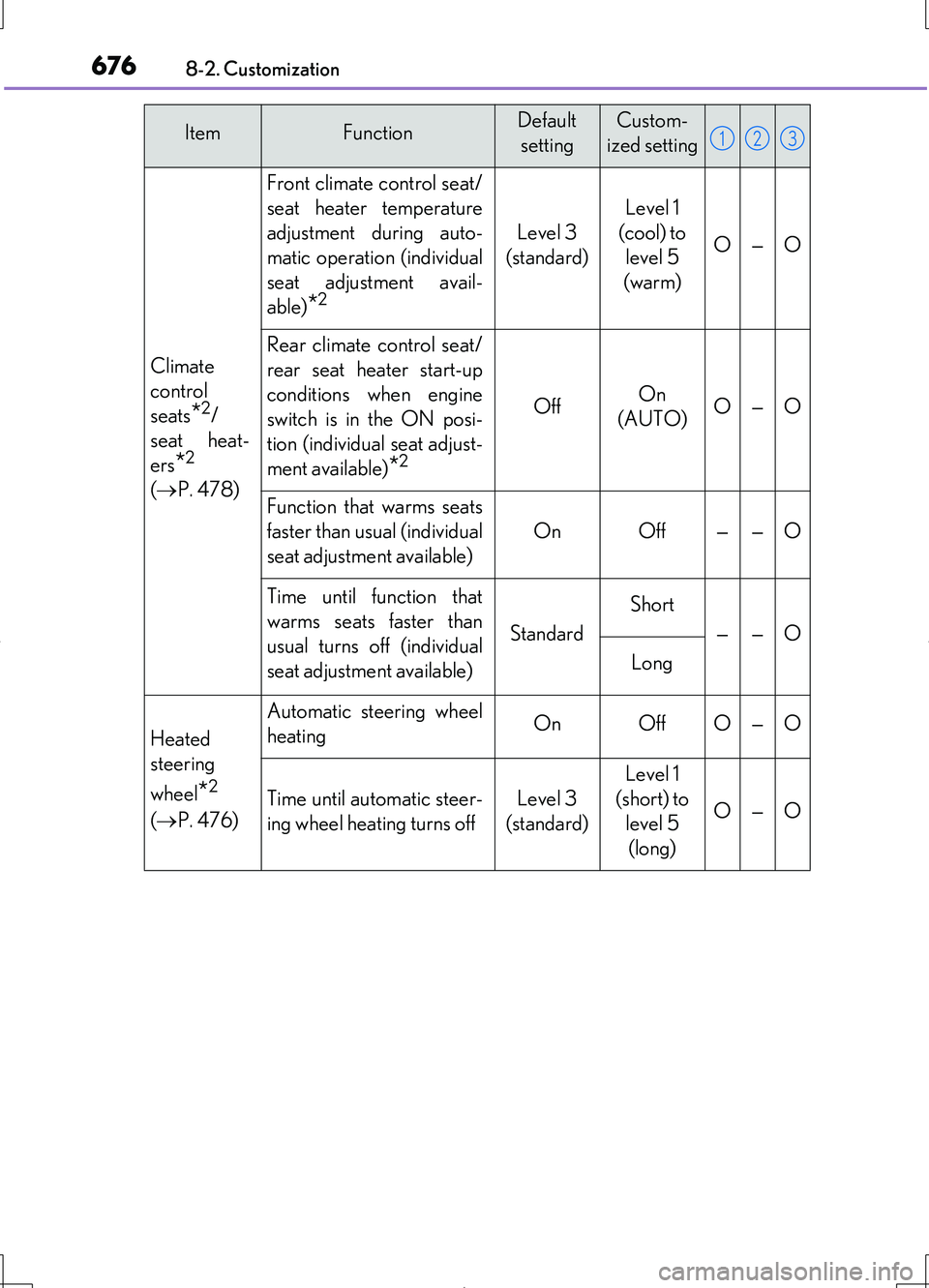

Climate
control
seats*2/
seat heat-
ers*2
( P. 478)
Front climate control seat/
seat heater temperature
adjustment during auto-
matic operation (individual
seat adjustment avail-
able)*2
Level 3
(standard)
Level 1
(cool) to
level 5
(warm)
O—O
Rear climate control seat/
rear seat heater start-up
conditions when engine
switch is in the ON posi-
tion (individual seat adjust-
ment available)*2
OffOn
(AUTO)O—O
Function that warms seats
faster than usual (individual
seat adjustment available)
OnOff——O
Time until function that
warms seats faster than
usual turns off (individual
seat adjustment available)
Standard
Short
——O
Long
Heated
steering
wheel*2
( P. 476)
Automatic steering wheel
heatingOnOffO—O
Time until automatic steer-
ing wheel heating turns off
Level 3
(standard)
Level 1
(short) to
level 5
(long)
O—O
ItemFunctionDefault
setting
Custom-
ized setting123

677
8
8-2. Customization
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
Illumination
( P. 447)
Time elapsed before the
interior lights turn off15 seconds
Off
O—O
7.5
seconds
30
seconds
Operation after the engine
switch is turned offOnOff——O
Operation when the doors
are unlockedOnOff——O
Operation when you
approach the vehicle with
the electronic key on your
person
OnOff——O
Footwell and inside door
handle lightsOnOff——O
Shift lever lightOnOff——O
Seat belt buckle illumina-
tion when driver’s door is
opened
OnOff——O
Seat belt buckle illumina-
tion after the engine switch
is turned off
OnOff——O
Instrument panel illumina-
tion method
Choreo-
graphed
illumination
Simple illu-
mination——O
Off
Exterior light controlOnOff——O
Time elapsed before the
outer foot lights turn off15 seconds
Off
O—O
7.5
seconds
30
seconds
ItemFunctionDefault
setting
Custom-
ized setting123

679
8
8-2. Customization
Vehicle specifications
LS460/LS460L_GE (OM50G06E)
■Vehicle customization
●When the speed-detecting automatic door lock and shift-linked automatic door
lock are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will be
locked.
• If the vehicle is started with all doors locked, the speed- detecting automatic
door lock will not operate.
• If the vehicle is started with any door unlocked, the speed- detecting automatic
door lock will operate.
●When the smart entry & start system is off, the entry unlock function cannot be cus-
tomized.
●When the doors remain closed after unlocking the doors and the timer activated
automatic door lock function activates, signals will be generated in accordance
with the operation buzzer volume and operational signal (Emergency flashers)
function settings.
■When customizing using the Remote Touch
Stop the vehicle in a safe place, apply the parking brake, and shift the shift lever to P.
Also, to prevent battery discharge, leave the engine running while customizing the
features.
CAUTION
■During customization
As the engine needs to be running during customization, ensure that the vehicle is
parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful carbon mo noxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
■During customization
To prevent battery discharge, ensure that the engine is running while customizing
features.

682
LS460/LS460L_GE (OM50G06E)
What to do if... (Troubleshooting)
What to do if... (Troubleshooting)
●If you lose your mechanical keys, new genuine mechanical keys
can be made by your Lexus dealer. ( P. 147)
●If you lose your electronic keys, the risk of vehicle theft
increases significantly. Contact your Lexus dealer immediately.
( P. 152)
●Is the electronic key battery weak or depleted? (P. 575)
●Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 260)
●Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the elec-
tronic key on your person.
●The function may not operate properly due to the condition of
the radio wave. ( P. 163)
If you have a problem, check the following before contacting your
Lexus dealer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked

684What to do if... (Troubleshooting)
LS460/LS460L_GE (OM50G06E)
●Did you press the engine switch while firmly depressing the
brake pedal? ( P. 259)
●Is the shift lever in P? (P. 259)
●Is the electronic key anywhere detectable inside the vehicle?
( P. 157)
●Is the steering wheel unlocked? (P. 261)
●Is the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way.
( P. 634)
●Is the battery discharged? (P. 636)
●Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake
pedal with the engine switch in IGNITION ON mode
( P. 267, 275)
●It is locked automatically to prevent theft of the vehicle.
( P. 261)
If you think something is wrong
The engine does not start
The shift lever cannot be shifted from P even if you depress the
brake pedal
The steering wheel cannot be turned after the engine is stopped
