2016 LEXUS LS460L tow

821-1. For safe use
LS460/LS460L_GE (OM50G06E)
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of univer-
sal category approved for use in this mass group.
IL: Suitable for child restraint systems shown in the ISOFIX child
restraint system list.
When using a “LEXUS MINI” or “LEXUS MIDI”, adjust the support leg
and ISOFIX connectors as follows:
Lock the ISOFIX connectors
where numbers 3 and 4 and 5
can be seen.
Lock the support leg where 4th
hole can be seen.
X: ISOFIX position not suitable for ISOFIX child restraint systems in
this mass group and/or this size class.
*: If the ottoman interferes with your child restraint system and the child restraint
system cannot be installed correctly, move the rear seat to the rearmost position
and stow the ottoman.
If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
The child restraint system mentioned in the table may not be available out-
side of the EU area.
1
2

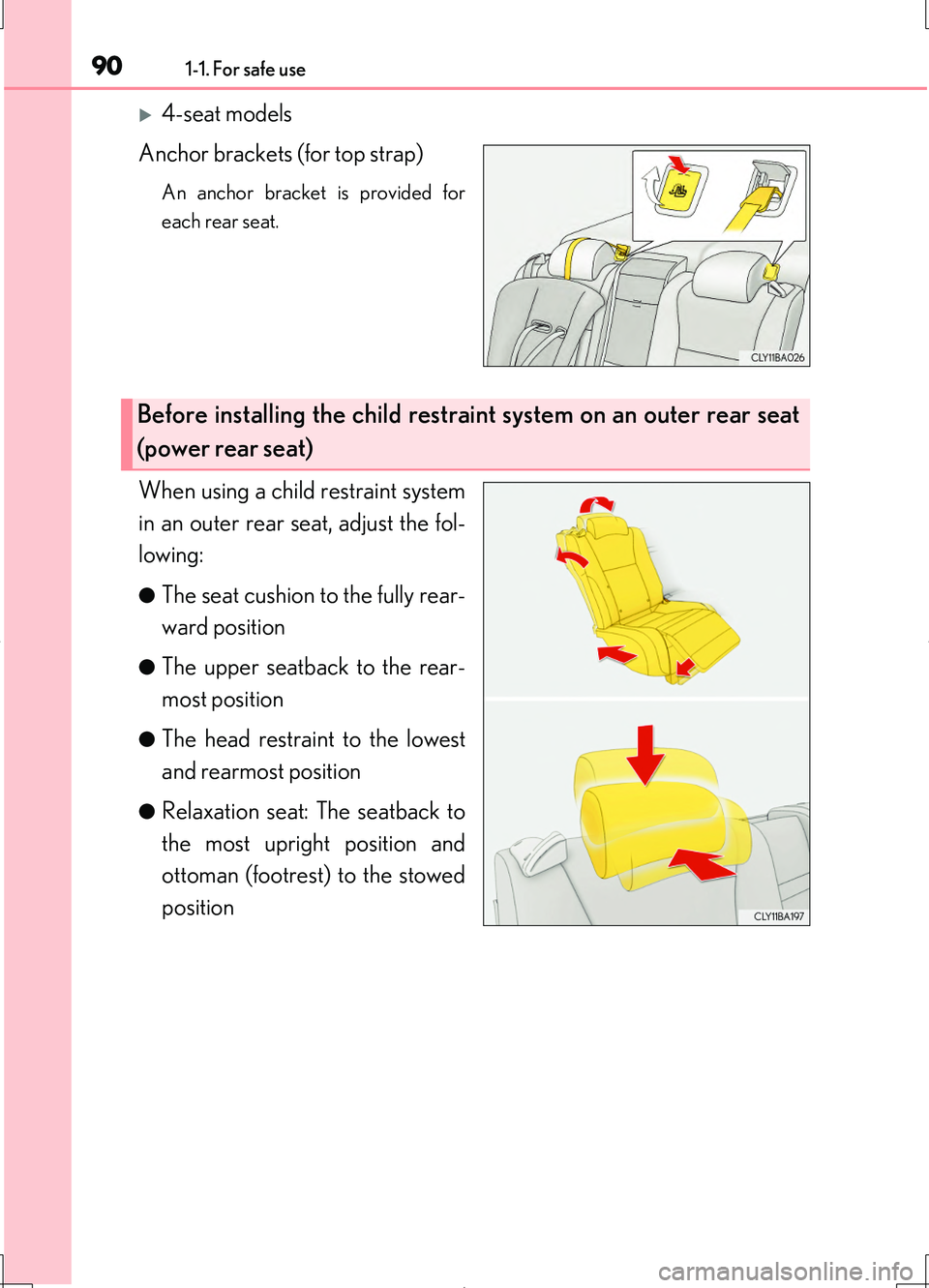

901-1. For safe use
LS460/LS460L_GE (OM50G06E)
4-seat models
Anchor brackets (for top strap)
An anchor bracket is provided for
each rear seat.
When using a child restraint system
in an outer rear seat, adjust the fol-
lowing:
●The seat cushion to the fully rear-
ward position
●The upper seatback to the rear-
most position
●The head restraint to the lowest
and rearmost position
●Relaxation seat: The seatback to
the most upright position and
ottoman (footrest) to the stowed
position
Before installing the child restraint system on an outer rear seat
(power rear seat)

1151-2. Theft deterrent system
1
For safety and security
LS460/LS460L_GE (OM50G06E)
●The intrusion sensor detects intruders or movement in the vehicle.
●The tilt sensor detects changes in ve hicle inclination, such as when the
vehicle is towed away.
This system is designed to deter an d prevent vehicle theft but does not
guarantee absolute security against all intrusions.
■Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the
alarm is set. ( P. 112)
■Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make
sure to stop the intrusion sensor and tilt sensor before setting the alarm,
as they will respond to movement inside the vehicle.
Turn the engine switch off.
Press the intrusion sensor and
tilt sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
Press the switch again to re-enable
the intrusion sensor and tilt sensor.
Intrusion sensor and tilt sensor (if equipped)
1
2

1633-2. Opening, closing and locking the doors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situations, the
communication between the electronic key and the vehicle may be affected, pre-
venting the smart entry & start system, wireless remote control and engine immobi-
lizer system from operating properly. (Ways of coping: P. 631)
●When the electronic key battery is depleted
●Near a TV tower, electric power plant, gas station, radio station, large display, air-
port or other facility that generates strong radio waves or electrical noise
●When carrying a portable radio, cellular phone, cordless phone or other wireless
communication device
●When the electronic key is in contact with, or is covered by the following metallic
objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
•Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
●When multiple electronic keys are in the vicinity
●When other wireless keys (that emit radio waves) are being used nearby
●When carrying the electronic key together with the following devices that emit
radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the rear
window

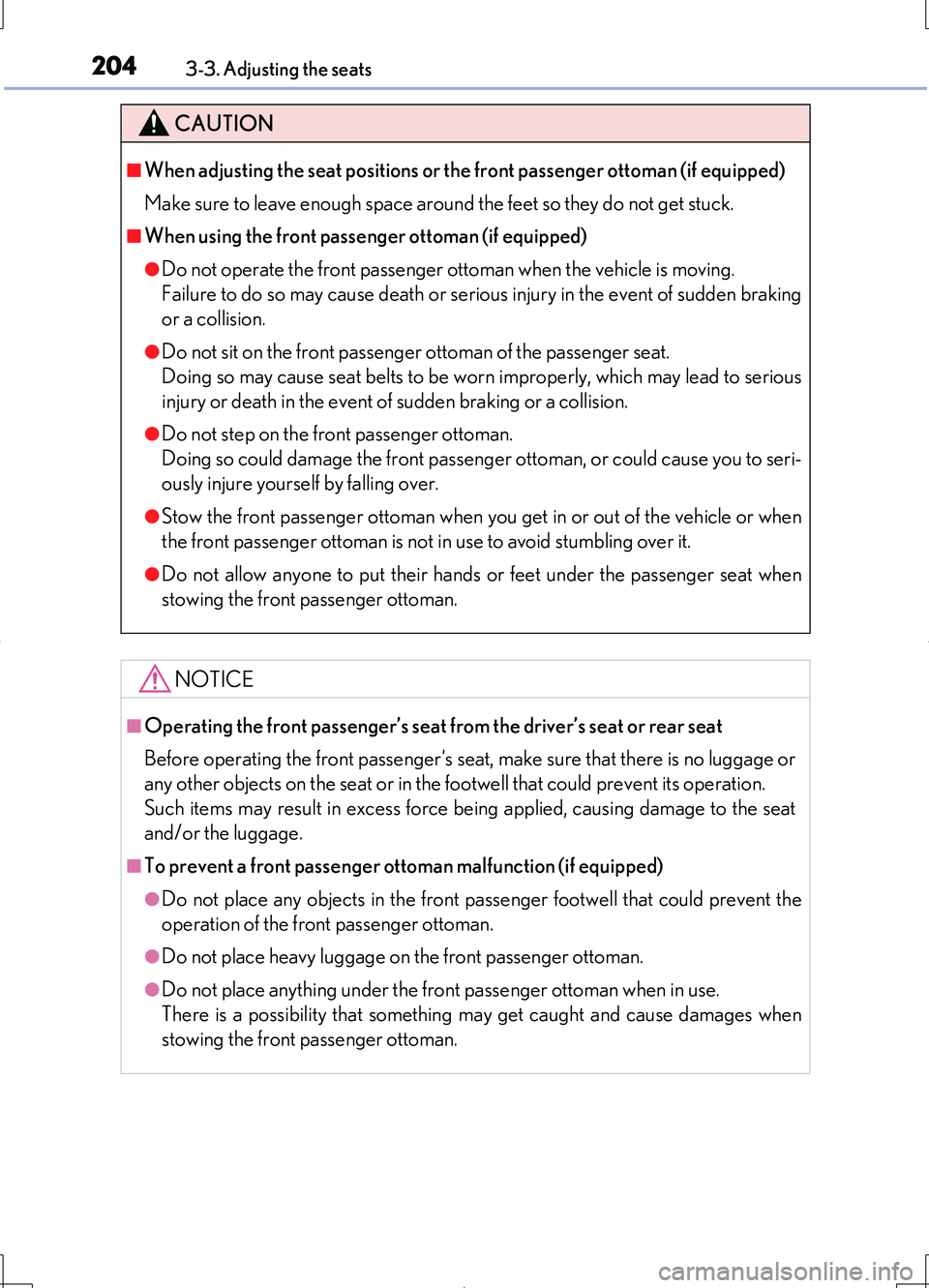

2043-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
CAUTION
■When adjusting the seat positions or the front passenger ottoman (if equipped)
Make sure to leave enough space around the feet so they do not get stuck.
■When using the front passenger ottoman (if equipped)
●Do not operate the front passenger ottoman when the vehicle is moving.
Failure to do so may cause death or serious injury in the event of sudden braking
or a collision.
●Do not sit on the front passenge r ottoman of the passenger seat.
Doing so may cause seat belts to be worn improperly, which may lead to serious
injury or death in the event of sudden braking or a collision.
●Do not step on the front passenger ottoman.
Doing so could damage the front passenge r ottoman, or could cause you to seri-
ously injure yourself by falling over.
●Stow the front passenger ottoman when yo u get in or out of the vehicle or when
the front passenger ottoman is not in use to avoid stumbling over it.
●Do not allow anyone to put their hands or feet under the passenger seat when
stowing the front passenger ottoman.
NOTICE
■Operating the front passenger’s seat from the driver’s seat or rear seat
Before operating the front passenger’s seat, make sure that there is no luggage or
any other objects on the seat or in the footwell that could prevent its operation.
Such items may result in excess force being applied, causing damage to the seat
and/or the luggage.
■To prevent a front passenger ottoman malfunction (if equipped)
●Do not place any objects in the front passenger footwell that could prevent the
operation of the front passenger ottoman.
●Do not place heavy luggage on the front passenger ottoman.
●Do not place anything under the front passenger ottoman when in use.
There is a possibility that something may get caught and cause damages when
stowing the front passenger ottoman.

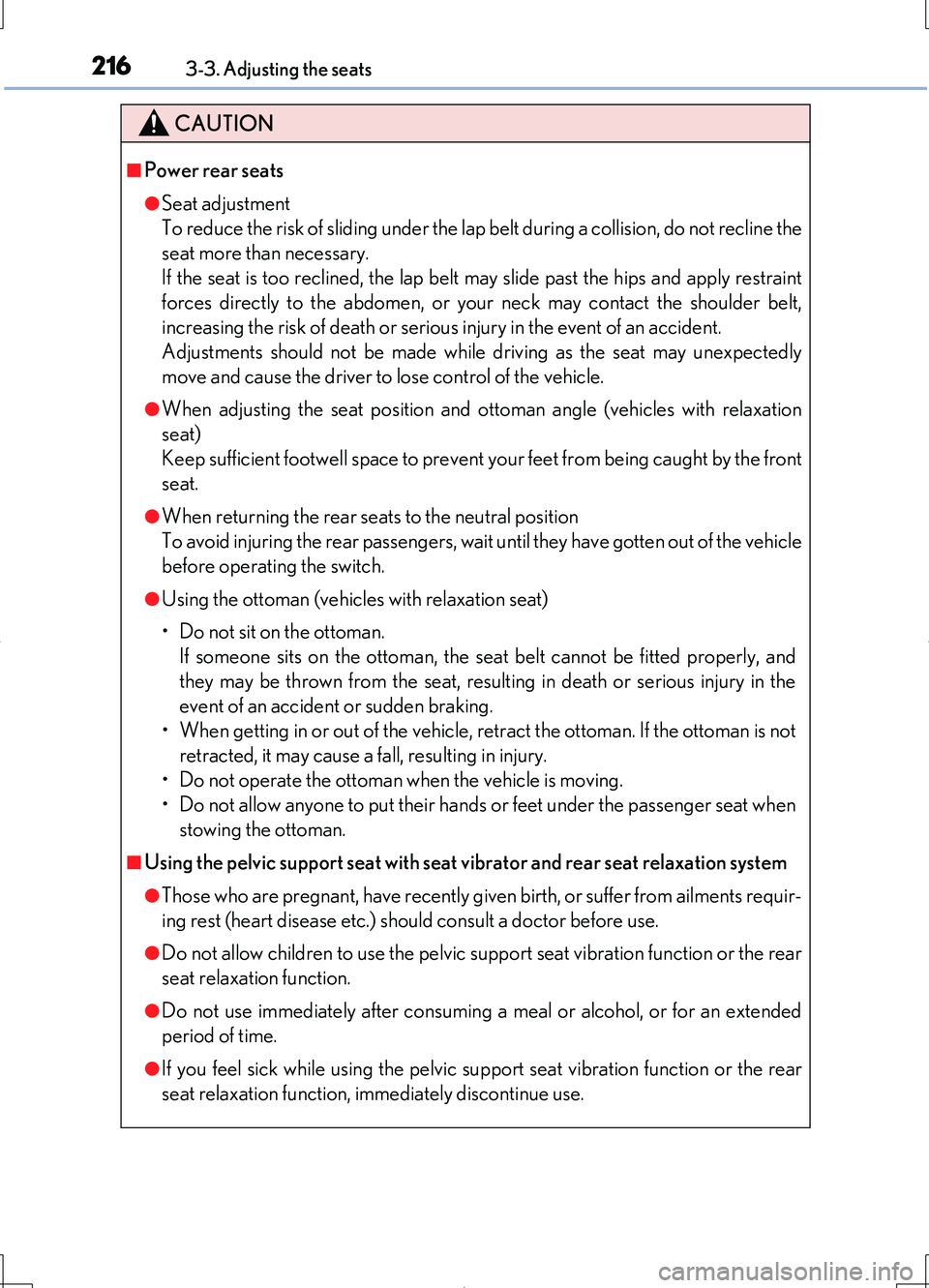

2163-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
CAUTION
■Power rear seats
●Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or yo ur neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly
move and cause the driver to lose control of the vehicle.
●When adjusting the seat position and ottoman angle (vehicles with relaxation
seat)
Keep sufficient footwell space to prevent your feet from being caught by the front
seat.
●When returning the rear seats to the neutral position
To avoid injuring the rear passengers, wait until they have gotten out of the vehicle
before operating the switch.
●Using the ottoman (vehicles with relaxation seat)
• Do not sit on the ottoman.
If someone sits on the ottoman, the seat belt cannot be fitted properly, and
they may be thrown from the seat, resulting in death or serious injury in the
event of an accident or sudden braking.
• When getting in or out of the vehicle, retract the ottoman. If the ottoman is not
retracted, it may cause a fall, resulting in injury.
• Do not operate the ottoman when the vehicle is moving.
• Do not allow anyone to put their hands or feet under the passenger seat when
stowing the ottoman.
■Using the pelvic support seat with seat vibrator and rear seat relaxation system
●Those who are pregnant, have recently given birth, or suffer from ailments requir-
ing rest (heart disease etc.) should consult a doctor before use.
●Do not allow children to use the pelvic support seat vibration function or the rear
seat relaxation function.
●Do not use immediately after consuming a meal or alcohol, or for an extended
period of time.
●If you feel sick while using the pelvic support seat vibration function or the rear
seat relaxation function, immediately discontinue use.

2193-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■Recall procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Press one of the switches for
the driving position you want
to recall until the buzzer
sounds.
■When you want to stop the position recall operation part-way through
Perform any of the following operations:
●Press the “SET” switch.
●Press switch “1”, “2” or “3”.
●Operate any of the seat adjustment switches (only cancels seat position recall).
●Operate the tilt and telescopic steering control switch (only cancels steering wheel
position recall).
●Operate the seat belt shoulder anchor height adjusting switch (only cancels height
of seat belt shoulder anchor recall).
■Front passenger’s seat position recall limitations
Vehicles with front passenger ottoman:
The memorized position will only be recalled if the front passenger ottoman is in a
position higher than the memorized position. It will not move in an upward direction.
Vehicles with relaxation seat:
When retractable table (4-seat models) or ottoman is used, rearward memories
cannot be recalled.
■Automatic front passenger ottoman adjustment (if equipped)
While the memorized position is being recalled, if it appears that the front edge of
the cushion will make contact with the area surrounding the instrument panel, the
front passenger ottoman will be automatically stowed.
1
2
3

2273-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
■When using the rear seat head restraints
Manual type:
Always raise the head restraint one level from the stowed position when using.
Rear center seat:
Make sure to pull the head restraint forward when using the rear center seat.
■Active head restraints (if equipped)
●The active head restraint on the front passenger seat will not activate if the seat is
unoccupied. However, it may activate during a rear-end collision if luggage is in the
seat or the seat belt is fastened.
●Once the active head restraint has activated, the head restraint remains protruded
forward and upward. After it has operated, have it repaired at your Lexus dealer.
CAUTION
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to do so
may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●Manual type: After adjusting the head restraints, push down on them and make
sure they are locked in position.
●Do not drive with the head restraints removed.
■The active head restraint on the front passenger seat (if equipped)
Do not place anything, such as a cushion, on the front passenger’s seat.
Doing so will disperse the passenger’s weight, which may prevents the sensor from
detecting the passenger’s weight properly. As a result, the active head restraint
may not activate in the event of an accident.
■Active head restraint precautions (if equipped)
●Do not put head restraint covers.
●For removal, installation, modification, disassembly or disposal of the active head
restraints, contact your Lexus dealer.
Inappropriate handling of the active head restraints may prevent them from oper-
ating properly during an accident.
