2. Instrument cluster
◆Instrument cluster
The units used on the speedometer may differ depending on the target region.
◆Center panel
Warning lights and indicators
The warning lights and indicators on the instrument cluster, center
panel and outside rear view mirrors inform the driver of the status of
the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all
warning lights and indicators illuminated.
Vehicles with airbag manual
on-off system
Vehicles with front passenger
occupant classification system

1212. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)

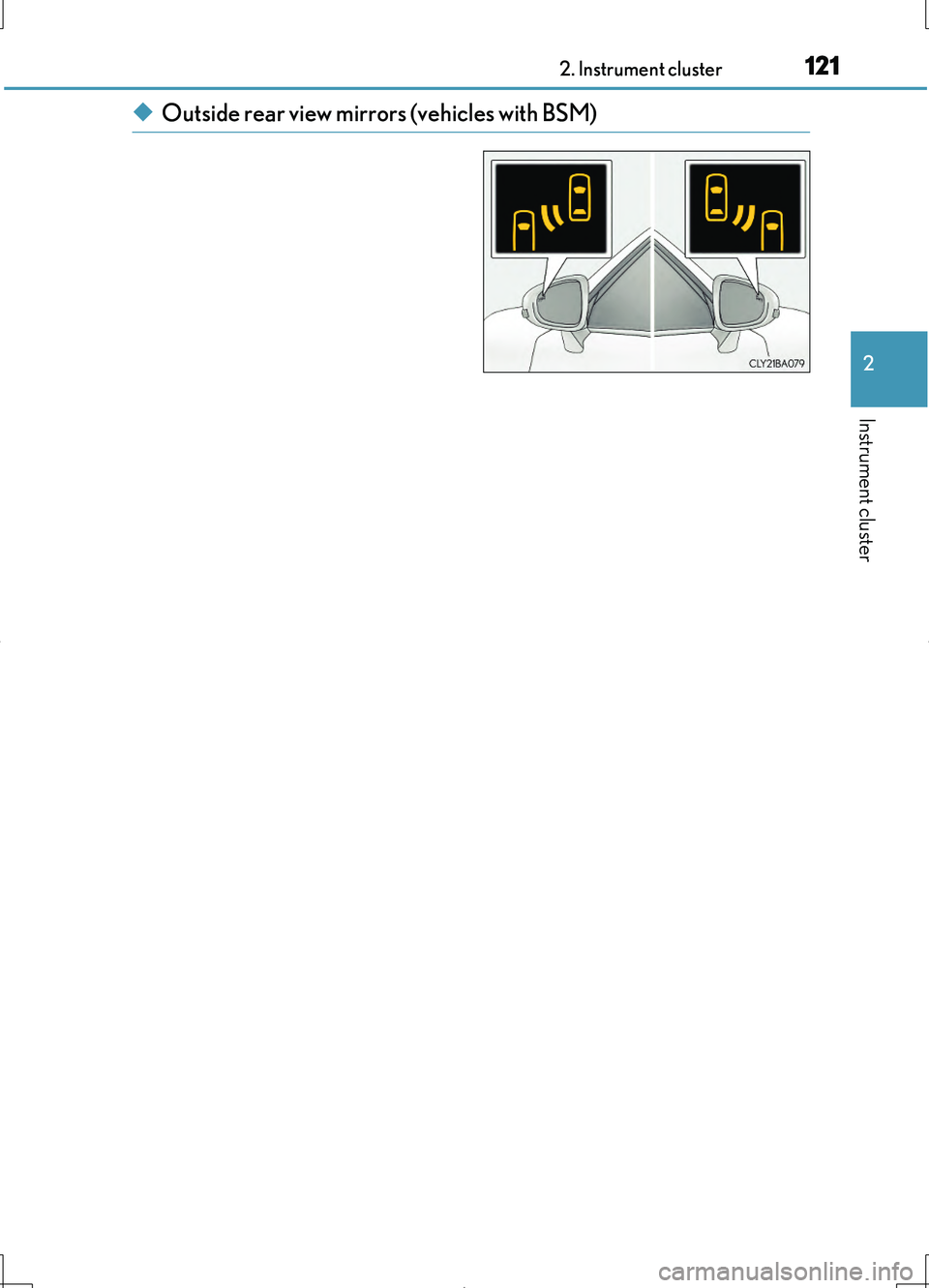

◆Outside rear view mirrors (vehicles with BSM)

1232. Instrument cluster
2
Instrument cluster
LS460/LS460L_GE (OM50G06E)
The indicators inform the driver of the operating state of the vehicle’s vari-
ous systems.
Indicators
Turn signal indicator
( P. 278)
*1Brake hold operated indi-
cator ( P. 282)
Tail light indicator
( P. 285)
Cruise control “SET”
indicator
( P. 309, 313, 328)
Headlight high beam
indicator ( P. 287)
Cruise control indicator
( P. 309, 313, 328)
(if equipped)
Adaptive High-beam Sys-
tem indicator ( P. 291)(if equipped)
Radar cruise control
indicator ( P. 313, 328)
Front fog light indicator
( P. 298)(if equipped)
LKA (Lane-Keeping
Assist) indicator
( P. 344)
(if equipped)
Rear fog light indicator
( P. 298)
*1
(if equipped)
“HEIGHT HIGH” indica-
tor ( P. 358)
*1
(if equipped)
Gear Shift Indicator
( P. 273)
*1, 2
Slip indicator (P. 362)
Snow mode indicator
( P. 266, 274)
*1VSC (Vehicle Stability
Control) OFF indicator
( P. 363)
*1Parking brake indicator
( P. 279)
*1, 3
(if equipped)
Pre-crash safety system
warning light ( P. 370)
*1Brake hold standby indica-
tor ( P. 282)
*4
(if equipped)
BSM (Blind Spot Monitor)
outside rear view mirror
indicators ( P. 381)

1242. Instrument cluster
LS460/LS460L_GE (OM50G06E)
*1: These lights come on when the engine switch is turned to IGNITION ON mode
to indicate that a system check is being performed. They will go off after the
engine is on, or after a few seconds. There may be a malfunction in a system if the
lights do not come on, or go off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off. The light flashes faster than
usual to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirror indicators illumi-
nate in the following situations:
• When the engine switch is turned to IGNITION ON mode while the BSM main
switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is in IGNI-
TION ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators
will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
*1
(if equipped)
“AIR BAG ON/
OFF” indicator
( P. 64)
*1
(if equipped)
“PASSENGER
AIR BAG” indica-
tor ( P. 69)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.

143
3
Operation of
each component
LS460/LS460L_GE (OM50G06E)
3-1. Key information
Keys ...................................................144
3-2. Opening, closing and
locking the doors
Smart entry &
start system................................. 153
Wireless remote control........... 177
Doors ............................................... 186
Trunk .................................................. 191
3-3. Adjusting the seats
Front seats...................................... 198
Power rear seat ..........................205
Driving position memory ......... 218
Rear seat position memory.... 223
Head restraints ........................... 225
3-4. Adjusting the steering
wheel and mirrors
Steering wheel ............................ 228
Inside rear view mirror ............ 229
Outside rear view
mirrors ......................................... 232
3-5. Opening, closing the
windows and moon roof
Power windows .......................... 236
Moon roof ..................................... 240

2183-3. Adjusting the seats
LS460/LS460L_GE (OM50G06E)
Your preferred driving position (the position of the driver’s seat, steering
wheel, outside rear view mirrors and he ight of seat belt shoulder anchor)
can be recorded and recalled by pressing a switch.
Three different driving positions can be recorded into memory.
■Recording procedure
Check that the shift lever is in P.
Turn the engine switch to IGNITION ON mode.
Adjust the driver’s seat, steering wheel, outside rear view mirrors and
seat belt shoulder anchor height to the desired positions.
Press the “SET” switch, then
within 3 seconds press switch
“1”, “2” or “3” until the buzzer
sounds.
If the selected switch has already
been preset, the previously
recorded position will be overwrit-
ten.
To record the position of the front passenger’s seat, adjust the front pas-
senger’s seat to the desired posi tion and perform step using the
switches on the front passenger’s side.
Driving position memory
This feature automatically adjusts the front seats, steering wheel, out-
side rear view mirrors and height of seat belt shoulder anchor to suit
your preferences.
Driving position memory
1
2
3
4
4

2213-3. Adjusting the seats
3
Operation of each component
LS460/LS460L_GE (OM50G06E)
Using the door lock switch
Carry only one of the keys (including the card key) to which you want to
link the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the engine switch off and close the driver’s door.
While pressing the recalled
switch, press and hold the door
lock switch (either lock or
unlock) until the buzzer
sounds.
■Recall procedure
Carry the electronic key that has be en registered to the driving posi-
tion, and then unlock and open the driver’s door using the smart
entry & start system or wireless remote control.
The driving position will move to the recorded position (not including the
steering wheel). However, the seat will move to a position slightly behind the
recorded position in order to make entering the vehicle easier.
If the driving position is in a position that has already been recorded, the seat
and outside rear view mirrors will not move.
Turn the engine switch to ACCESSO RY mode or fasten your seat-
belt.
The seat and steering wheel will move to the recorded position.
1
2
1
2

2293-4. Adjusting the steering wheel and mirrors
3
Operation of each component
LS460/LS460L_GE (OM50G06E)

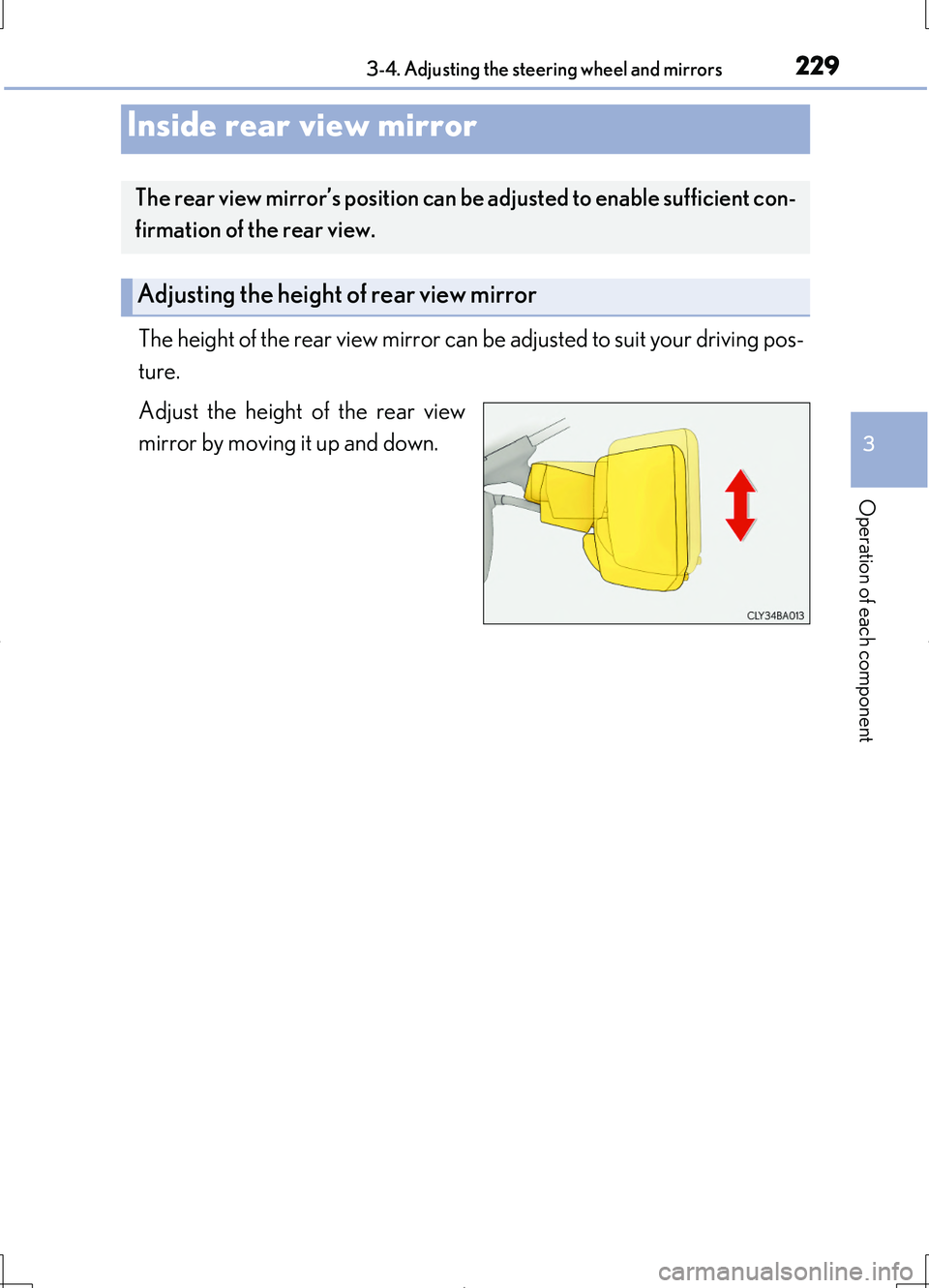

The height of the rear view mirror can be adjusted to suit your driving pos-
